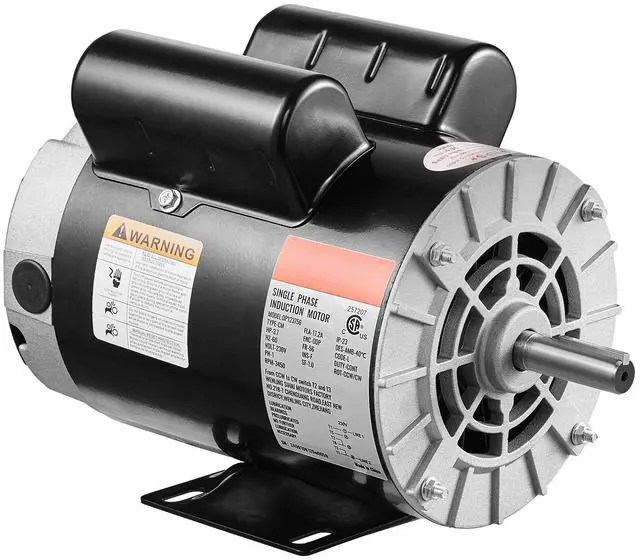

Main image of 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 2 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 3 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 4 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 5 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 6 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 7 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 8 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Alt view image 9 of 9 - 3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

Visit VEVOR Official Store US Store

3.7HP Air Compressor Motor, 3450RPM Electric Motor, 230V 17.2 Amps, 5/8" Keyed Shaft 56 Frame, 1.88" Shaft Length, Single Phase, CCW/CW Rotation (Factory Setting is CCW)

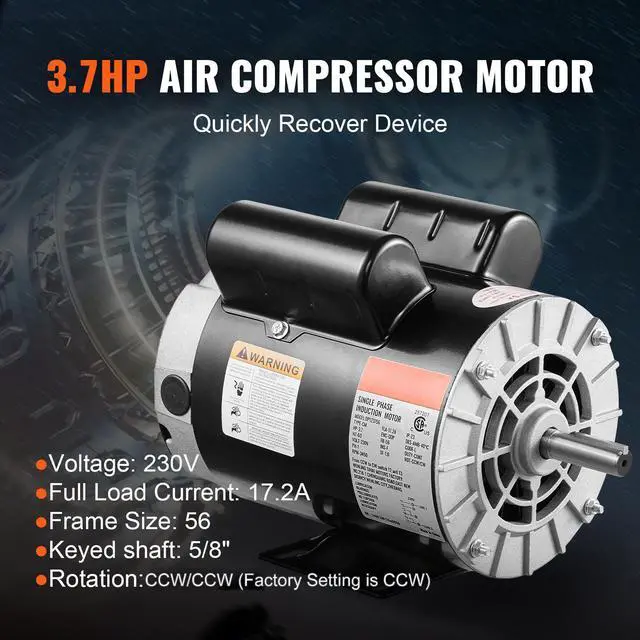

High Performance: 3.7HP 3450 RPM, Single Phase, Full Load Amps: 17.2Amp, 230V 60Hz, SF: 1.0.
Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CW/CCW (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 45 amps.)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications

Item Model Number: DP123756
Voltage: 230V
Frequency: 60HZ
Current: 17.2A
Rotation Speed: 3450rpm
SF: 1.0
Enclosure: ODP
Frame Size: 56
Shaft Diameter: 5/8" Keyed Shaft
Shaft Length: 1.88"
Keyway Size: 0.188"
Net Weight: 34.3 lbs / 15.55 Kg

Package Content
1 x Air Compressor Motor
