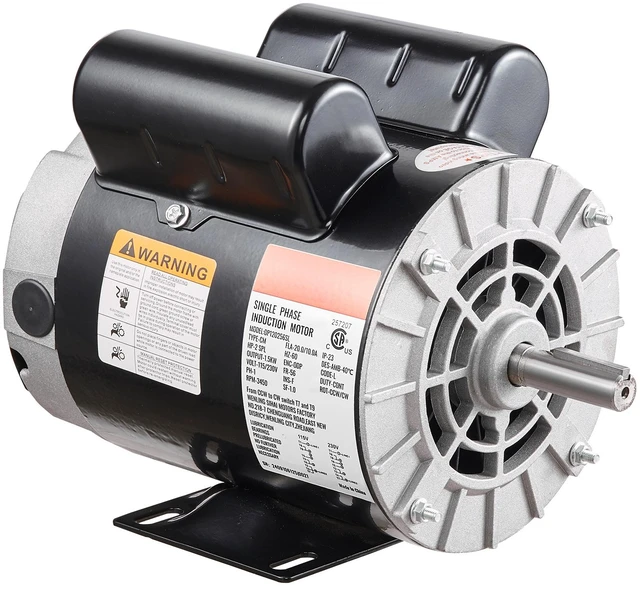

Main image of 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 2 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 3 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 4 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 5 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 6 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 7 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 8 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Alt view image 9 of 9 - 2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

Shop All VEVOR Products | Visit RedAnt Store

2HP SPL Air Compressor Electric Motor, 115/230V, 20/10 Amps, 56 Frame 3450RPM, 5/8" Keyed Shaft, 1.88" Shaft Length, Single Phase, CCW/CW (Factory Setting is CCW)

High Performance: 2HP SPL 3450 RPM, Single Phase, Full Load Amps: 20/10Amp, 115V/230V, SF: 1.0.
Frame Type: 56 Frame, 5/8" Keyed shaft, 1.88" Shaft length, 0.188" Keyway Size.
Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
Dual Rotation Direction: Motor is Reversible for CCW/CW rotation (Factory Setting is CCW), provides easier wiring operations.
Safe & Durable: A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage. (PLEASE NOTE: The circuit breaker supplied by the customer should be 50 amps at 115V, 25 amps at 230V.)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications

Item Model Number: DP120256SL
Voltage: 115V / 230V
Frequency: 60HZ
Current: 20 A / 10 A
SF: 1.0
Enclosure: ODP
Frame Size: 56
Shaft Diameter: 5/8" Keyed Shaft
Shaft Length: 1.88"
Keyway Size: 0.188"
Net Weight: 25.2 lbs / 11.45 kg

Package Content
1 x Air Compressor Motor
