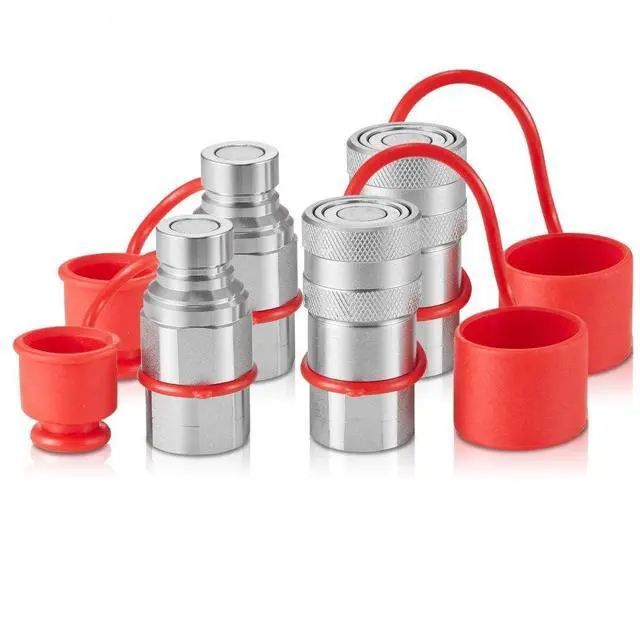

1/2" Flat Face Hydraulic Couplers, 1/2" NPT Skid Steer Hydraulic Quick Connect Couplers with 4 Dust Caps (ISO16028)

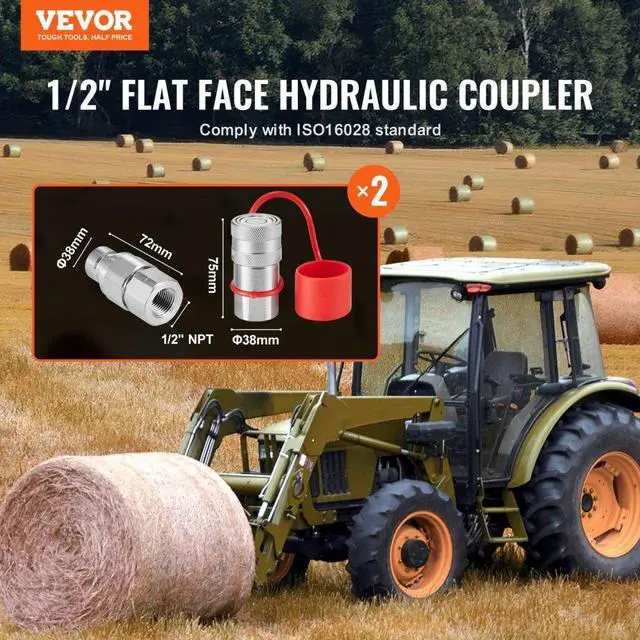

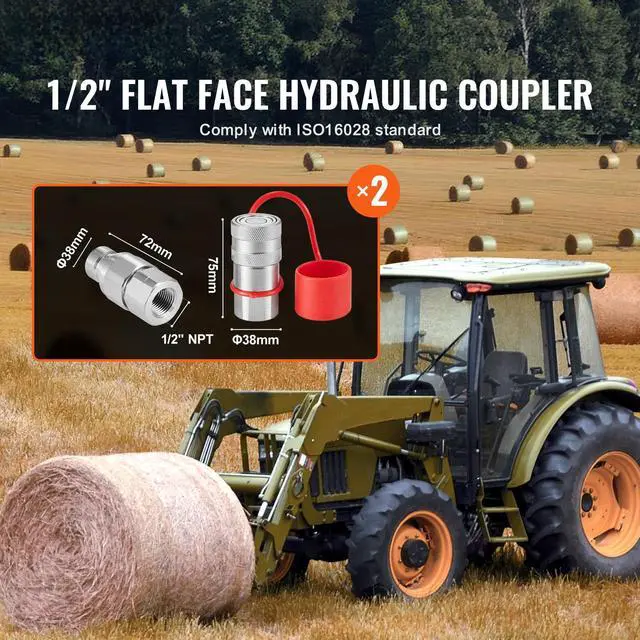

- Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

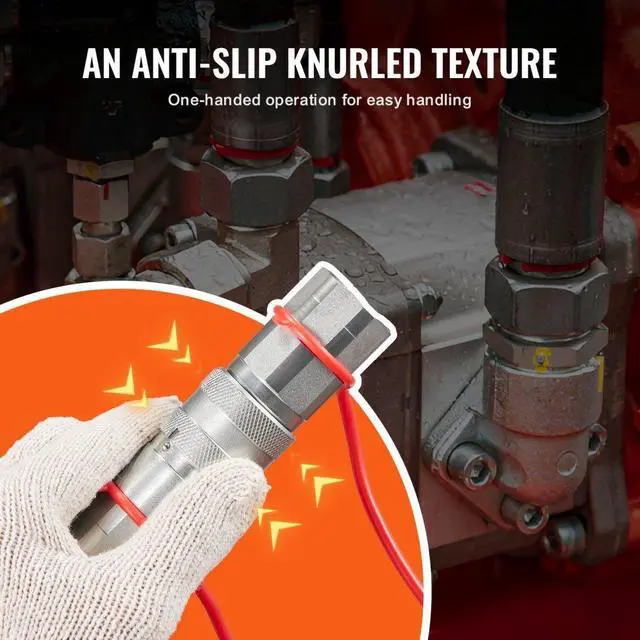

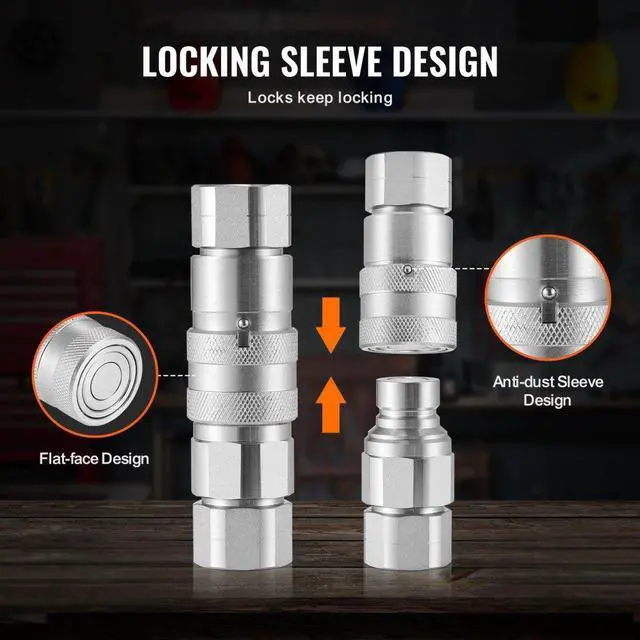

- Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

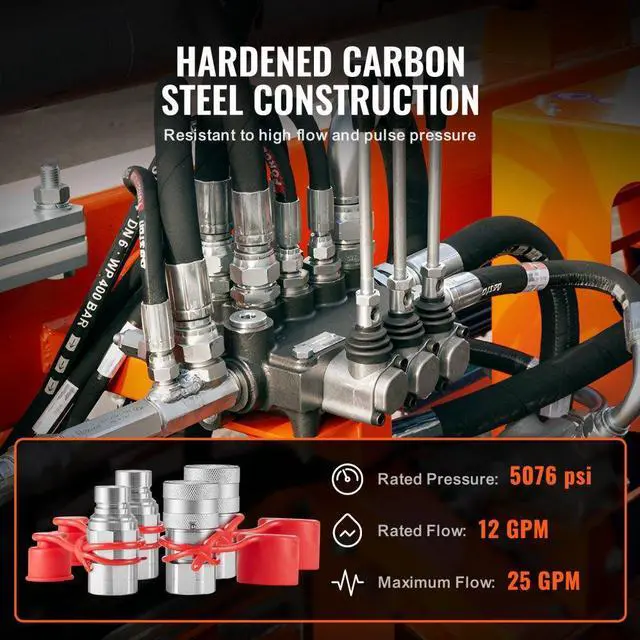

- Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

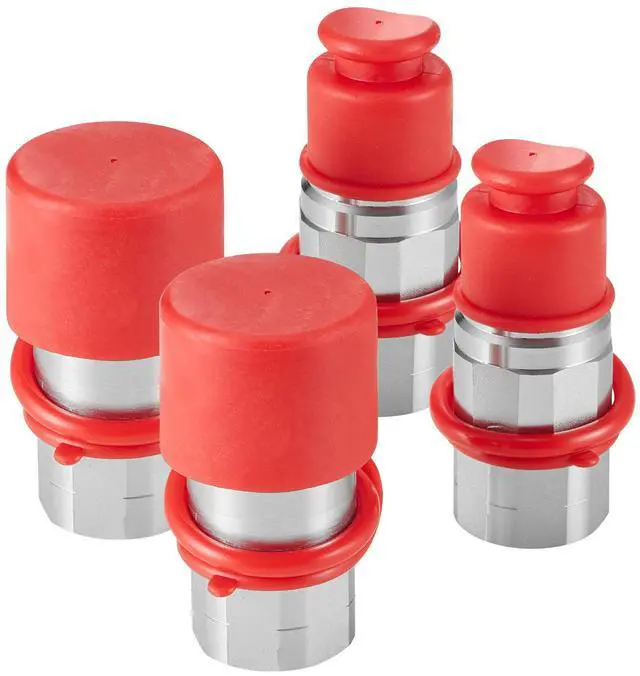

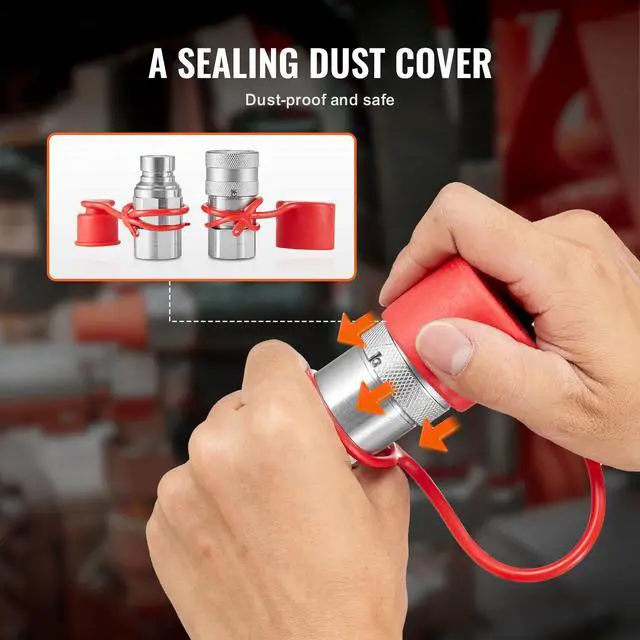

- Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

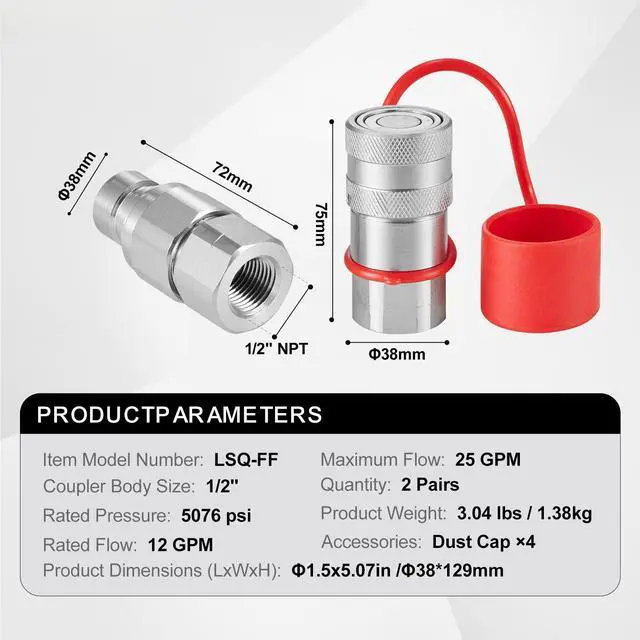

Specifications
Item Model Number: LSQ-FF
Coupler Type: Flat Face Hydraulic Coupler
Standard: ISO16028
Coupler Body Size: 1/2"
Rated Pressure: 5076 psi
Rated Flow: 12 GPM
Maximum Flow: 25 GPM
Quantity: 2 Pairs
Male Coupler Thread Size: 1/2" NPT (Internal Thread)
Female Coupler Thread Size: 1/2" NPT (Internal Thread)
Configuration: Dust Caps
Color: White
Main Material: 45# Carbon Steel
Male Coupler: 38×72 mm (O. D. x L), 45# Carbon Steel, Chrome Plating
Female Coupler: 38×75 mm (O. D. x L), 45# Carbon Steel,, Chrome Plating
Dust Cap: 40×260 mm (O. D. x L), Rubber, Red
Product Weight: 3.04 lbs / 1.38 kg
Product Dimensions (LxWxH): 1.5 x 5.07 in / 38x129 mm
Package Content
Dust Cap ×4
