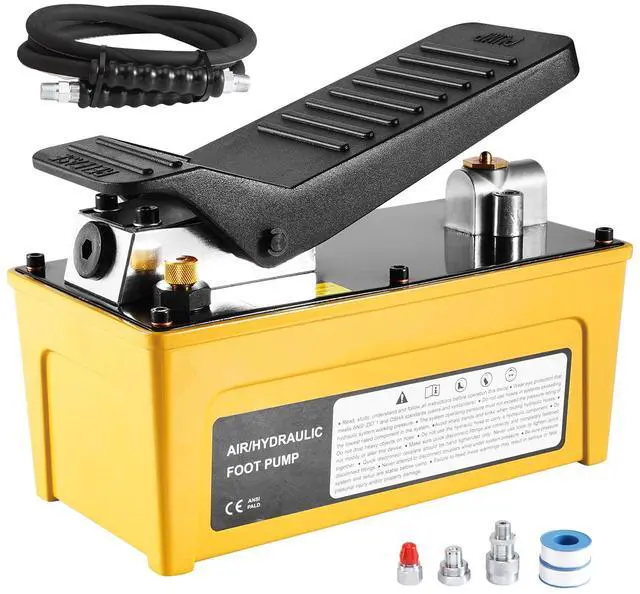

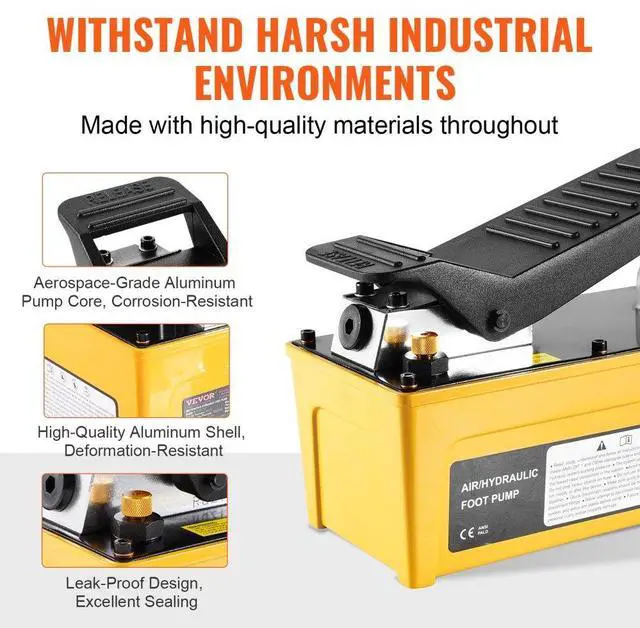

10,000PSI Air Hydraulic Pump, 0.42 Gal Reservoir, NPT 3/8 In Oil Outlet, NPT 1/4 In Inlet, Aluminum Shell Air Actuated Treadle Foot Pump, for Automobile Repair Frame Machine & Hydraulic Press
- 10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic foot pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

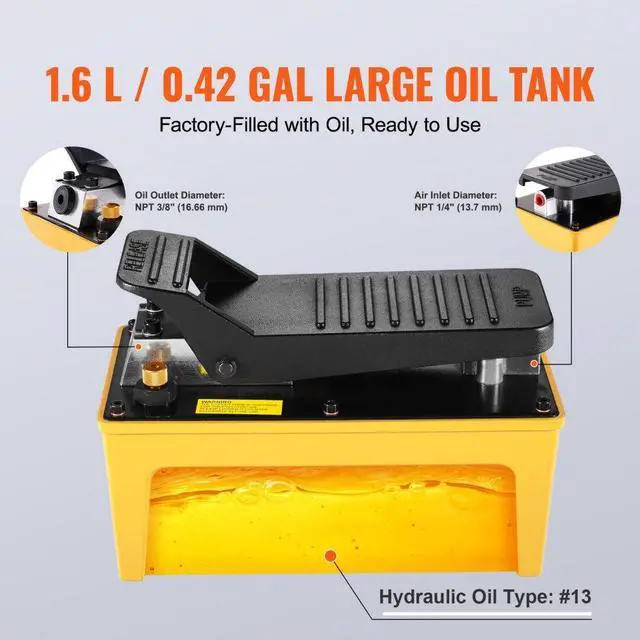

- Factory-Filled with Oil: This air hydraulic pump comes with a large 1.6 L / 0.42 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

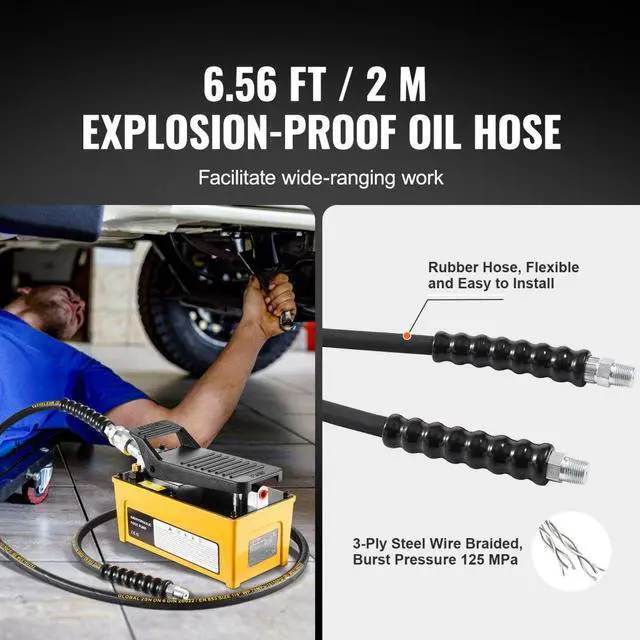

- Long Oil Hose: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.

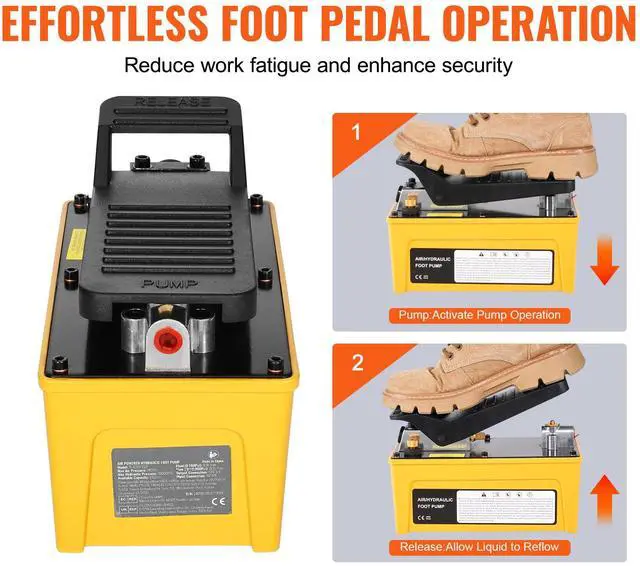

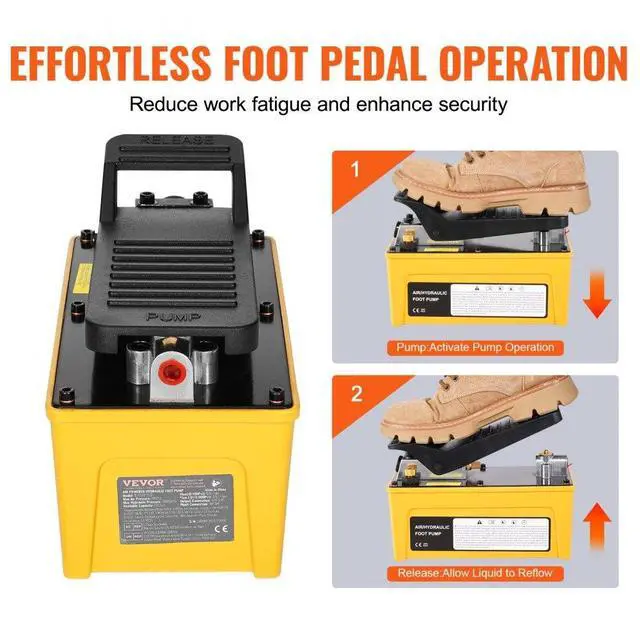

- Effortless Foot Operation: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

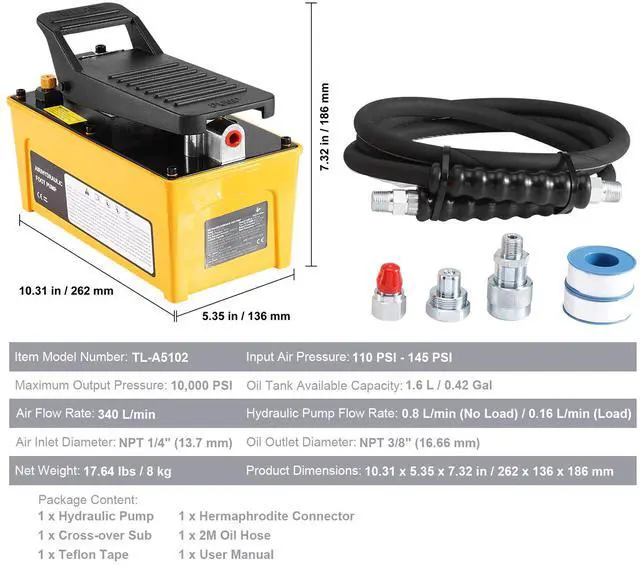

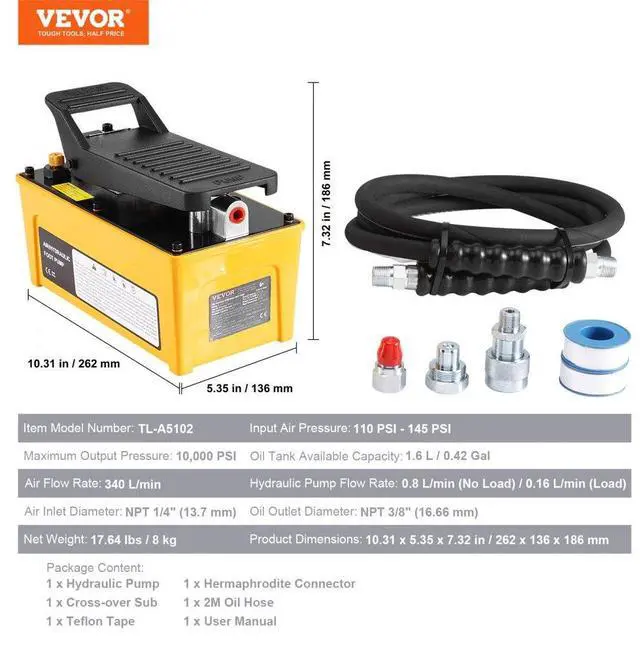

Specifications
Item Model Number: TL-A5102
Input Air Pressure: 110 PSI - 145 PSI
Maximum Output Pressure: 10, 000 PSI
Oil Tank Available Capacity: 1.6 L / 0.42 Gal
Air Flow Rate: 340 L/min
Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)
Air Inlet Diameter: NPT 1/4" ( 13.7 mm)
Oil Outlet Diameter: NPT 3/8" ( 16.66 mm)
Net Weight: 17.64 lbs / 8 kg
Product Dimensions: 10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm

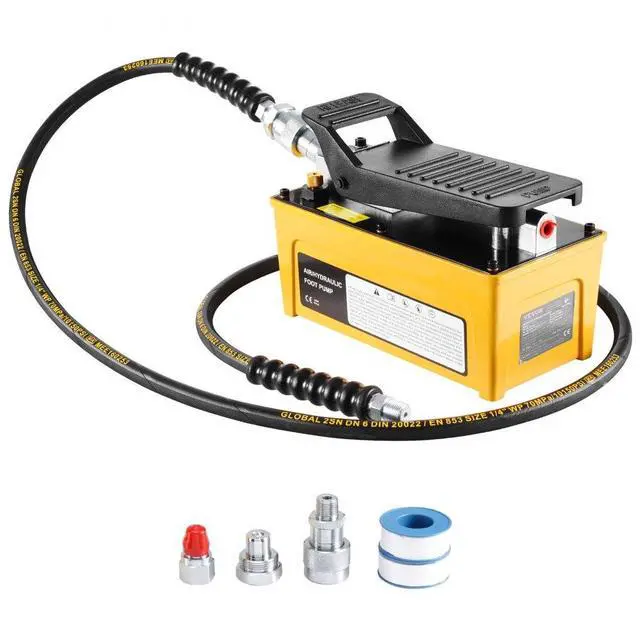

Package Content
1 x Hydraulic Pump
1 x Hermaphrodite Connector
1 x Cross-over Sub
1 x 2M Oil Hose
1 x Teflon Tape
1 x User Manual
