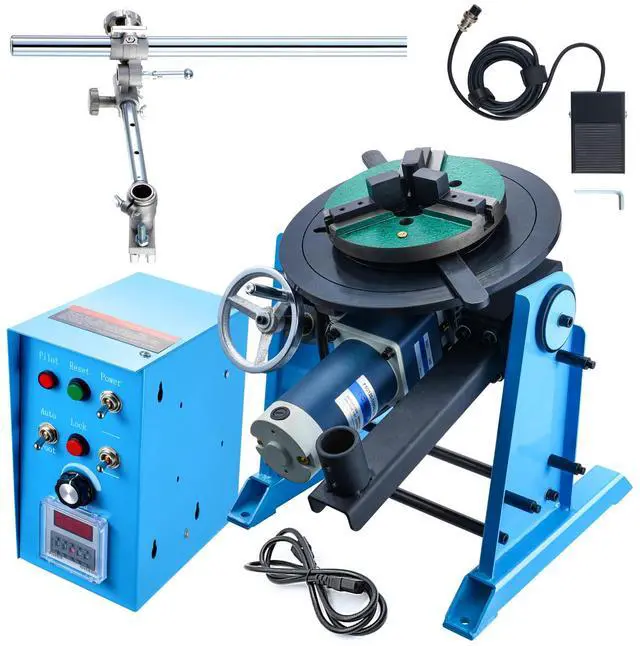

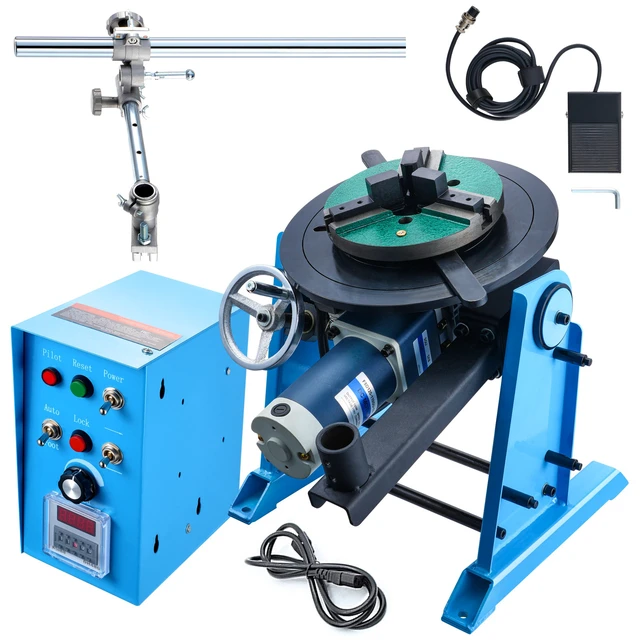

Rotary Welding Positioner 50KG, 0-90° Welding Positioning Turntable Table 0.5-6RPM 120W, with 12.4 Inch 3-Jaw Lathe Chuck & Welding Torch Stand Holder for Cutting, Grinding, Assembly, Testing

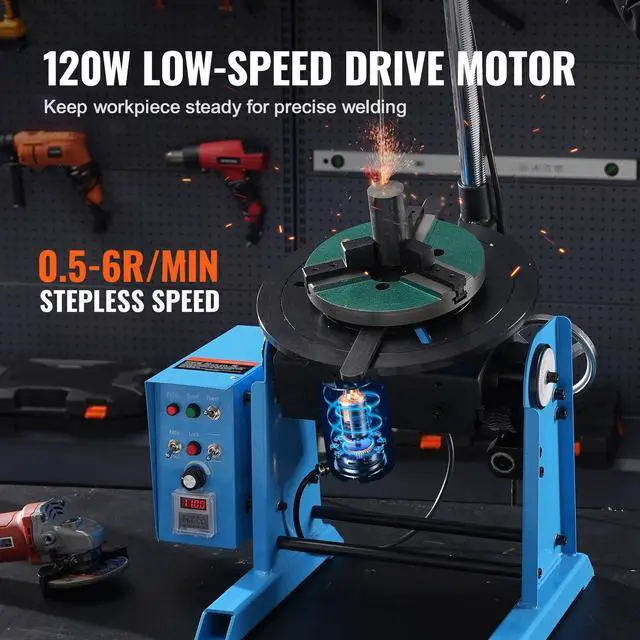

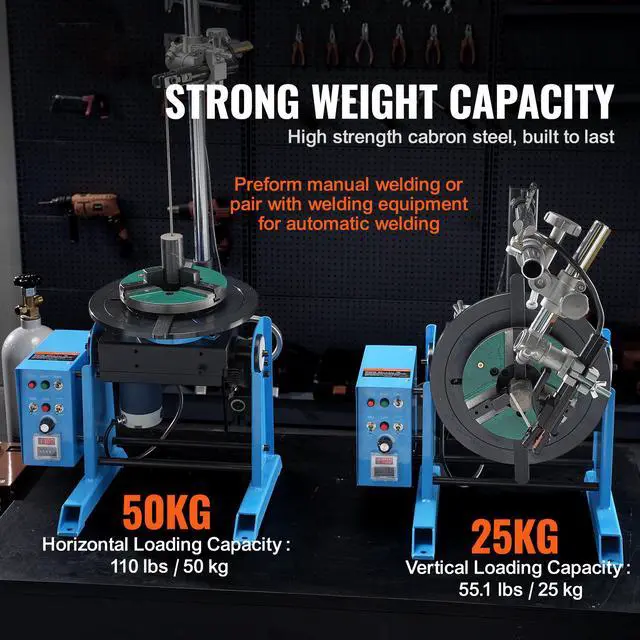

- Smooth Rotation: rotary welding positioner boasts 120W high quality motor that runs at 0.5-6 rpm low speed for stable and smooth operation. With a load capacity of up to 55lbs/25Kg (vertical) or 110lbs/50Kg (horizontal), it offers excellent stability and supports efficient, precise welding.

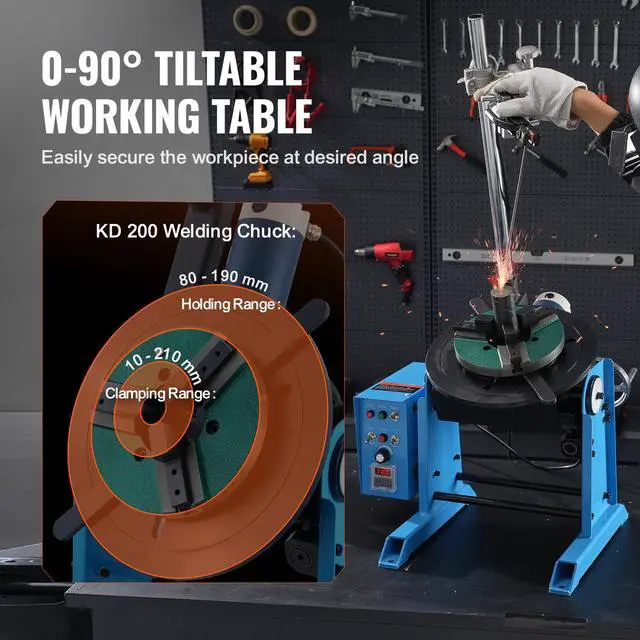

- 0-90° Tiltable Worktable: The welding positioner turntable table can be tilted from 0-90° and securely fixed at desired angle with the hand wheel. Plus, the worm gear turning structure with self-locking function can accurately position and maintain the correct location of welding workpiece.
- Precise & Stable Positioning: Equipped with a 315mm KD200 three-jaw chuck, featuring 10-210mm clamping range and 80-190m supporting range, it effectively prevents the weldment pieces from moving and falling. Also includes a welding gun stand holder to secure the welding gun in place.

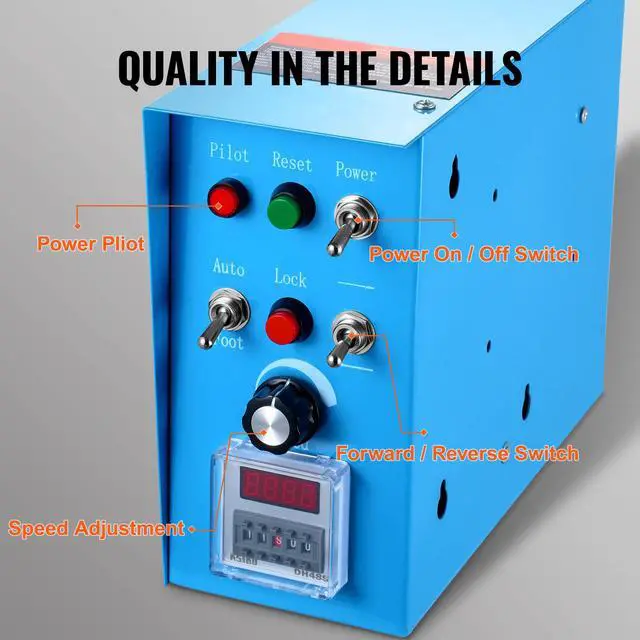

- Easy to Operate & Control: The welder positioning turntable table offers 0.5-6 rpm stepless speed adjustment. You can easily control the rotation speed with the user-friendly control box. The convenient foot pedal switch also allows for easy control of table's 360 degrees rotation.
- Wide Applications: Our positioning turntable is versatile for cutting, grinding, assembly, and testing. It can be fixed on the workbench or specific tooling for manual welding or paired with welding equipment for automatic welding. Elevate welding efficiency and precision with VEVOR!
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

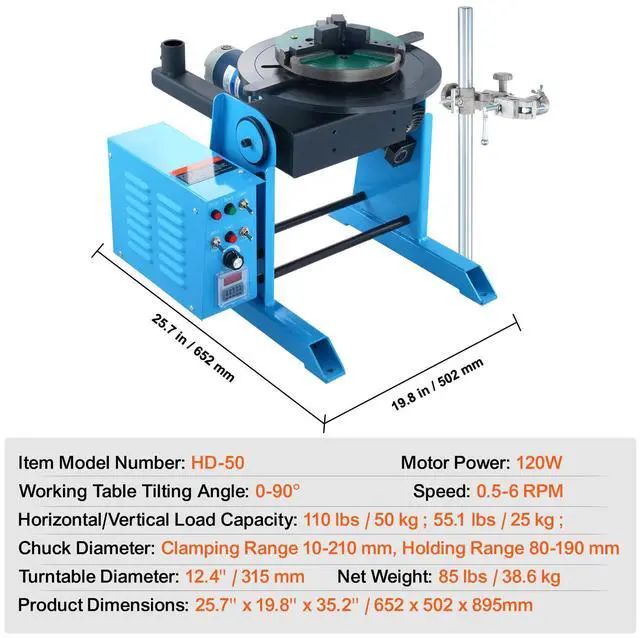

Specifications
Item Model Number: HD-50
Motor Power: 120W
Speed: 0.5 -6 RPM
Horizontal/Vertical Load Capacity: 55lbs/25 kg; 110lbs / 50kg
Working Table Tilting Angle: 0-90°
Chuck Diameter: Clamping Range 10-210 mm, Holding Range 80-190 mm
Turntable Diameter: 12.4 '' / 315mm
Net Weight: 85.0 lbs / 38.6 kg
Product Dimensions: 25.7 '' x 19.8 '' x 35.2 '' / 652 x 502 x 895 mm
Package Content
1 x Power Cord
1 x Foot Pedal
1 x Set of Hand Wheel
1 x Control Box
1 x Welding Machine Connection Aviation Plug
1 x Set of Gun Holder (With Rod)
1 x Gun Stand Holder
1 x User Manual
1 x Set of Mounting Bolts (4 x Stud, 4 x Flat Washer, 4 x Spring Washer)
1 x M5 Hex Wrench
