Electric Trailer Brake Assembly, 10 x 2-1/4 Inch, 2 Pairs Self-Adjusting Electric Brakes Kit for 3500 lbs Trailer Axle, Backing Plates for Braking System Part Replacement, Fit for Trailers, RVs

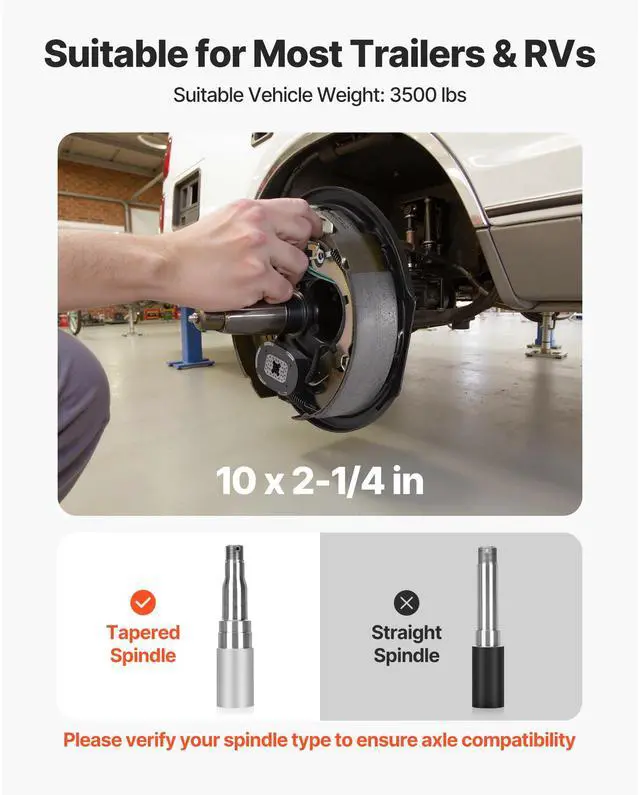

- Upgrade Your Brake System: Our electric trailer brake kit includes 4 brake assemblies and 4 brake drums, designed for trailers and RVs with tapered axles up to 3500 lbs. With a 10 x 2-1/4 inch brake and a 10 inch drum, it's the ultimate upgrade

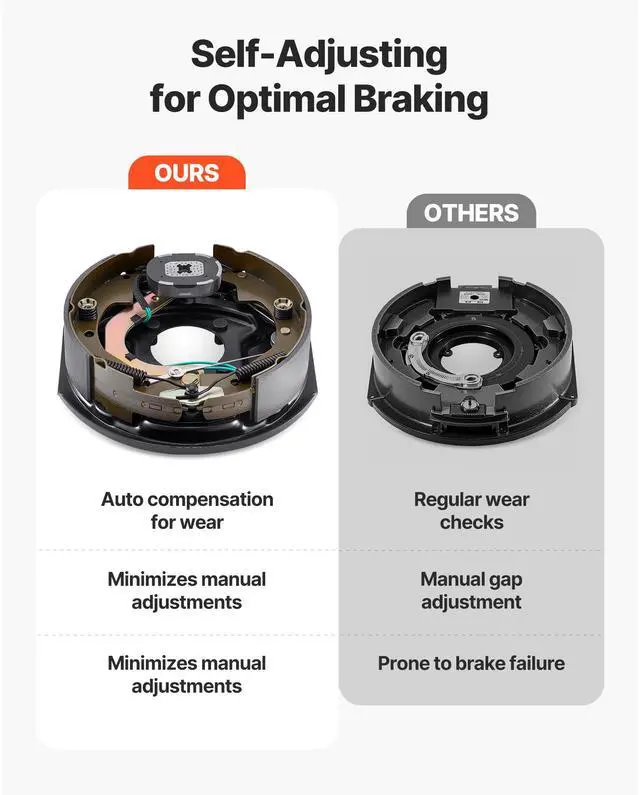

- Automatic Brake Adjustment: Forget constant brake checks! The trailer brake kit adjusts automatically to maintain the perfect brake gap, avoiding wear and keeping your system responsive for long-term use. Ideal for frequent braking and long trips

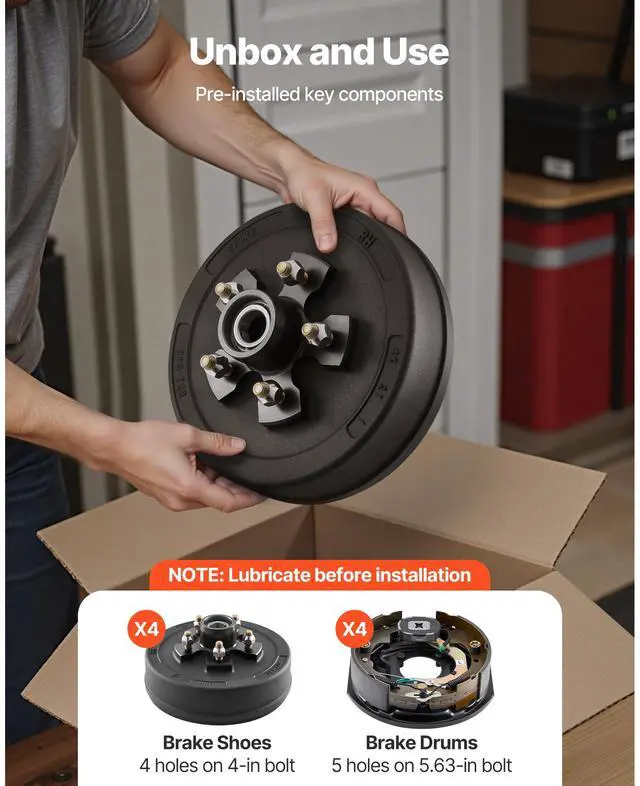

- Easy Installation: Installing your new brakes is a breeze! Our electric trailer brake assembly comes pre-assembled with core parts installed. Just add oil, follow the easy steps in the manual, and you're good to go

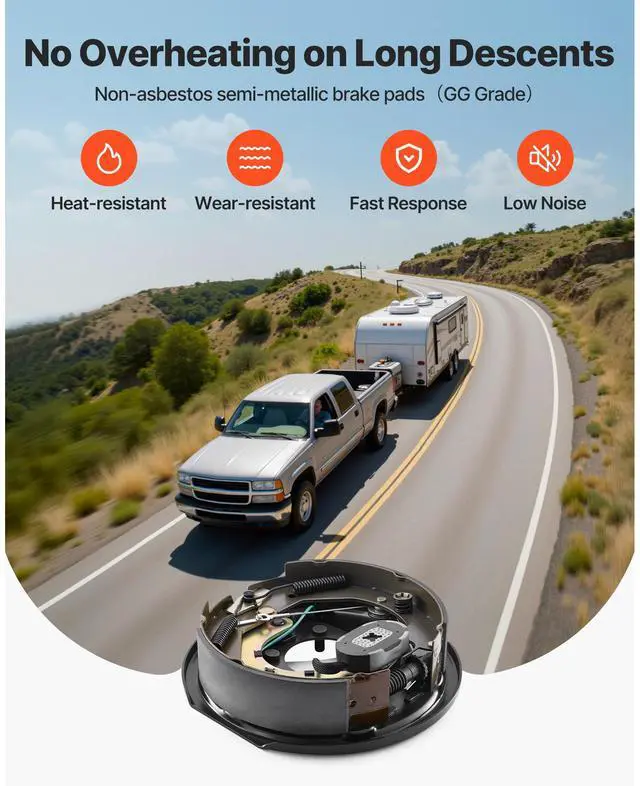

- Stable Braking Under Heavy Load: Upgrade to semi-metallic brake pads with a 0.48 friction coefficient (GG level). Our trailer brake are heat-resistant, durable, and reduce noisefit for heavy-load, downhill, and frequent braking
- 30000km Lifespan: These steel brake assemblies and cast iron drums of the self-adjusting electric brakes kit are shock-resistant and built to last. The dust shield keeps debris out, securing your system and ensuring it lasts longer, even on bumpy roads
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

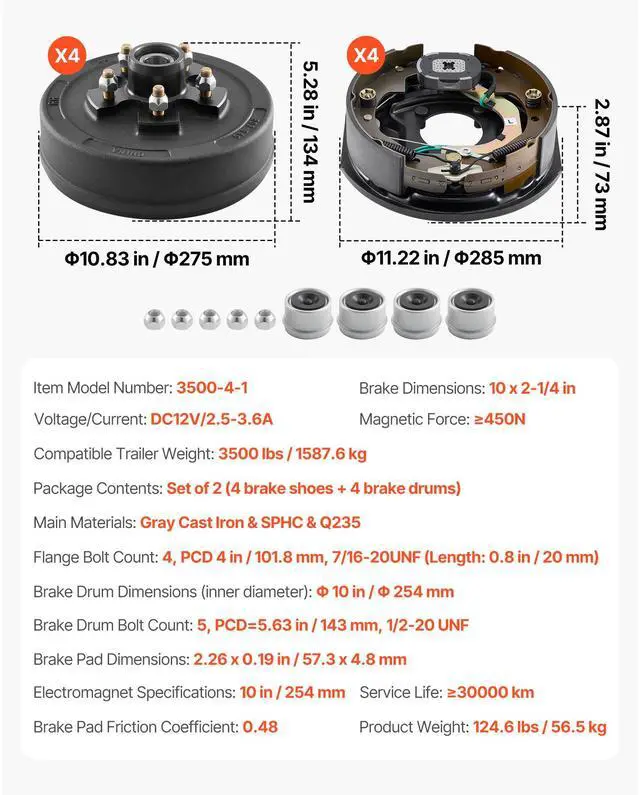

Specifications
Item Model Number: 3500-4-1
Compatible Trailer Weight: 3500 lbs / 1587.6 kg

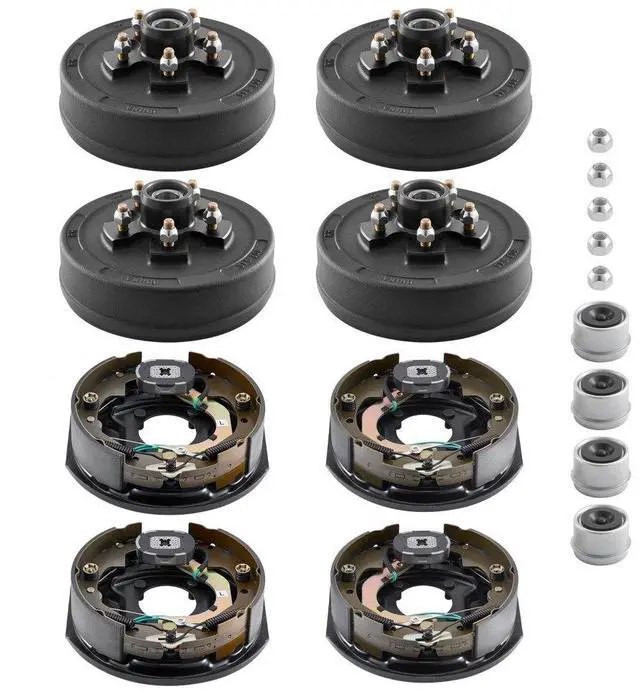

Package Contents: Set of 2 (4 brake shoes + 4 brake drums)
Main Materials: Gray Cast Iron & SPHC & Q235
Brake Dimensions: 10 x 2-1/4 inch
Flange Bolt Count: 4, PCD 4 in / 101.8 mm, 7/16-20UNF
(Length: 0.8 in / 20 mm)
Brake Drum Dimensions (inner diameter): 10 in / 254 mm
Brake Drum Bolt Count: 5, PCD= 5.63 in / 143 mm, 1/2-20 UNF
Product Dimensions (Outer diameter × Height):
Brake Shoe: 11.22 x 2.87 in / 285 x 73 mm
Brake Drum: 10.83 x 5.28 in / 275 x 134 mm
Electromagnet
Specifications
: 10 in / 254 mmVoltage/Current: DC12V/ 2.5 - 3.6A
Magnetic Force: 450N
Service Life: 30000 km
Brake Pad Friction Coefficient: 0.48
Brake Pad Dimensions: 2.26 x 0.19 in / 57.3 x 4.8 mm
Product Weight: 124.6 lbs / 56.5 kg

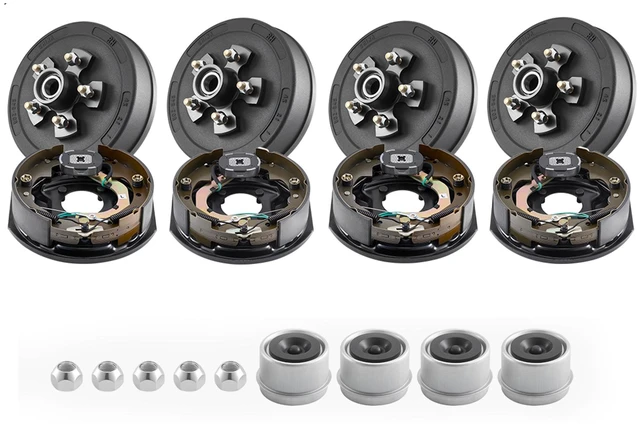

Package Content
2 x Electric Trailer Brake Kits
4 x Dust Caps
5 x Nuts
1 x User Manual
