VEVOR Electric Trailer Brake Kit 10 x 2-1/4 in Electric Brakes for 3500 lbs Axle

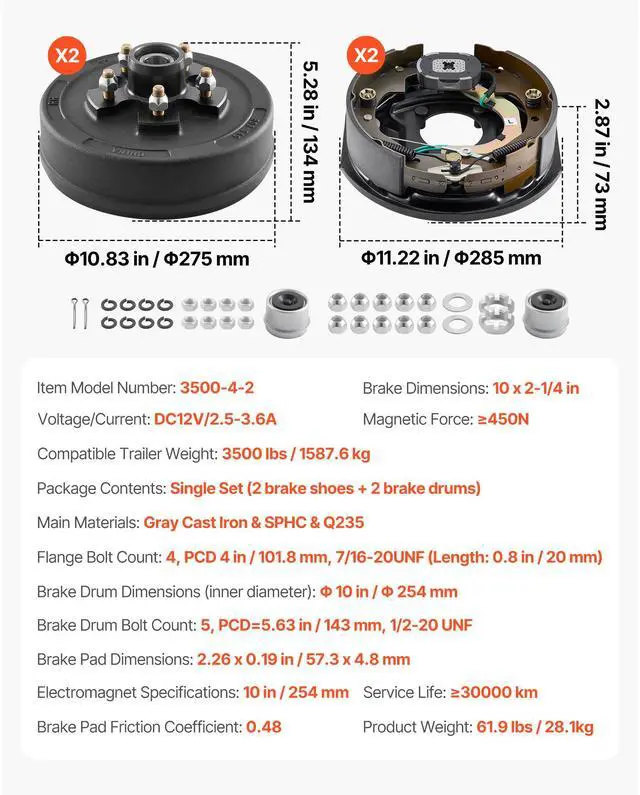

Specifications

Item Model Number: 3500-4-2
Compatible Trailer Weight: 3500 lbs / 1587.6 kg
Package Contents: Single Set (2 brake shoes + 2 brake drums)
Main Materials: Gray Cast Iron & SPHC & Q235
Brake Dimensions: 10 x 2-1/4 inch
Flange Bolt Count: 4, PCD 4 in / 101.8 mm, 7/16-20UNF
(Length: 0.8 in / 20 mm)
Brake Drum Dimensions (inner diameter): 10 in / 254 mm
Brake Drum Bolt Count: 5, PCD= 5.63 in / 143 mm, 1/2-20 UNF
Product Dimensions (Outer diameter × Height):
Brake Shoe: 11.22 x 2.87 in / 285 x 73 mm
Brake Drum: 10.83 x 5.28 in / 275 x 134 mm
Electromagnet

Specifications

: 10 in / 254 mm
Voltage/Current: DC12V/ 2.5 - 3.6A
Magnetic Force: 450N

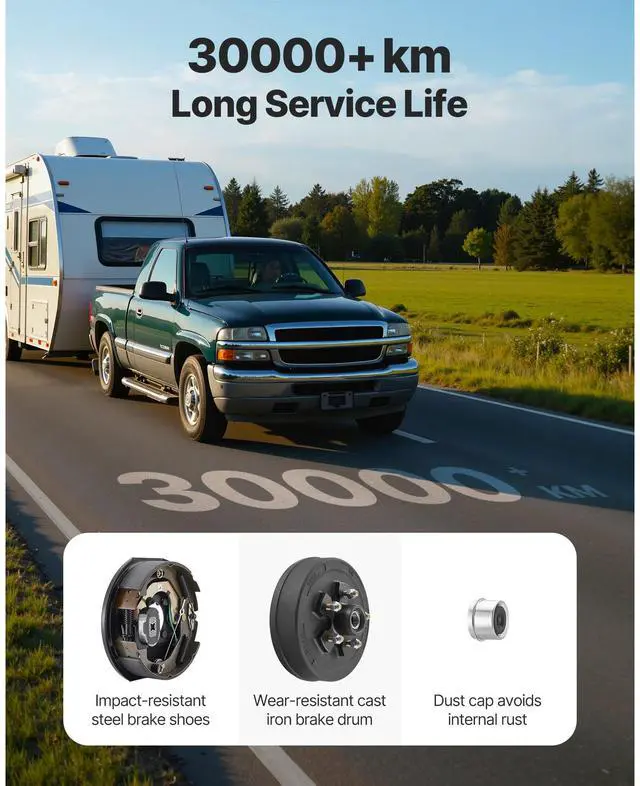

Service Life: 30000 km
Brake Pad Friction Coefficient: 0.48
Brake Pad Dimensions: 2.26 x 0.19 in / 57.3 x 4.8 mm
Product Weight: 61.9 lbs / 28.1 kg

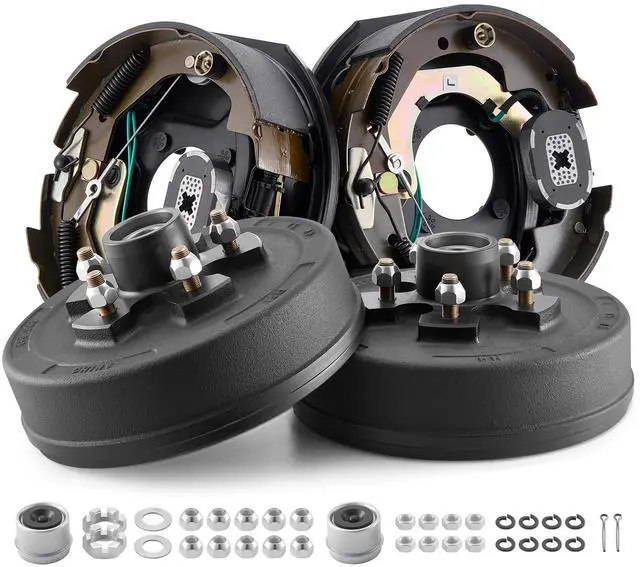

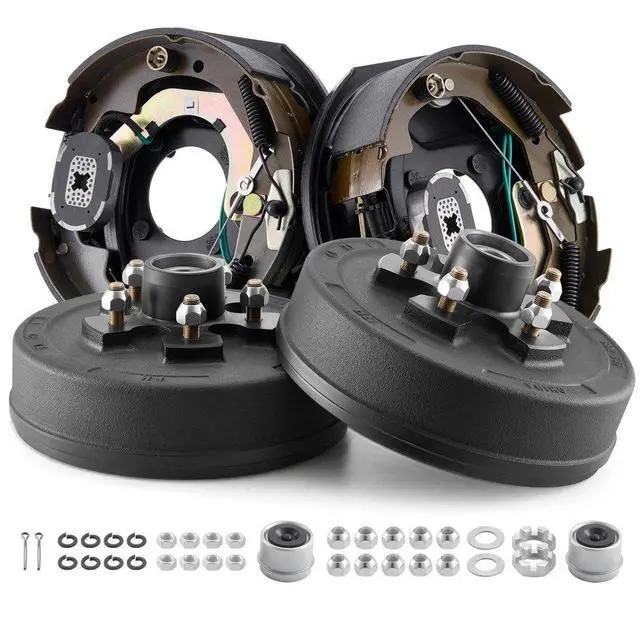

Package Content
1 x Electric Trailer Brake Kit
2 x Dust Caps
10 x Nuts
2 x Large Nuts
2 x Washers
2 x Pins
8 x Small Nuts
8 x Spring Washers
1 x User Manual
