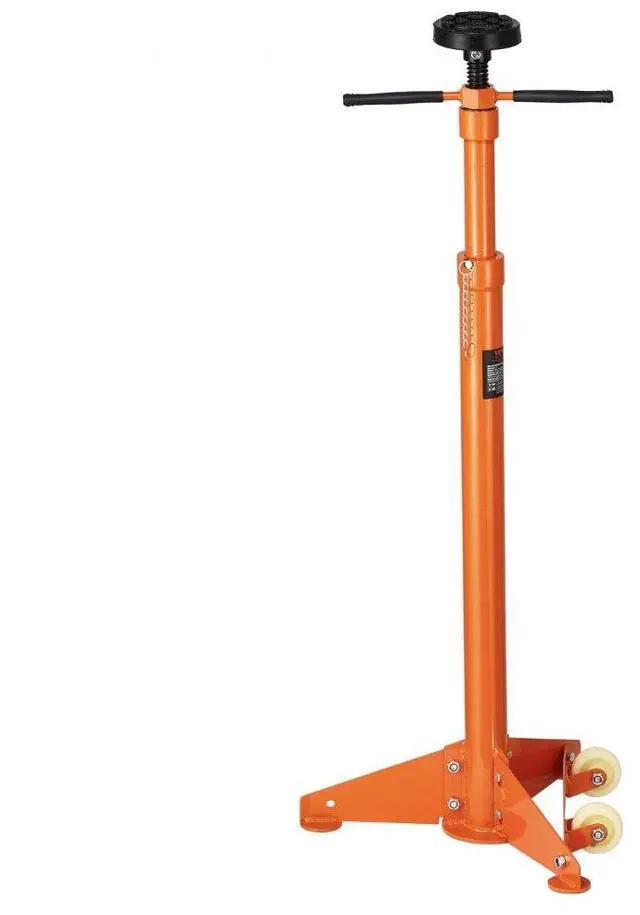

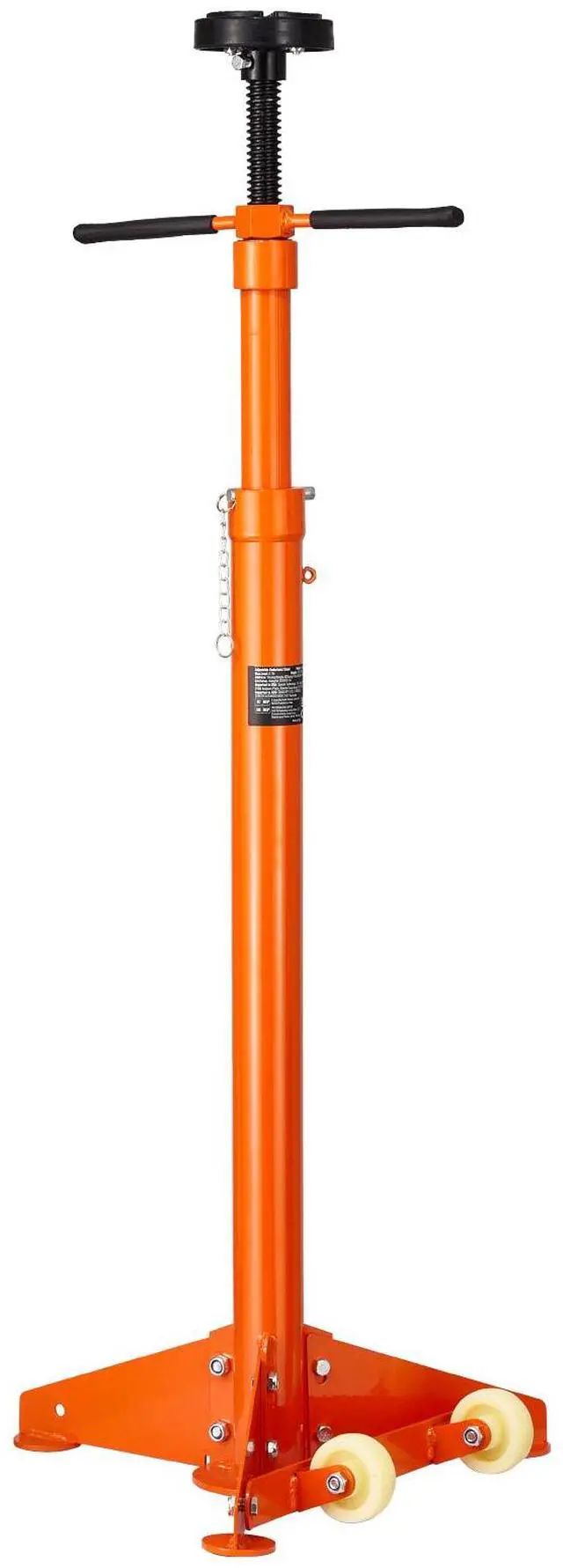

Underhoist Support Stand, 3/4 Ton Capacity Under Hoist Jack Stand, Lifting from 38.4 to 75.4 in, Bearing Mounted Spin Handle, Self-Locking Threaded Screw, Two Wheels, Support Vehicle Components
- 1653.5 lbs Impressive Load Capacity: This underhoist support stand equipped with wheels is lightweight at only 25.4 lbs / 11.5 kg but can support a remarkable 1653.5 lbs / 0.75 t. The sturdy tubular steel frame helps prevent deformation or twisting. At least 2 stands are required for use and can support most small cars and similar vehicles.

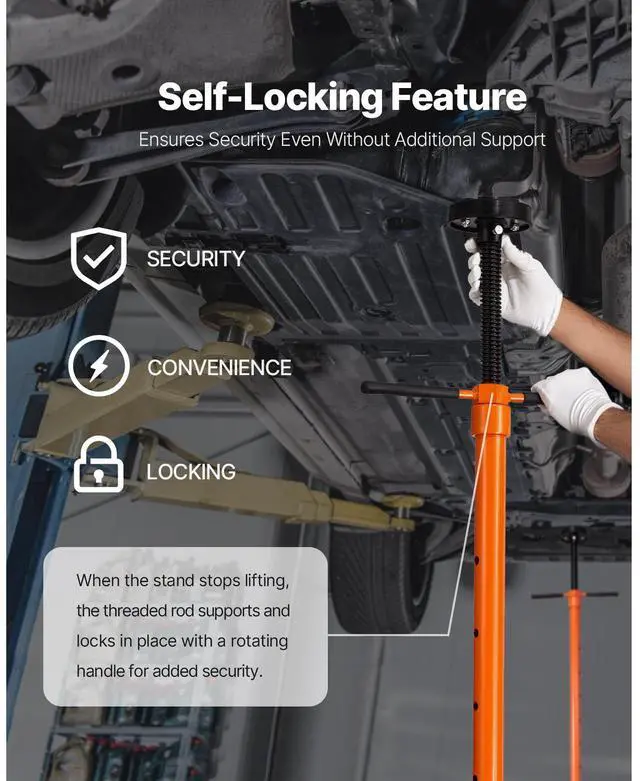

- Dual Quick Height Adjustment: The holes on the main post of the jack stand are used to lock in the primary height levels, and the threaded rod assists in adjusting the height. The spin handle incorporates a thrust bearing, making it easy to raise and lower, even under the extreme pressures of a heavy load. The height adjustment range is 38.4" - 75.4" / 975 - 1915 mm, catering to the bottom clearance requirements during most maintenance tasks.

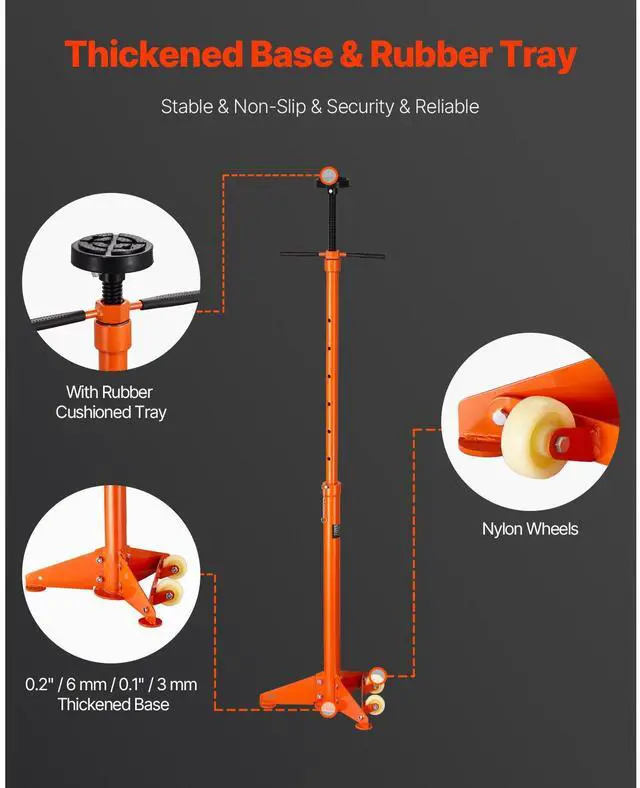

- Safety and Stability: A thickened 0.2" / 6 mm circular base and sturdy 0
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

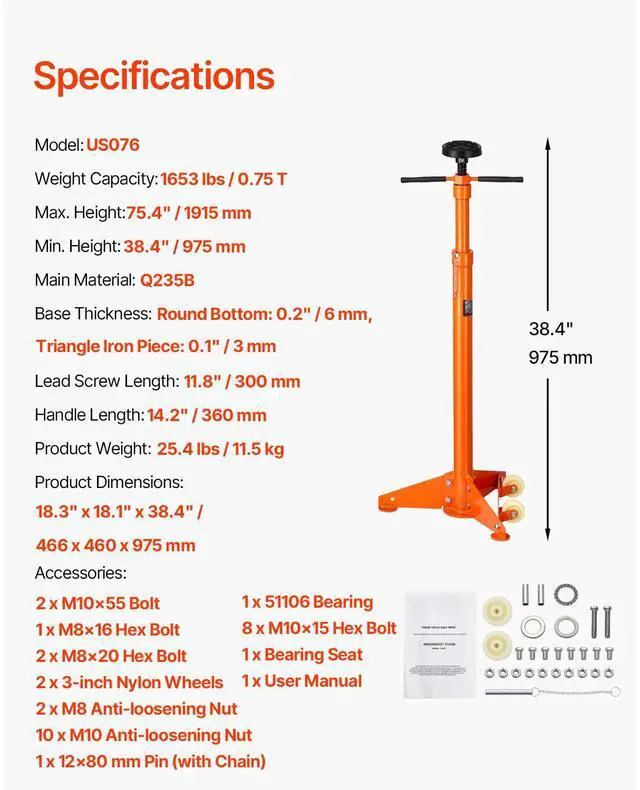

Specifications
Item Model Number: US076
Weight Capacity: 1653.5 lbs / 0.75 t
Maximum Height: 75.4" / 1915 mm
Minimum Height: 38.4" / 975 mm
Main Material: Q235B
Lead Screw Length: 11.8" / 300 mm
Handle Length: 14.2" / 360 mm
Product Weight: 25.4 lbs / 11.5 kg
Product Dimensions: 18.3" x 18.1" x 38.4" / 466 x 460 x 975 mm
Package Content
1 x Underhoist Support Stand
1 x 51106 Bearing
8 x M10×15 Hex Bolt
10 x M10 Anti-loosening Nut
2 x M10×55 Bolt
1 x M8×16 Hex Bolt
2 x M8×20 Hex Bolt
2 x M8 Anti-loosening Nut
2 x 3-inch Nylon Wheels
1 x 12×80 mm Pin (with Chain)
1 x Bearing Seat
1 x User Manual
