$46.90
Meet Your Seller

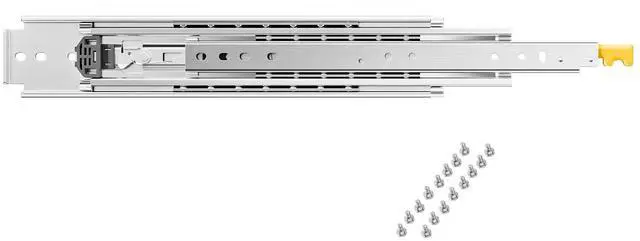

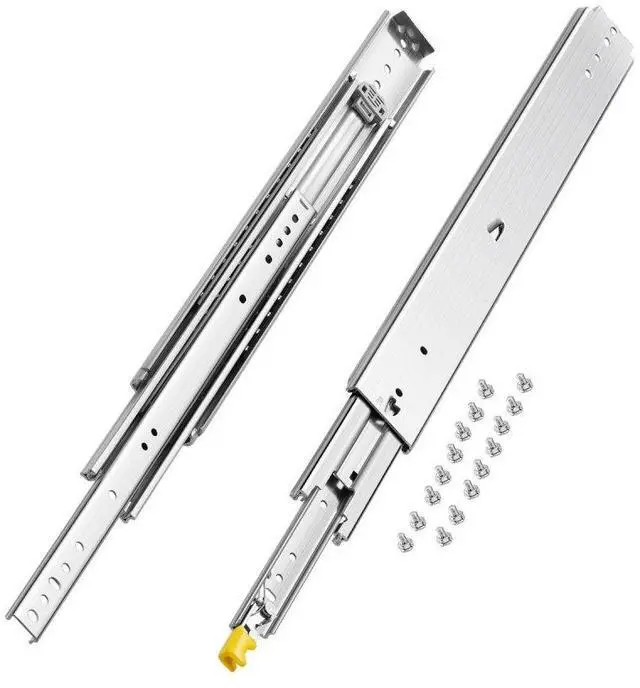

Set of 2 Drawer Rails, Sizes Ranging from 16 to 60 inches, 500 lbs Weight Limit, Locking Mechanism Included, Ball Bearing Side Mount Drawer Slide Rail
- Heavy-Duty Construction: Crafted from high hardness steel, these drawer slides have a weight capacity of up to 500 lbs. The galvanized finish ensures long-lasting rust and wear resistance. Suitable for shelving, cabinets, industrial drawers, RVs, trucks, vending machines, and more.

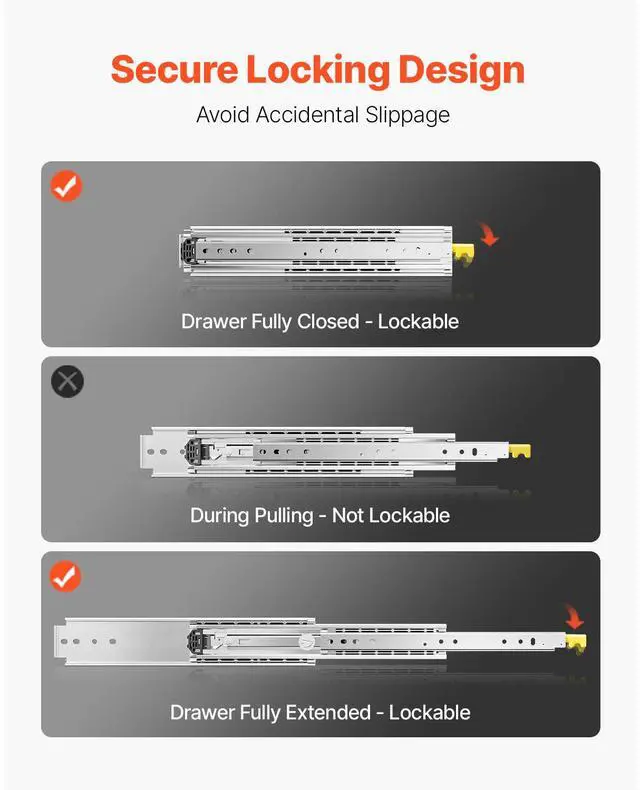

- Dual Lock Design: Equipped with a double locking mechanism, these dresser drawer slides provide secure and slip-free storage. The locks can be easily engaged with a simple press, offering enhanced security even on bumpy roads.

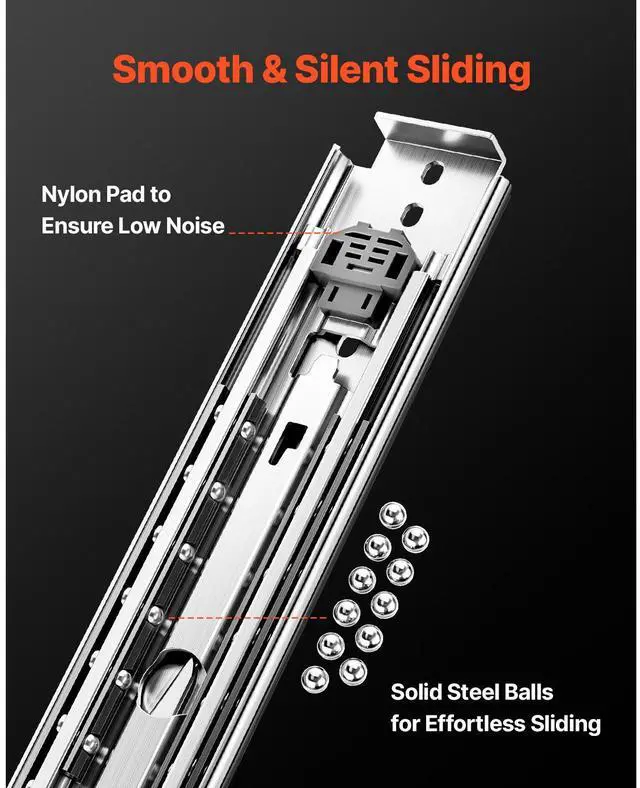

- Smooth & Silent Slides: Our drawer slides feature a double-row ball bearing system for smooth and effortless opening and closing. The nylon cushioning on the center slides reduces noise and prevents bouncing.
- 3-Fold Full Extension: This package includes 1 pair of 24 inches/610 mm long, 3 inches/76 mm wide, and 0.77 inches/19.5 mm thick drawer slides with a lock. The 3-fold full extension design allows easy access to the entire drawer, maximizing storage space
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

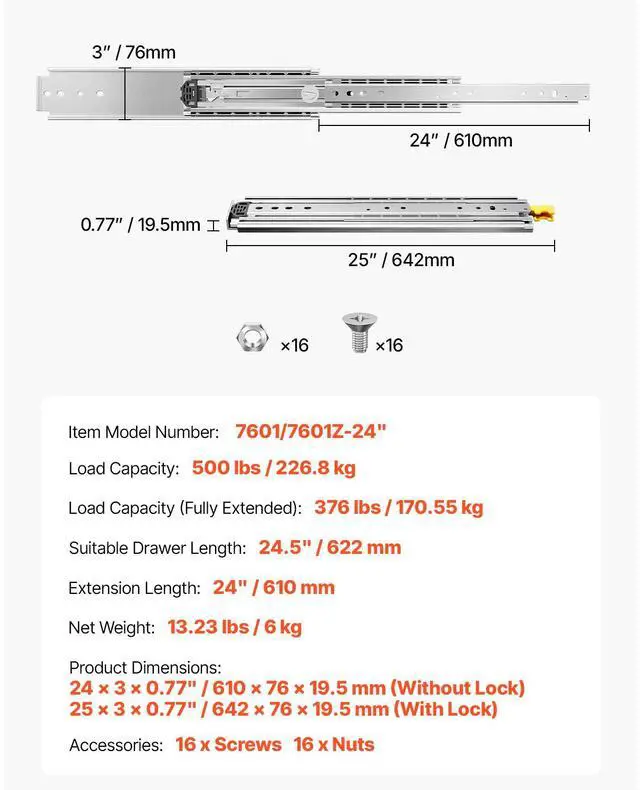

Specifications
Item Model Number: 7601/7601Z-24"
Load Capacity: 500 lbs / 226.8 kg
Load Capacity (Fully Extended): 376 lbs / 170.55 kg
Suitable Drawer Length: 24.5" / 622 mm
Extension Length: 24" / 610 mm
Net Weight: 13.23 lbs / 6 kg
Product Dimensions: 24 x 3 x 0.77" / 610 x 76 x 19.5 mm (Without Lock), 25 x 3 x 0.77" / 642 x 76 x 19.5 mm (With Lock)
Package Content
16 x Screws
16 x Nuts
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by VEVOR Official Store US Return Policy
