6-Jaw Lathe Chuck, 6 Inch (160 mm), Self-Centering Chuck with D1-4 Cam Lock Backing Plate, 0.12-5.71 in (3-145 mm) Clamping Range with T-wrench Screws, HT300 Material, for Wood Metal Lathe

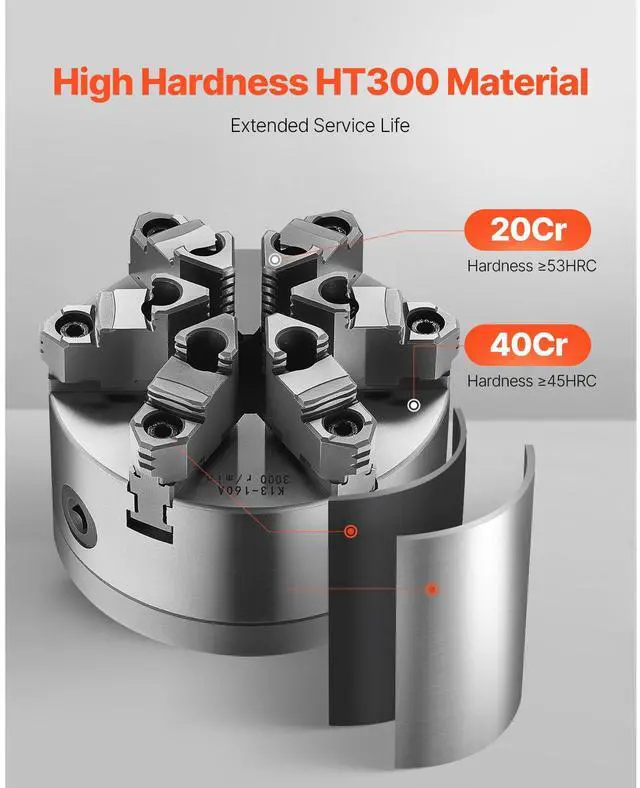

- Outstanding Hardness: Crafted from premium HT300 cast iron, this lathe chuck features jaws with a hardness of 53 HRC and a scroll plate hardness of 45 HRC. Quench-hardened for enhanced durability, it ensures excellent hardness and rust resistance, ensuring a long-lasting service life

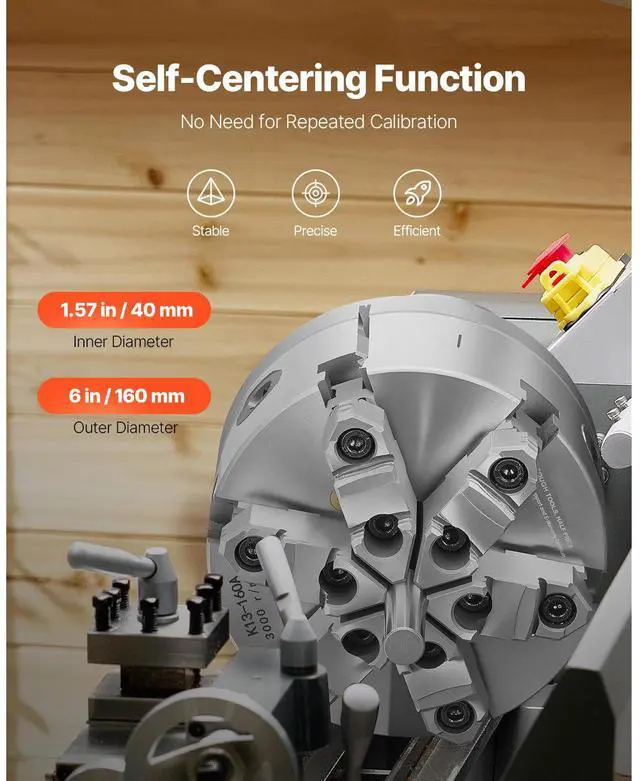

- Self-Centering Function: The built-in self-centering feature allows for hassle-free use without repeated calibration. It ensures precise control over clamping accuracy, maintaining the stability and high precision of the lathe chuck for flawless performance

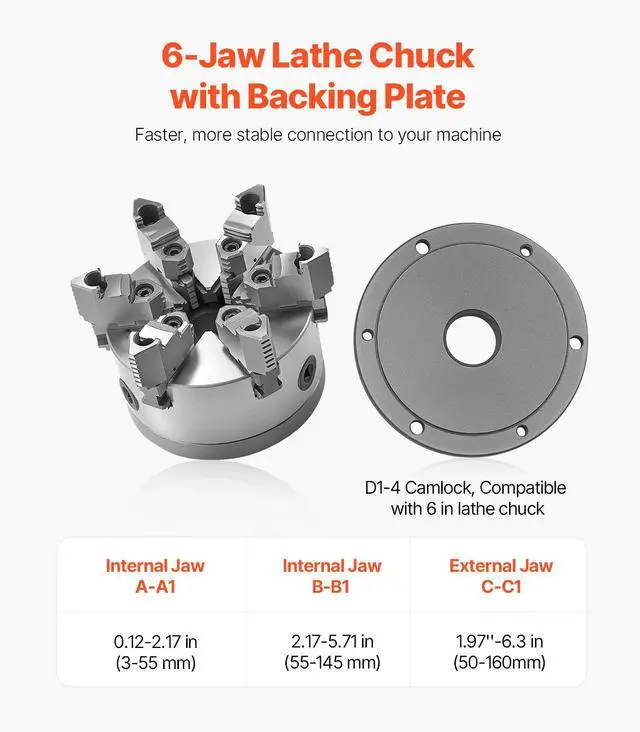

- 6-Inch 6-Jaw Lathe Chuck: Featuring a D1-4 cam lock adapter backing plate, this lathe chuck achieves a faster and more stable connection to your machine. With a 1.57 in (40 mm) inner diameter and 6 in (160 mm) outer diameter, it clamps workpieces ranging from 0.12-5.71 in (3-145 mm), making it versatile for a variety of sizes

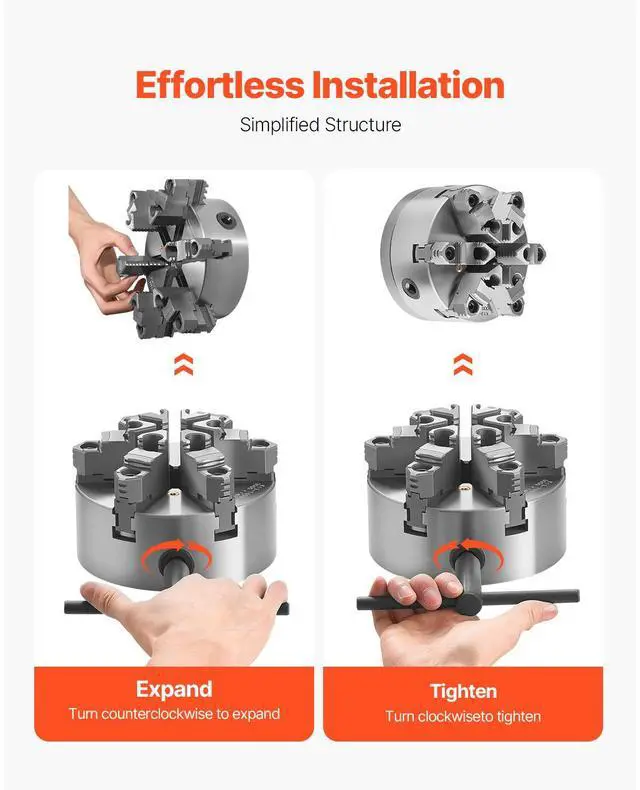

- Hassle-Free Operation: Featuring a simple, compact design, this lathe chuck balances functionality and reliability
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

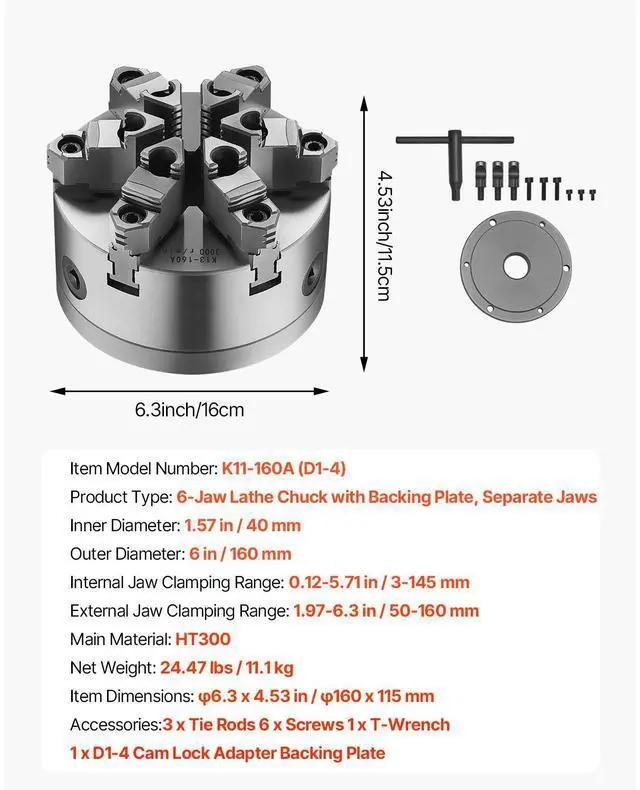

Specifications
Item Model Number: K11 160A D1-4
Product Type: 6-Jaw Lathe Chuck with Backing Plate, Separate Jaws
Inner Diameter: 1.57 in / 40 mm
Outer Diameter: 6 in / 160 mm
Internal Jaw Clamping Range: 0.12 - 5.71 in / 3-145 mm
External Jaw Clamping Range: 1.97 - 6.3 in / 50-160 mm
Main Material: HT300
Net Weight: 24.47 lbs / 11.1 kg
Item Dimensions: 6.3 x 4.53 in / 160 x 115 mm

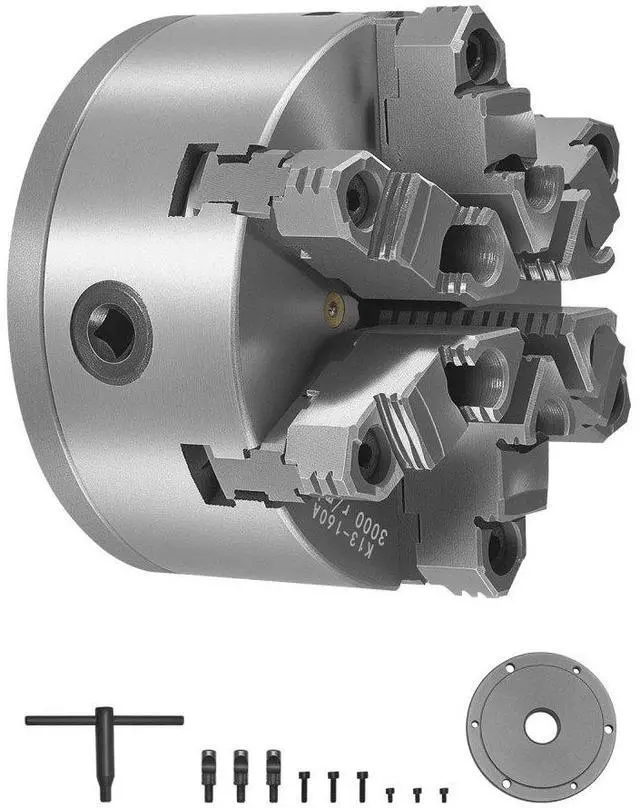

Package Content
1 x Lathe Chuck
1 x T-Wrench
