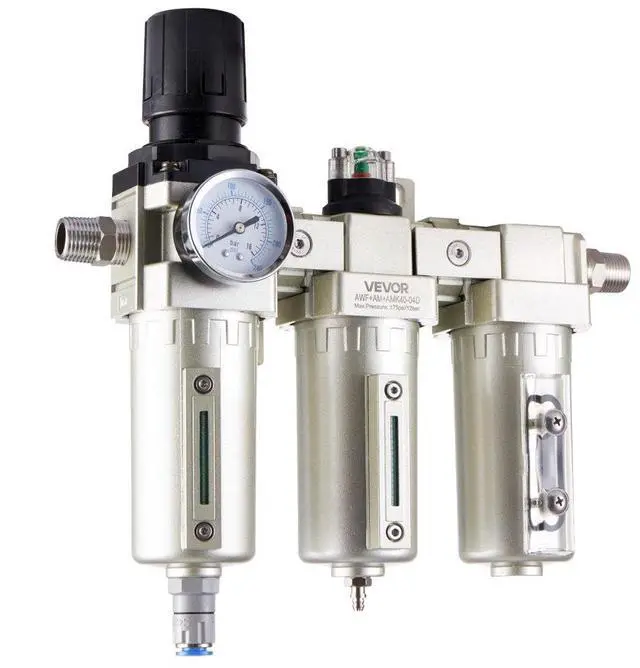

Air Compressor Filter Regulator, 1/2" NPT 3-Stage 5m & 0.3m & 0.1m Air Drying System with Micron Filters and Desiccant Dryer, Auto Drain Air Compressor Water Separator 175PSI Max Pressure

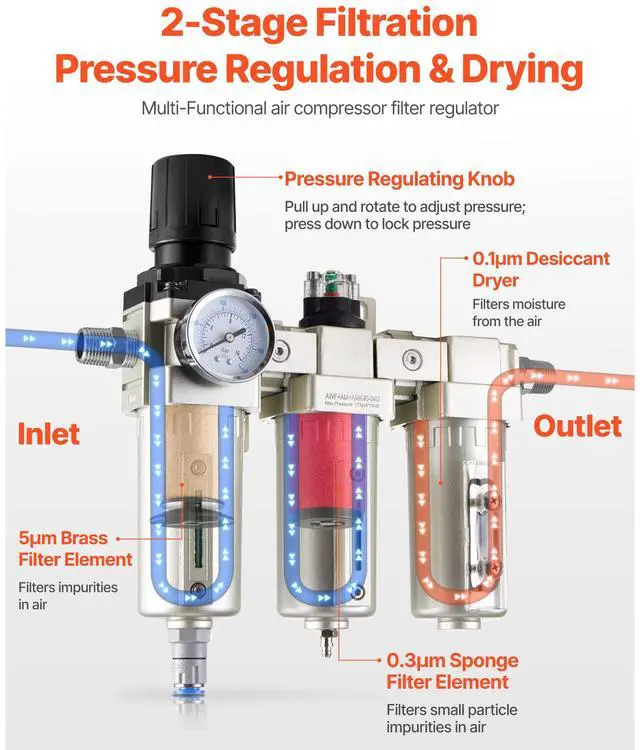

- High Configuration: Our air compressor filter regulator features dual-stage precision filtration, a desiccant drying stage, and stable pressure regulation (175PSI Max Working Pressure). Deliver clean and dry air to keep your tools running more efficiently

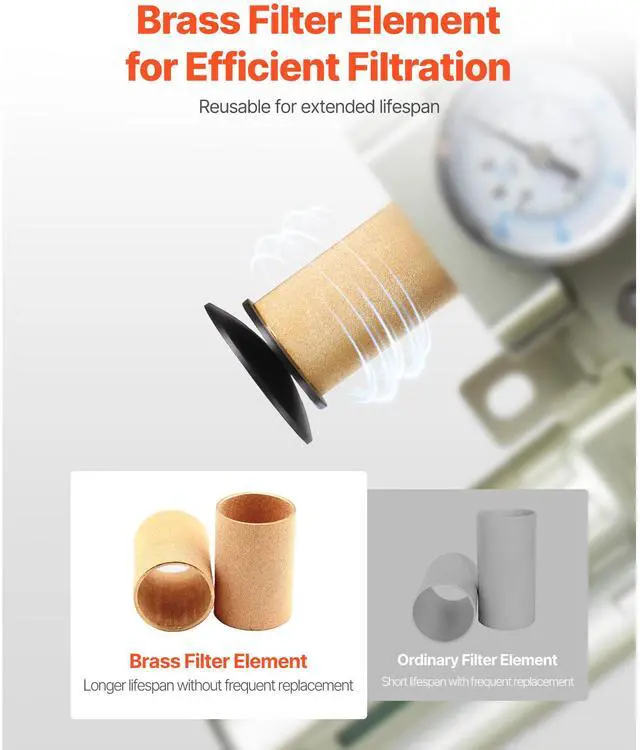

- Efficient Filtration & Drying: With 5m brass filter element, 0.3m sponge filter, and a desiccant drying stage rated to 0.1m, VEVOR air filter regulator dryer combo effectively removes moisture and impurities, ensuring a clean, dry air supply for tools

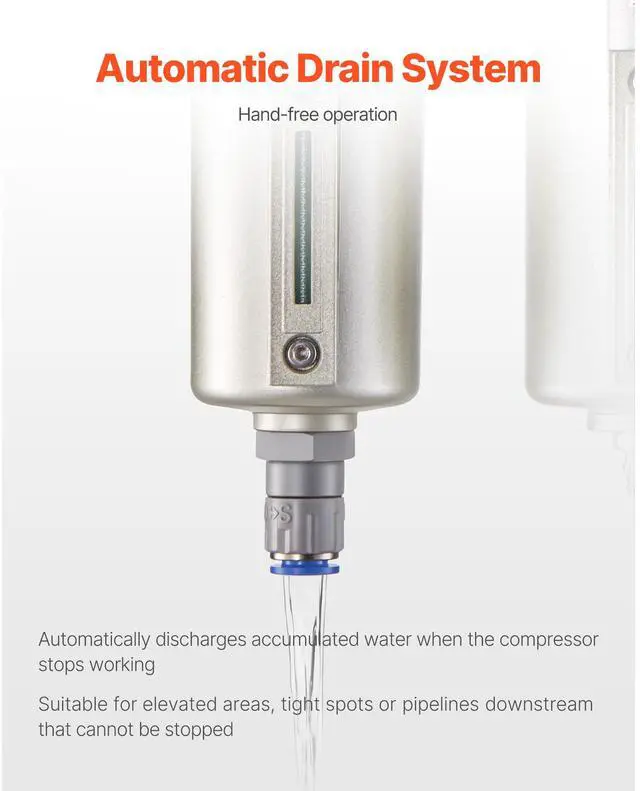

- Hands-Free Auto Drainage: With the built-in float switch, our compressed air drying filtering system will automatically activate drainage according to the water level, effectively reducing the risk of equipment failure caused by forgotten manual draining
- Standard Port Size: Featuring a 1/2" NPT connector compatible with most air compressors
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

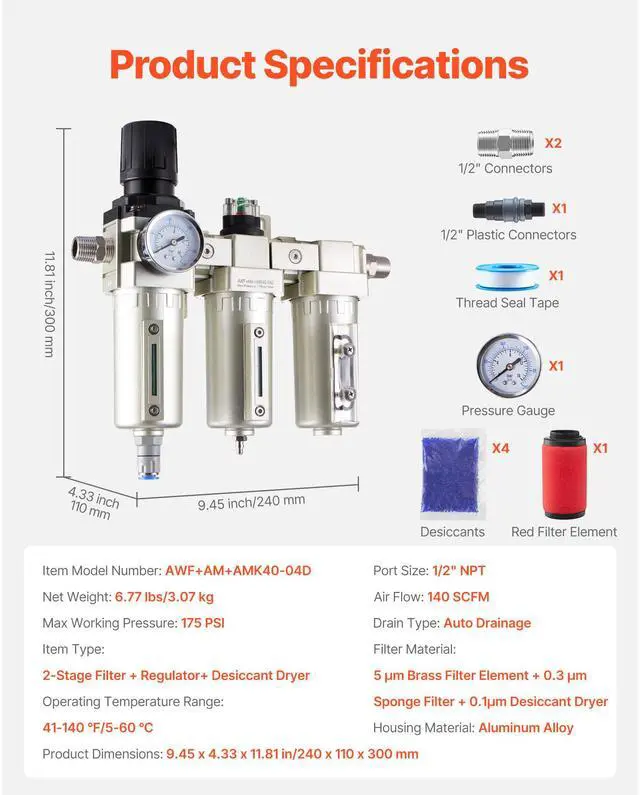

Specifications
Item Model Number: AWF+AM+AMK40-04D
Item Type: 2-Stage Filter + Regulator+ Desiccant Dryer
Filter Material: 5 m Brass Filter Element + 0.3 m Sponge Filter + 0.1 m Desiccant Dryer
Port Size: 1/2" NPT
Air Flow: 140 SCFM

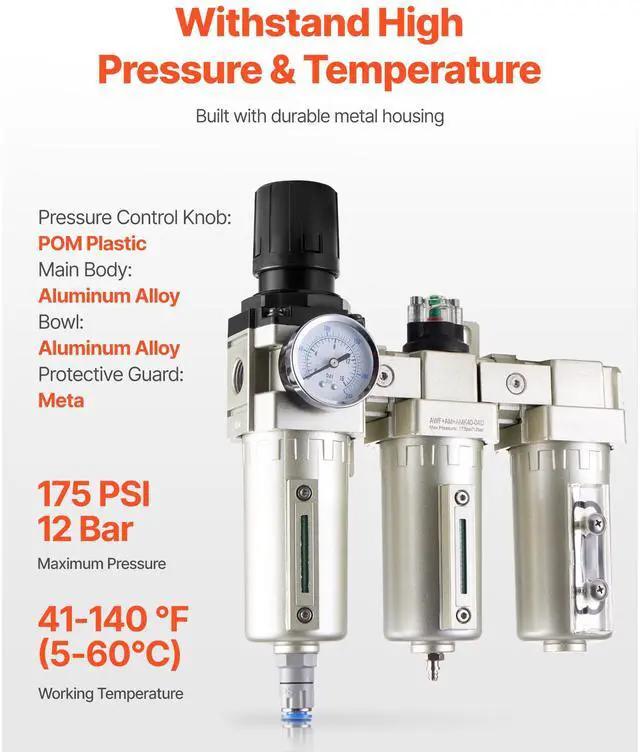

Max Working Pressure: 175 PSI
Operating Temperature Range: 41-140 /5-60
Housing Material: Aluminum Alloy
Drain Type: Auto Drainage
Net Weight: 6.77 lbs/ 3.07 kg
Product Dimensions: 9.45 x 4.33 x 11.81 in/240 x 110 x 300 mm
Package Content
1 x Air Compressor Filter Regulator
1 x Thread Seal Tape
2 x 1/2" Connectors
1 x Pressure Gauge
2 x 1/2" Male-Female Plastic Connectors
4 x Desiccants
1 x Red Filter Element
