$98.79
Most customers receive within 5-7 days.
Meet Your Seller

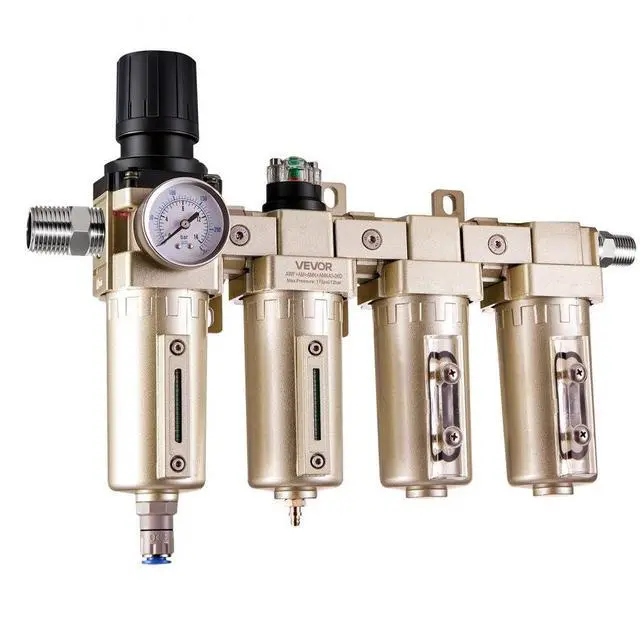

Air Compressor Filter Regulator, 3/4" NPT 4-Stage 5m & 0.3m & 0.1m & 0.1m Air Drying System with Micron Filters & Double Desiccant Dryer, Auto Drain Air Compressor Water Separator 175PSI Max

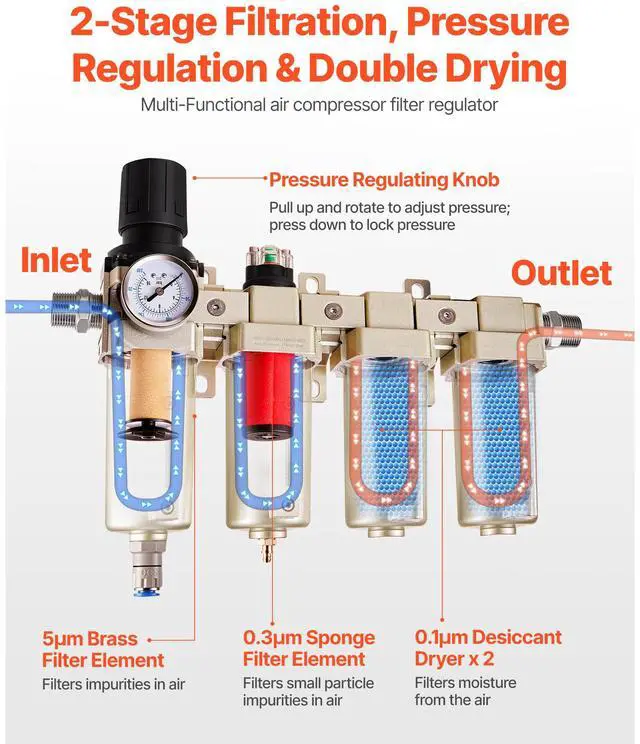

- High Configuration: air compressor filter regulator combines 2-stage precision filtration, 2-stage desiccant dryer, and stable pressure regulation (175PSI Max Working Pressure). Deliver clean and dry air to keep your tools running more efficiently

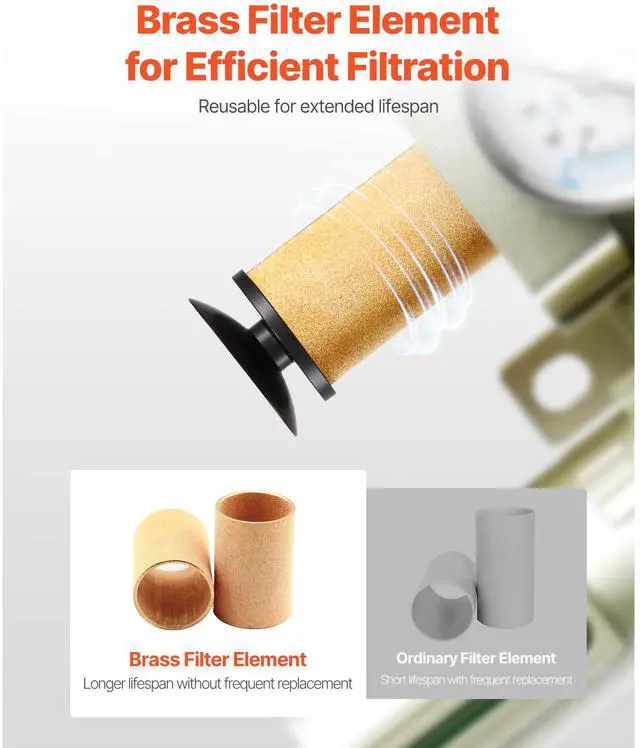

- Efficient Filtration & Drying: With 5m brass filter element, 0.3m sponge filter, and double desiccant dryer stage rated to 0.1m, the air filter regulator dryer combo effectively removes moisture and impurities, ensuring a clean, ultra-dry air supply

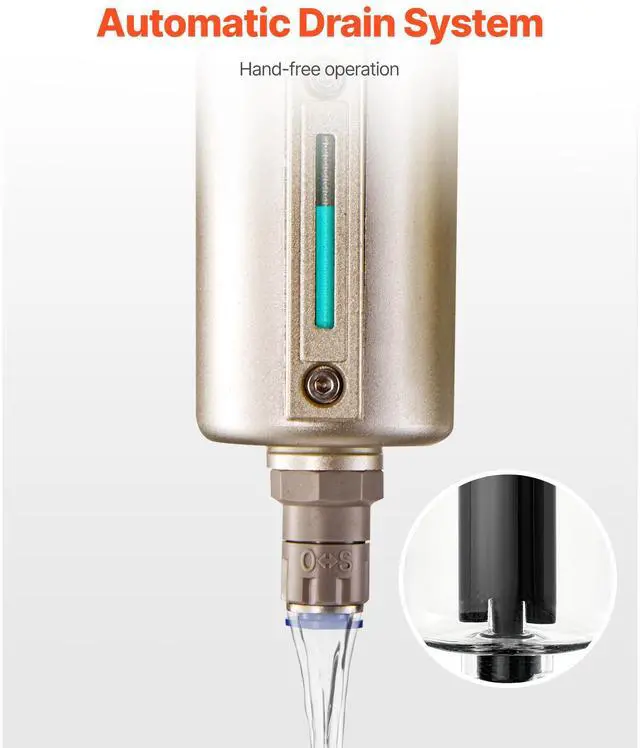

- Hands-Free Auto Drainage: With the built-in float switch, our compressed air drying filtering system will automatically activate drainage according to the water level, effectively reducing the risk of equipment failure caused by forgotten manual draining

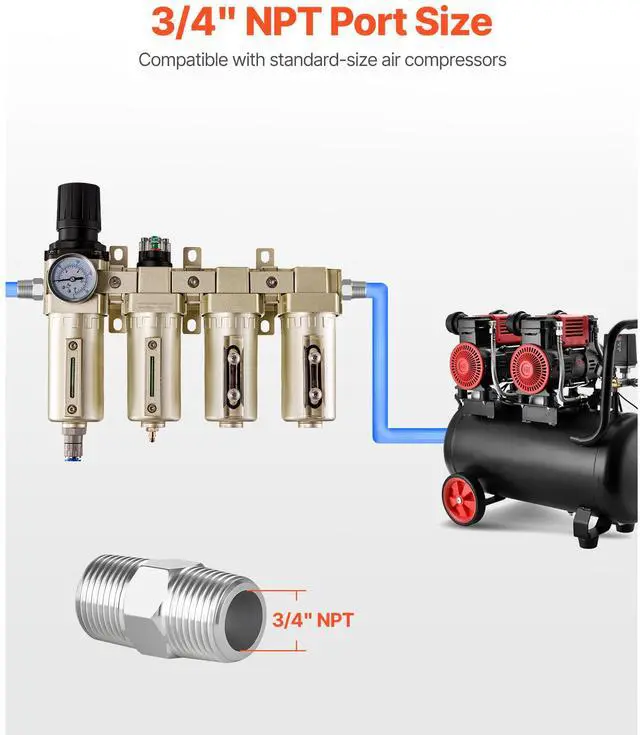

- Standard Port Size: Featuring a 3/4" NPT connector compatible with most air compressors
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

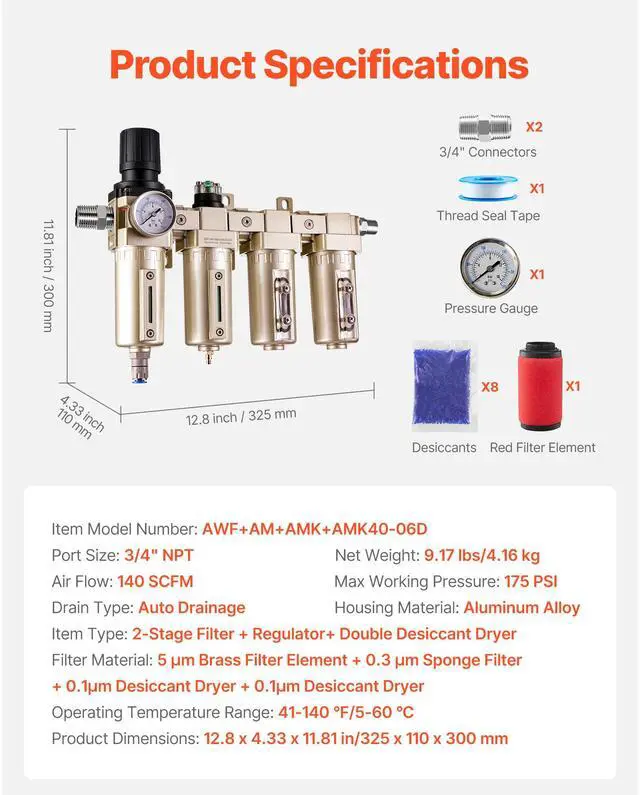

Specifications
Item Model Number: AWF+AM+AMK+AMK40-06D
Item Type: 2-Stage Filter + Regulator+ Double Desiccant Dryer
Filter Material: 5 m Brass Filter Element + 0.3 m Sponge Filter + 0.1 m Desiccant Dryer + 0.1 m Desiccant Dryer
Port Size: 3/4" NPT
Air Flow: 140 SCFM
Max Working Pressure: 175 PSI
Operating Temperature Range: 41-140 /5-60
Housing Material: Aluminum Alloy
Drain Type: Auto Drainage
Net Weight: 9.17 lbs/ 4.16 kg
Product Dimensions: 12.8 x 4.33 x 11.81 in/325 x 110 x 300 mm

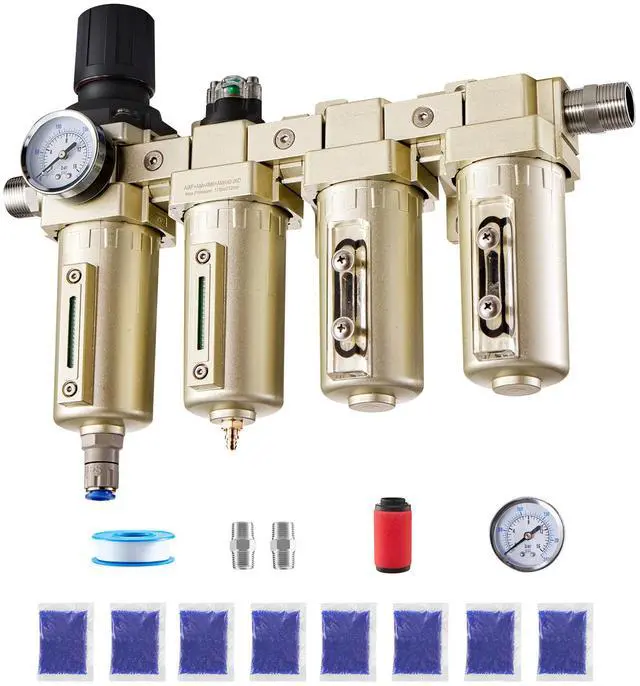

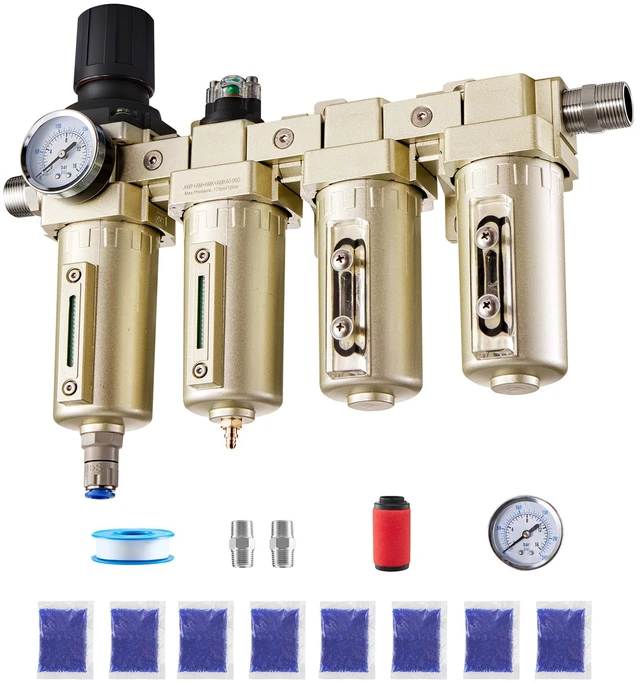

Package Content
1 x Air Compressor Filter Regulator
1 x Thread Seal Tape
2 x 3/4" Connectors
1 x Pressure Gauge
8 x Desiccants
1 x Red Filter Element
