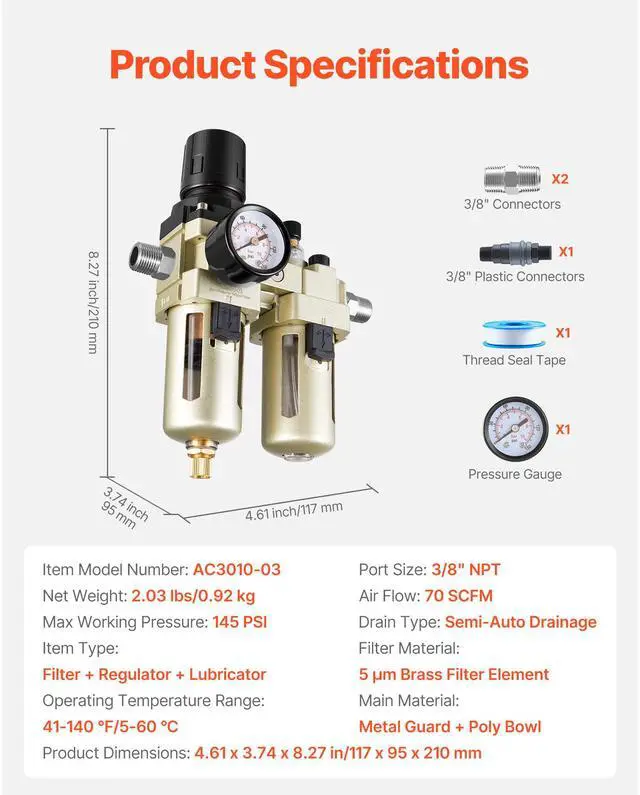

Specifications
Item Model Number: AC3010-03

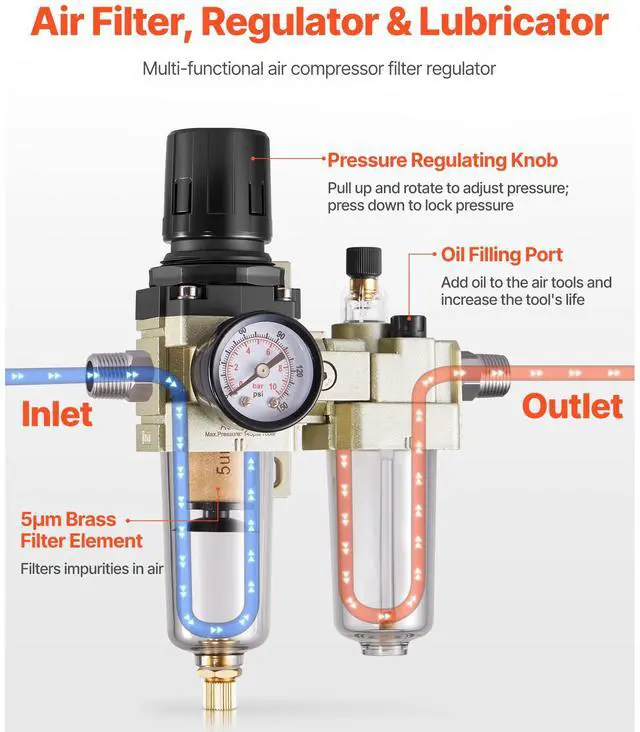

Item Type: Filter + Regulator + Lubricator

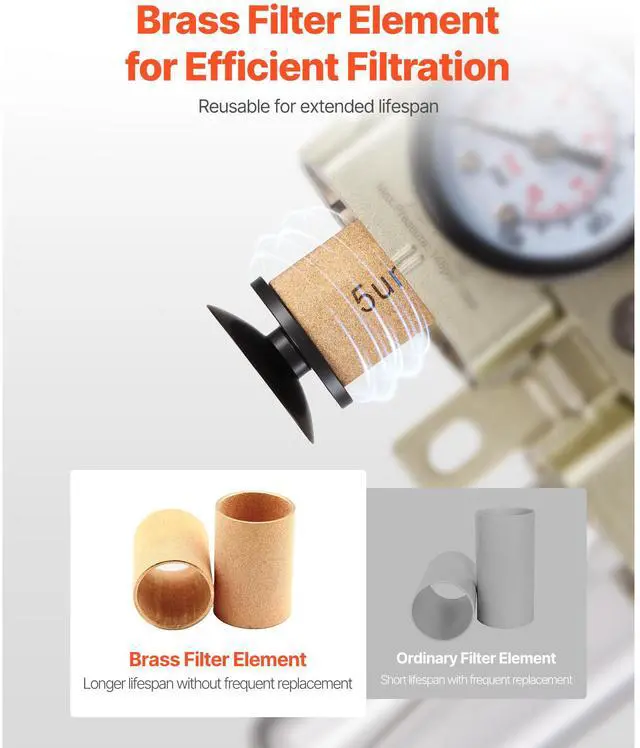

Filter Material: 5 m Brass Filter Element

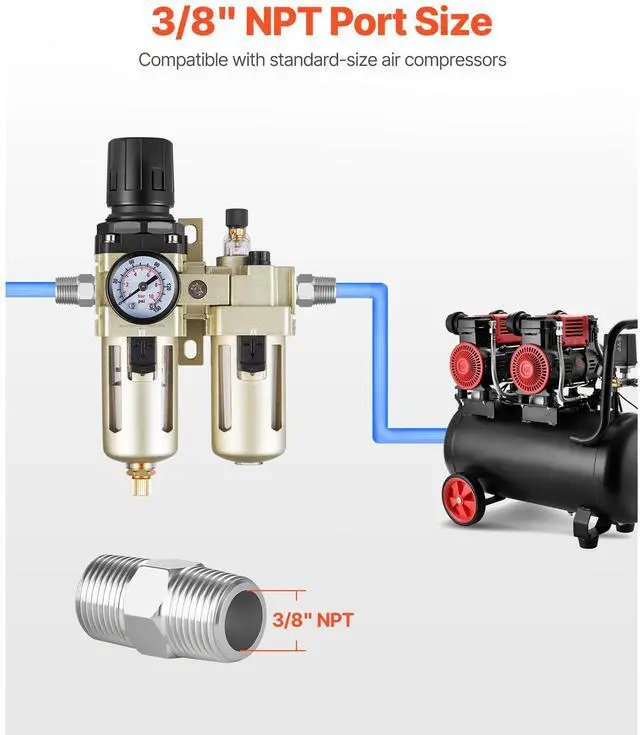

Port Size: 3/8" NPT
Air Flow: 70 SCFM

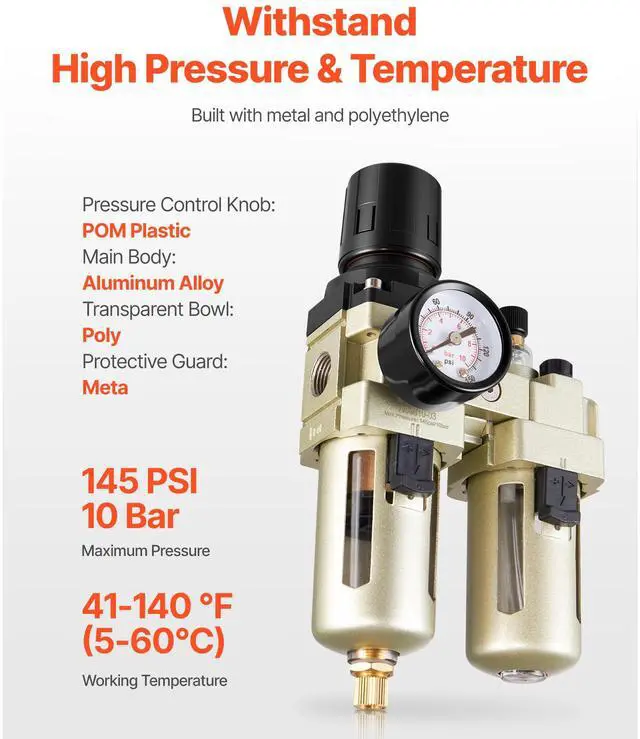

Max Working Pressure: 145 PSI
Operating Temperature Range: 41-140 /5-60
Main Material: Metal Guard + Poly Bowl

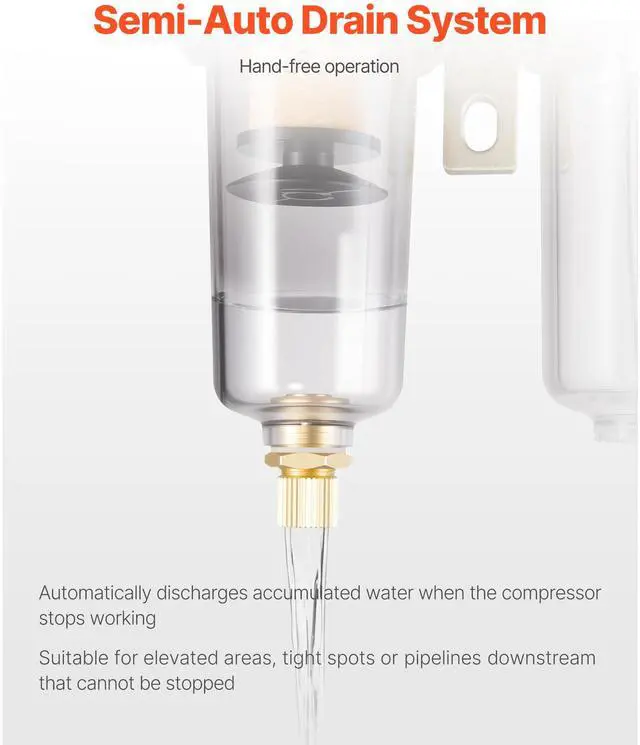

Drain Type: Semi-Auto Drainage
Net Weight: 2.03 lbs/ 0.92 kg
Product Dimensions: 4.61 x 3.74 x 8.27 in/117 x 95 x 210 mm

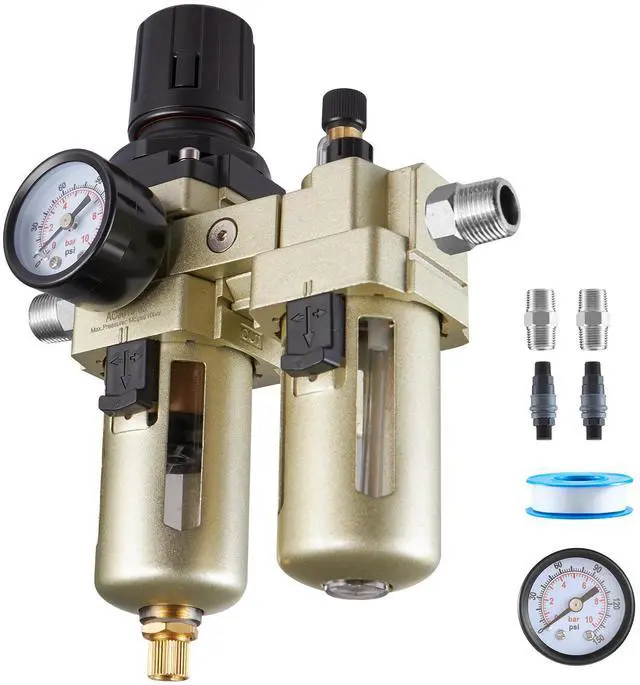

Package Content
1 x Air Compressor Filter Regulator
1 x Thread Seal Tape
2 x 3/8" Connectors
1 x Pressure Gauge
2 x 3/8" Male-Female Plastic Connectors
