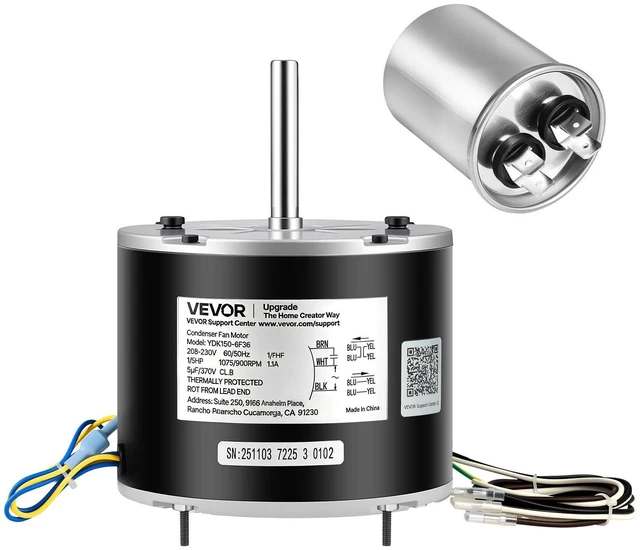

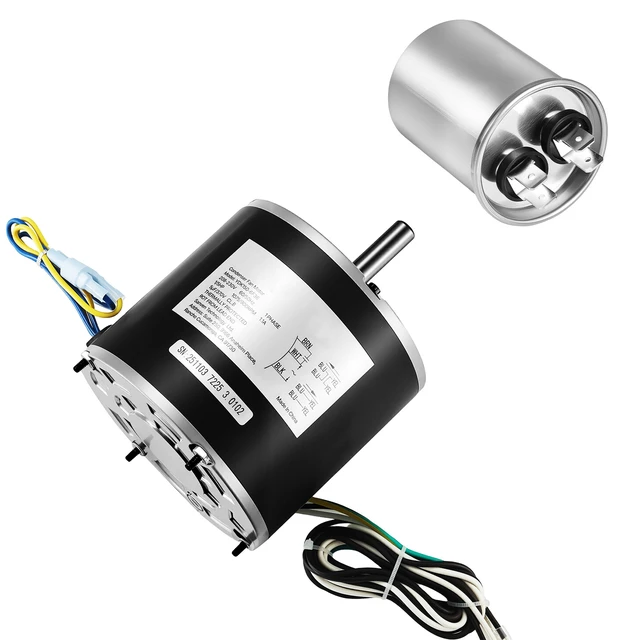

VEVOR Condenser Fan Motor with Capacitor, 1/5HP 1075/900RPM 208-230V, Replaces 12Y75, 97M49, 100483-02, 43W49, Compatible with Lennox Interlink Emerson K48HXGCK-4210 K48HXGFG-4294 YFK-150-6
- OEM Standard Quality: 1/5HP (60HZ) 1/6HP (50Hz), AC208-230V, 1075 / 900RPM, 1.1A Rated Current, Single Phase

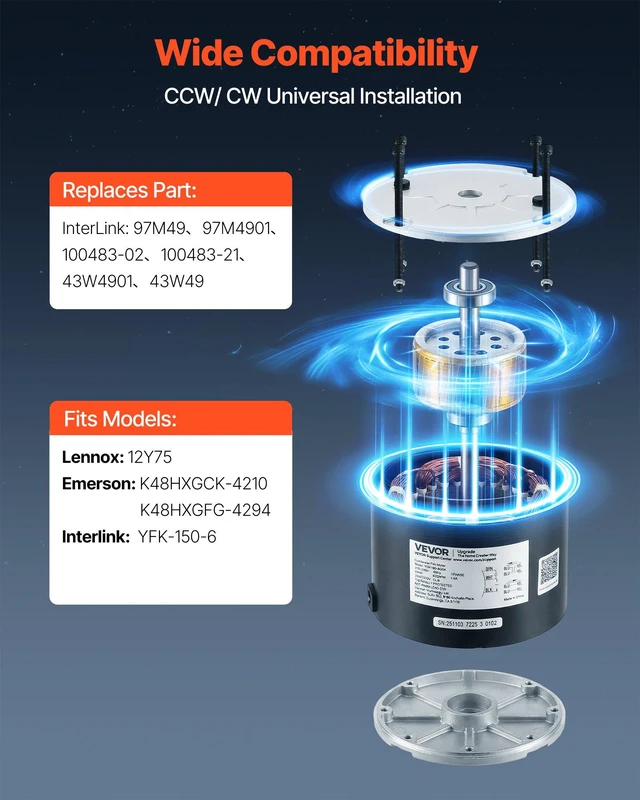

- Replacement & Compatibility: Replacement for Lennox 12Y75 and Interlink 97M49, 97M4901, 100483-02, 100483-21, 43W4901, and 43W49. Compatible with Emerson K48HXGCK-4210, K48HXGFG-4294, and Interlink YFK-150-6 condenser fan motor models
- Easy Installation: 42Y Frame, Shaft Length: 2 inch, Shaft Diameter: 0.5 inch. This condenser fan motor supports reversible rotation (CCW / CW), and includes a 47" cut-to-length wire for easier wiring and quick installation
- Includes Capacitor: Replacing the motor also requires replacing the capacitor. Includes 1 explosion-proof capacitor for fast startsno extra purchase needed, install and use right away

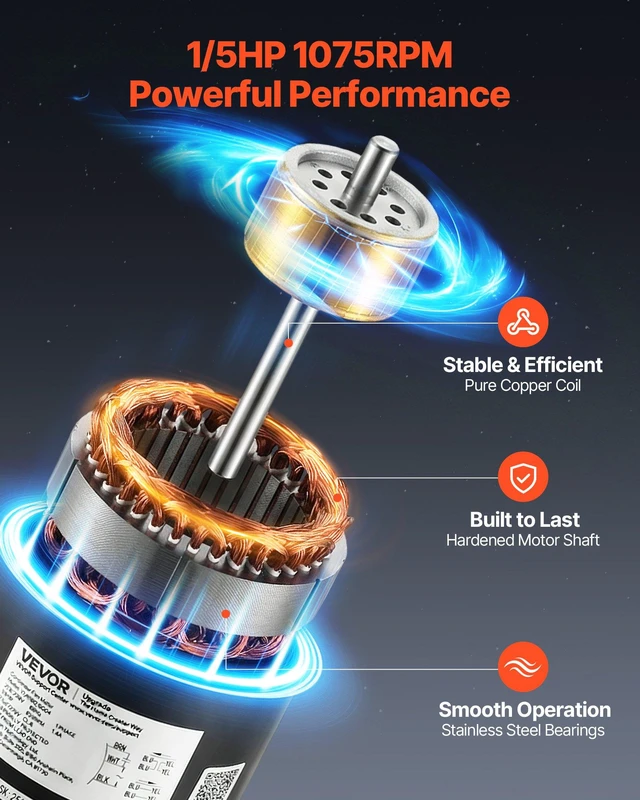

- Secure and Durable: Built with a pure copper coil and stainless steel bearings for reliable performance. Features overload protection with automatic reset and is designed for all-weather durability in ambient temperatures up to 40°C
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
VEVOR Condenser Fan Motor with Capacitor, 1/5HP 1075/900RPM 208-230V, Replaces 12Y75, 97M49, 100483-02, 43W49, Compatible with Lennox Interlink Emerson K48HXGCK-4210 K48HXGFG-4294 YFK-150-6
Solid Steel Housing
Precision Bearing

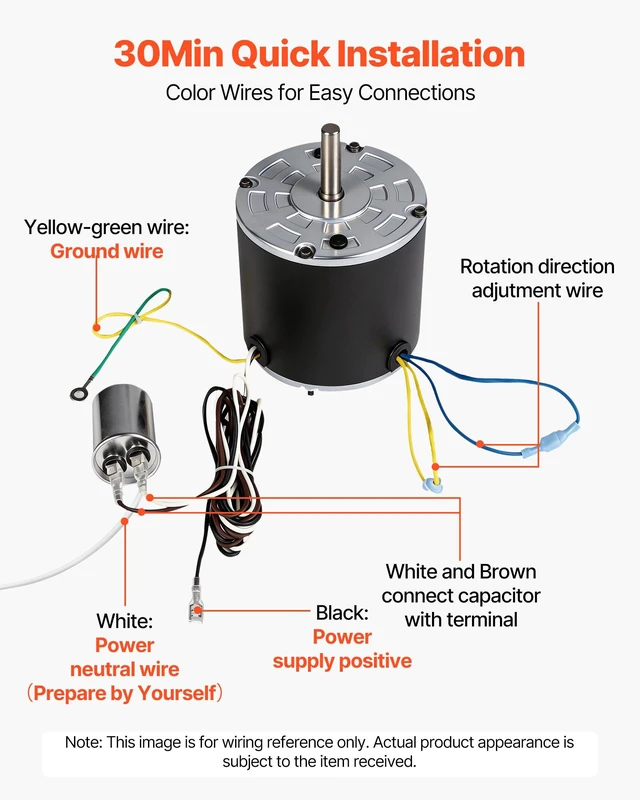

Color-coded Wires

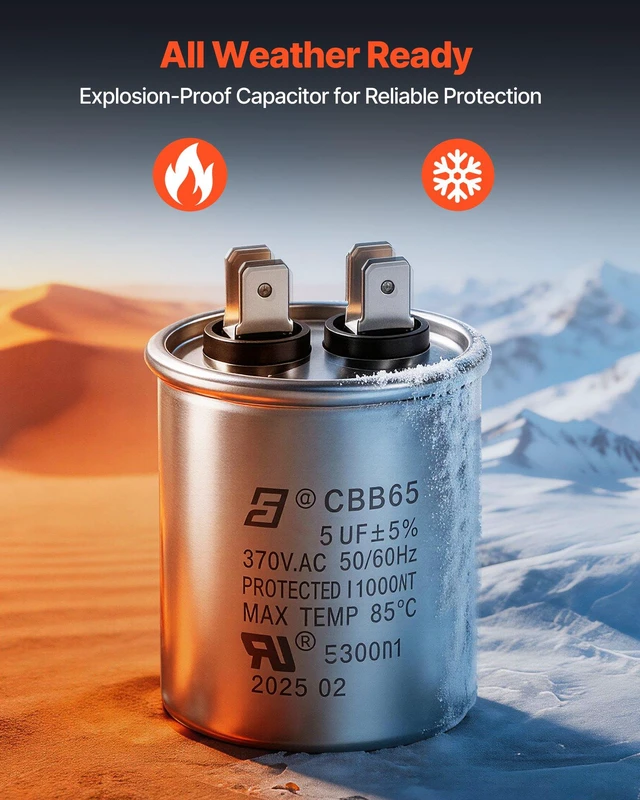

Explosion-Proof Capacitor
Quiet Operation
Easy Installation

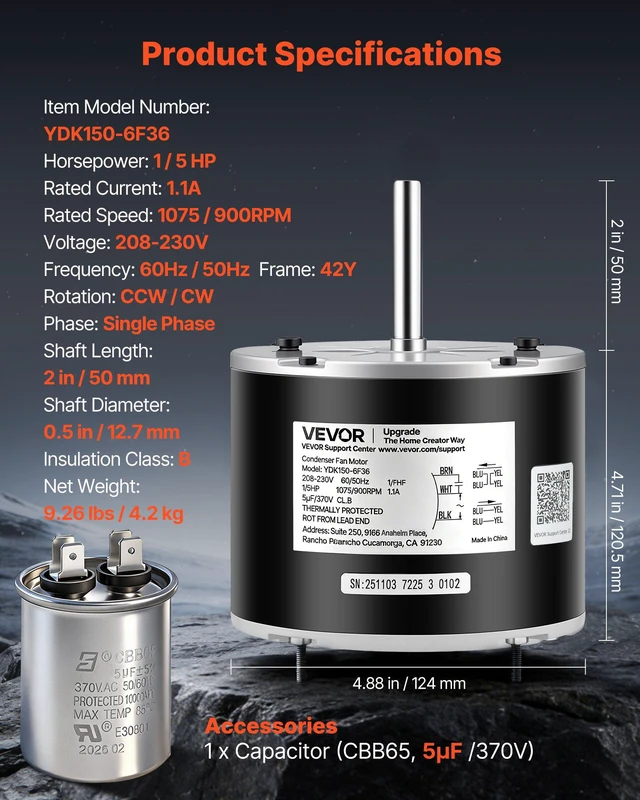

Frame: 42Y,Phase: Single Phase,Shaft Diameter: 0.5 in / 12.7 mm ,Insulation Class: B,Rotation: CCW / CW,Product Size: 4.88 x 4.88 x 6.71 in/124 x 124 x 170.5 mm,Shaft Length: 2 in / 50 mm ,Rated Speed: 1075/900RPM,Horsepower: 1/5 HP,Voltage: 208-230V,Item Model Number: YDK150-6F36,Frequency: 60Hz/50Hz,Rated Current: 1.1A,Net Weight: 9.26 lbs / 4.2 kg
Solid Steel Housing
Precision Bearing
Color-coded Wires
Explosion-Proof Capacitor
Quiet Operation
Easy Installation
Frame: 42Y,Phase: Single Phase,Shaft Diameter: 0.5 in / 12.7 mm ,Insulation Class: B,Rotation: CCW / CW,Product Size: 4.88 x 4.88 x 6.71 in/124 x 124 x 170.5 mm,Shaft Length: 2 in / 50 mm ,Rated Speed: 1075/900RPM,Horsepower: 1/5 HP,Voltage: 208-230V,Item Model Number: YDK150-6F36,Frequency: 60Hz/50Hz,Rated Current: 1.1A,Net Weight: 9.26 lbs / 4.2 kg
