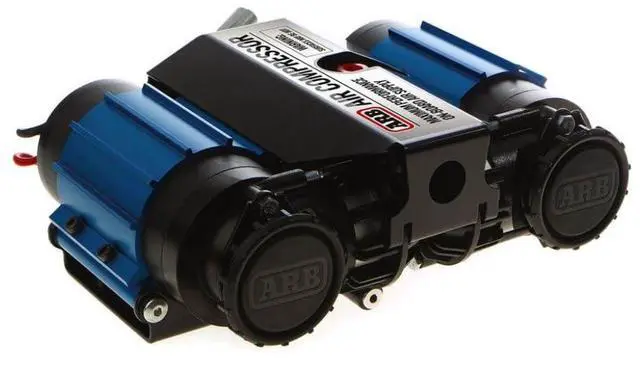

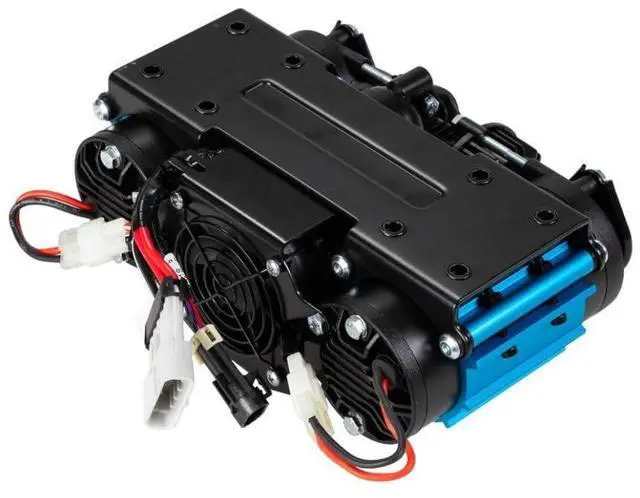

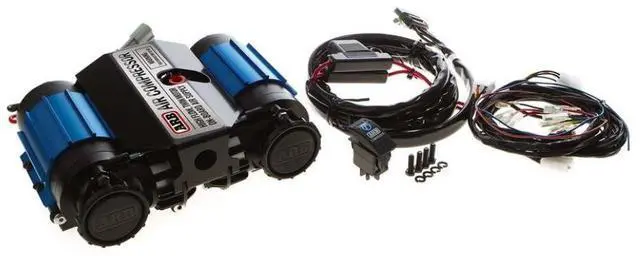

ARB CKMTA24 Twin Air Compressor Kit On-Board 24V Incl. Fully Assem Air Comp Complete Wiring Loom Comp Isolating Switch Splash Resistant Air Filters Mounting Bolts/Washers Twin Air Compressor Kit
- Motors are water sealed, 100% ball bearing equipped (i.e. no bushings), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.; Compact twin motor, dual cylinder design makes it the highest flowing compressor in its class (voltage vs. size). Highest air flow rate of any 24V compressor of its size on the market at 174LPM [6.16CFM].; Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids. (Note: Air Locker Manifold Kit #171503 required to mount solenoids).; Motors are internally thermal protected against extreme temperature damage. Over-pressure safety valve equipped. Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.; Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing. Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fibre piston seals for reduced friction and maximum trouble free life.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description TWIN ON-BOARD COMPRESSOR 24 V CKMTA24 HIGH PERFORMANCE AIR COMPRESSOR Ideal for: Air Lockers, Tire Inflator, Air Horn, Air & Pneumatic Tools Constructed entirely of lightweight, high strength engineering grade materials TWIN MOTORS DURABLE MATERIALS FAST PUMPING Twin High Performance Air Compressor ARB CKMTA24 On-Board The ARB CKMTA24 twin on-board compressor kits were designed specifically as a compact-sized yet high-volume compressed air source to suit the high-volume airflow needs of most air-powered tools, and also to suit the actuation and control needs of the ARB Air Locker and the harsh and demanding environment of the ARB Air Locker user. 1 WATER SEALED 2 COMPACT TWIN MOTOR 3 FULL WIRING LOOM 4 THERMAL PROTECTION 5 HIGH-TECH MATERIALS Click to play video KIT INCLUDES 1 2 3 4 5 6 TECHNICAL SPECS Voltage 24 Volts (CKMTA24) Current Draw No-Load 28A (CKMTA24 only) Load 50A (CKMTA24 only) Air Flow 174.3L /min @ 0Bar [ 6.16CFM @ 0psi] / 131.7L /min @ 2Bar [ 4.65CFM @ 29psi] Total Weight 8.8 kg [ 19.4 lbs] Size 102mm x 190mm x 275mm (H, L, W) [ 4.0 x 7.5 x 10.8 ] Outlet Port 1 /4 NPT Pressure Switch Open 10.3B ar [150psi] / Closed 9.3B ar [135psi] Safety Valve OPEN @ > ~ 12.4B ar [180 psi]
