General InformationManufacturer: IBM CorporationManufacturer
Part Number: 49Y4240Manufacturer
Website Address:
http: //www. ibm.
comBrand Name: IBM
Product Series: I340Product
Model: I340-T4Product

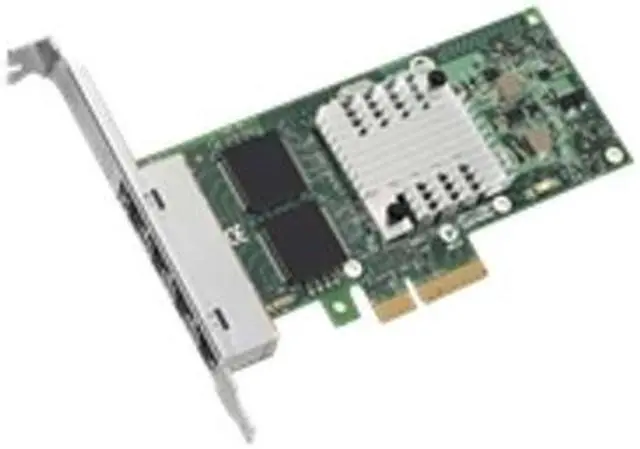

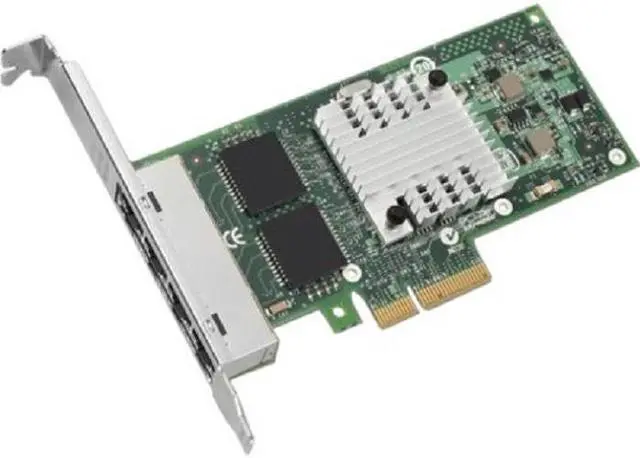

Name: Intel Ethernet Quad Port Server Adapter I340-T4 for
System xMarketing Information: Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel Ethernet Dual Port and Quad Port Server Adapters for System x® are Intel's fourth generation of PCI Express Gigabit Ethernet (PCIe GbE) adapters. These adapters showcase the industry's first fully integrated, multi-port PCIe 2.0 GbE controllers, providing a smaller footprint and lower power dissipation.
Product Type: Gigabit
Ethernet CardInterfaces/PortsHost Interface: PCI Express 2.0 x4Total Number of
Ports: 4Number of
Network (RJ-45) Ports: 4Media & PerformanceMedia
Type Supported: Twisted
PairNetwork & CommunicationNetwork Technology: 10/100/1000Base-TPhysical
CharacteristicsForm Factor: Plug-in
CardHeight: 2.8"W
idth: 5.5"D
epth: 0.6"W
eight (Approximate): 8 ozMiscellaneousDevice
Supported: Server
