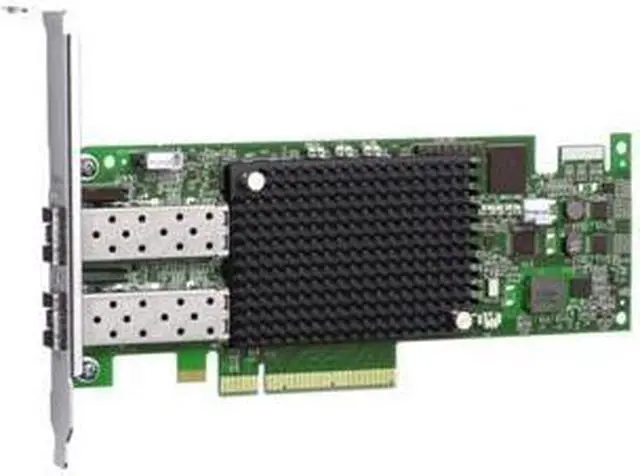

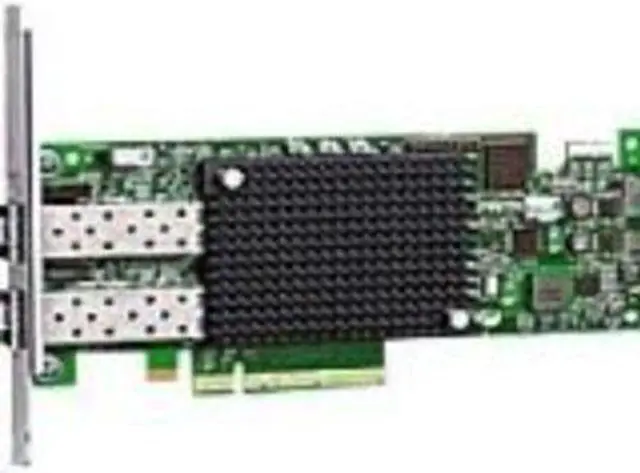

Emulex LPE16002B-E Dual-port 16Gb PCIe3.0 Fibre Channel Host Bus Adapter

The PCI Express (PCIe) 3.0 EMC-qualified LPe16000B-E 16Gb Fibre Channel (16GFC) Host Bus Adapter (HBA) provides outstanding input/output operations per second (IOPS) performance-20% more than other 16GFC HBAs, plus lightning fast response times and 4x better IOPS performance per watt making it the clear choice for the toughest virtualized, cloud and mission critical deployments. With almost 1.2 million IOPS on a single-port, it is ideally suited for FC connectivity to solid state disks (SSDs) and new multi-core processors. Its advanced management functionality can shave days off installing and managing adapters. The EMC single-port LPe16000B-E and dual-port 16002B-E feature the Emulex bullet-proof driver stack, backward compatibility to 4GFC and 8GFC HBAs and rock-solid reliability with a heritage that spans back to the first generation of Fibre Channel to today's 16GFC HBAs. Emulex is trusted by data centers the world over, with more than 12 million HBA ports shipped and installed to date.

The Emulex LightPulse highly integrated multi-processor design minimizes onboard components to improve host performance and efficiency. Advanced error-checking features ensure the integrity of block data as it traverses the storage area network (SAN).

Emulex's firmware-based architecture enables feature and performance upgrades without costly hardware changes.

The unique 4th Generation Service Level Interface (SLI™ ) allows use of a common driver across all models of Emulex HBAs on a given operating system (OS) platform. Installation and management facilities are designed to minimize server reboots and further simplify deployment.

The Emulex OneCommand® Manager enterprise-class management application features a multi-protocol, cross-platform architecture, that provides centralized management of all adapters provided by Emulex. This enables IT administrators to manage network connectivity with one tool for maximum efficiency.

The LPe16000B-E also features:

• OneCommand® Manager plug-in for VMware vCenter Server-enables comprehensive control of Fibre Channel HBAs and network (FCoE, iSCSI and TCP/IP NIC) connectivity solutions provided by Emulex from VMware's vCenter Server management console.

• Class 2
• Class 3

• EU RoHS
• China RoHS
