Ubiquiti UniFi UPS 2U 1.44kVA Rackmount Uninterruptible Power Supply (UPS-2U)

1. UniFi managed 1.44kVA rackmount uninterruptible power supply.
2. 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes.
3. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
4. NOTE: For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

1. Dimensions: 442.4 × 300 × 87.4 mm (17.4 × 11.8 × 3.4")
2. Weight: 14 kg (30.9 lb)
3. Enclosure Material: Galvanized Steel
4. Form Factor: Rack Mount (2U)
5. Weatherproofing: IP20
6. Management: Ethernet
7. Networking Interface: (1) 100/10 MbE Port (Network), (2) GbE Ports (Surge In/Out)
8. Power Input: OVC II AC In (NEMA 5-15P), 1.8 m (5.9 ft) Non-removable Power Cord

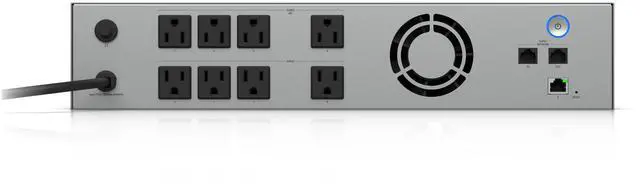

9. Battery Backup/Surge Ports: (4) NEMA 5-15R
10. Surge Protection Ports: (4) NEMA 5-15R
11. Capacity: 1,440VA / 1,000W
12. UPS Type: Line-Interactive
13. Input Voltage Range: 89145V AC
14. Power Method: TN System, 120V AC, 12A Max, 50/60Hz
15. Nominal Input Voltage: 120V AC
16. Output Voltage: 120V AC
17. Frequency Range: AC Mode 50/60Hz ±5Hz (Auto), Battery Mode 60Hz ±1Hz
18. AC Voltage Regulation: ±10% (Battery Mode)
19. Transfer Time: 6 ms Typical, 10 ms Max
20. Waveform (Battery Mode): Simulated Sine Wave
21. Battery Type: (2) 12V 9Ah Lead-Acid
22. Runtime: 2.3 min (Full Load), 8 min (Half Load)
23. Battery Charging Time: 68 Hours to 90%
24. Overload (Online Mode): 110% for 5 min Fault; 120% Immediate Fault
25. Overload (Battery Mode): 110% Shutdown in 5 sec; 120% Immediate Shutdown
26. Short Circuit Protection (Online Mode): Breaker 250V AC, 15A
27. Output Short-Circuit Current: Ipeak 348A, Irms 115.1A
28. Buttons: Power, Factory Reset

LED Status:

1. Off: Not Powered
2. Flashing White: Initializing / Factory Default
3. Steady White: Awaiting Adoption
4. Steady Blue: Adopted / Working
5. Flashing Blue: Battery Mode
6. White/Blue Alternating: Firmware Upgrade
7. Rapid Blue: Locate
8. Steady Red: Warning
9. Flashing Red: Low Battery
