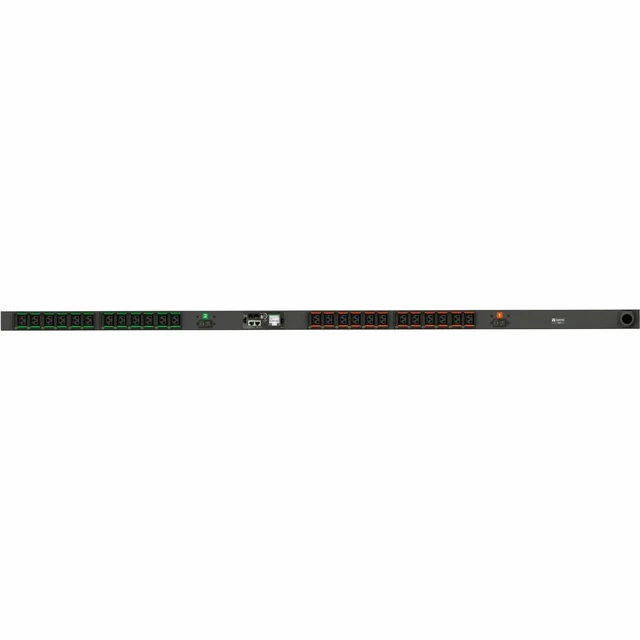

Vertiv VP7N30AP Switched Outlet Level Monitored 30A 208V 4.9kW 0U Vertical Rack PDU (24) Combination C13/C19 - L6-30P (10ft Cord)

The Vertiv VP7N30AP Switched Outlet Level Monitored Rack Power Distribution Unit (rPDU, Model MNU5MGB1-24CF18-3TL6A0A10-S) delivers high-performance, intelligent power management and full outlet-level energy telemetry for standard IT equipment racks. Operating at 200-240V single-phase with a 30A capacity (4.9kW at 208V), this 0U vertical unit mounts seamlessly in side-rack spaces to save zero-U horizontal rack real estate in server rooms and enterprise edge data centers.

Equipped with 24 versatile Combination C13/C19 outlets, this unit enables IT managers to connect either standard C14 or high-current C20 power cords into any available receptacle slot. The advanced Interchangeable Monitoring Device (IMD) tracks real-time electrical performance per receptacle with 1% metering accuracy. Integrated remote outlet switching provides instant reboot control for un-responsive devices and customizable power sequencing to safely manage load distribution.

Constructed in a durable black powder-coated steel housing with an auto-orienting high-contrast LCD display, the unit includes a 10-foot power cable terminated with a NEMA L6-30P twistlock connector. Engineered for reliable performance in high-ambient data center environments up to 60°C (140°F), this commercial-grade PDU provides complete visibility and remote power management for modern IT setups.

General

1. Brand: Vertiv Geist
2. Part Number: VP7N30AP
3. Model Number: MNU5MGB1-24CF18-3TL6A0A10-S
4. Product Line: Geist Upgradeable N Series
5. Product Type: Switched Outlet Level Monitored Rack PDU (rPDU)
6. Form Factor: 0U Vertical Rackmount
7. Chassis Material & Finish: Heavy Steel - Black Powder Coat
8. Country of Origin: USA (TAA Compliant & Buy American Act COTS Compliant)

Power Specifications

1. Input Voltage: 200-240V AC (50/60Hz)
2. Current Capacity: 30A
3. Load Capacity (VA per Input): 4.9 kW (208V)
4. Quantity of Inputs: 1
5. Input Plug Type: NEMA L6-30P Twistlock
6. Power Cable Specification: 10 ft (3.05 m) length | High-durability power cord
7. Over Current Protection: (2) 20A Double Pole Magnetic Breakers (10kAIC Rated)

Output Receptacles

1. Receptacle Type: Combination C13/C19
2. Total Receptacles: 24 (Front-facing)
3. Receptacle Distribution: Arranged across protected circuit breaker banks
4. Voltage per Receptacle: 208V
5. Outlet Management: Individual Receptacle Remote Switching with Sequential Power-up Controls
6. Status Indicators: LED Receptacle Status Indicators

Monitoring & Management

1. Monitoring Capability: Outlet Level Monitoring (kWh, W, VA, PF, V, A) + Unit Level Input Phase Monitoring
2. Power Measurement Accuracy: ANSI C12.1 and IEC 62053-21 Class 1% Accuracy
3. Local Display: Auto-Oriented High-Contrast LCD Touchscreen Display
4. Network Interface: Dual 10/100/1000 Mbps Ethernet (RSTP Fault-Tolerant Daisy Chaining up to 40 rPDUs)
5. Protocols Supported: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
6. Data Access Formats: CSV datalog, JSON API, JSON datalog
7. Expansion Ports: 1 x RJ Sensor Jack (Supports up to 16 Remote Sensors), RS232 Serial via RJ45, USB Port
8. Control Buttons: IP Reset Button, Hard Reboot Button

Physical & Environmental

1. Chassis Dimensions (H x W x D): 66.25 in x 2.0 in x 2.6 in (1682.8 mm x 50.8 mm x 66.0 mm)
2. Shipped Weight: 20 lbs (9.07 kg)
3. Maximum Operating Temperature: 60°C / 140°F

Certifications & Compliance

1. Agency Approvals: UL & c-UL Listed 62368-1
2. Compliance: RoHS Compliant, FCC Part 15 Class A Conformance
