DC Power Supply Variable,30V 5A Adjustable Switching Regulated DC Bench Power Supply with 4 Digits LED Display, Data Hold,Coarse and Fine Adjustment with 110V Alligator Leads

[High Precision]Hyelec adjustable dc bench power supply with precise encoder adjustment knob,using code type potentiometer, users can use the same adjustment knob for coarse and fine adjustment switch, display precision 0.01V and 0.01A, high precision LED display, stable value does not jump word. Press both knobs simultaneously for 3 seconds to hold a set of values, then press for 3 seconds to release

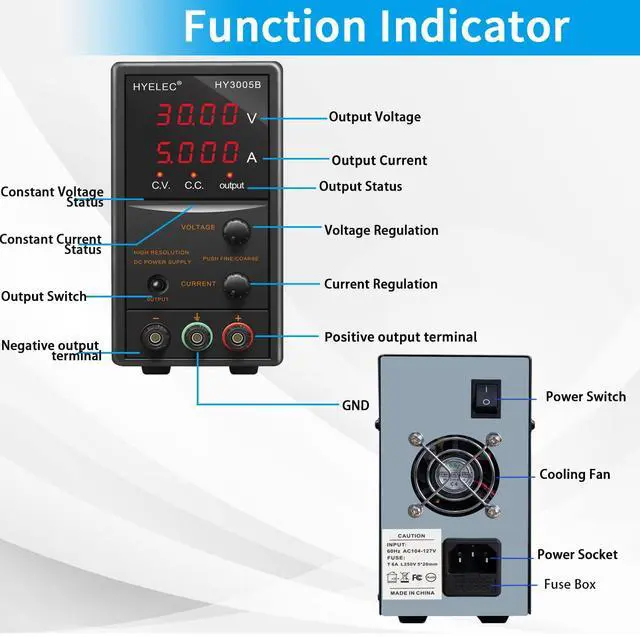

[Constant Voltage (CV) and Current (CC) mode ]Adjust the coarse and fine adjustment knobs to easily dial in the required voltage and current; when the load current reaches the setting current limit value, it will automatically switch to the constant current mode, The LED indicator light on the panel switches from CV light to CC light, and the current displays the limited current value.
[Multi-protection] Equipped with surge protection output switch, it can prevent damage the equipment when you forget to disconnect the output ; The bench-top power supply includes temperature control fan,power overload, short-circuit protection. Its applied frontier technology in the industry, the performance has beyond linear power supply and created a record of 72-hours uninterrupted test at full load.
[Extensive use]Suitable for a variety of applications such as laboratory scientific research, mobile phone repair and troubleshooting, electrical maintenance, battery charging, technology and DIY tools, etc

Product Description

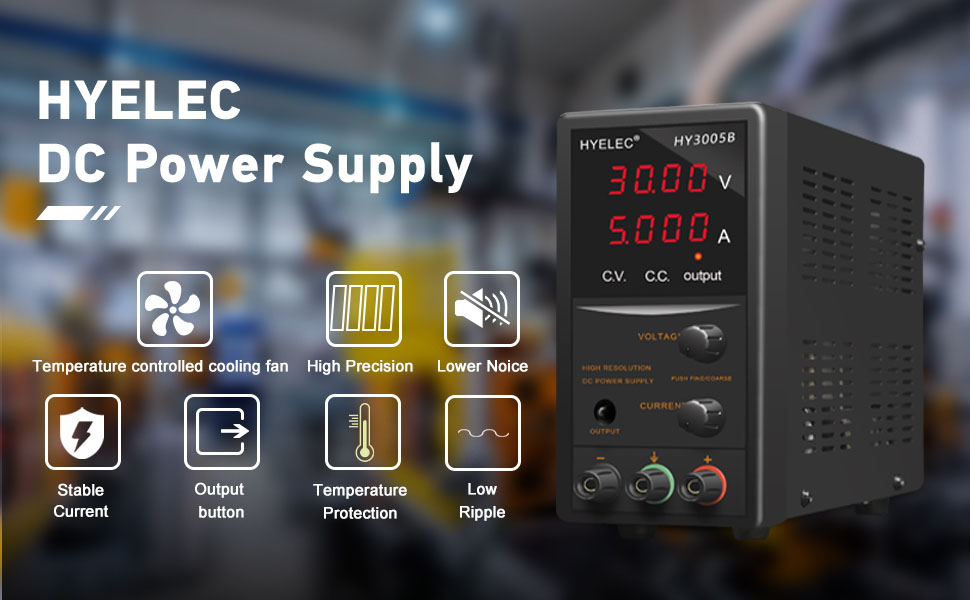

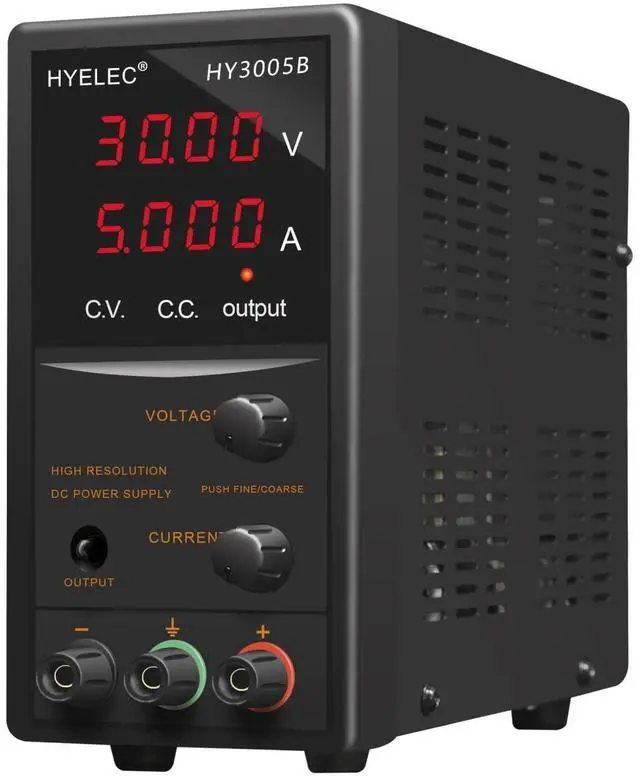

HYELEC variable DC Power Supply HY3005B

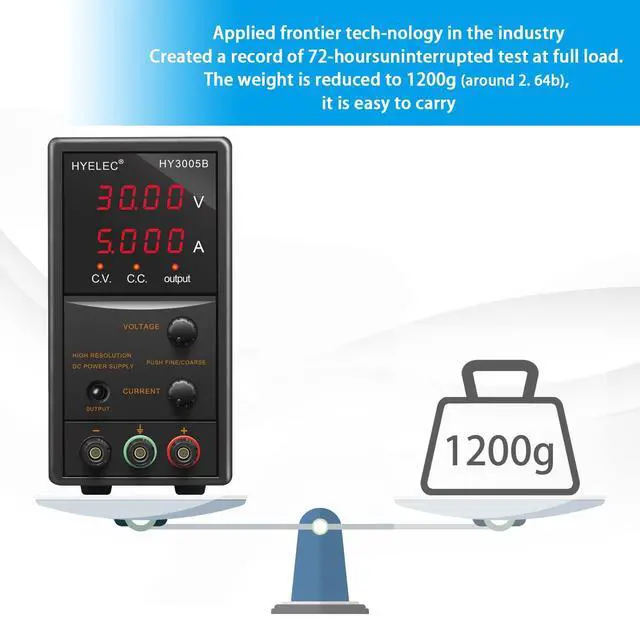

HY3005B is a high precision, compact variable power supply, it’s applied frontier technology in the industry, works very stable, the structure of HY3005B is reasonable, neat, light and reliable, easy to carry with. User can switch the coarse and fine adjustment by click the same adjusting knob, it also has created a record of 72 hours uninterrupted test at full load.

Feature:

1. 4 digit high precision LED display

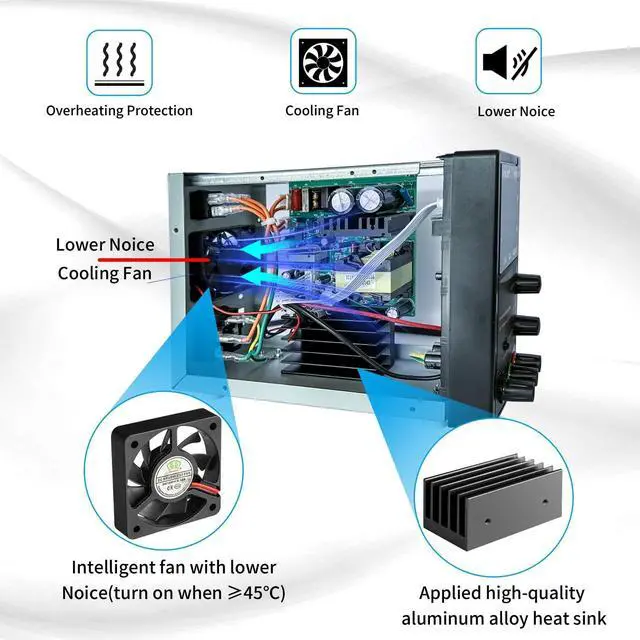

2. The built-in cooling fan protects the main body from high temperature when the temperature reaches 60 degrees, effectively prolonging service life of product

3. overvoltage and short-circuit protection

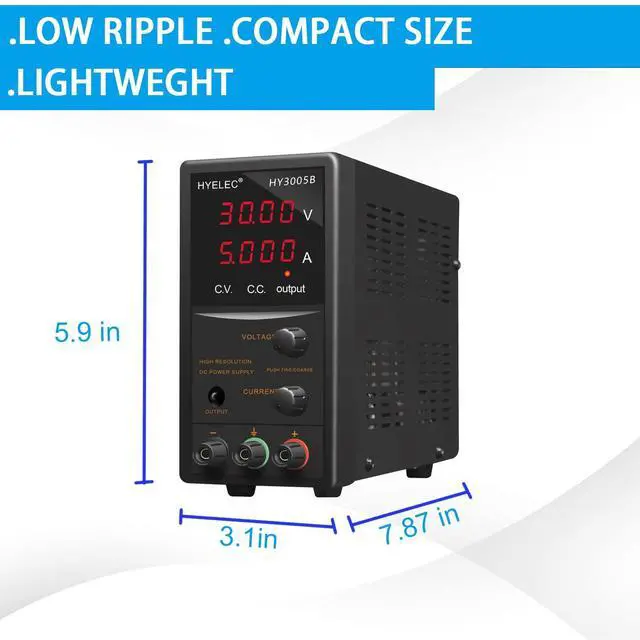

4. lightweight and easy to carry

5. wide range of application such as school lab experiments, cell phone repairing and troubleshooting, electronic production ensuring specifications, and laboratory measurements etc.

HY3005B

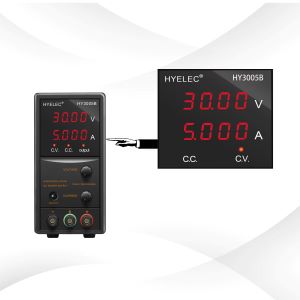

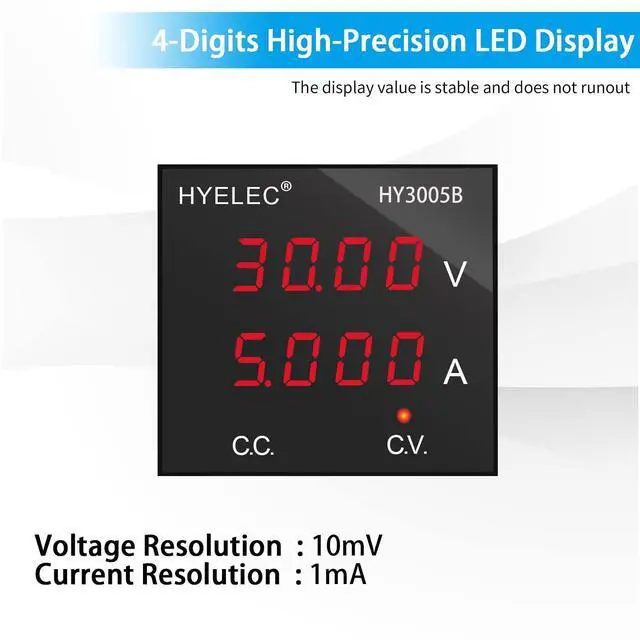

HD Display

LED screen works even in low voltage conditions Provides more accurate and clearly visible readings of voltage and current values.

HY3005B

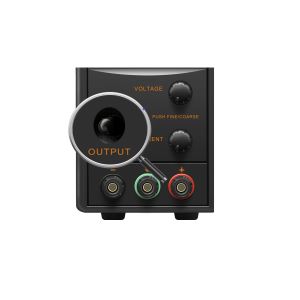

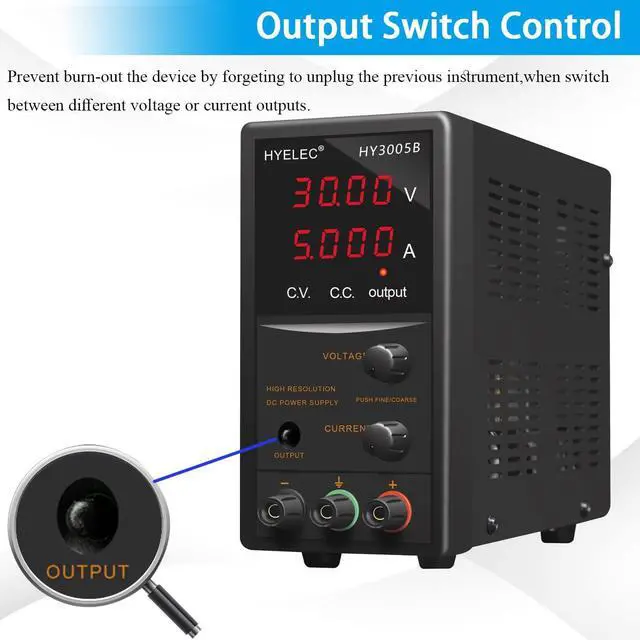

Output Switch Control

Prevent burn-out the device by forgeting to unplug the previous instrument,when switch

between different voltage or current outputs.

HY3005B

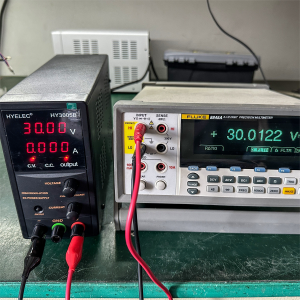

High Precision

The power supply is stable and accurate, The resolution is 0.01V and 0.001A; and the display features a 4-digit reading function for higher precision

HY3005B

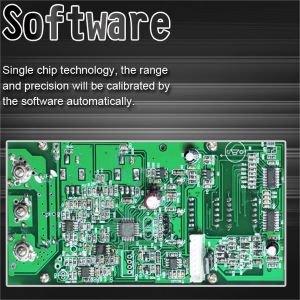

Software

Single chip technology, the rangeand precision will be calibrated bythe software automatically

HY3005B

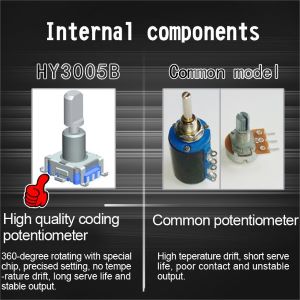

High quality codingpotentiometer

360-degree rotating with specialchip, precised setting, no tempe-rature drift, long serve life andstable output.

HY3005B

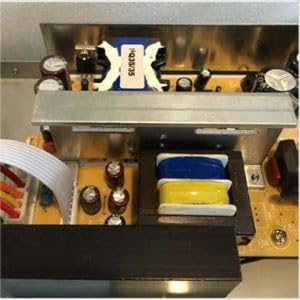

Delicate design

Power circuit adopt high-power discrete device

and totally separate from the single chip controlcircuit to ensure the stable working during fullload and avoid multual interference.

Specification:

Output voltage	0-30V
Output current	0-5A
Display	4 digits LED display
Ripple and noise	CV=5mVr.m.s CC=20mAr.m.s
Input voltage	104~127VAC(60Hz),
Line regulation	CV=0.1%+3mV CC=0.2%+3mA
Load regulation	CV=0.05%+3mV ( I=3A ) CC=0.5%+10mA ( I=3A ) CV=0.01%+5mV ( I>3A ) CC=0.2%+5mA ( I>3A )
Protection	current limiting and short circuit protection
Environment	Operation temperature :0~+40°C relative humidity :90%
Surge Votlage Control	Yes
Lock function	Yes
