Product Description

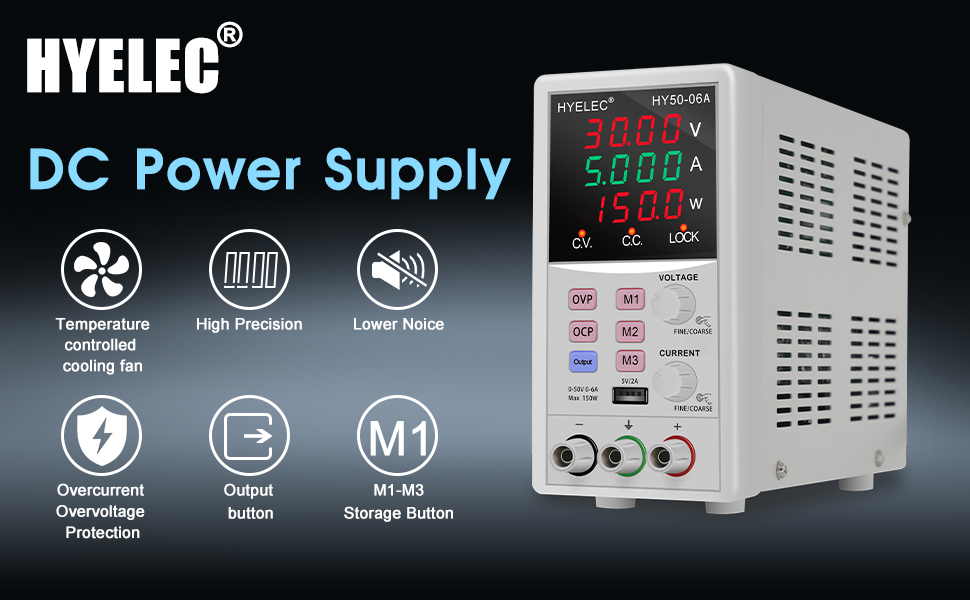

HYELEC adjustable DC bench Power Supply HY50-06A

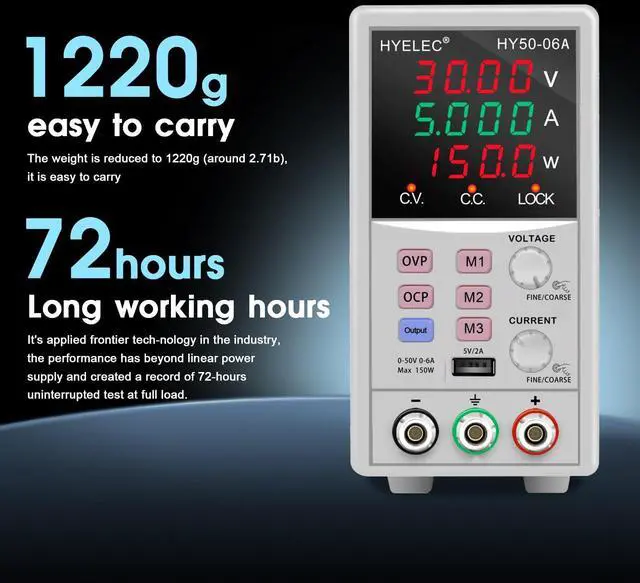

HY50-06A is a high precision, compact variable dc power supply, it’s applied frontier technology in the industry, works very stable, the structure of HY50-06A is reasonable, neat, light and reliable, easy to carry with. User can switch the coarse and fine adjustment by click the same adjusting knob, it also has created a record of 72 hours uninterrupted test at full load.
Feature:
1. 4 digit dual color high precision LED display

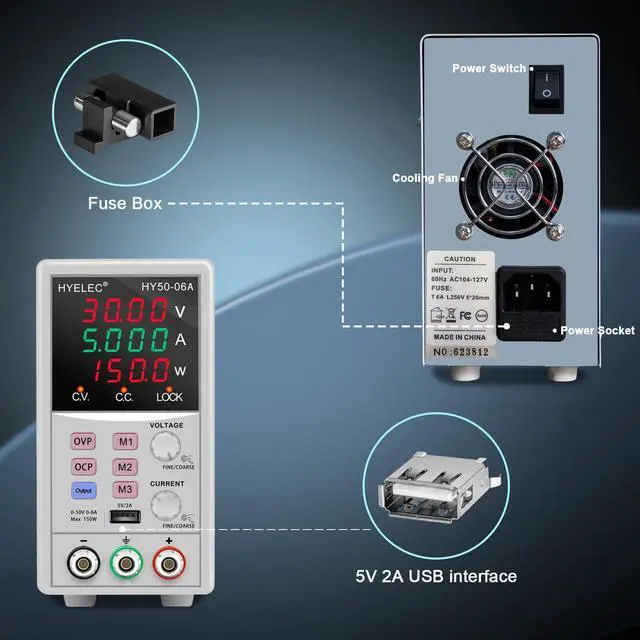

2. 5V2A USB Output interface

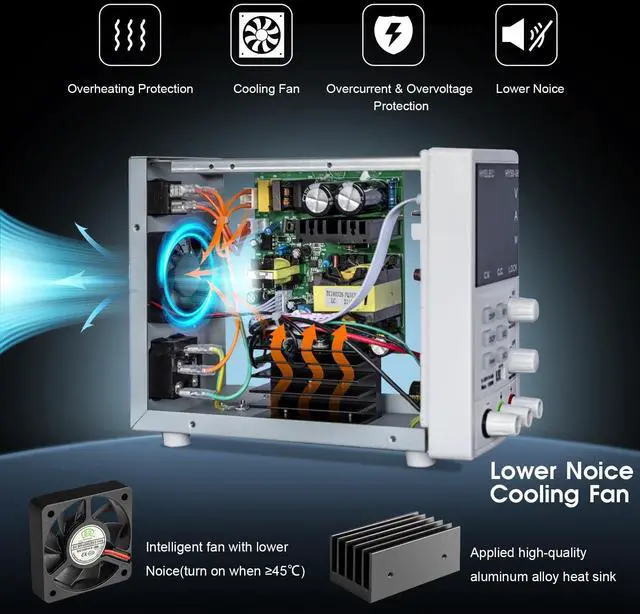

3. Current limiting , short circuit protection ,OCP, OVP independent protection
4. The dc power supply with three groups of memory storage function

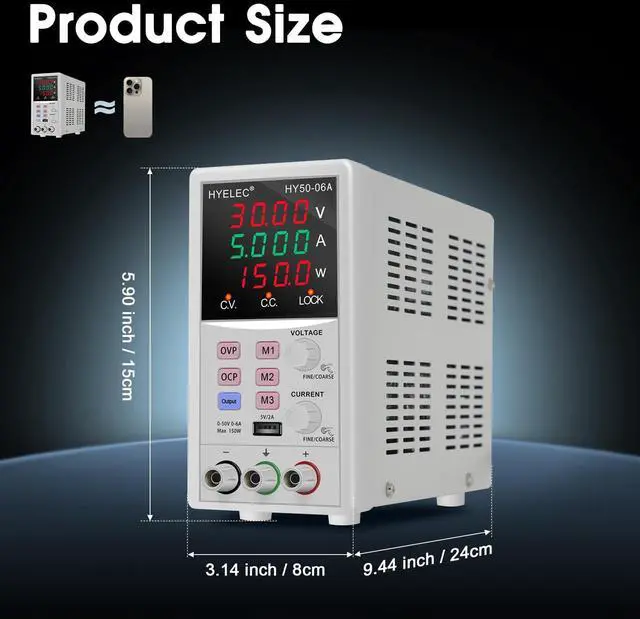

5. lightweight and easy to carry
6. wide range of application such as school lab experiments, cell phone repairing and troubleshooting, electronic production ensuring specifications, and laboratory measurements etc. 8.There is a protective film on the display lenses,it's removable
High Precision LED Display
LED screen works even in low voltage conditions Provides more accurate and clearly visible readings of voltage and current values.
Specification:

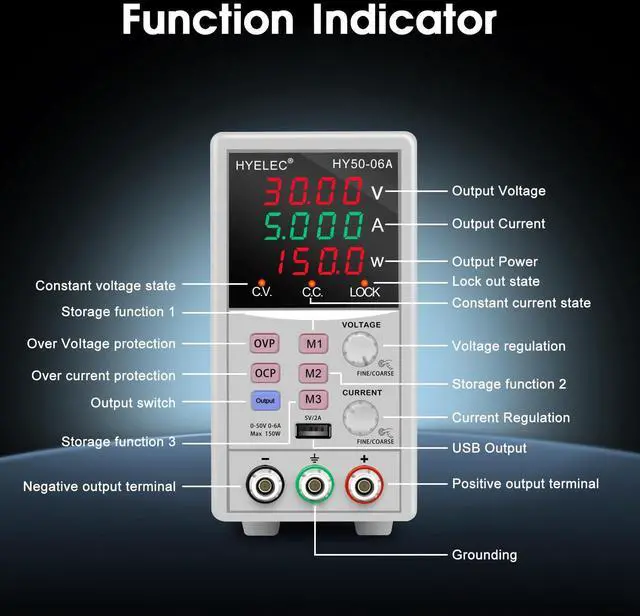

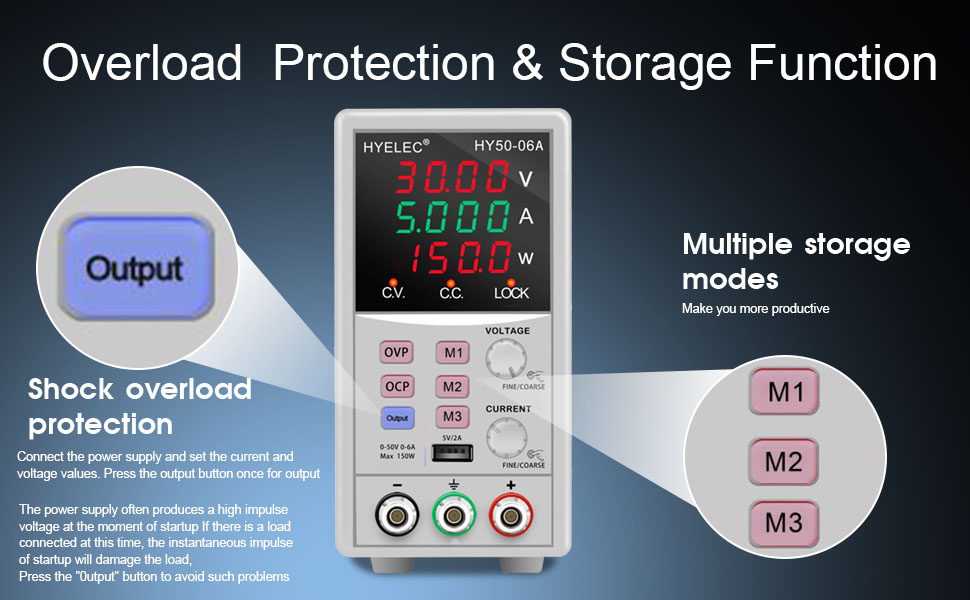

This power supply is specially equipped with the output button "Output" to prevent you from damaging the device by forgetting to disconnect the output. By pressing the OUTPUT button, we can adjust the required voltage and current without the actual .
The adjustable dc power supply has built-in three sets of storage function M1-M3, you can set 3 sets of commonly used voltage and current data by pressing M1-M3 button, and easily recall them when you use it, no need to input them repeatedly.

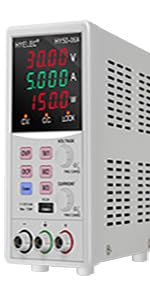

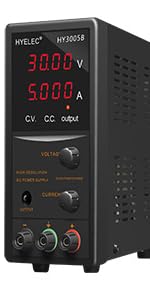

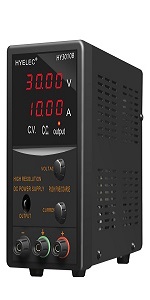

 HY50-06A |  HY3005S |  HY3005A |  HY3005B |  HY3010B | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| Output Current | DC 0-6A | DC 0-5A | DC 0-5A | DC 0-5A | DC 0-10A |
| Output Voltage | DC 0-50V | DC 0-30V | DC 0-30V | DC 0-30V | DC 0-30V |
| Power | Offers an adjustable 0...50V or 0...6A DC main output with a maximum continuous power of 150W,. If you use a load up to 3A, you can regulate the output voltage up to 50V | 150W | 150W | 150W | 300W |
| Display Mode | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display |
| 5V/2A USB output | ? | ? | ? | no data | no data |
| Display Resolut | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.01A |
| Security | Multi-protection | Multi-protection | Multi-protection | Multi-protection | Multi-protection |
| Power Display | ? | no data | no data | no data | no data |
| OUTPUT button | ? | ? | no data | ? | ? |
| Memory Function | ? | no data | no data | no data | no data |
VARIOUS APPLICATION:
HYELEC DC Power Supply
HYELEC is a high-tech enterprise specializing in the design, development, and manufacturing of DC regulated power supplies, with over 20 years of production and R&D experience.
We are committed to providing global customers with efficient, stable, and reliable DC regulated power supply solutions. Our mission is to deliver high-efficiency solutions to customers through innovative power technologies.
Product Description

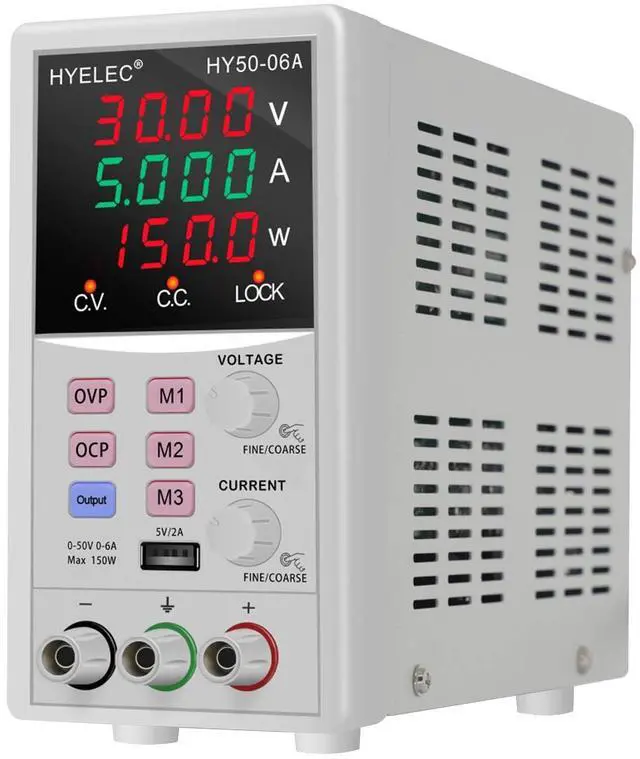

HYELEC adjustable DC bench Power Supply HY50-06A
HY50-06A is a high precision, compact variable dc power supply, it’s applied frontier technology in the industry, works very stable, the structure of HY50-06A is reasonable, neat, light and reliable, easy to carry with. User can switch the coarse and fine adjustment by click the same adjusting knob, it also has created a record of 72 hours uninterrupted test at full load.
Feature:
1. 4 digit dual color high precision LED display
2. 5V2A USB Output interface
3. Current limiting , short circuit protection ,OCP, OVP independent protection
4. The dc power supply with three groups of memory storage function
5. lightweight and easy to carry
6. wide range of application such as school lab experiments, cell phone repairing and troubleshooting, electronic production ensuring specifications, and laboratory measurements etc. 8.There is a protective film on the display lenses,it's removable

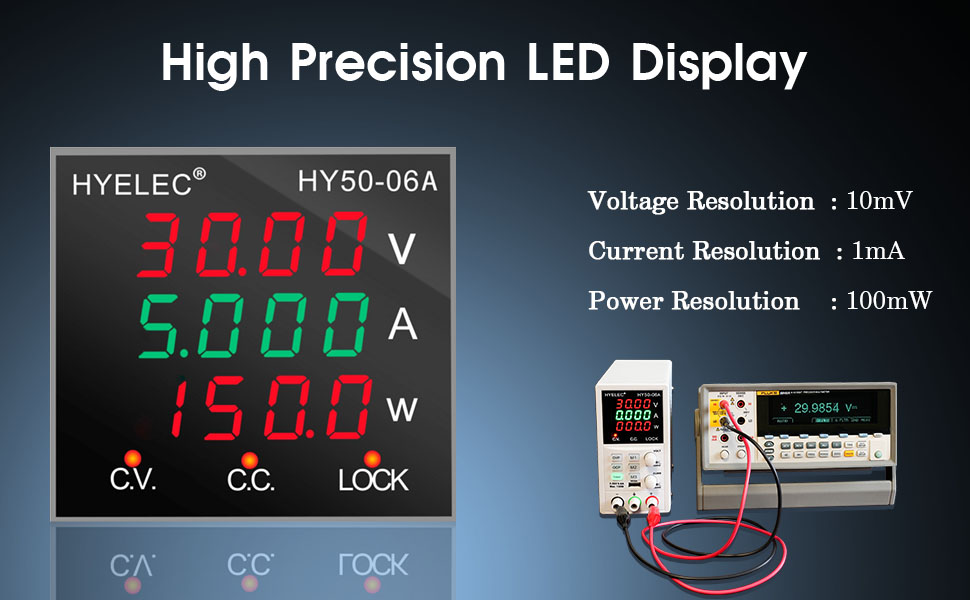

High Precision LED Display
LED screen works even in low voltage conditions Provides more accurate and clearly visible readings of voltage and current values.
Specification:
| Output voltage | 0-50V Max150W |
| Output current | 0-6A Max150W |
| Display | 4 digits dual color LED display |
| Ripple and noise | CV=5mVr.m.s CC=20mAr.m.s |
| Input voltage | 104~127VAC(60Hz) |
| Line regulation | CV=0.1%+3mV CC=0.2%+3mA |
| Load regulation | CV=0.05%+3mV CC=0.5%+10mA |
| Protection | current limiting and short circuit protection?OCP?OVP independent protection |
| Environment | Operation temperature :0~+40 C relative humidity :90% |
| Storage function | YES |
| Lock function | YES |

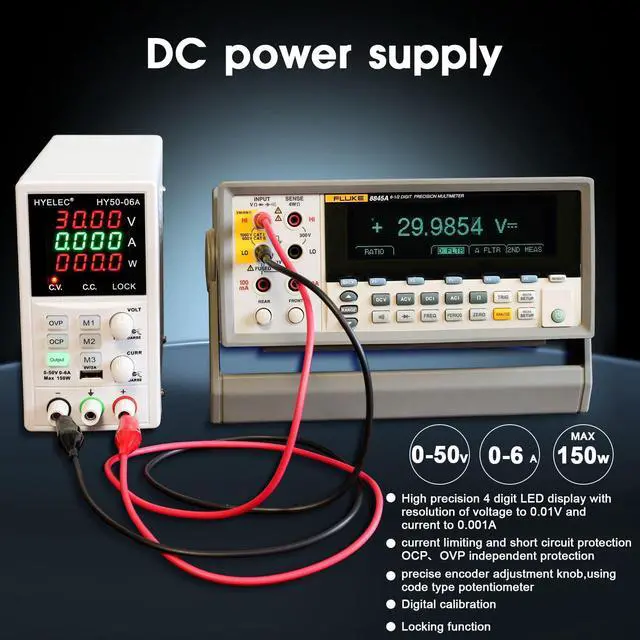

| 150W DC Lab Power Supply | The HY50-06A offers an adjustable 0...50V or 0...6A DC main output with a maximum continuous power of 150W. If you use a load up to 3A, you can regulate the output voltage up to 50V. For a higher current up to 6A, adjust the load to a maximum of 25V. Of course, all intermediate stages are adjustable, such as 30V/5A, 40V/3.7A or 50V/3A |
This power supply is specially equipped with the output button "Output" to prevent you from damaging the device by forgetting to disconnect the output. By pressing the OUTPUT button, we can adjust the required voltage and current without the actual .
The adjustable dc power supply has built-in three sets of storage function M1-M3, you can set 3 sets of commonly used voltage and current data by pressing M1-M3 button, and easily recall them when you use it, no need to input them repeatedly.

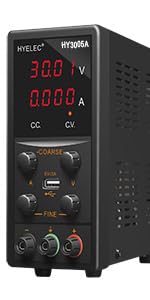

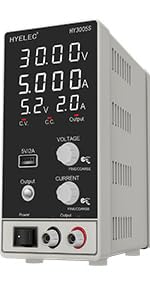

HY50-06A | HY3005S | HY3005A | HY3005B | HY3010B | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — no data |
| Output Current | DC 0-6A | DC 0-5A | DC 0-5A | DC 0-5A | DC 0-10A |
| Output Voltage | DC 0-50V | DC 0-30V | DC 0-30V | DC 0-30V | DC 0-30V |
| Power | Offers an adjustable 0...50V or 0...6A DC main output with a maximum continuous power of 150W,. If you use a load up to 3A, you can regulate the output voltage up to 50V | 150W | 150W | 150W | 300W |
| Display Mode | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display | 4-Digit LED Display |
| 5V/2A USB output | ? | ? | ? | no data | no data |
| Display Resolut | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.001A | Voltage:0.01V/ Current:0.01A |
| Security | Multi-protection | Multi-protection | Multi-protection | Multi-protection | Multi-protection |
| Power Display | ? | no data | no data | no data | no data |
| OUTPUT button | ? | ? | no data | ? | ? |
| Memory Function | ? | no data | no data | no data | no data |
VARIOUS APPLICATION:
HYELEC DC Power Supply
HYELEC is a high-tech enterprise specializing in the design, development, and manufacturing of DC regulated power supplies, with over 20 years of production and R&D experience.
We are committed to providing global customers with efficient, stable, and reliable DC regulated power supply solutions. Our mission is to deliver high-efficiency solutions to customers through innovative power technologies.
