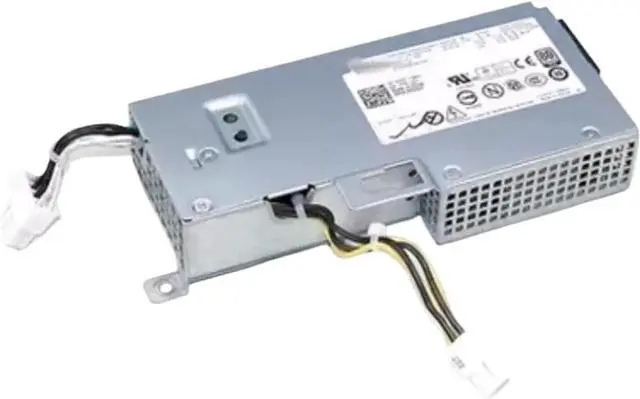

200W USFF Power Supply for Dell Optiplex 780 790 990 7010 9010, Replacement for L200EU-00 F200EU-02 06FG9T 0KG1G0

Aomoproing 200W power supply is a direct drop-in replacement for Dell Optiplex 780, 790, 990, 7010, and 9010 Ultra Small Form Factor (USFF) desktops. Engineered to match OEM specifications, it fully replaces model numbers L200EU-00, F200EU-00, F200EU-02 and Dell part numbers 06FG9T, 0KG1G0, C0G5T, 1VCY4. Designed for the compact USFF chassis, this unit delivers efficient, stable power for business-grade Intel Core i3/i5/i7 and Xeon processors.

It features the precision USFF connector layout required for these Dell systems:

1. (1) 8-pin main motherboard power connector
2. (1) 4-pin +12V CPU power connector
3. Slim, low-profile design (150x85x40mm) for perfect fit in USFF enclosures

This power supply supports universal 100-240V auto-switching input (2.9A, 50-60Hz) with active Power Factor Correction (PFC) and 80 PLUS Gold certification for up to 90% efficiency, reducing heat and power consumption. The robust dual +12V rail design (+12VA 12.5A / +12VB 6.0A) ensures stable power delivery for integrated graphics, SSDs, and HDDs.

Built for 24/7 office operation, it includes comprehensive safety protections (Over-Voltage, Over-Current, Short-Circuit, and Over-Temperature) to safeguard your Dell Optiplex system. Every unit undergoes rigorous OEM-standard load testing to ensure consistent voltage regulation and long-term reliability for business environments.
