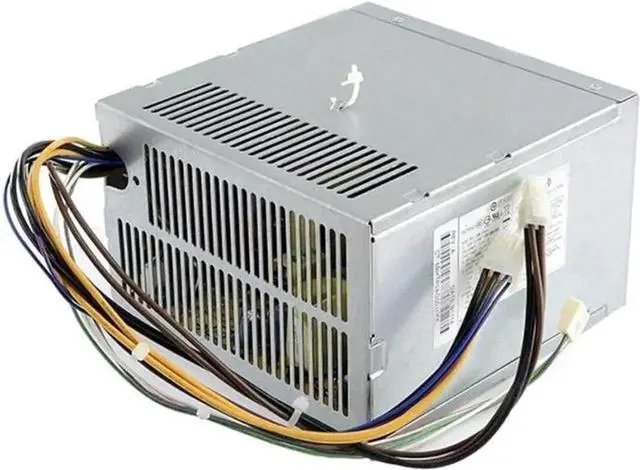

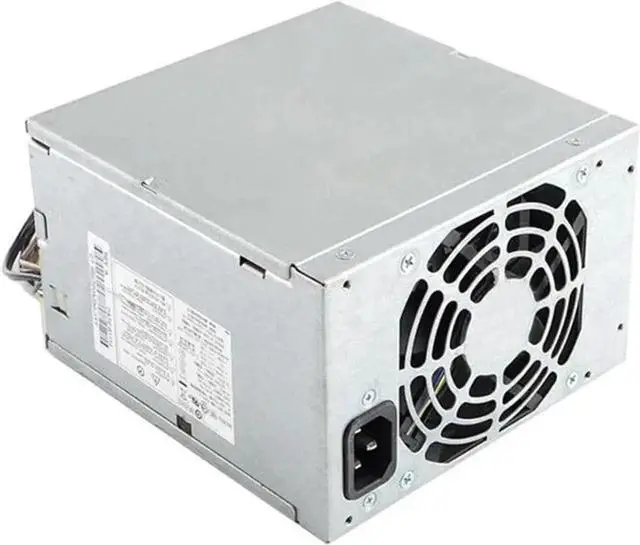

320W Power Supply Replacement for HP 611483-001 D10-320P1A DPS-320NB Elite 8200 6300 8000 MT Desktop/Server PSU

Aomoproing 320W ATX power supply is a precision drop-in replacement for the HP 611483-001 switching power supply, also compatible with model numbers D10-320P1A and DPS-320NB. It is engineered to match the exact physical dimensions, connector pinout, and electrical specifications of the original HP unit, ensuring seamless installation in HP Compaq Elite and Pro series tower desktops and small-scale server platforms.

Full Compatibility List:

1. HP Compaq Elite 8000 MT / CMT
2. HP Compaq Elite 8100 MT / CMT
3. HP Compaq Elite 8200 MT / CMT
4. HP Compaq Elite 8300 MT / CMT
5. HP Pro 6000 / 6200 / 6300 MT / CMT
6. HP Z200 / Z210 Workstations

Key Specifications:

1. Input: Universal 100-240V AC (50/60Hz), 5.5A auto-ranging
2. Output: 320W continuous; +12V@16A, +5V@15A, +3.3V@14A, [email protected], [email protected]
3. Connectors: 24-pin main, 4-pin CPU, dual 6-pin proprietary, 4x SATA, 2x Molex
4. Form Factor: Standard ATX (150 x 140 x 86mm), non-modular design
5. Certifications: 80 Plus Bronze, CE, FCC, RoHS compliant

Reliable Performance & Safety:

1. Active PFC: Delivers clean, stable power with improved power factor and reduced energy waste.
2. 80 Plus Bronze Efficiency: Up to 85% efficiency across typical loads, lowering operating costs.
3. HP Proprietary Connectors: Precisely matched 4-pin + dual 6-pin connector layout for perfect fit.
4. Comprehensive Protections: Over-Voltage (OVP), Over-Current (OCP), Short-Circuit (SCP), and Over-Temperature (OTP) safeguards critical components.
5. Quiet Operation: High-quality thermal-controlled fan for quiet cooling under 24/7 operation.
6. Quality Tested: Each unit undergoes full load testing, burn-in, and compatibility validation for reliable performance.

Ideal as a direct replacement, spare, or upgrade for maintaining uninterrupted power in your HP business desktops, workstations, and small server setups.
