Flex 1U 150W Server Power Supply | 12V Output 4-Pin CPU Connector | Non-Modular Switching PSU

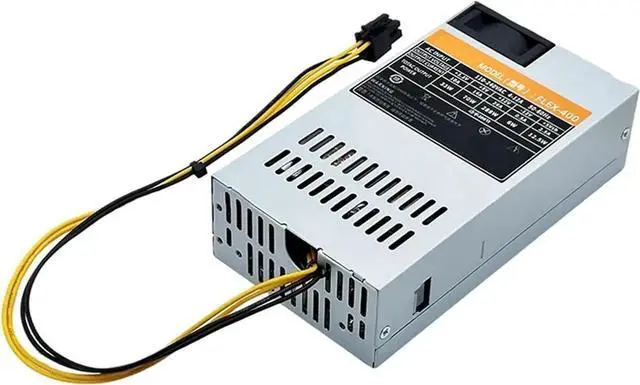

Aomoproing Flex 1U 150W power supply is a high-efficiency switching PSU engineered for space-constrained server, NAS, POS, and industrial embedded systems. Built to Flex ATX/ATX12V specifications (150x81.5x40.5mm), this compact 1U unit delivers stable power with a focus on strong 12V performance and reliable connectivity.

Key Features & Performance:

1. 150W Rated Output: Optimized for low-to-medium power systems with a dominant +12V rail (12.5A) to power CPUs, drives, and peripherals efficiently.

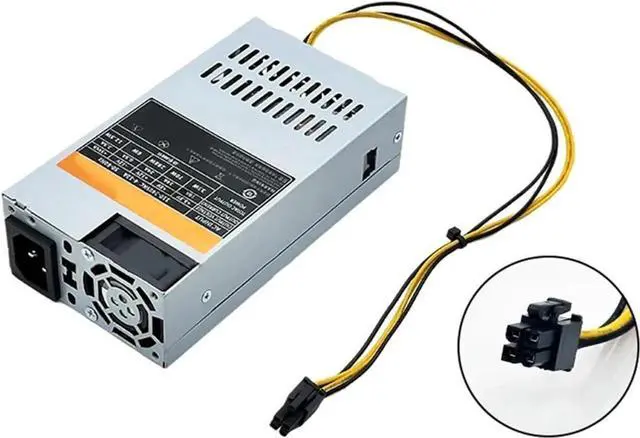

2. 4-Pin CPU Connector: Includes a dedicated 4-pin ATX 12V connector for stable CPU power delivery, alongside 24-pin mainboard, SATA, and Molex connectors.
3. Active PFC & Wide Input: Features active power factor correction (PFC) and a universal 100-240V AC input (50/60Hz) for worldwide use and reduced energy waste.
4. Thermal Design: Equipped with a quiet 40mm DC fan that adjusts speed based on temperature, ensuring optimal cooling and minimal noise in rackmount environments.
5. Industrial-Grade Reliability: Constructed with high-quality capacitors and components, this PSU includes comprehensive safeguards: Over-Voltage (OVP), Over-Current (OCP), Short-Circuit (SCP), and Over-Temperature (OTP) protection. Every unit undergoes 100% Hi-Pot, ATE, and burn-in testing to ensure consistent performance and longevity.

Ideal For:

1. 1U rackmount servers & mini servers
2. Network Attached Storage (NAS) devices
3. POS systems, kiosks, and industrial PCs
4. HTPC, Mini-ITX, and compact embedded systems

Specifications:

1. Model: Flex ATX 1U 150W
2. Input: 100-240V AC, 4A, 50/60Hz, Active PFC
3. Output: +12V (12.5A), +5V (5A), +3.3V (6A), +5Vsb (2A), -12V (0.3A)
4. Connectors: 24-Pin Main, 4-Pin CPU (12V), 2x SATA, 2x Molex (4-pin)

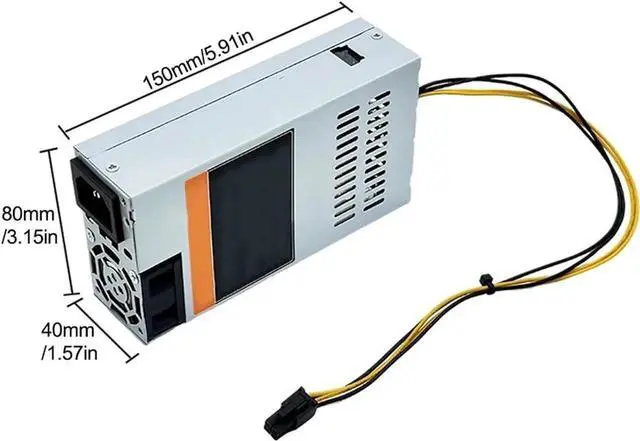

5. Form Factor: Flex ATX 1U (150 x 81.5 x 40.5mm)
6. Cooling: 40mm Low Noise Thermal Fan
7. Efficiency: 80% (80 PLUS Bronze Equivalent)
8. Protection: OVP, OCP, SCP, OTP, UVP
9. Certifications: CE, FCC, RoHS, CCC
10. MTBF: >100,000 Hours at 25°C
11. Operating Temp: 0°C ~ 50°C

This non-modular power supply offers a perfect balance of size, power, and reliability, making it the ideal replacement or upgrade for your compact 1U server and industrial applications.
