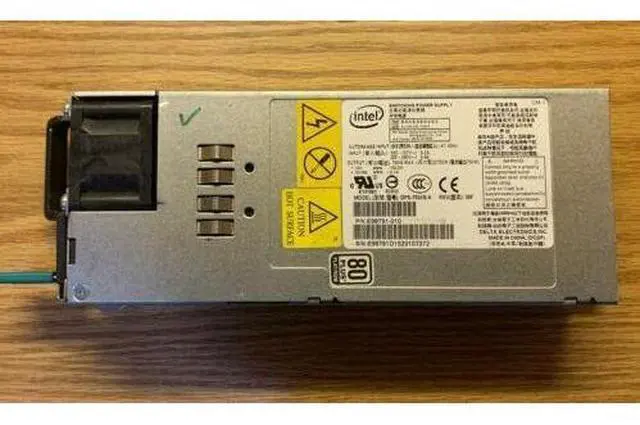

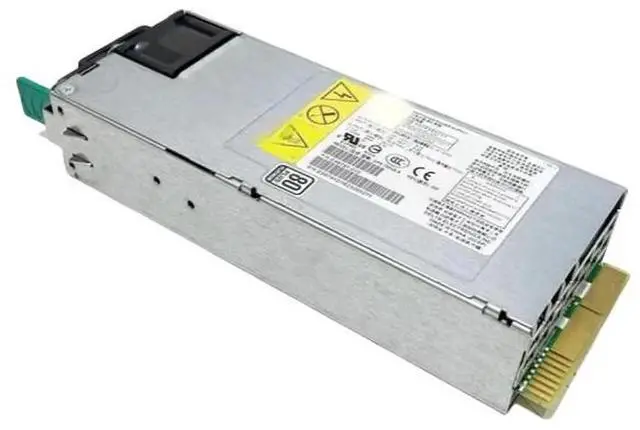

DPS-750XB A 750W CRPS Hot Swap Server PSU, E98791-010 E98791 80 Plus Platinum Certified Switching Power Supply for Intel Server

DPS-750XB A 750W CRPS Hot Swap Server PSU (P/N: E98791-010) is an 80 Plus Platinum certified high-efficiency switching power supply, originally designed by Intel and manufactured by Delta for enterprise-grade servers. It provides 750W of stable continuous power with up to 94% efficiency, significantly reducing power consumption and heat generation in data center environments.

This unit follows the CRPS (Common Redundant Power Supply) standard, supporting hot-swap functionalityallowing replacement or maintenance without shutting down the server. It is ideal for redundant (1+1) power setups to ensure maximum uptime for critical business applications.

With a universal 100240V AC input and active PFC, the PSU delivers reliable +12V output (62A main + 2.1A standby). Built-in over-voltage, under-voltage, over-current, and over-temperature protections safeguard your server hardware. The 1U compact size and standard connectors ensure easy integration into Intel servers and other CRPS-compatible rack-mount systems.

Key applications: Enterprise servers, data center rack servers, redundant power systems, high-availability computing environments, and Intel server replacement/upgrade projects.

1. Model: DPS-750XB A
2. Part Number: E98791-010, E98791
3. Power Rating: 750W (Continuous)
4. Efficiency: 80 Plus Platinum (94% @ 50% Load)
5. Form Factor: CRPS (1U Rack-Mount)
6. Input Voltage: 100240V AC, 4763Hz
7. Output: +12V@62A, [email protected]
8. PFC: Active (Power Factor Correction)
9. Hot Swap: Yes (Hot-Plug Redundant)
10. Protection: OVP, UVP, OCP, OTP
11. Dimensions: Standard 1U CRPS Size
12. Compatibility: Intel Enterprise Servers, CRPS Chassis
