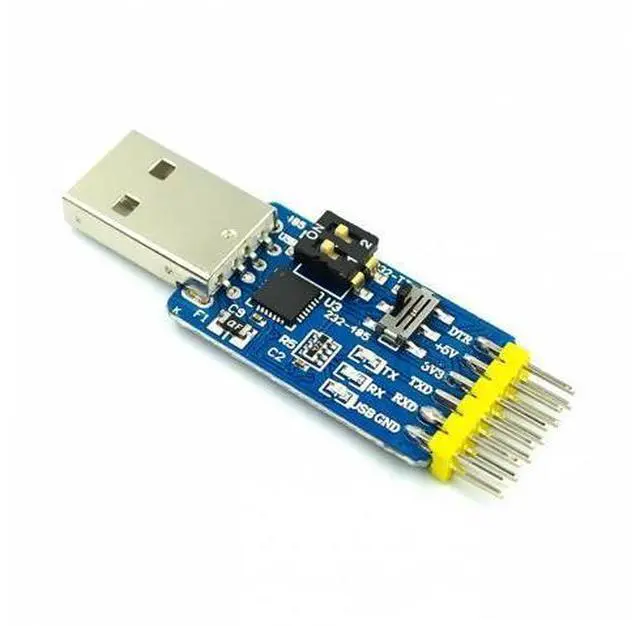

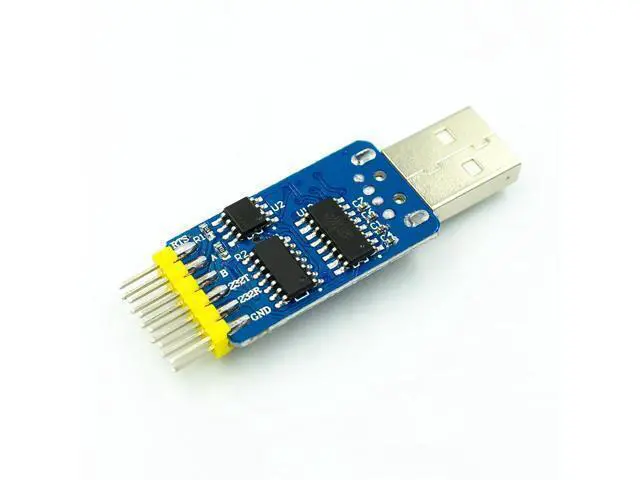

USB CP2102 to TTL RS232 USB TTL to RS485 Mutual Convert 6 in 1 Convert Module Good
- USB CP2102 to TTL RS232 USB TTL to RS485 Mutual Convert 6 in 1 Convert Module Good
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin: CN (Origin)
Condition:
Type: Voltage Regulator
Model Number: MW
Application: Computer
Supply Voltage: 1
Dissipation Power: 1
is_customized: Yes
Description: Six in
ONE Multifunctional Convert interface module: USB to TTL USB to 232 USB to 485 TTL to 232 TTL to 485 232 to 485
Features: CP2102
core chip: CP2102 USB to serial chip is the best quality, most stable performance far exceeds the cost of the same chip, such as PL2303, FT232, CH341 and so on. High-speed, reliable, stable is capable of leading CP2102 USB to serial module sales in the important reasons.
Ultra-small size: the circuit board only 3.1 cm X 1.8 cm. Ultra- small size, lack of a U disk size, only with a USB port width, even on those two USB ports from a very tight laptop can easily be placed side by side two. 3.3V and +5
V Compatibility: This product perfectly supports 3.3V. Now a lot of high-end microcontroller, such as ARM, STM32, DSP, adopted 3.3V. Additional modules are only compatible 5V level, they do not have 3.3V voltage output function.
Power Output: This module can be powered through to the microcontroller system to facilitate debugging. 5V-500mA or 3.3V -100mA.
Overcurrent protection: Onboard resettable fuse, even if the positive and negative short-circuit will not damage the circuit board or computer. If there is a short circuit or current exceeds 500mA, the fuse will automatically disconnect, to be short-circuited fuse circuit to restore non- normal. Effectively protect the security of
Condition:
Type: Voltage Regulator
Model Number: MW
Application: Computer
Supply Voltage: 1
Dissipation Power: 1
is_customized: Yes
Description: Six in
ONE Multifunctional Convert interface module: USB to TTL USB to 232 USB to 485 TTL to 232 TTL to 485 232 to 485
Features: CP2102
core chip: CP2102 USB to serial chip is the best quality, most stable performance far exceeds the cost of the same chip, such as PL2303, FT232, CH341 and so on. High-speed, reliable, stable is capable of leading CP2102 USB to serial module sales in the important reasons.
Ultra-small size: the circuit board only 3.1 cm X 1.8 cm. Ultra- small size, lack of a U disk size, only with a USB port width, even on those two USB ports from a very tight laptop can easily be placed side by side two. 3.3V and +5
V Compatibility: This product perfectly supports 3.3V. Now a lot of high-end microcontroller, such as ARM, STM32, DSP, adopted 3.3V. Additional modules are only compatible 5V level, they do not have 3.3V voltage output function.
Power Output: This module can be powered through to the microcontroller system to facilitate debugging. 5V-500mA or 3.3V -100mA.
Overcurrent protection: Onboard resettable fuse, even if the positive and negative short-circuit will not damage the circuit board or computer. If there is a short circuit or current exceeds 500mA, the fuse will automatically disconnect, to be short-circuited fuse circuit to restore non- normal. Effectively protect the security of
