Product Overview

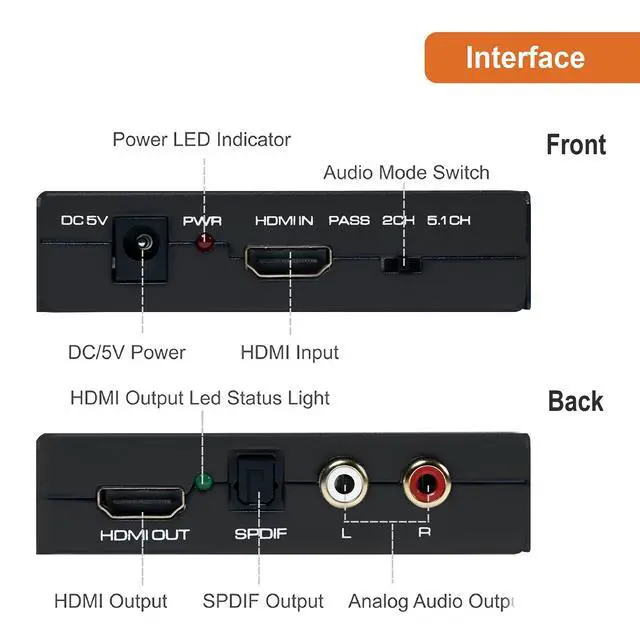

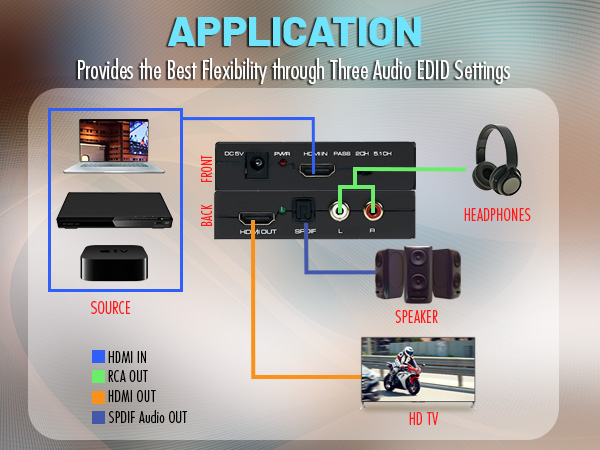

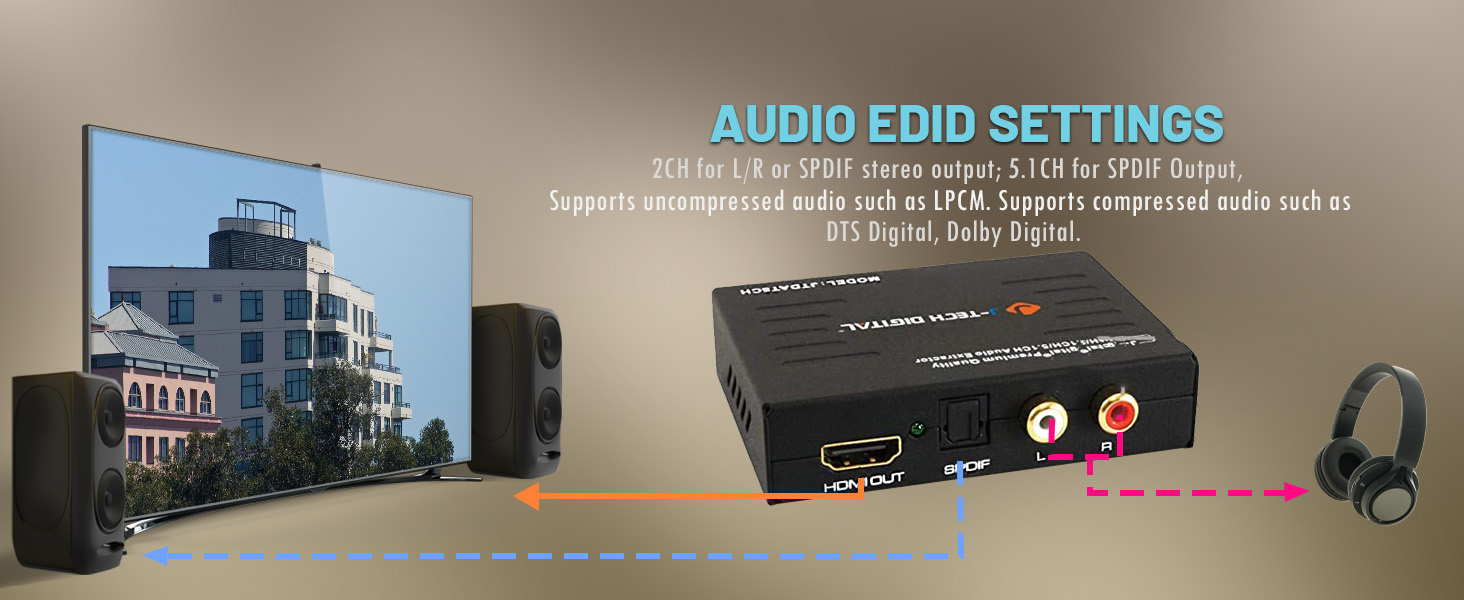

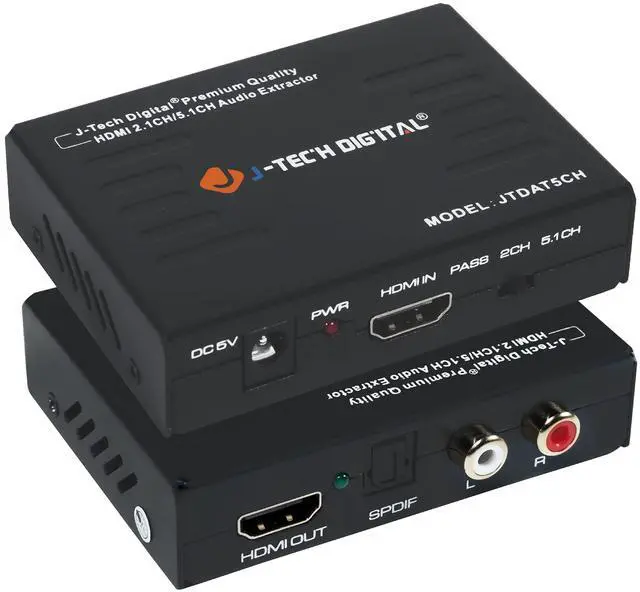

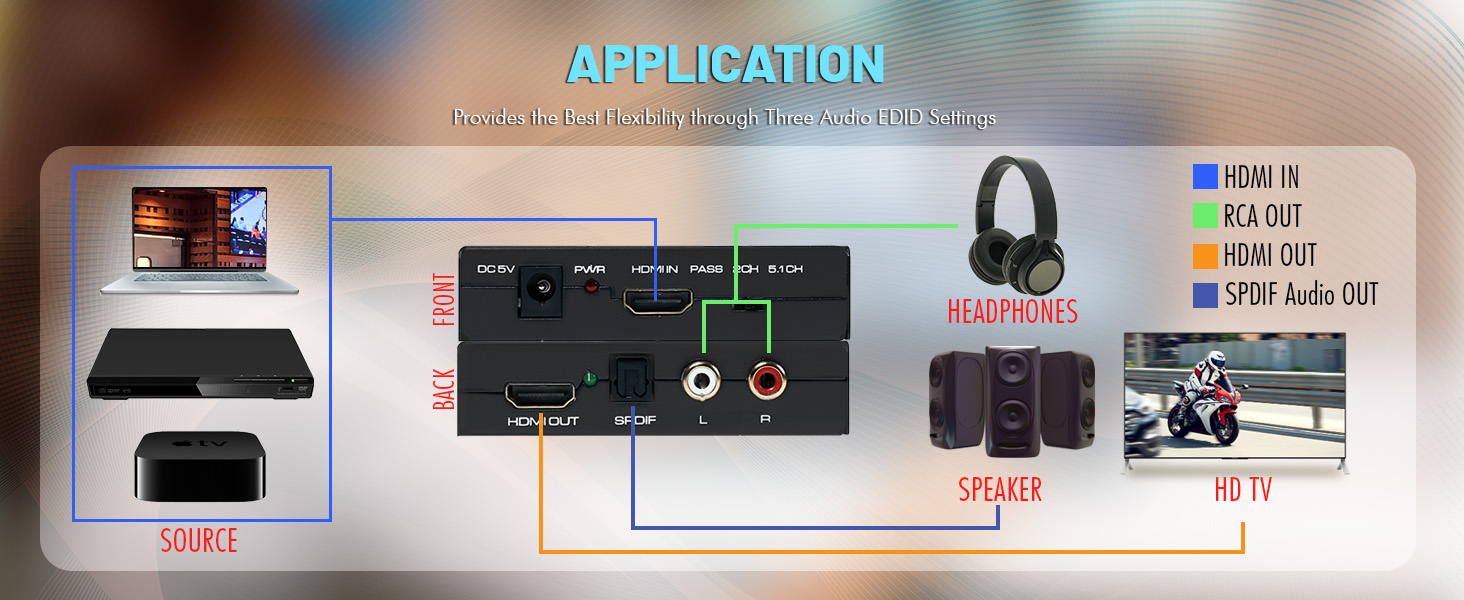

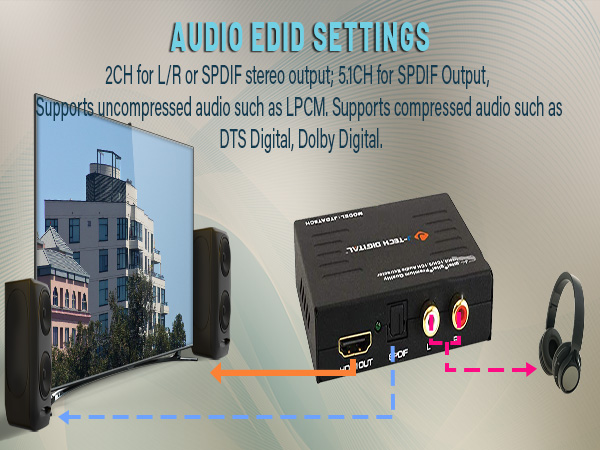

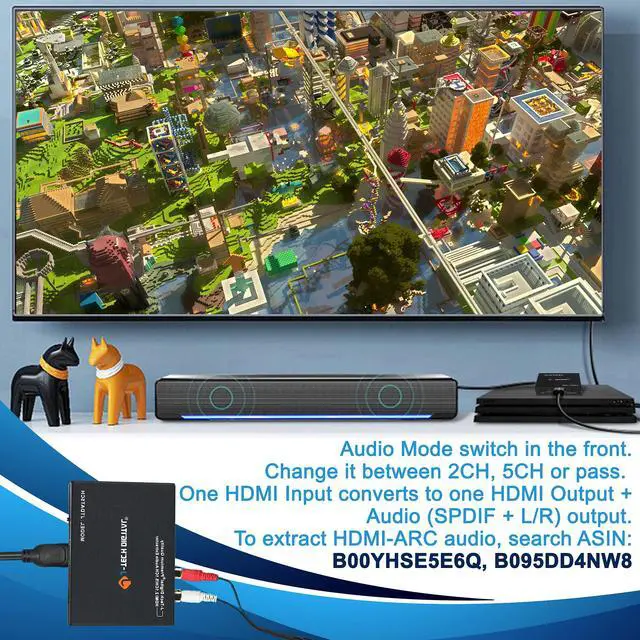

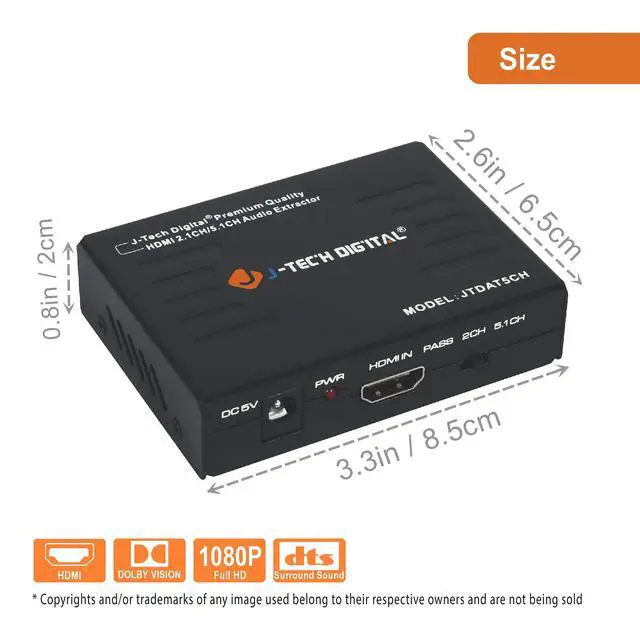

The J-Tech Digital JTECH-AT5CH-V2 UHD 4K@30Hz audio extractor allows you to extract audio via an incoming HDMI signal, and send it to an external sound system. The unit will pass the video to the intended display as desired. This device is perfect for users trying to use TV speakers along with headphones, or trying to send an audio signal to a legacy sound system that doesn't have the newer connection. Use the SPDIF Optical to send either 2CH or 5CH audio signal, or the RCA outputs to send 2CH audio signal to your sound system.

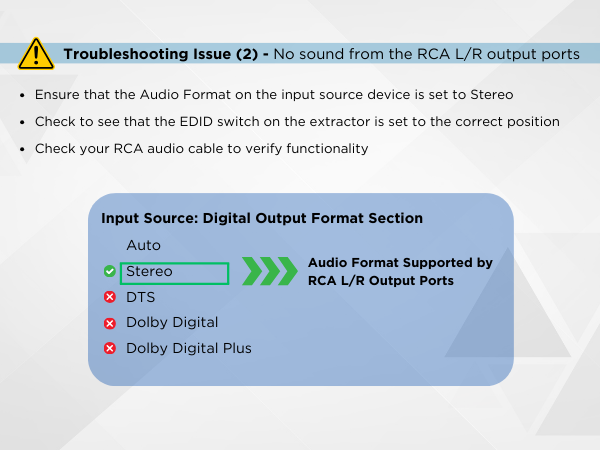

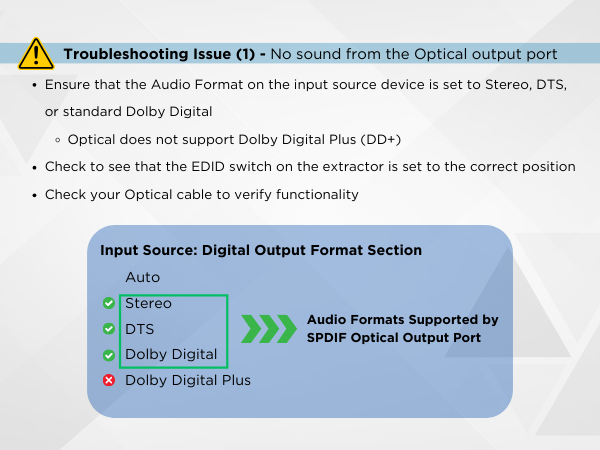

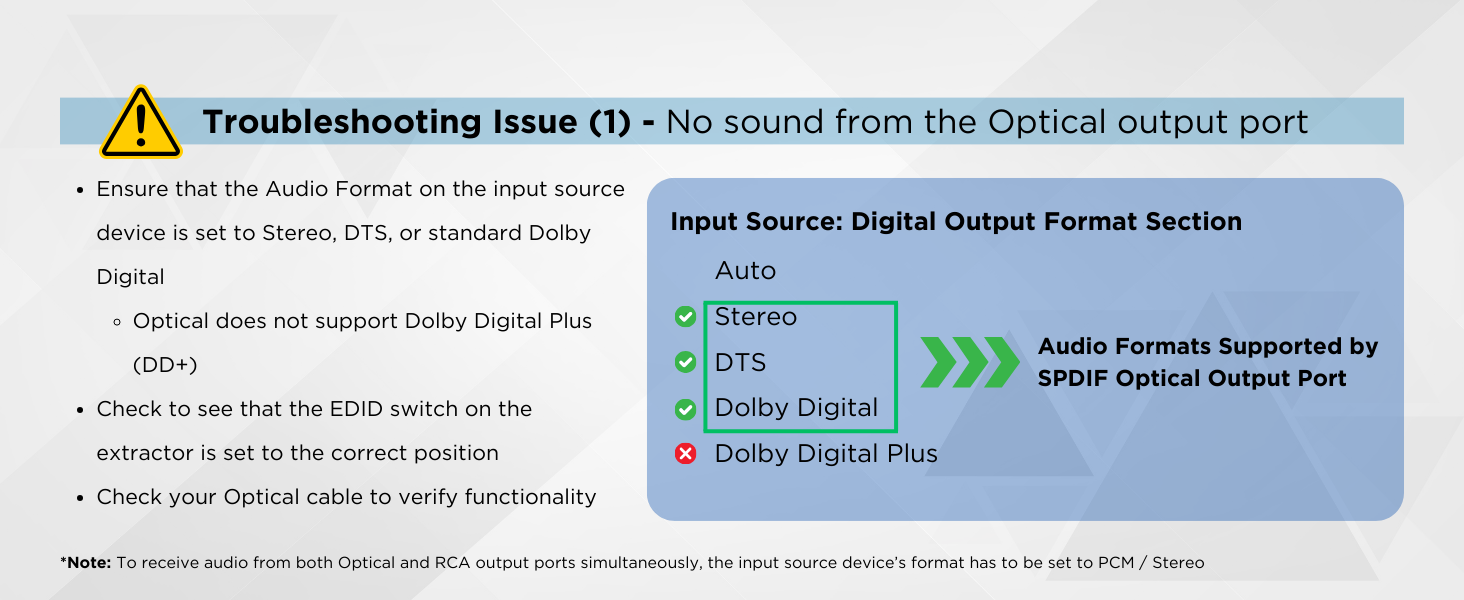

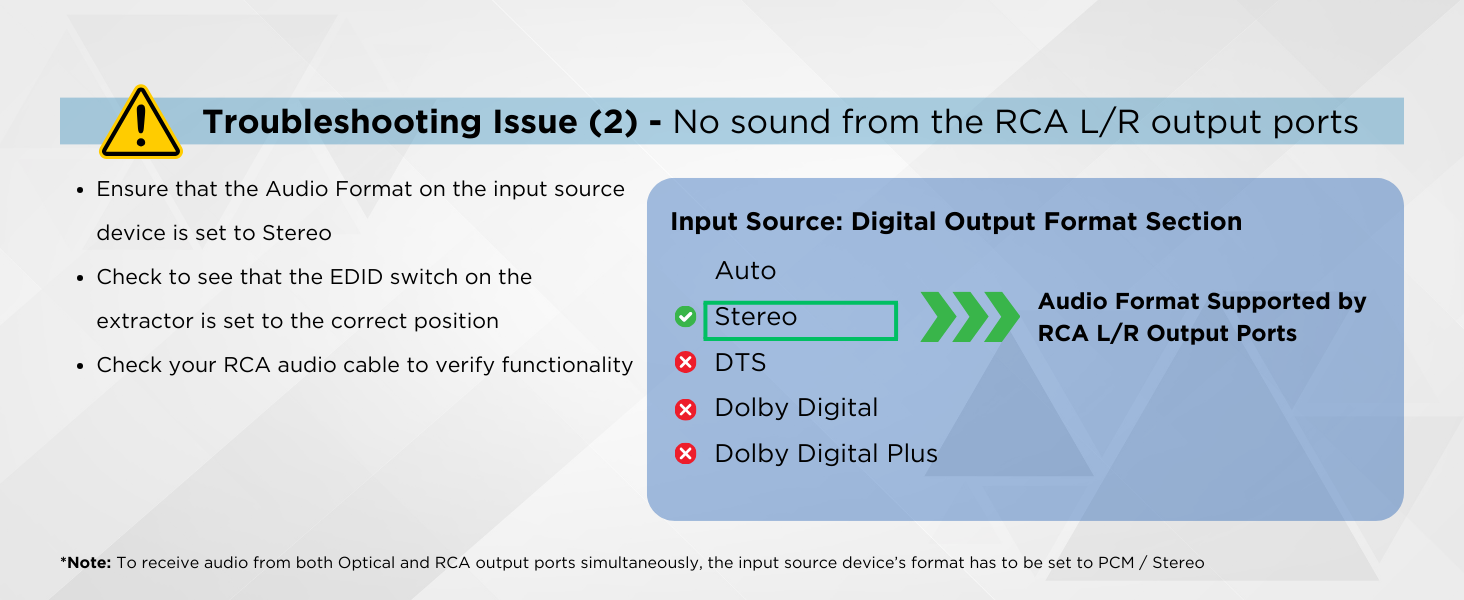

Please Note: If you are not able to get audio from either Optical or 3.5mm output ports, please check your input source audio settings and ensure that the audio output is set to either PCM (For 3.5mm output), or PCM, DTS, or Dolby Digital (For Optical output). If the input source device is outputting Dolby Digital+ (DD+) or higher audio format, the extractor will not pass audio through the audio output ports.
