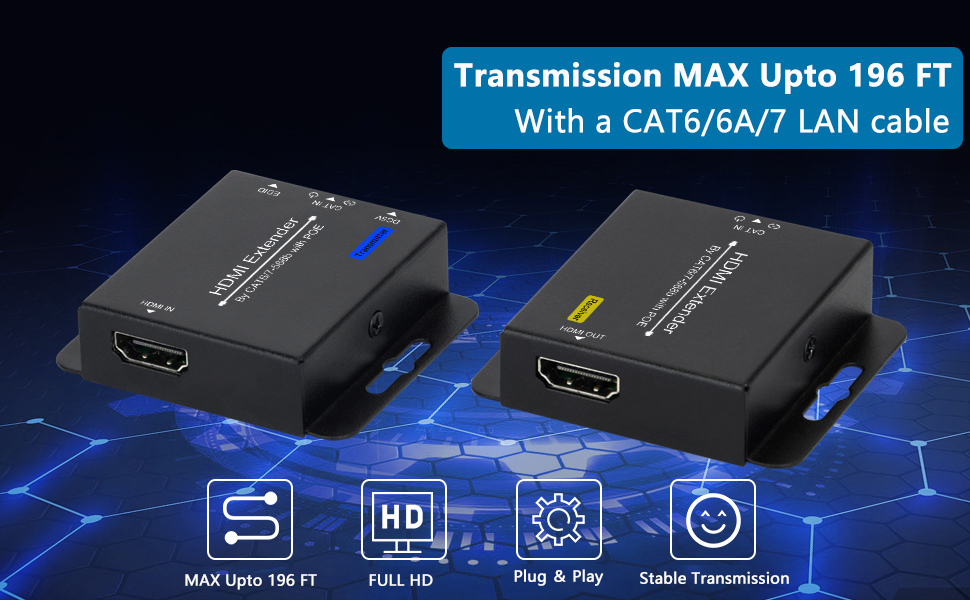

HDMI Extender 196ft/60m Over CAT6 CAT7 Ethernet To HDMI Converter Extender
HDMI CAT6 Extender Over Ethernet To HDMI Converter Extender
About The Connecting Cables
Depending on the length, category of the connected HDMI cable and RJ45 Ethernet cable, the specifications are different, also the extended distance will be different.
Tip: If 4k output is expected, Please use a standard cat6 cable within 10m.
Tips
This HDMI extender over CAT6 CAT7 to HDM ethernet extender converter adapter is not compatible with Sharp 2011 Aquos TV, Apple TV series.
HDMI Over Ethernet Extender CAT6 CAT7 To HDMI Ethernet Converter Support 1080P@60Hz
Please prepare the following cables.
LAN Cable:
CAT6 / CAT6a / CAT6e / CAT7 cable (within 60m) x 1;
HDMI cable:
HDMI male ? HDMI male cable x 2

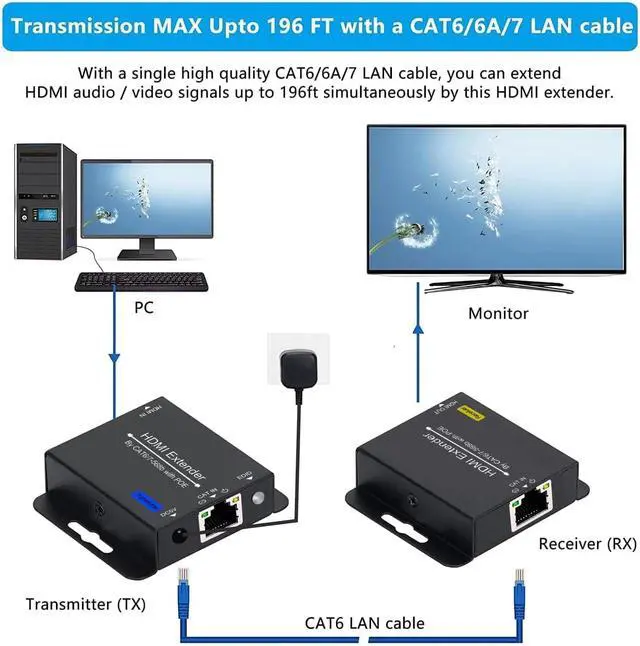

Order to connect
Please connect the HDMI extender over CAT6 ethernet EX701 in the following orders:

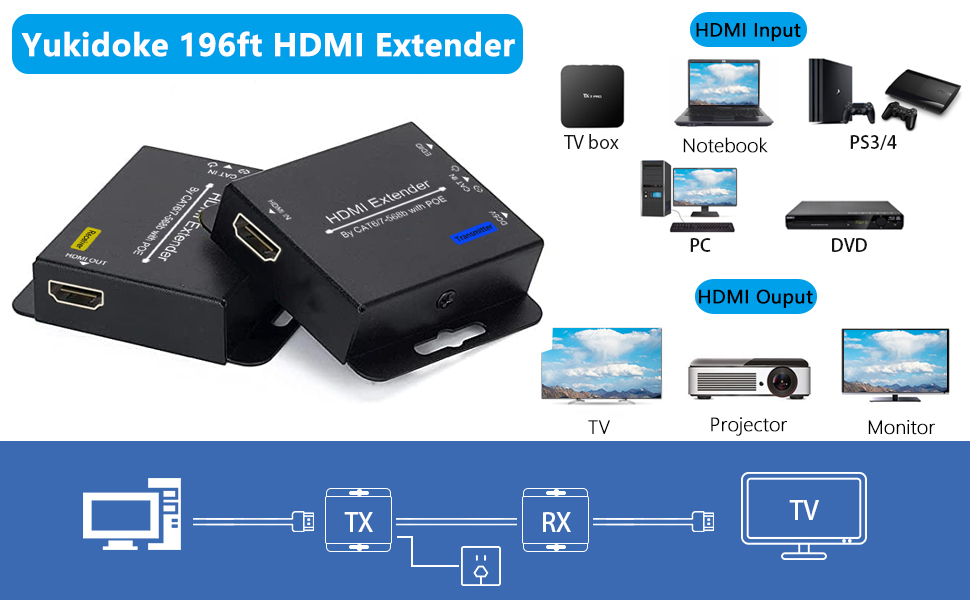

1. Connect a HDMI source device equipped with a HDMI port like PC, camera, PS4 to the transmitter (TX) of this HDMI Extender over Ethernet CAT6 with the above HDMI cable. Connect a HDMI device equipped with a HDMI port like TV monitor to the receiver (RX) of this HDMI Ethernet extender with the above HDMI cable.
2. Connect the transmitter and receiver with a LAN cable.

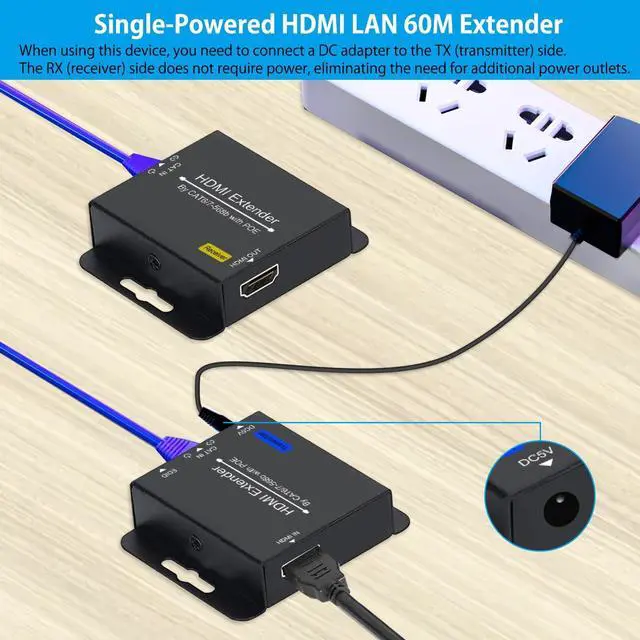

3. Connect the supplied DC 5V adapter to the transmitter (TX) and energize it (POC) technology:We only need to use the power adapter on TX,
Rx can work through the cat6 transmission power supply).
4. The HDMI ethernet extender over cat6 to HDMI converter Adapter takes about 5-10 seconds to transmit the HDMI signal from Input to Output,
Please wait for a while(Input/Output HDMI cable distance:16ft(5m) AWG26 HDMI standard cable).

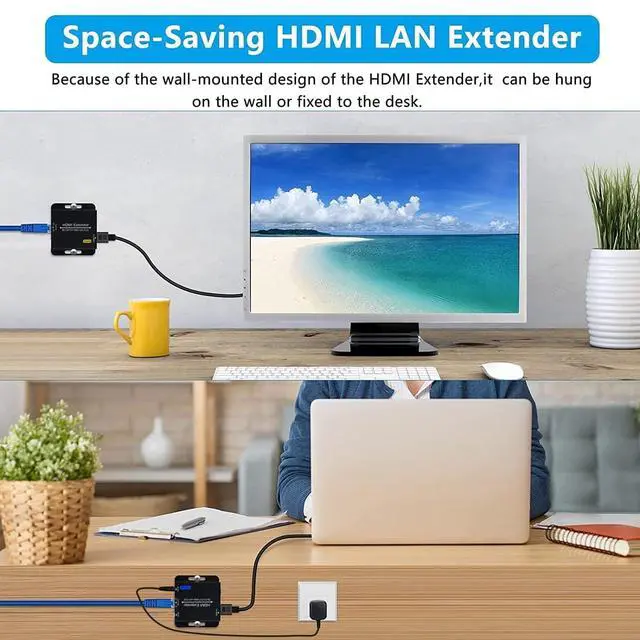

Space-Saving HDMI Extender
Because of the wall-mounted design of the HDMI CAT6 Ethernet Extender, it allows you to hung on the wall or fixed to the desk easily.

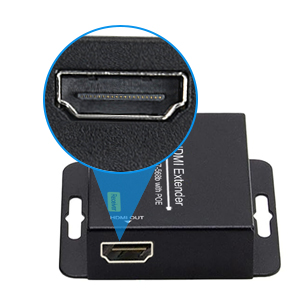

196ft HDMI CAT6 Extender With Gold-plated Connection
The connections of this HDMI extender over CAT6 to HDMI converter extender are gold plated, so the HDMI Extender over Ethernet is not only resistant to rust, but also resistant to aging, contact resistance, rust and corrosion, increasing durability and stability.

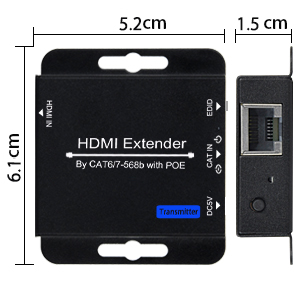

Dimensions of HDMI Extender Over CAT6 Ethernet
HDMI Extender CAT6 Package Weight: 6g
HDMI Eethernet Extender Package Weight: 320.0g
HDMI Extender EX701 Dimension:
6.0 X 5.2 X 1.5CM
HDMI CAT6 Extender Package Dimension:
20.5 X 15.0 X 6.0CM
