Planar 997-8286-00 PCT2235 22" Full HD LCD Touch Screen Monitor Display

  • 21.5" diagonal
  • 1920 x 1080p
  • Multi-Touch Projected Capacitive
  • 1000:1 Contrast Ratio
  • 250 cd/m2 Brightness w/Touchscreen
  • HDMI, DisplayPort, VGA
Overview
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

PCT2235

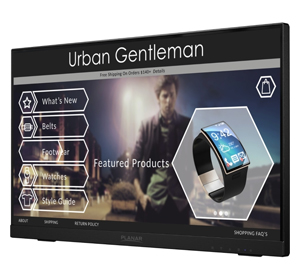

Planar PCT2235
22" Touch Screen Monitor

For the best value for the money, the Planar® PCT2235 is a 22” Full HD LCD monitor optimized with multi-touch interactivity. With its easy to adjust, ergonomically-friendly Planar® Helium™ Stand and multiple video inputs, this versatile monitor accommodates all user expectations.

Features and Benefits

PCT2235
  • 21.5” LCD touch screen monitor with 1920 x 1080 resolution
  • 10 point multi-touch interactivity - no driver loading required
  • Edge-lit LED LCD technology
  • DisplayPort, HDMI and VGA inputs
  • Unique, easy-to-use Planar Helium Stand

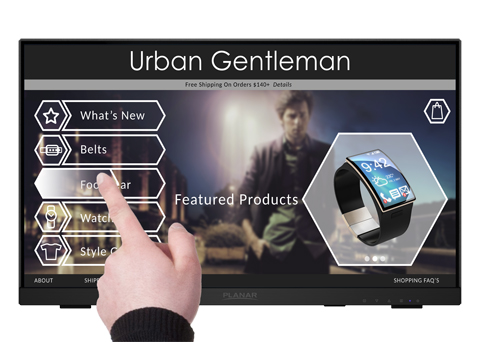

Multi-Touch Technology
The Planar PCT2235 22” Full HD monitor with multi-touch interactivity is the best value for the money. Featuring Projected Capacitive touch technology which registers up to 10 simultaneous touch points, the monitor is extremely fast and accurate for the office worker when scanning through emails, or for the graphic designer when swiping through various design alternatives or resizing photos.

Planar Helium Stand
The Planar Helium Stand can be easily tilted from 15° to 70° - quickly moving the user from passive viewing to full touch screen interaction. For the mobile worker desiring to dock their tablet to larger display when manipulating spreadsheets, or for the college student scrolling through social media updates, the versatile stand accommodates all usage scenarios. For added flexibility, the stand can be collapsed into the back of the monitor and laid flat for tabletop usage, for example, in a museum environment to further explain an exhibit.

Multiple Video Inputs
For more integration flexibility, the Planar PCT2235 multi-touch monitor boasts multiple video inputs – DisplayPort, HDMI and VGA - and integrated speakers. And the VESA-compatible hole pattern on the back of the monitor makes it easy to attach to other mounting option, such as a Planar single-arm clamp stand or a height-adjust desk stand.

The Planar PCT2235 includes Planar's leading Customer First™ 3-Year Warranty, including a free 2-day advance

SPECIFICATION DETAIL
Product Name PCT2235
Viewable Size 21.5" diagonal (18.77" horizontal x 10.56" vertical)
Touchscreen Type Multi-Touch Projected Capacitive (up to 10 touch points)
Number of Touch Points 10
Touchscreen Interface USB
Contrast Ratio (typ) 1000:1
Viewing Angle (typ) 178° H,V
Response Time (typ) 14 ms
Brightness (w/touchscreen) 212 cd/m²
Brightness (w/o touchscreen) 250 cd/m²
Display Type Edge-Lit LED LCD
Display Resolution 1920 x 1080, full HD
Aspect Ratio 16:9
Tilt Range +15° to +70° and flat
Palette 16.7 million colors
Pixel Pitch 0.24825 mm
Refresh Rate 55 to 75 Hz (60 Hz recommended)
Panel Depth 1.9" (47.8 mm)
Dimensions (W x H x D) 19.3" x 11.8" x 1.9" (490.3 mm x 299.4 mm x 47.8 mm)
Dimensions without Stand Not applicable. Integrated stand folds into the monitor.
Display Weight 7.9 lb (3.6 kg)
Display Weight (w/o stand) Not applicable. Integrated stand folds into the monitor.
Shipping weight 10.1 lb (4.6 kg)
Video Inputs Analog, HDMI, DisplayPort (w/HDCP)
Audio Output 2 speakers, 2W/ch
Compatibility Windows® 7, 8, 10 - HID Compliant - no drivers needed for basic touchscreen operation
External Connections VGA 15-pin, HDMI 19-pin, DisplayPort 20-pin, 3.5 mm audio in, 3.5mm headphone out, USB (A to B), AC power-in
Power Supply Internal Power Supply (AC power)
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption (typ) 27W (<0.5W standby, off)
Operating Temperature 0 to 40°C
VESA Compatible/Location Built-in 100 mm VESA, back
Service and Support 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement (US only)
Options / Features Helium™ stand, Kensington® Security Slot
Product Approvals UL/c-UL, FCC-Class B, CE, RoHS II
In the Box PCT2235 Wide Multi-Touch Monitor, Power Cord, VGA Cable, DisplayPort Cable, USB Cable (A to B), Audio-in Cable, User's Guide
Panel21.5 Tft (With Led Backlight) Power Managementnormal: On 27W (Typical) 35W Maximumeco Mode 1: On 22.2W (Typical) Eco Mode 2: On 18.5W (Typical) Eco Mode 3: On 13.4W (Typical) Standby Mode: Displayable Resolutionfull Hd 1920X1080 Max Vertical Frequency 60Hz Maxpixel Dimensions0.24825 X 0.24825Mmdisplay Color16.7Mtilt15 To 70 Degreesactive Display Area476.64Mm X 268.11Mmtemperatureoperating:
