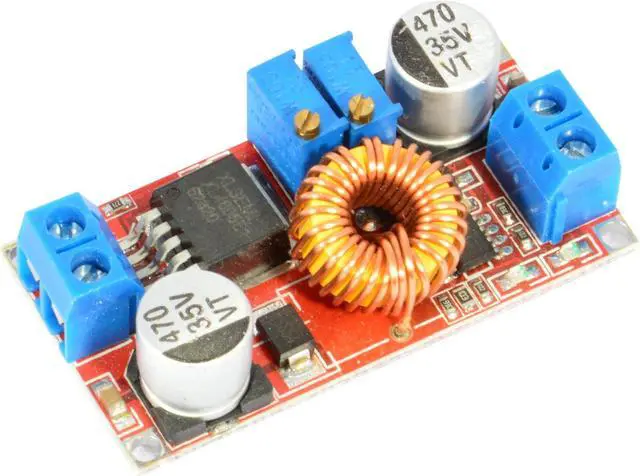

2pcs XL4015 5A DC Buck Step Down Voltage Converter Constant Current Power Module
- Maintain stable output voltage and limit the output current over a range of input voltages. Great for general voltage conversion, battery charging, powering raw LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects.
- Input Voltage: 8-36V DC, Output Voltage: 1.25-32V DC, Max Load: 75W/5A Peak, 50W/3.5A Sustained (whichever is lower, amps or watts)
- Conversion Efficiency: Up to 95%, (our test result: 24V->12V1A: 92.7%)
- Dimensions: 51x26.3x14mm, XL4015 IC, 180KHz Switching Frequency
- Input must be at least 1V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module. Current limiting function requires at least 5.6V input.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

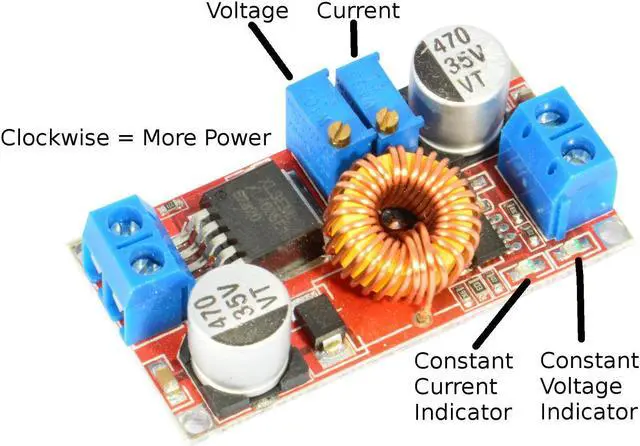

This module combines the high efficiency XMLSEMI XL4015 DC-DC buck converter IC with a TI LM358 Op-Amp for stable current regulation. This module offers much higher efficiency than LM2596 based modules which means less heat and more available power for your device.
