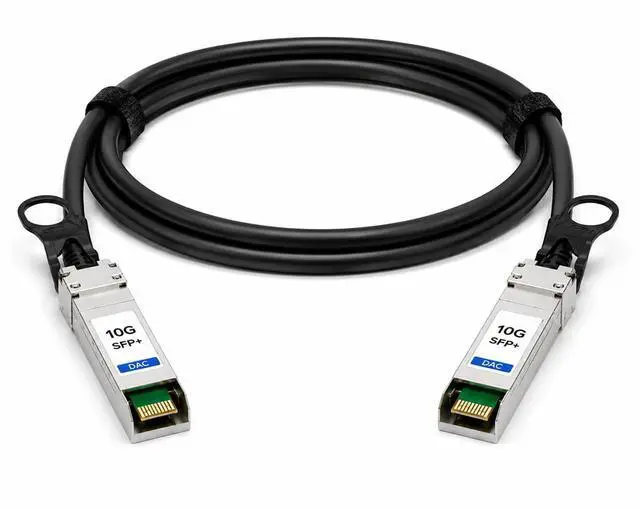

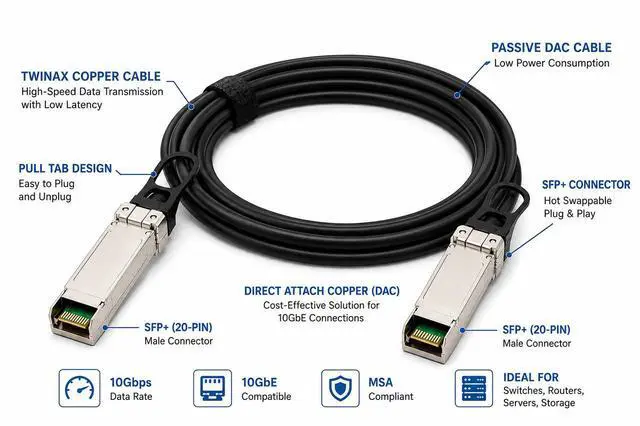

    1m (3ft) Dell 332-1665 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable

    Be the first to review this product...
    • The Dell 332-1665 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable is a high-performance and cost-effective solution for short-distance 10 Gigabit Ethernet connectivity. This 1-meter (3ft) passive DAC cable supports data rates up to 10.5Gbps and is designed as a compatible alternative to the Dell 332-1665 10G SFP+ direct attach copper cable.
    • The cable is programmed and tested for compatibility with supported Dell networking equipment, including 10 Gigabit Ethernet switches, servers, network interface cards (NICs), and network storage systems. Its integrated SFP+ connectors provide a direct copper connection between compatible SFP+ ports without requiring separate optical transceivers.
    • Designed for data centers, enterprise networks, high-performance computing (HPC), top-of-rack switching, and storage environments, the passive 30AWG Twinax construction provides reliable, low-power connectivity for short-reach 10GbE applications.
    • Key Features
    • Compatible with Dell 332-1665
    • 1m (3ft) cable length
    • Passive Direct Attach Copper (DAC)
    • SFP+ to SFP+ connectivity
    • Supports data rates up to 10.5Gbps
    • Supports 10 Gigabit Ethernet (10GBASE-CU)
    • Supports 1x, 2x, 4x, and 8x Fibre Channel data rates
    • Supports Fibre Channel over Ethernet (FCoE)
    • Programmed for supported Dell networking equipment
    • 30AWG Twinax copper construction
    • 100 cable impedance
    • Hot-pluggable SFP+ form factor
    • Single 3.3V power supply
    • Minimum cable bend radius: 25mm
    • PVC cable jacket
    • Operating temperature: 0°C to 70°
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    The Dell 332-1665 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable is a high-performance and cost-effective solution for short-distance 10 Gigabit Ethernet connectivity. This 1-meter (3ft) passive DAC cable supports data rates up to 10.5Gbps and is designed as a compatible alternative to the Dell 332-1665 10G SFP+ direct attach copper cable.

    The cable is programmed and tested for compatibility with supported Dell networking equipment, including 10 Gigabit Ethernet switches, servers, network interface cards (NICs), and network storage systems. Its integrated SFP+ connectors provide a direct copper connection between compatible SFP+ ports without requiring separate optical transceivers.

    Designed for data centers, enterprise networks, high-performance computing (HPC), top-of-rack switching, and storage environments, the passive 30AWG Twinax construction provides reliable, low-power connectivity for short-reach 10GbE applications.

    Key Features
    1. Compatible with Dell 332-1665
    2. 1m (3ft) cable length
    3. Passive Direct Attach Copper (DAC)
    4. SFP+ to SFP+ connectivity
    5. Supports data rates up to 10.5Gbps
    6. Supports 10 Gigabit Ethernet (10GBASE-CU)
    7. Supports 1x, 2x, 4x, and 8x Fibre Channel data rates
    8. Supports Fibre Channel over Ethernet (FCoE)
    9. Programmed for supported Dell networking equipment
    10. 30AWG Twinax copper construction
    11. 100 cable impedance
    12. Hot-pluggable SFP+ form factor
    13. Single 3.3V power supply
    14. Minimum cable bend radius: 25mm
    15. PVC cable jacket
    16. Operating temperature: 0°C to 70°C
    17. RoHS compliant and lead-free
    18. SFP+ MSA compliant
    Technical Specifications
    SpecificationDetails
    Compatible OEM Part NumberDell 332-1665
    Product SKUFOD-DELL-332-1665-1M
    Form FactorSFP+ DAC Cable
    Cable TypePassive Direct Attach Copper (DAC)
    ConnectorSFP+ to SFP+
    Maximum Data Rate10.5Gbps
    Cable Length1m (3ft)
    Cable ConstructionTwinax Copper
    Wire Gauge30AWG
    Cable Impedance100
    Jacket TypePVC
    Supply Voltage3.3V
    Minimum Bend Radius25mm
    Digital Diagnostic MonitoringN/A
    Operating Temperature0°C to 70°C
    Storage Temperature-40°C to 85°C
    WeightApproximately 0.1kg
    ComplianceSFF-8431, SFF-8432, SFF-8472, RoHS
    Applications
    1. 10 Gigabit Ethernet (10GbE)
    2. Dell switches and networking equipment
    3. Dell server connectivity
    4. Switch-to-switch connections
    5. Server-to-switch connections
    6. Top-of-Rack (ToR) switching
    7. Network Interface Cards (NICs)
    8. Storage Area Networks (SAN)
    9. Network Attached Storage (NAS)
    10. Fibre Channel applications
    11. Fibre Channel over Ethernet (FCoE)
    12. High-performance computing (HPC)
    13. High-density network connections
    14. Data center cabling infrastructure
