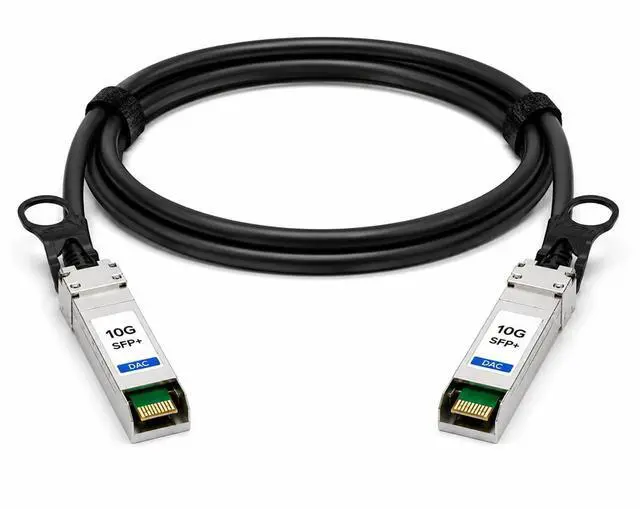

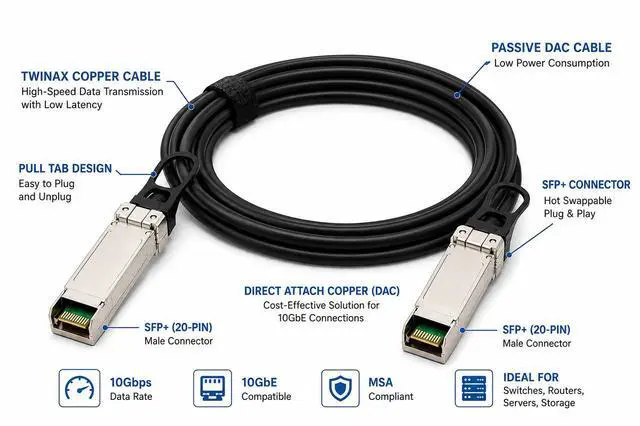

3m (10ft) Dell 470-AAVJ Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
- Dell 470-AAVJ Compatible 10G SFP+ Direct Attach Copper Cable (Passive, 3m, 30AWG)
- This 3 metre twinax cable is a lower-cost replacement for the Dell 470-AAVJ assembly, built for Dell Networking 10G switches and servers. It is programmed and tested at the factory, so the port recognises it at plug-in with no extra configuration, and it can be mixed with original cables in the same rack without any loss of performance.
- The cable carries data rates up to 10.5 Gbps, meeting the bandwidth requirements for 10 Gigabit Ethernet (10GBASE-CU), 8G Fibre Channel and 10G Fibre Channel over Ethernet.
- Being passive, it needs no power beyond the host port and adds almost no latency. At 3 metres it reaches between racks or across a taller cabinet, where a 1 metre cable would fall short, while still costing far less than a pair of optical transceivers and a patch lead.
- Features
- Functionally identical to the Dell 470-AAVJ
- Supports multi-gigabit data rates up to 10.5 Gbps
- I/O connector designed for high-speed differential signal applications
- Improved Pluggable Form Factor (IPF) compliant, with enhanced EMI/EMC performance
- Single 3.3V power supply
- Specifications
- Compatible OEM Part Number 470-AAVJ Form Factor SFP+ Cable
- Data Rate 10.5 Gb/s Passive or actively equalized Passive
- Supply Voltage 3.3V Length 3 m
- Impedance 100 Type Twinax
- Wire Gauge 30AWG Minimum Bend Radius 25 mm
- Jacket Type PVC Connector SFP+/SFP+
- Digital Diagnostic Monitoring N/A Weight 0.3 kg
- Environment Operating: 0°C
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Dell 470-AAVJ Compatible 10G SFP+ Direct Attach Copper Cable (Passive, 3m, 30AWG)
This 3 metre twinax cable is a lower-cost replacement for the Dell 470-AAVJ assembly, built for Dell Networking 10G switches and servers. It is programmed and tested at the factory, so the port recognises it at plug-in with no extra configuration, and it can be mixed with original cables in the same rack without any loss of performance.
The cable carries data rates up to 10.5 Gbps, meeting the bandwidth requirements for 10 Gigabit Ethernet (10GBASE-CU), 8G Fibre Channel and 10G Fibre Channel over Ethernet.
Being passive, it needs no power beyond the host port and adds almost no latency. At 3 metres it reaches between racks or across a taller cabinet, where a 1 metre cable would fall short, while still costing far less than a pair of optical transceivers and a patch lead.
Features
- Functionally identical to the Dell 470-AAVJ
- Supports multi-gigabit data rates up to 10.5 Gbps
- I/O connector designed for high-speed differential signal applications
- Improved Pluggable Form Factor (IPF) compliant, with enhanced EMI/EMC performance
- Single 3.3V power supply
Specifications
| Compatible OEM Part Number | 470-AAVJ | Form Factor | SFP+ Cable | |||||
| Data Rate | 10.5 Gb/s | Passive or actively equalized | Passive | |||||
| Supply Voltage | 3.3V | Length | 3 m | |||||
| Impedance | 100 | Type | Twinax | |||||
| Wire Gauge | 30AWG | Minimum Bend Radius | 25 mm | |||||
| Jacket Type | PVC | Connector | SFP+/SFP+ | |||||
| Digital Diagnostic Monitoring | N/A | Weight | 0.3 kg | |||||
| Environment | Operating: 0°C to 70°C | Storage: -40°C to 85°C | Application | Storage Area Networks (SAN) | Network Attached Storage | Switched fabric I/O | High-density connections between networking equipment | Data center cabling infrastructure |
| Compliance | SFF-8472, SFF-8431 | IEC/EN 61000-4-2 | MIL-STD-883E, RoHS |
