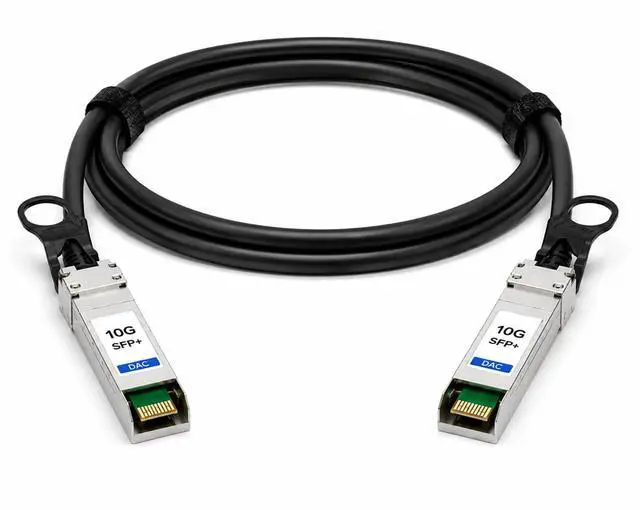

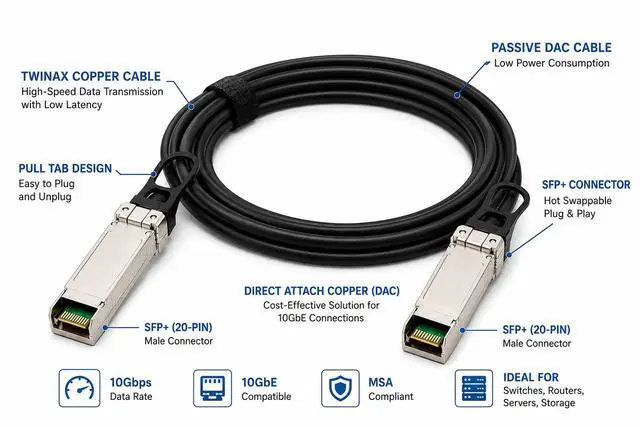

1m (3ft) Mellanox MC3309130-001 Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
- Compatible with Mellanox MC3309130-001, individually programmed and tested for supported Mellanox equipment
- 1m (3.3ft) passive Direct Attach Copper cable with SFP+ to SFP+ connectivity
- Supports data rates up to 10.5Gbps
- Supports 10 Gigabit Ethernet (10GBASE-CU), 8G Fibre Channel, and Fibre Channel over Ethernet (FCoE)
- 30AWG Twinax copper construction with 100 cable impedance
- High-speed differential signal interface with enhanced EMI/EMC performance
- Improved Pluggable Form Factor (IPF) design
- Single 3.3V power supply
- PVC jacket with a 25mm minimum bend radius
- Operating temperature 0°C to 70°C, RoHS compliant and lead-free
- Applications
- Mellanox 10G switches and networking equipment
- Mellanox Network Interface Cards (NICs)
- Server to switch and switch to switch connections
- Top-of-Rack (ToR) switching and high-density network connections
- Storage Area Networks (SAN) and Network Attached Storage (NAS)
- Fibre Channel and Fibre Channel over Ethernet (FCoE)
- High performance computing (HPC) and switched fabric I/O
- Data center cabling infrastructure
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The Mellanox MC3309130-001 compatible 10G SFP+ passive Direct Attach Copper Twinax cable is a cost-effective solution for short-distance 10 Gigabit Ethernet connectivity. This 1 meter (3.3ft) passive DAC cable supports data rates up to 10.5Gbps and is built as a compatible alternative to the Mellanox MC3309130-001.
Each cable is individually programmed and tested for compatibility with supported Mellanox networking equipment, including 10G switches, network interface cards, servers, routers, and network storage systems. The integrated SFP+ connectors provide a direct copper connection between compatible SFP+ ports without requiring separate optical transceivers.
Built for data centers, enterprise networks, high performance computing, storage networks, and high-density rack installations, the passive 30AWG Twinax construction delivers reliable, low-power connectivity for short-reach 10GbE applications.
Specification
| SpecificationDetails | |
| Compatible OEM Part Number | Mellanox MC3309130-001 |
| Product SKU | FOD-MEL-MC3309130-001-1M |
| Form Factor | SFP+ DAC Cable |
| Cable Type | Passive Direct Attach Copper (DAC) |
| Connector | SFP+ to SFP+ |
| Maximum Data Rate | 10.5Gbps |
| Cable Length | 1m (3.3ft) |
| Cable Construction | Twinax Copper |
| Wire Gauge | 30AWG |
| Cable Impedance | 100 |
| Jacket Type | PVC |
| Supply Voltage | 3.3V |
| Minimum Bend Radius | 25mm |
| Digital Diagnostic Monitoring | N/A |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approximately 0.1kg |
| Compliance | SFF-8431, SFF-8472, RoHS |
