Indoor/Outdoor Industrial Enclosure with Integrated 8 Port Gigabit PoE+, 2 Port 1000BASE SFP Switch, IEEE802.3af/at POE 246W Power Supply, Plug and Play, Metal IP65 Case, -40 to 158°F
- 8 Gigabit Ports
- 246W High POE Power
- NEMA-rated indoor/outdoor Industrial design
- Built-in power supply and surge protection
- Widely Used
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- 8 Gigabit Ports: Includes 8 Gigabit PoE ethernet ports, support 10/100/1000Mbps; 2 Gigabit SFP Slot, Supports single-mode/multi-mode optical modules for transmission over longer distances. Switching capacity is 26Gbps, each port can reach 1G rate at the same time, with high speed transmission

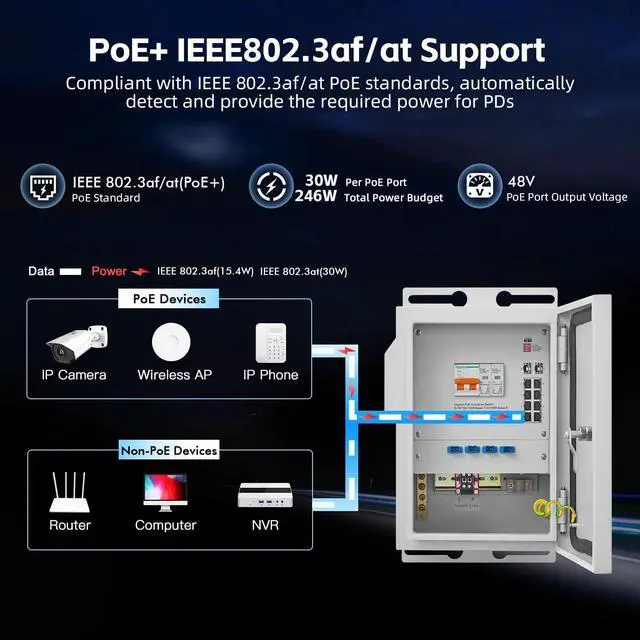

- 246W High POE Power: 1-8 Ports support IEEE 802.3af/at power over ethernet, each port max 30W, include 246W Internal Power Supply. PoE watchdog monitors status of connected PoE devices. *Please note: it will not supply power to passive 24V PoE devices. Compatible with non-POE devices*

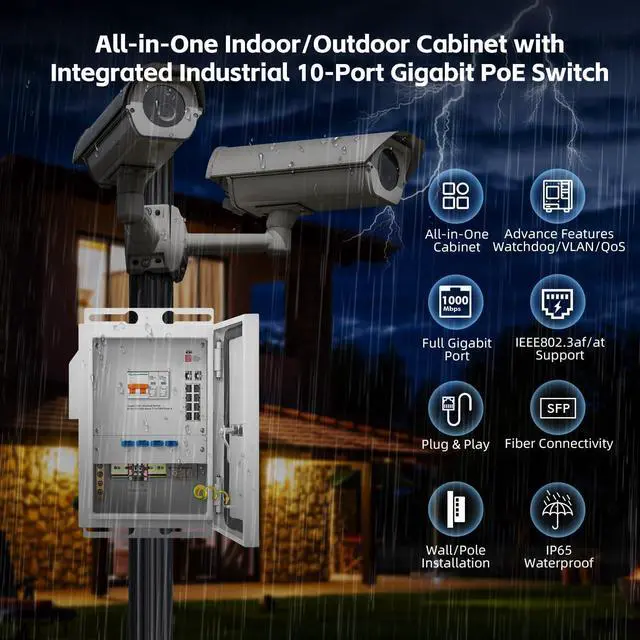

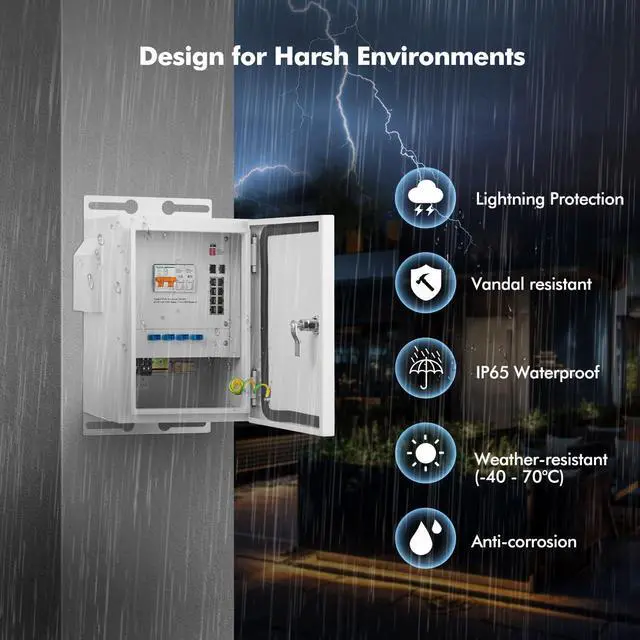

- NEMA-rated indoor/outdoor Industrial design: for non-ventilated & harsh environments, Wide operating temperature -40 to 70°C (-40 to 158°F), built-in fan for better heat dissipation; High-quality galvanized sheet thickness 1.2mm,Triangle lock, IP65 Weather-resistant, anti-corrosion, and vandal-resistant design. Support Pole /Wall installation

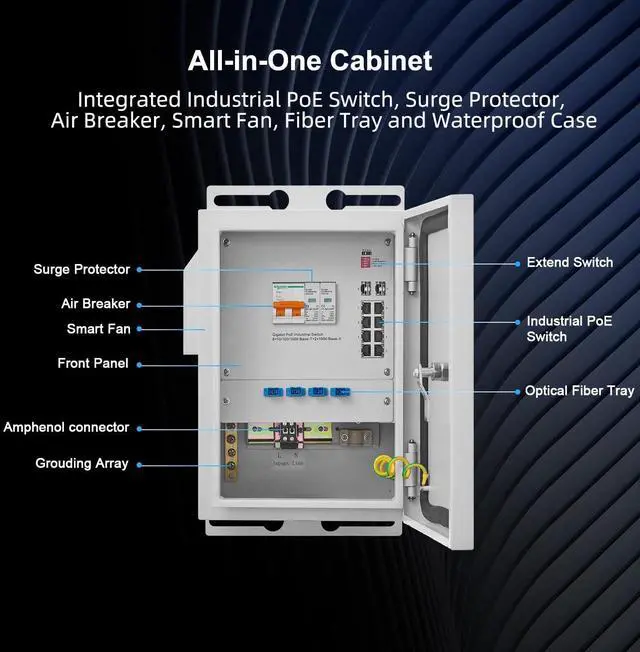

- Built-in power supply and surge protection; The Air breaker has short-circuit protection, overload protection and isolation functions, and has thermal-magnetic tripping characteristics C-shaped curve. The door has built-in waterproof rubber strips and built-in reinforcing ribs. The Optical fiber box has 4-port SC fiber flange, with 8-core fiber box. Cable holes on the bottom
- Widely Used: provides excellent industrial quality with high/low temperature resistance and lightning protection, and enhances the reliability and safety of industrial networks. lt can better meet the deployment requirements of rail transit. safe city,intelligent transportation, outdoor monitoring and other harsh environments
| Ethernet Port | 2*1000 Base-X + 8*10/100/1000 Base-T |
| LED Indicators | PWR,OPT, NMC,ALM |

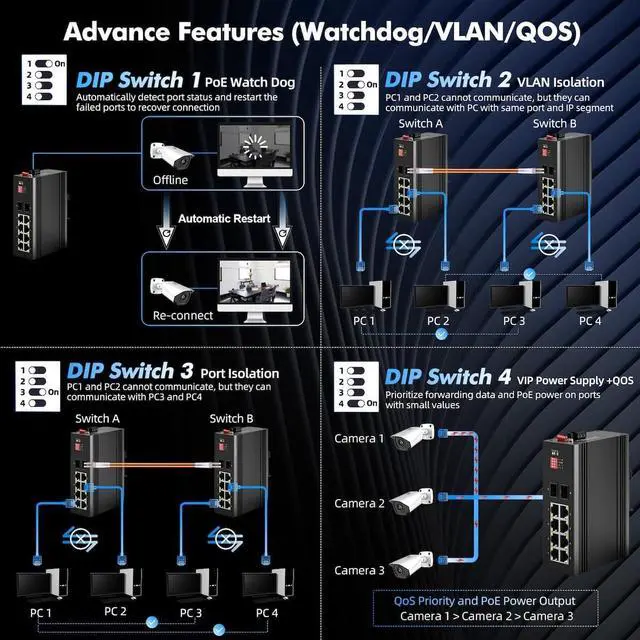

| DIP Switch | 1-PoE Watch Dog, 2-VLAN Isolation, 3-Port Isolation, 4-VIP Power Supply +QOS |
| Transmission Distance | Twisted-pair: 0-100m(CAT5e,CAT6), Monomode optical fiber: 20/40/60/80/100KM, Multimode (optical) fiber: 550m |
| Electrical Specifications | Input voltage: AC100-240V, 50/60Hz, Total Power consumption (POE): 246W, Voltage Alarm: Support, PoE Port: 1-8 port, Pin Assignment: 1,2(+),3,6(-), PoE Protocol: 802.3af,802.3at (15W/30W) |
| Layer 2 Switching | Switching capacity: 26G, Packet forwarding rate:19.34 Mpps, MAC address table: 16K, Buffer: 2M, Forwarding delay <5 us, Jumbo Frame: 10K Bytes |
| Environment | Operating temperature: -40~+75, Storage temperature: -40~+85, Relative humidity: 5%~95% non-condensing, Thermal methods: Auto Fans Cooling, MTBF: 100,000 hours |
| Cabinet Description | BOX size: 220X230X300mm, Material: High-quality galvanized sheet, thickness 1.2mm box mounting ears thickness 1.5mm, Weight Net weight: 7.25KG, Gross weight: 8.25KG, Box lock: Triangle lock, Door: The door has built-in waterproof rubber strips and built-in reinforcing ribs; Bottom of the box: The diameter of the cable entry hole at the bottom of the box is 50mm, and there is an air inlet hole at the bottom of the box (insect-proof net welded inside); |
| Cabinet Components | Fan: AC220V with temperature control, 3000±10% RFM, air volume 90CFM, 92*92*25mm, line length 300mm; Optical fiber box: 4-port SC fiber flange, with 8-core fiber box; Air breaker: It has short-circuit protection, overload protection and isolation functions and has thermal-magnetic tripping characteristics C-shaped curve (5ln~10ln); Installation: Pole /Wall installation |
| Lightning protector | Rated operating: voltage 220V; Maximum continuous operating voltage: 385V; Rated discharge current (8/20 s): 20KA; Maximum discharge current (8/20 s): 40KA; Limit voltage 1.8KV; Indication: Green: Normal Red: Failure |
| EMC & Ingress Protection | IP Level: IP65; Surge protection of Power: IEC 61000-4-5 Level X(8KV/6KV); Surge protection of Ethernet port: IEC 61000-4-5 Level X(8KV/6KV); RS: IEC 61000-4-3 Level 3(10V/m); EFI: IEC 61000-4-4 Level 3(1V/2V); CS: IEC 61000-4-6 Level 3(10V/m); PFMF: IEC 61000-4-8 Level 4(30A/m); DIP: IEC 61000-4-11 Level 3 (10V); ESD: IEC 61000-4-2 Level 4(8K/15K) |
