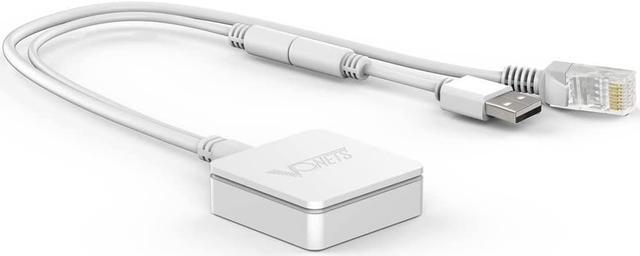

VONETS VAR11N-300 Portable WiFi Router 2.4GHz WiFi Bridge Wireless Repeater WiFi Hotspot to Ethernet WAN/LAN 2 RJ45 Ports(10/100Mbps) DC/USB Powered for Hotel IP Printer Network Devices

Industrial WiFi Bridge/Router/Repeater 2.4GH z mini wifi bridge, using
three-in-one technology: professional wifi router, wifi bridge, wifi repeater, it can also act as a portable WiFi hotspot. Can achieve WiFi to Wired or Wired to WiFi functionEthernet to WiFi, WiFi to Ethernet Adapter); Support WiFi 802.11 b/g/n, WiFi
rate: 300Mbps.
Support Two WiFi Working Modes (1)
WiFi smart bridge mode: It can smart control the device WiFi mode;
WiFi AP Client (WiFi client): it can be used for access from WiFi to wired Ethernet, suitable for IP TV, STBs; WiFi Hotspot (AP
Station mode): it is suitable for hotel room usage;
WiFi Repeater (WiFi signal repeat): it can extend the distance of WiFi signal coverage, WiFi transfer; (2)
WiFi router mode: WAN
port connection type support: WiFi WAN (uplink).
Point-to-Point Transmission DistanceMaximum can be up to 50 meters when without obstacles and small data, WiFi
Tx Power: 14.5 dBm, 2 X 1.5 dBi built-in antennas; Good Partner for PLC, robot, hotel WiFi, home WiFi, Medical devices, Network Printer, IP devices, electronic scale, monitoring application, video or data transfer, and more network applications, easy to set up.
Product Configuration and ParametersPowered by wide voltage DC5V-15V(Typical 5V/1A, ripple less than 100mV); DC/USB optional powered mode (two types of power supply cant be used at the same time), one 30cm power cable with 1 male DC port and 1 male USB port, one female DC port of the parallel connection; 1 WAN 1 LAN RJ45 10/100Mbps adaptive Ethernet ports.
Function and Technical ApplicationSupport WiFi memory hotspots (Up to 100) automatic matching connection function realize to WiFi motion applications. Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped.
