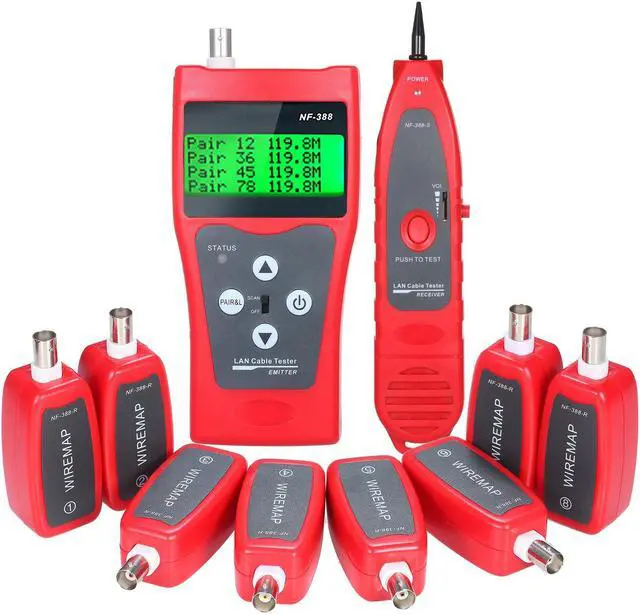

Multi-functional LCD Network Cable Tester Wire Tracker RJ11 RJ45 BNC Wire Length Finder Line Finder LAN Cable Tester with 8 Remote Adapters

pecifications:
Material: ABS
Working
Ambient Temperature: -10~60Net
Weight: 737g / 26.01 ozPackage
Weight: 850g / 29.98 ozPackage

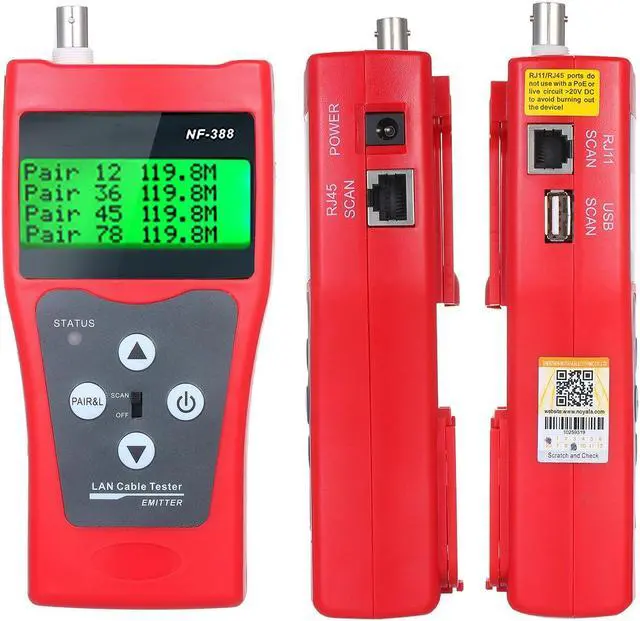

Size: 26.7 * 18 * 9.2 cm / 10.51 * 7.09 * 3.62 inEMITTER:
Display: LCD 60*25mm, with backlightTone
Frequency: 225kHzMax.
Distance of Transmission: 2000mMax.
Distance of Cable Map: 1000mMax.
Working Current: 70mATone
Mode: 2 tones adjustableCompatible
Connectors: RJ11, RJ45, coaxial, USB
Max.
Signal Voltage: 15Vp-pFunction
Selection: 3 position button & 1 power switchCable
Map Indication: LCD(#1-#8)Shielded
Indication: LCD(#G)Voltage
Protection: AC60V/DC42VLow
Battery Display: LCD( 6.5V )Power
Supply: 1 * 9V 6F22 battery (NOT included)

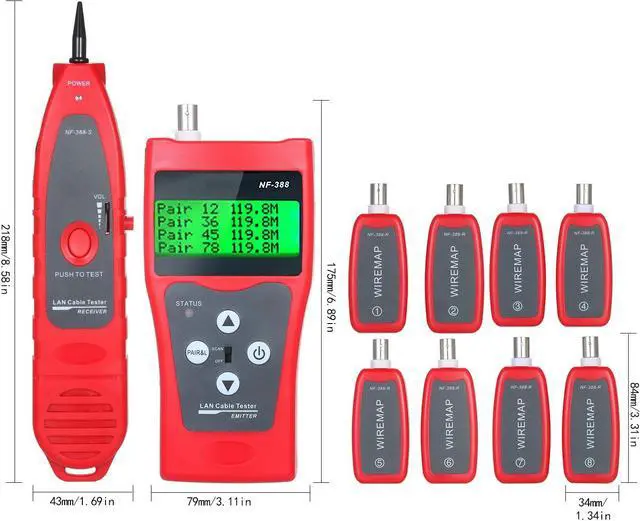

Emitter Size: 175 * 79 * 44m / 6.89 * 3.11 * 1.73 inEmitter
Weight: 221g / 7.80 oz

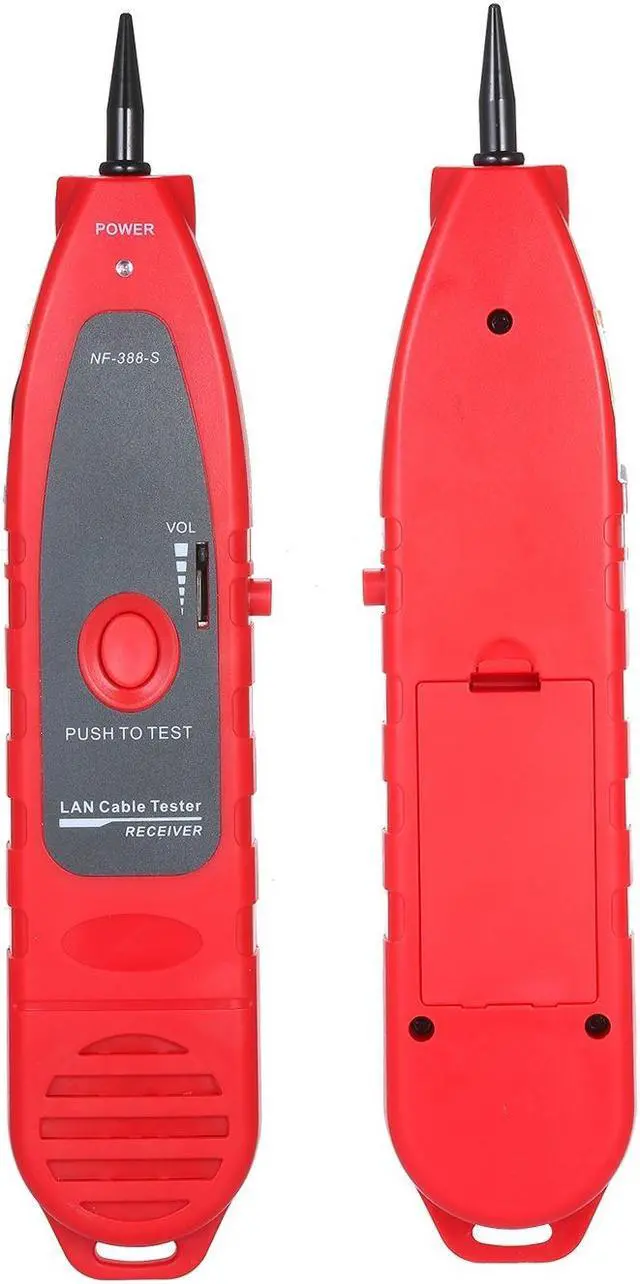

RECEIVER:
Frequency: 225kHzMax.
Working Current: 70mAEar
Jack: 1LED
Illumination: 2
LEDsPower Supply: 1 * 9V 6F22 battery (NOT included)
Receiver Size: 218 * 43 * 26mm / 8.58 * 1.69 * 1.02 inReceiver
Weight: 92g / 3.26 ozREMOTE
IDENTIFIER:
Quantity: 8pcsCompatible
Connectors: RJ45, coaxialRemote

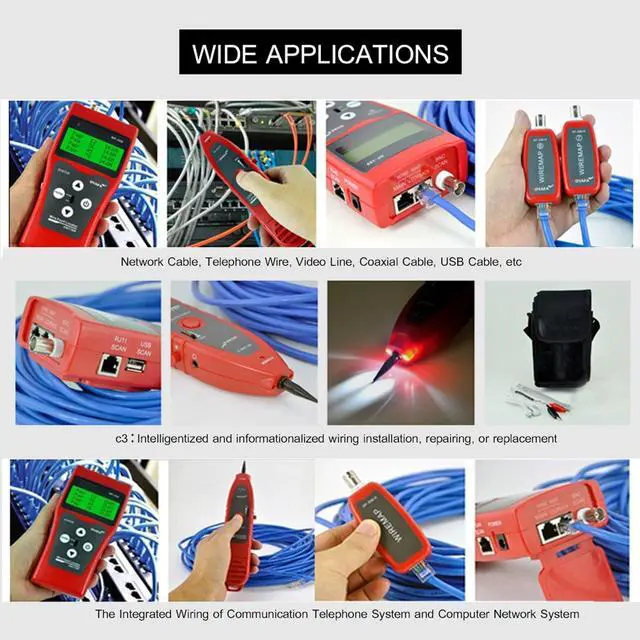

Identifier Size: 84 * 34 * 27mm / 3.31 * 1.34 * 1.06 in With lots of functions, this is practical cable test and inspection instrument was composed of a tester, a receiver and eight remote identifiers. It has three great functions of wire hunting, wire sorting, and circuit status testing, and provides quickly and accurately test result. Thus it is an excellent testing tool for technicians in installation and maintenance of weak current system, such as communication line, comprehensive wiring circuit, etc.
Features: Check 5E, 6E, and coaxial cable continuity, such as open circuit, short circuit, cross circuit, reverse connection. Measure network cable length and determine the distance of open and short circuit. Directly locate 5E, 6E, telephone cable, coaxial cable, USB cable and other cables. Port flashing function helps to find the 5E 6E network cable which connected to the switch easily. Network wire checking function to judge normal/short-circuit/open-circuit, locate wiring or connection error. Includes 8pcs remote adapters, far-end identifier with prompt voice, high working efficiency. Dynamically calibrate cable length and make the cable length measurement as accurate as 98%. Automatically time-delay shut off and backlight display function. Portable unit is simple and easy to use, big LCD screen to display the test result clearly. Comes with earphone for easy operation, LCD display with backlight for easy reading. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
