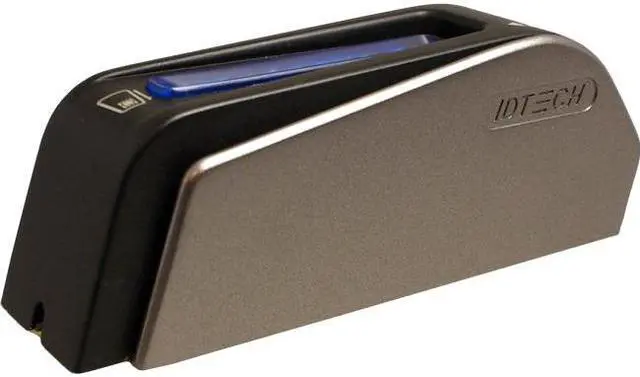

ID Technologies - IDEM-241 - ID TECH The Augusta, an EMV L1-L2 Chip and MagStripe Reader - Triple Track - 60 in/s -

Smooth Transition to
EMV: The Augusta is a secure EMV chip and magnetic stripe reader that is specifically designed to offer retailers a simple upgrade path to EMV from traditional desktop magnetic stripe readers. This reader is able to provide superior reading performance while also encrypting sensitive magnetic stripe and EMV data. With all data encrypted, the Augusta can participate in end-to-end solutions reducing the risk of data compromises.
EMV/Universal SDK: This reader has been designed to use ID TECH's Common L2 Kernel and can be utilized with ID TECH's Universal SDK. By using the Universal SDK, coding efforts to the Augusta and other ID TECH Common L2 products is greatly reduced.
Easy To Use: The Augusta is very user friendly and reliable. It is available in USB-HID configuration and uses common HID drivers. Beepers, LEDs and bidirectional communication make interacting with the unit very intuitive. The location of the mounting holes makes it easy to mount to any previous MiniMag II or SecuRED mounting bracket. The Augusta is able to support 1, 000, 000 magnetic stripe operations or 500, 000 EMV transactions.
Virtual Terminal Support: ID TECH's patent-pending Augusta card reader brings together Quick Chip technology, USB keyboard emulation, and a proven EMV L2 kernel for the first time. The result is an EMV solution that makes it exceptionally easy for virtual terminal customers to benefit from two-second transaction times while minimizing PCI-DSS scope
Features: Familiar form factor Encryption capable 3-track MagStripe swiper and ICC reader ICC reader that is EMV L1 certified and hosts the Common L2 kernel Visual and audible feedback to signal good/bad card reads, etc TDES and AES encryption algorithm for MagStripe and contact EMV output Supports ID TECH standard TR31 (and optional TR34) based Remote Key Injection Supports Quick Chip. Use Quick Chip in Keyboard Mode (patent-pending) for instant integration into virtual-terminal environments. SRED version available now -- already
PCI certified Product Type: Magnetic Stripe/EMV Card Reader
Product Type: Magnetic Stripe/EMV Card Reader
Input Voltage: 5 V DC
Manufacturer Part Number: IDEM-241
Weight (Approximate): 10.24 oz
Length: 5
Manufacturer: ID TECH
Product Name: The Augusta, an EMV L1-L2 Chip and MagStripe Reader
Product Line: Augusta
Brand Name: ID TECH
Brand Name: ID
TECH Encryption: Yes
Encryption: Yes
Height: 1.8
Width: 1.4 Magnetic Stripe
Track Configuration: Triple Track Magnetic Stripe
Track Number: Track 3 Magnetic Stripe
Track Number: Track 2 Magnetic Stripe
Track Number: Track 1
USB: Yes
Product Family: Augusta
Magnetic Stripe Format: AAMVA
Magnetic Stripe Format: ISO 7811
Bi-directional Reading: Yes
Keyboard Wedge: Yes
EMV Chip Format: ISO 7816
Product Color: Gray
Product Color: Black
Product Color: Blue Magnetic Stripe
Track Configuration: Triple Track Magnetic Stripe
Track Number: Track 3 Magnetic Stripe
Track Number: Track 2 Magnetic Stripe
Track Number: Track 1
Minimum Swipe Speed: 3 in/s
Maximum Swipe Speed: 60 in/s
USB: Yes
Magnetic Stripe Format: AAMVA
Magnetic Stripe Format: ISO 7811
Bi-directional Reading: Yes
Keyboard Wedge: Yes
EMV Chip Format: ISO 7816
Product Color: Gray
Product Color: Black
Product Color: Blue Number of Swipes (Head
Life): 1000000
