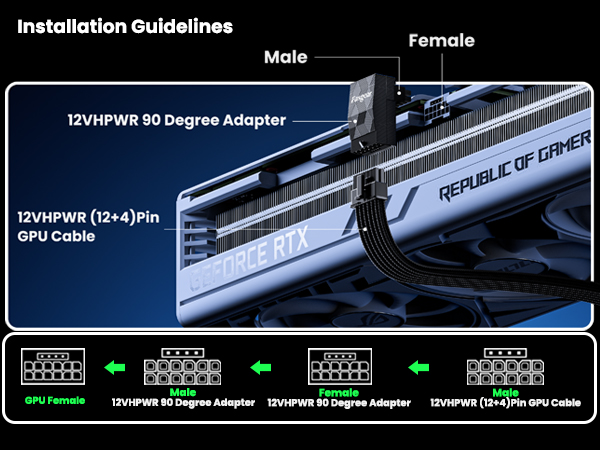

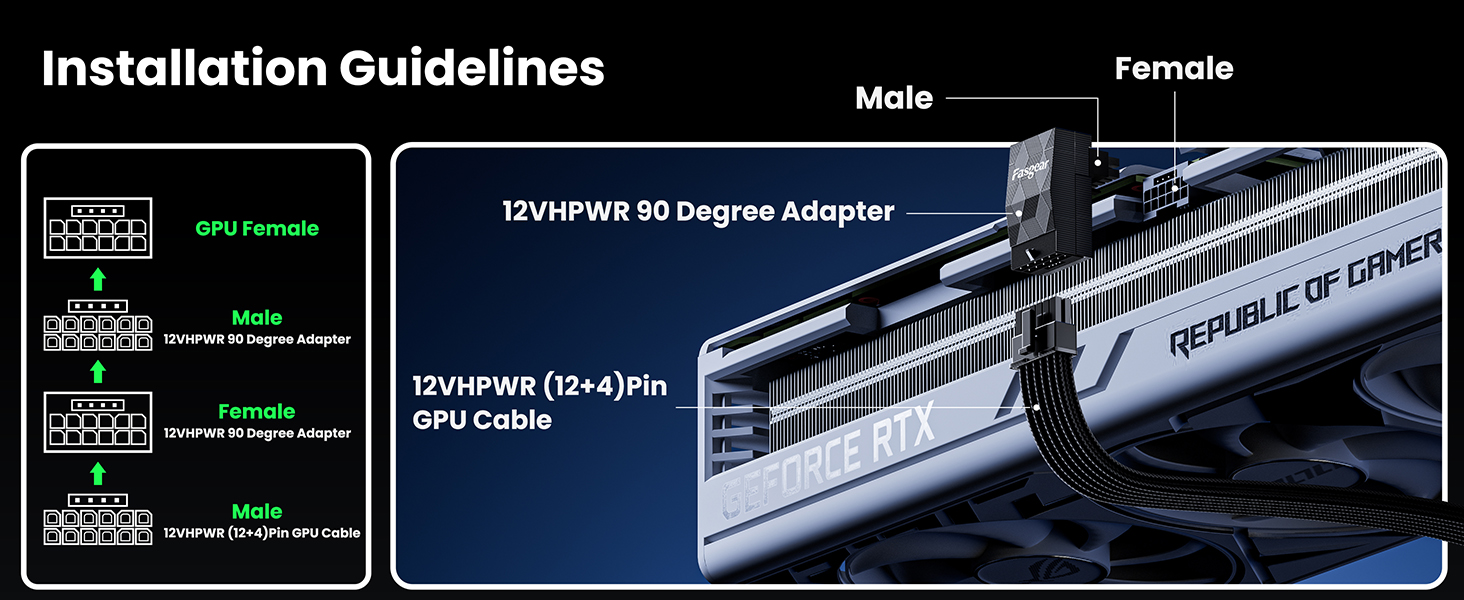

Install Guide For 12VHPWR Adapter Connects GPU & Power Cord
Enjoy Tidy and Visually Appealing PC Case

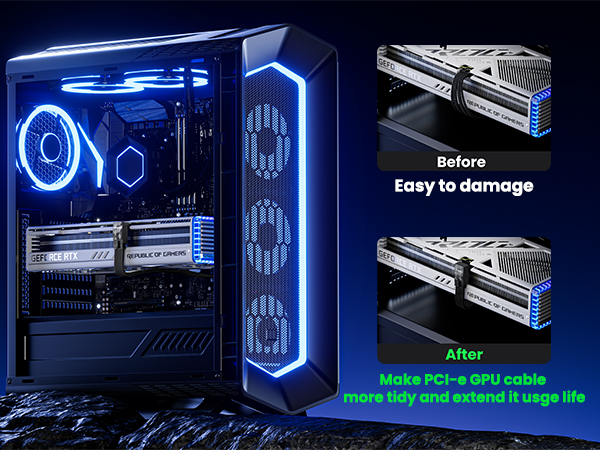

Connected to the 12vhpwr 90-degree adapter, it reduces wear on the ports of the power cord and GPU, ensuring lasting performance. You can also enjoy a tidy and visually appealing PC case.
Type A Compatible Lists
Type B Compatible Lists
The 12vhpwr adapter use requirements:
- Using this 12vhpwr adapter with incompatible GPUs may result in system damage.
- Do NOT use our adapter with GPU models not listed in the compatibility list above.
- Please make sure the adapter is fully plugged into the GPU connector before operating.

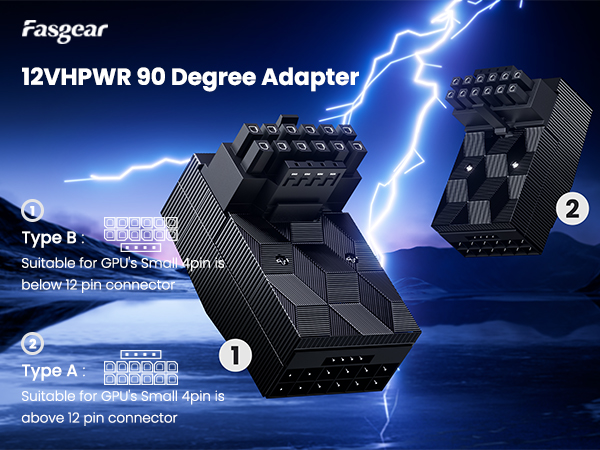

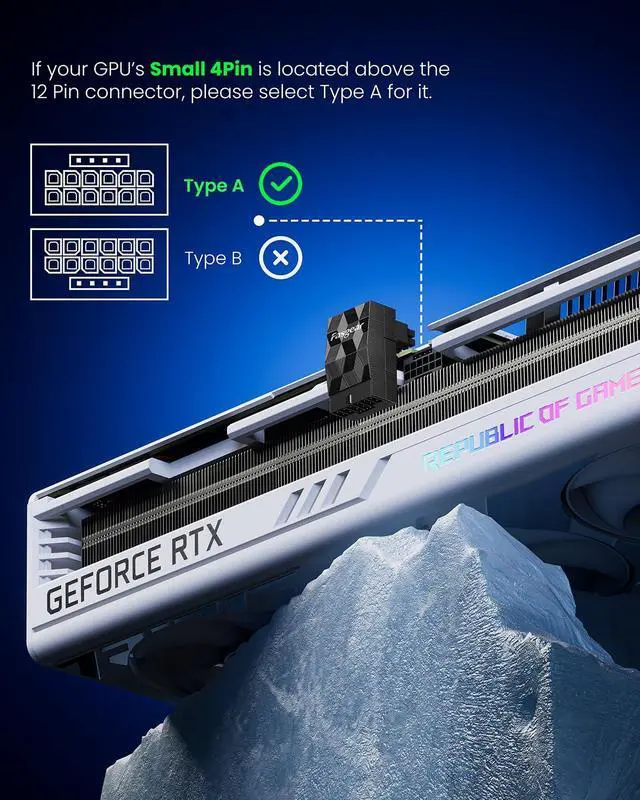

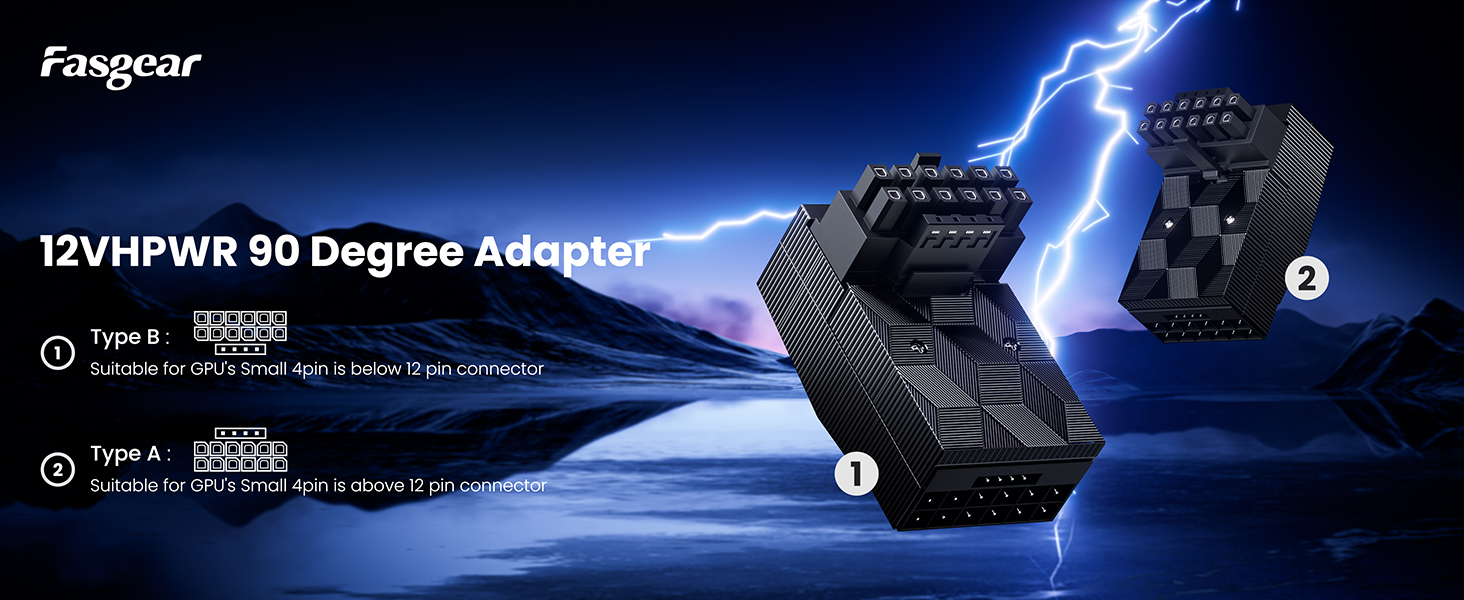

- Type A is designed for GPU small 4-pin facing upwards. It will make power cable running towards cooler side of the GPU. If using it on GPU small 4-pin facing downwards, the cable runs towards backplate side of GPU.
- Type B is designed for GPU small 4-pin facing downwards. It will make power cable running towards cooler side of the GPU. If using it on GPU small 4-pin facing downwards, the cable runs towards backplate side of GPU.
16Pin PCIe 5.0 GPU Power Cable For You

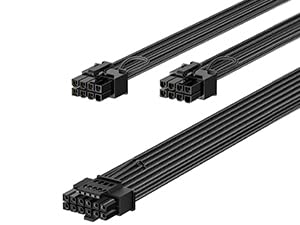

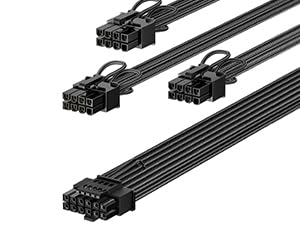

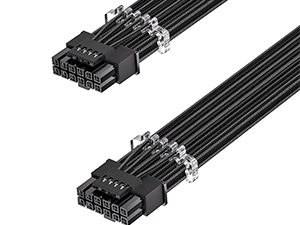

 16pin PCIe 5.1 Power Cable |  16pin to 3x8pin Power Cable |  16pin to 2x8pin Power Cable |
|---|---|---|

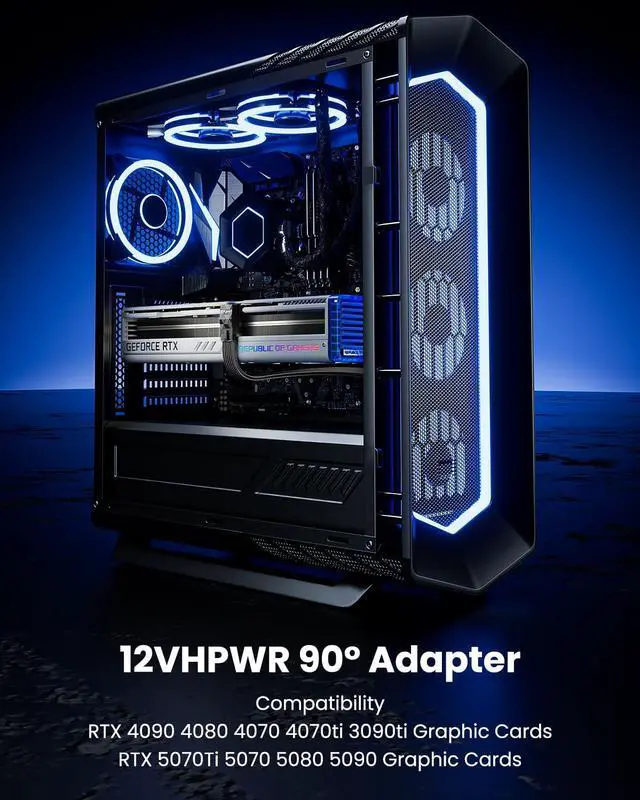

Compatible GPU Series Compatible for RTX 5090 5080 5070 5070Ti 3090Ti 4070Ti 4080 4090 4070(12+4pin) | Compatible GPU Series Compatible for RTX 5080 5070 5070Ti 3090Ti 4070Ti 4080 4090 4070(12+4pin) | Compatible GPU Series Compatible for RTX 5070 5070Ti 3090Ti 4070Ti 4080 4090 4070(12+4pin) |
Compatible Full Modular PSUs ATX 3.1 / ATX 3.0 Power Supply | Compatible Full Modular PSUs Corsair/Great Wall/Thermaltake ASUS EVGA Seasonic Power Supply | Compatible Full Modular PSUs Corsair/Great Wall/Thermaltake/NZXT/ASUS/EVGA/Seasonic Power Supply |
Install Guide For 12VHPWR Adapter Connects GPU & Power Cord
Enjoy Tidy and Visually Appealing PC Case
Connected to the 12vhpwr 90-degree adapter, it reduces wear on the ports of the power cord and GPU, ensuring lasting performance. You can also enjoy a tidy and visually appealing PC case.
Type A Compatible Lists
| ASUS | ROG Strix 4090 (backplate side), 4080 (backplate side), 4070Ti (backplate side) |
|---|---|
| ASUS | TUF-Gaming 4090 (backplate side), 4080 (backplate side), 4070Ti (backplate side) |
| MSI | 4090 VENTUS 3X OC (cooler side), 4070 Ti VENTUS 3X OC (cooler side) |
| GIGABYTE | 4090 Gaming OC (cooler side) |
| NVIDIA | 4090 FE (cooler side), 4080 FE (cooler side), 3090 Ti Founders Edition (cooler side) |
| GAINWARD | 4090 Phantom (cooler side), 4080 Phantom (cooler side), 4070 Ti Phantom (cooler side) |
| INNO3D | 4090 X3 OC3 (cooler side), ICHILL FROSTBITE GDDR6X WK (cooler side) |
| Palit | 4090 GameRock OC (cooler side), 4070 Ti GameRock (cooler side) |
| PNY | 4090 TF Verto Edition (cooler side) |
Type B Compatible Lists
| GIGABYTE | AORUS 4090 MASTER (backplate side), 4080 MASTER (backplate side), 4070 Ti MASTER (backplate side) |
|---|---|
| GIGABYTE | 4090 Gaming OC (backplate side), 4070 Ti Gaming OC (backplate side), 4080 Gaming OC (backplate side) |
| GIGABYTE | 4090 WINDFORCE (backplate side), 4080 WINDFORCE (backplate side), 4070 Ti WINDFORCE (backplate side) |
| MSI | 4090 GAMING X TRIO (backplate side), 4080 GAMING X TRIO (backplate side), 4070 Ti GAMING X TRIO (backplate side) |
| MSI | 4090 Suprim (backplate side), 4080 Suprim (backplate side), 4070Ti Suprim (backplate side) |
| MSI | 4090 Suprim X (backplate side), 4080 Suprim X (backplate side), 4070 Ti Suprim X (backplate side) |
| MSI | 4090 Suprim Liquid X (backplate side), 4080 Suprim Liquid X (backplate side), 4070 Ti Suprim Liquid X (backplate side) |
| NVIDIA | 4080 FE (backplate side), 4090 FE (backplate side) |
The 12vhpwr adapter use requirements:
- Using this 12vhpwr adapter with incompatible GPUs may result in system damage.
- Do NOT use our adapter with GPU models not listed in the compatibility list above.
- Please make sure the adapter is fully plugged into the GPU connector before operating.
- Type A is designed for GPU small 4-pin facing upwards. It will make power cable running towards cooler side of the GPU. If using it on GPU small 4-pin facing downwards, the cable runs towards backplate side of GPU.
- Type B is designed for GPU small 4-pin facing downwards. It will make power cable running towards cooler side of the GPU. If using it on GPU small 4-pin facing downwards, the cable runs towards backplate side of GPU.
