This 12v-2x6 GPU power cable is suitable for Full modular PSU only, not for semi-modular / non-modular power supplies.

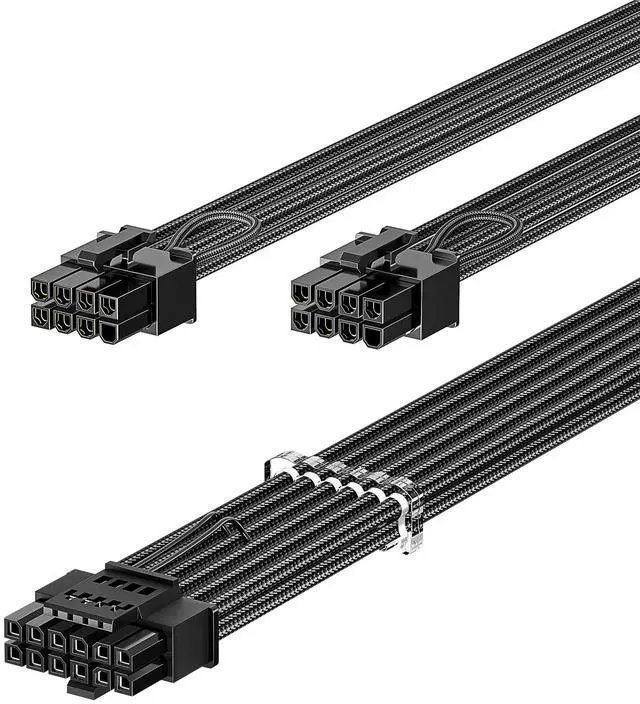

Fasgear PCI-e Gen 5.0 12VHPWR Power Cable for RTX 5070Ti 5070 4090 4080 4070 ti 3090ti to PSU ASUS/EVGA/Seasonic
* Specification
- 12v-2x6 16pin(12+4) male connector * 1
- 8pin(6+2) male connector * 2
- Cable length: 70cm
- Max Wattage: 600 watts
- Wire Gauge: 16 AWG
- Wire Material: Tinned Copper
- Wire Jacket: Nylon Braided
- *Full Modular PSU: Seasonic / ASUS / EVGA

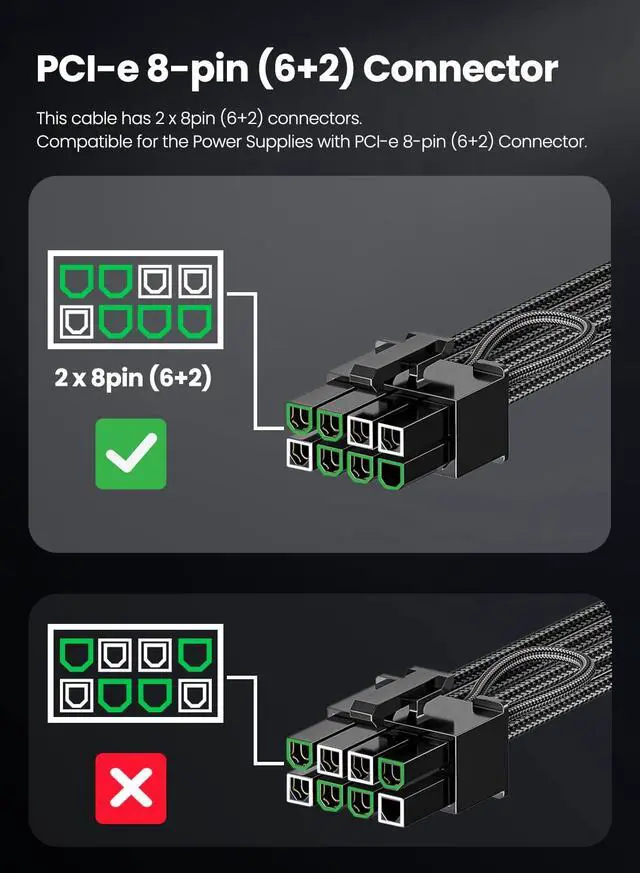

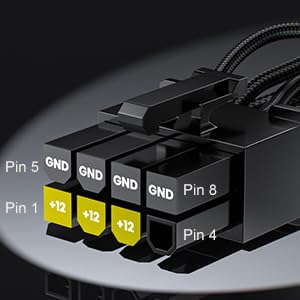

Pinout for the 8pin(6+2) PCle Power Connector as Follow:
Pin 1 to Pin 3: +12V
Pin 4 to Pin 8: GND
* Check the pinout diagram of this pcie power cable. Please confirm that your power supply connector matches this pinout diagram before purchasing
- 12v-2x6 connector(marked with H++) back compatible with 12vhpwr Port
1. Fasgear PCI-e Gen 5.0 12VHPWR to 2*8pin (6+2) Power Cable is mainly designed for GPU RTX 4090, 4080, 4070 Ti, 4070(only for 16pin), 3090 Ti, and future 4000 series.
2. This 12vhpwr cable is compatible with the models listed below. This GPU sleeved power cable is NOT compatible with the GPU with 12pin or 8pin power connector, such as GeForce RTX 3090 Series and 8pin RTX 4070 GPU, but compatible with 4070 GPU with 16pin connector.

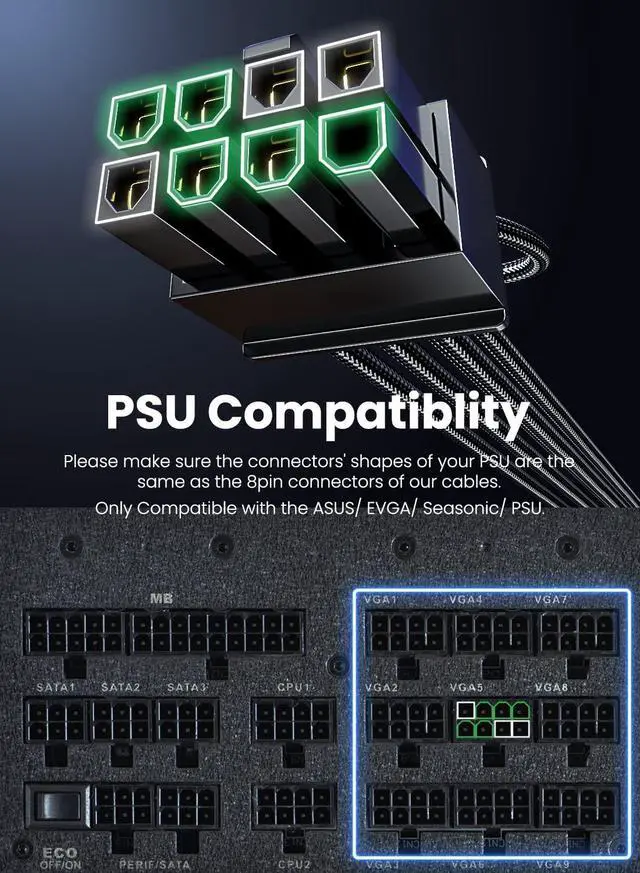

3. This GPU power cable CAN plug in the PSU port directly, and need 2 unoccupied 8-pin(6+2) PCI-e ports on your PSU. Please text us via Message if you have questions about the PSU compatibility before purchasing. Likewise, also e mail us at any time after purchase.
*Please refer to the 12VHPWR connector plugging way as below image. The 12v-2x6 power connector must not be connected in reverse.
Fasgear 12VHPWR 16pin GPU to 2x8pin (6+2) Power Cable Compatible List (Partial)
 16Pin GPU to 2X8 PCIe Power Cable |  16Pin GPU to 2X8 PCIe Power Cable |  16Pin GPU to 3X8 PCIe Power Cable |  16Pin GPU to 3X8 PCIe Power Cable |  16Pin GPU Cable |  Fasgear 16pin GPU Cable to 2X 8 pin PCIe Extension | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Compatible GPU | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5090, 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) |
| Compatible PSU | Full Modular for ASUS/EVGA/Seasonic | Full Modular for Corsair/Great Wall/Thermal-take/NZXT | Full Modular for ASUS/EVGA/Seasonic PSU | Full Modular for Corsair/Great Wall/Thermaltake PSU | Full Modular for ATX 3.0 PSU (16pin 12VHPWR/12V-2x6 port) | / |
| Cable Type | 16Pin(12+4) Male to 2x8(6+2) Pin Male | 16Pin(12+4) Male to 2x8 (4+4) Pin Male | 16Pin(12+4) Male to 3x8 (6+2) Pin Male | 16Pin(12+4) Male to 3x8 (4+4) Pin Male | Dual 16Pin Male | 16Pin (12+4) Male to PCIE 2x8 Pin Female |
| Cable Length | 70cm | 70cm | 70cm | 70cm | 70cm | 30cm |
| Color | Black | Black | Black | Black / Black & White | Black / White | Black / White |
| Specific Usage | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | Extender PSU Cable |
This 12v-2x6 GPU power cable is suitable for Full modular PSU only, not for semi-modular / non-modular power supplies.
Fasgear PCI-e Gen 5.0 12VHPWR Power Cable for RTX 5070Ti 5070 4090 4080 4070 ti 3090ti to PSU ASUS/EVGA/Seasonic
* Specification
- 12v-2x6 16pin(12+4) male connector * 1
- 8pin(6+2) male connector * 2
- Cable length: 70cm
- Max Wattage: 600 watts
- Wire Gauge: 16 AWG
- Wire Material: Tinned Copper
- Wire Jacket: Nylon Braided
- *Full Modular PSU: Seasonic / ASUS / EVGA
Pinout for the 8pin(6+2) PCle Power Connector as Follow:
Pin 1 to Pin 3: +12V
Pin 4 to Pin 8: GND
* Check the pinout diagram of this pcie power cable. Please confirm that your power supply connector matches this pinout diagram before purchasing
- 12v-2x6 connector(marked with H++) back compatible with 12vhpwr Port
1. Fasgear PCI-e Gen 5.0 12VHPWR to 2*8pin (6+2) Power Cable is mainly designed for GPU RTX 4090, 4080, 4070 Ti, 4070(only for 16pin), 3090 Ti, and future 4000 series.
2. This 12vhpwr cable is compatible with the models listed below. This GPU sleeved power cable is NOT compatible with the GPU with 12pin or 8pin power connector, such as GeForce RTX 3090 Series and 8pin RTX 4070 GPU, but compatible with 4070 GPU with 16pin connector.
3. This GPU power cable CAN plug in the PSU port directly, and need 2 unoccupied 8-pin(6+2) PCI-e ports on your PSU. Please text us via Message if you have questions about the PSU compatibility before purchasing. Likewise, also e mail us at any time after purchase.
*Please refer to the 12VHPWR connector plugging way as below image. The 12v-2x6 power connector must not be connected in reverse.
Fasgear 12VHPWR 16pin GPU to 2x8pin (6+2) Power Cable Compatible List (Partial)
| EVGA SuperNOVA T2 | 1600, 1000, 800 |
| EVGA SuperNOVA | G2 1600, 1300, 1000, 650; G3 1000, 800, 750, 650, 550; G+ 1600, 1300, 1000, 800, 750, 650 |
| EVGA SuperNOVA P2 | 1200, 1000, 800, 750 |
| EVGA | 1300 M1; GM 650, GM 550 |
| ASUS TUF GAMING | 1200, 1000, 850, 750 Gold |
| ASUS ROG STRIX | AURA 1000, 1000G, AURA 850, 850(WHITE EDITION), 850G, AURA 750, 650, 550 |
| ASUS ROG LOKI | 1000 SFX-L, 850 SFX-L, 750 SFX-L |
| ASUS ROG THOR | 1600, 1200P2, 1200P 1000P2, 850P |
| Seasonic PRIME TX | 1600, 1300, 1000, 850, 750, 650 |
| Seasonic FOCUS PX | 1600, 1300, 1000, 850, 750, 650, 550 |
| Seasonic PRIME | FANLESS TX 700, FANLESS TX 600, GX 1300, GX 1000, GX 850 |
| Seasonic FOCUS | SPX (2021) 750, SPX (2021)650, SGX (2021) 750, SGX (2021) 650 |
| Super Flower LEADEX GOLD | 1600W; III 650W, III 750W, III 850W |
| Super Flower LEADEX PLATINUM | 1600W, 2000W; SE 850W, 1000W, 1000W V2, 1200W, 1200W V2 |
| Super Flower LEADEX TITANIUM | 750W, 850W, 1000W, 1200W, 1600W |
| Super Flower LEADEX SILVER | 650W, 750W, 850W |
16Pin GPU to 2X8 PCIe Power Cable | 16Pin GPU to 2X8 PCIe Power Cable | 16Pin GPU to 3X8 PCIe Power Cable | 16Pin GPU to 3X8 PCIe Power Cable | 16Pin GPU Cable | Fasgear 16pin GPU Cable to 2X 8 pin PCIe Extension | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Compatible GPU | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5090, 5080, 5070, 5070Ti, GeForce RTX 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) | GeForce RTX 5070 Ti, 5070, 4090, 4080, 4070 ti, 3090 ti, 4070 (Only for 16Pin) |
| Compatible PSU | Full Modular for ASUS/EVGA/Seasonic | Full Modular for Corsair/Great Wall/Thermal-take/NZXT | Full Modular for ASUS/EVGA/Seasonic PSU | Full Modular for Corsair/Great Wall/Thermaltake PSU | Full Modular for ATX 3.0 PSU (16pin 12VHPWR/12V-2x6 port) | / |
| Cable Type | 16Pin(12+4) Male to 2x8(6+2) Pin Male | 16Pin(12+4) Male to 2x8 (4+4) Pin Male | 16Pin(12+4) Male to 3x8 (6+2) Pin Male | 16Pin(12+4) Male to 3x8 (4+4) Pin Male | Dual 16Pin Male | 16Pin (12+4) Male to PCIE 2x8 Pin Female |
| Cable Length | 70cm | 70cm | 70cm | 70cm | 70cm | 30cm |
| Color | Black | Black | Black | Black / Black & White | Black / White | Black / White |
| Specific Usage | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | PSU Power Supply Cable | Extender PSU Cable |
