Tripp Lite 4 Port Presentation Switch, 4K 60 Hz, HDMI, DisplayPort, USB-C & VGA to HDMI, (B320-4X1-MH)

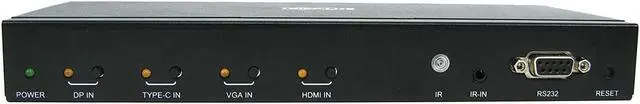

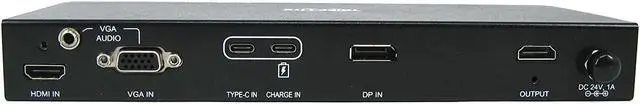

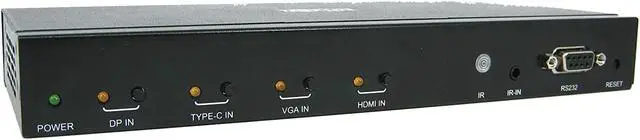

4-Port Multi-Format Presentation Switch Connects 4 Video Sources to One HDMI Display This presentation switch connects four separate source devices to your 4K television, projector or monitor’s HDMI input and switches between them. The B320-4X1-MH features HDMI, DisplayPort, USB-C and VGA + Audio inputs for connecting Windows laptops, cable boxes, media servers, Blu-ray players, video game consoles and other video sources. Switch from one source to another using the manual push buttons, RS-232 commands or the included remote control. Suitable for a Wide Range of Audio/Video Applications for Work or Play This switch is recommended anywhere a variety of video signals is transmitted to a hi-def display.

It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows. Transmits Crystal-Clear True 4K Video with HDR, 4:4: 4 Color and 7.1 -Channel Audio The HDMI, DisplayPort and USB-C ports support true 4K resolutions up to 4096 x 2160 at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications.

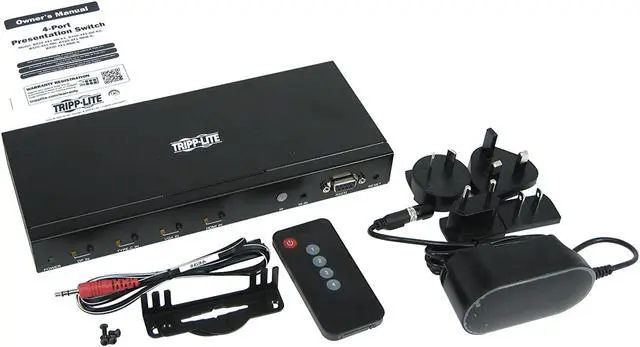

This switch also supports 4:4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full, rich, uncompressed DTS-HD, Dolby TrueHD and 7.1 -channel digital surround sound ensure your ears receive the same treat as your eyes. The VGA port supports HD video up to 1920 x 1080 (1080p) at 60 Hz. PD 3.0 Charging Port Charges the USB-C Source to Avoid Battery Drain and Signal Loss The USB-C Power Delivery port provides up to 20V 5A (100W), of which 90W is used to charge and power the connected USB-C device, such as a MacBook Pro or Windows laptop. Connect the device’s power supply or power adapter between the USB-C PD 3.0 port and an available AC outlet to prevent the source from running out of power prematurely. Plug-and-Play Operation for Quick Setup and Immediate Use The switch works right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch’s ports with user-supplied cables (sold separately), and plug the switch’s external power supply into an AC power source.

TAA-Compliant for GSA Schedule Purchases The B320-4X1-MH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Product informationProduct Dimensions 1.2 x 3.9 x 9.3 inchesItem Weight 2.4 poundsASINB08L1H49ZLItem model numberB320-4X1-MHDate First AvailableSeptember 27, 2020ManufacturerTRIPP LITE
Warranty & SupportManufacturer’s warranty can be requested from customer service. Click here to make a request to customer service. FeedbackWould you like to tell us about a lower price? VideosPage 1 of 1Start OverPage 1 of 1Previous pageVideos for related products 9:47 Click to play videoSuper 8/8mm Film Scanner, Converts Film into Digital Video BEST REVIEWS
