GRACETOP AHD Capture Card with OTG, 1080P30 720P60 AHD to USB Video Capture Card for AHD 1080P HD Backup Camera Streaming Game Streaming Video Recording for Windows, Linux, OS USB-C
- AHD Video Capture - The GRACETOP AHD video capture card offers remarkable video capabilities. It supports up to 1080P at 30fps output and 720P at 60fps capture. Perfect for diverse scenarios like streaming, video conferencing, and home security monitoring. With an audio input port, recording your voice during video capture is a breeze, enhancing the overall audio - visual experience for all your projects.
- Plug & Play - This USB capture card is designed for maximum ease of use. There's no need to install drivers or supply external power. It's a simple plug - and - play device. You can effortlessly use popular third - party software such as OBS to capture or stream your high - AHD 1080P Vehicle Backup Camera or other AHD Camera.
- Exceptional Compatibility - Featuring advanced chips, this capture card has an extensive compatibility range. It functions smoothly on both Windows, Mac OS, Linux, IOS, Android systems. The high - speed transmission ensures zero delay, allowing you to precisely r
+
+
Overview
Specs
Reviews
GRACETOP AHD video capture card
This is a cost - effective audio and video capture module compliant with UVC/UAC. AHD Video Capture supports AHD video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.
Function Introduction
Signal Conversion: It converts AHD video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.
Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.
Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.
Instructions for Use

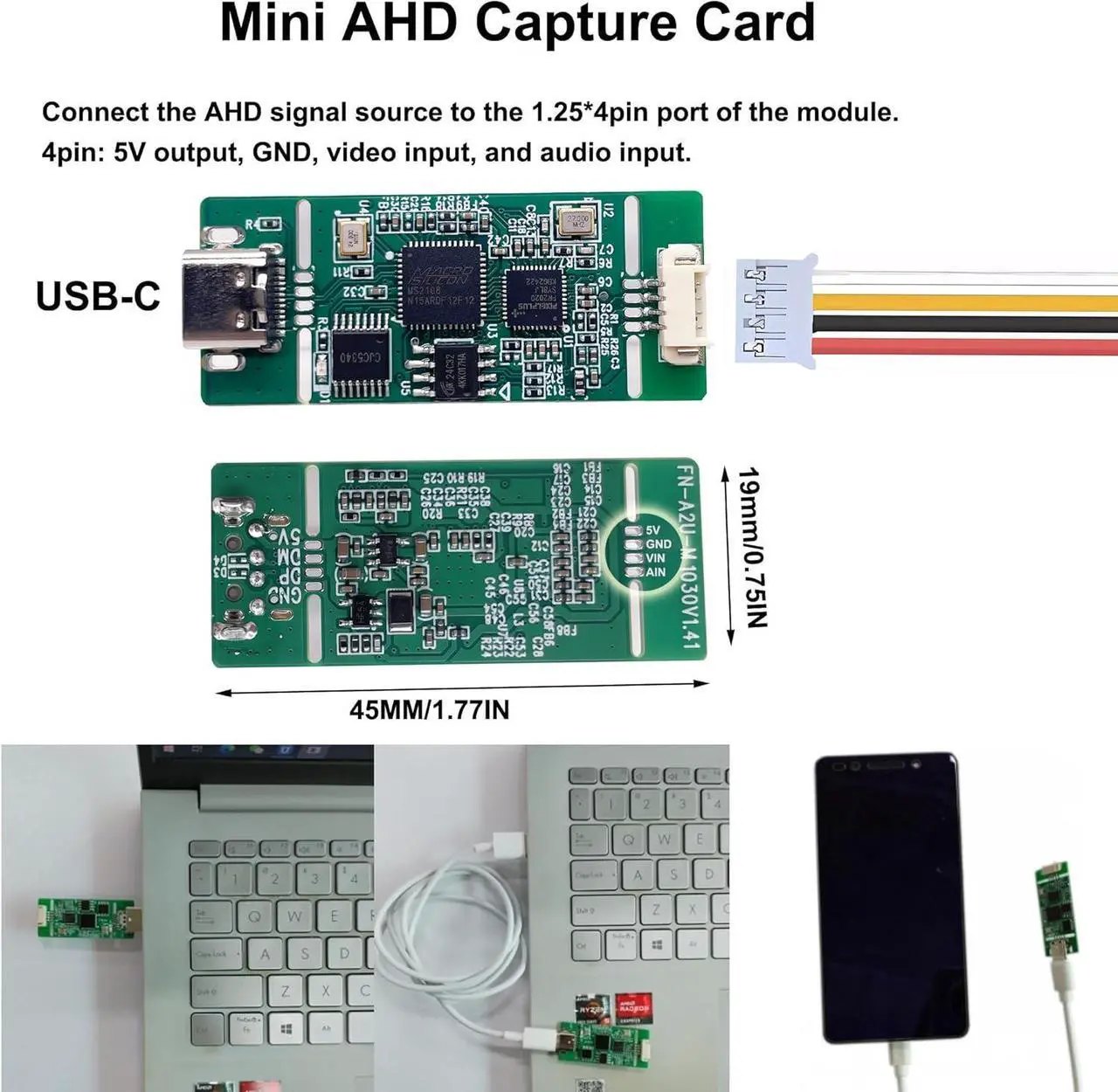

Connect AHD Signal Source: Connect the AHD signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.

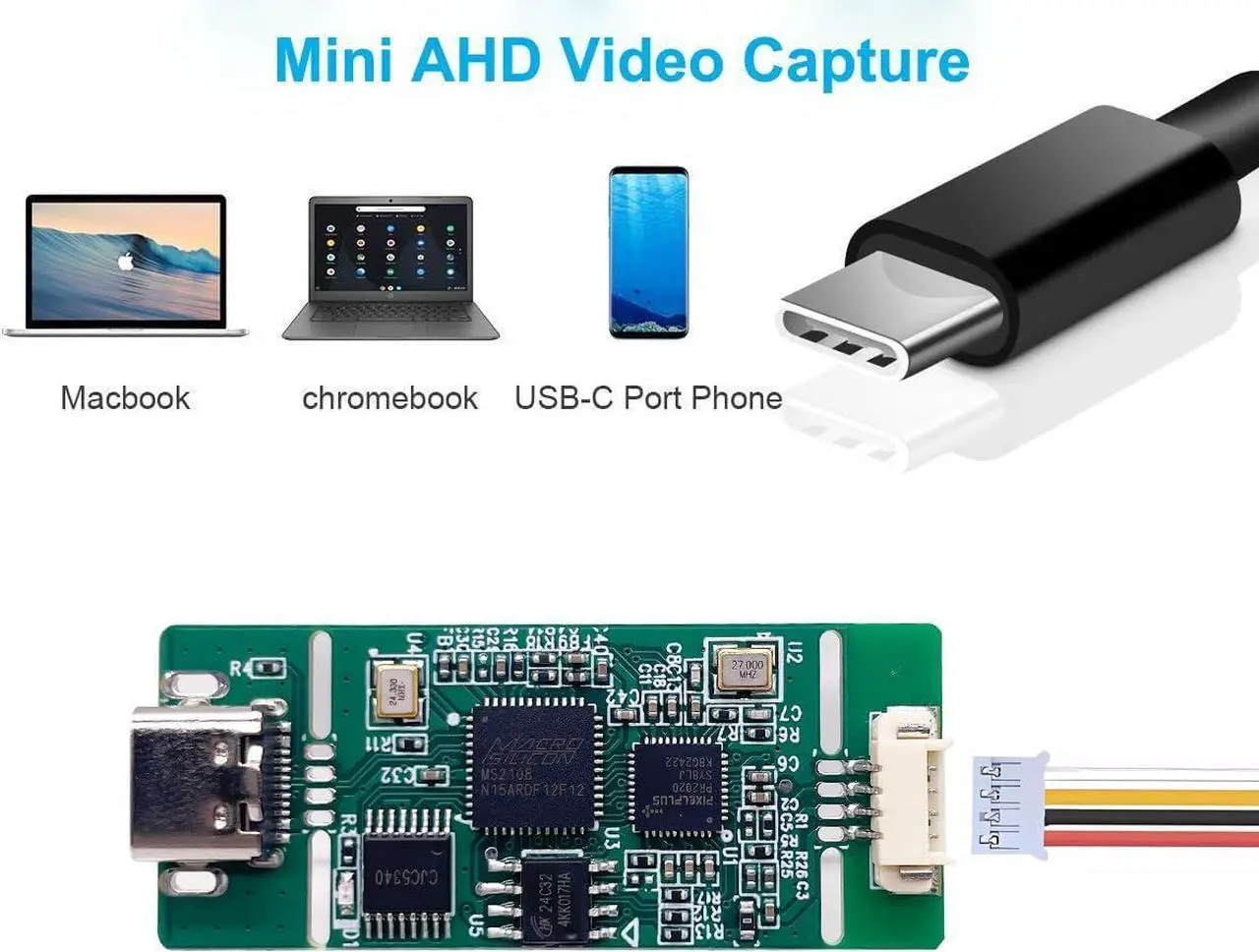

Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.
Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.
Product Parameters
Input Interface: 1.25 mm * 4pin terminal block

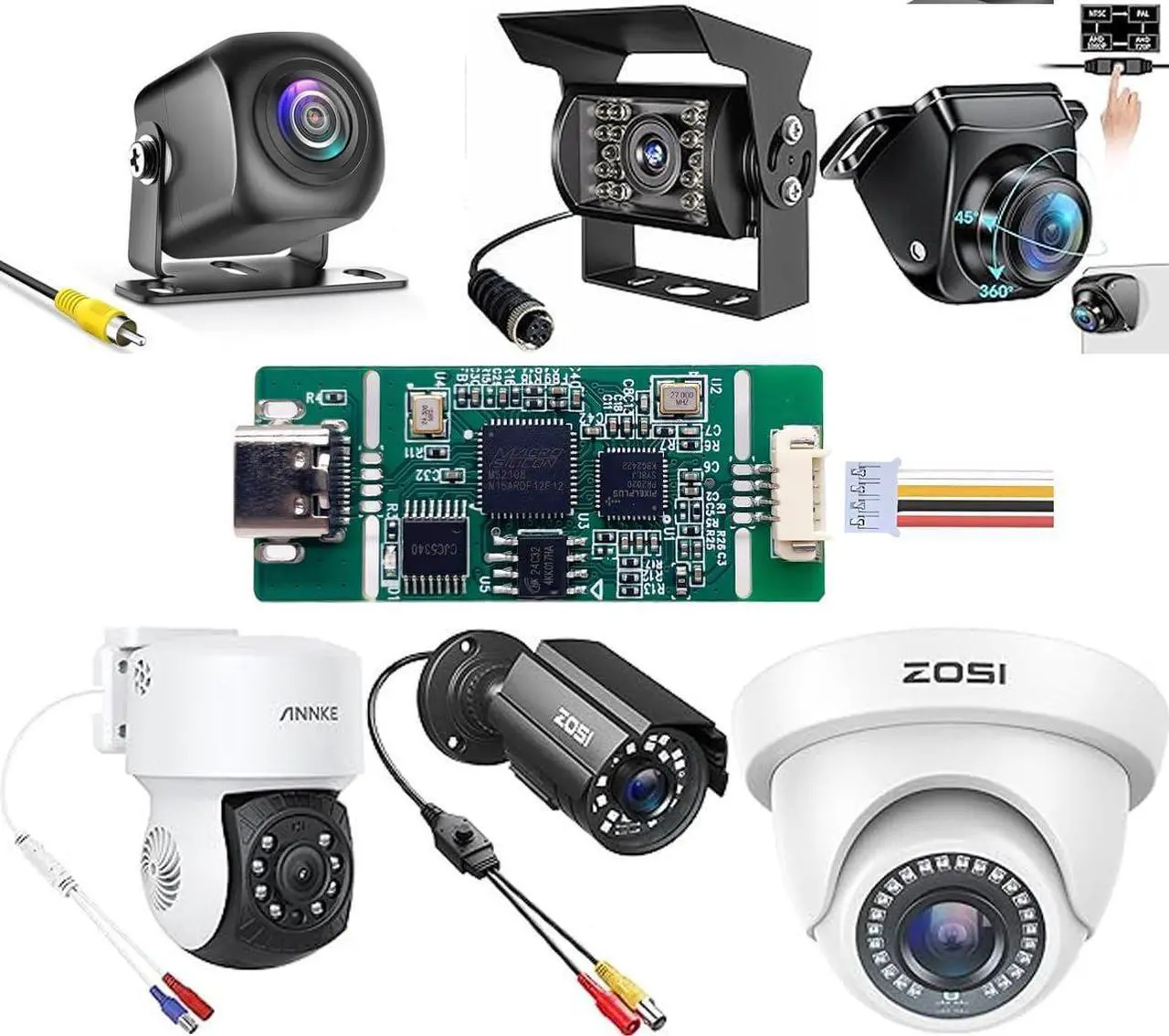

Input Signal: AHD 720P and 1080P signals (compatible with PAL and NTSC formats) (Backup Camera, AHD Security Camera)
Output Interface: USB TYPE - C
Output Format: MJPEGYUY2
Video Output Resolution and Frame Rate:
MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240
YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240
Audio Output: 48KHZ stereo
Audio and Video Protocol: Standard UVC/UAC
Driver: No installation required, plug and play
Operating System Support: Microsoft Windows/Linux/Android/MAC OS
Common Collection Software: OBS/Potplayer (Windows)
Product Power Consumption: <3Wat
Product Size: 1.9 * 4.5 cm / 0.75 x 1.77 in
Product Weight: 10g
Package Contents

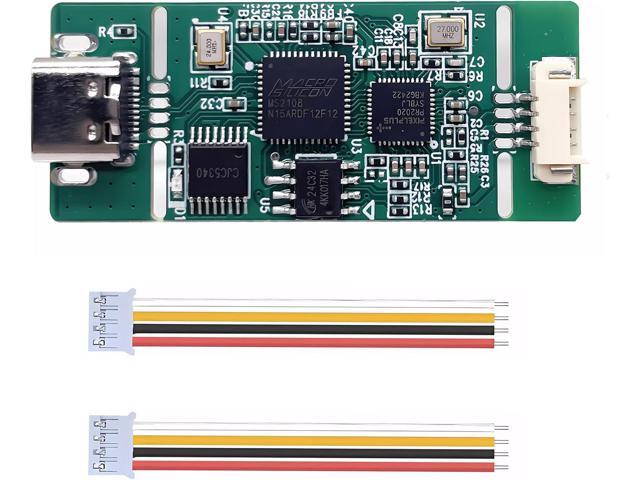

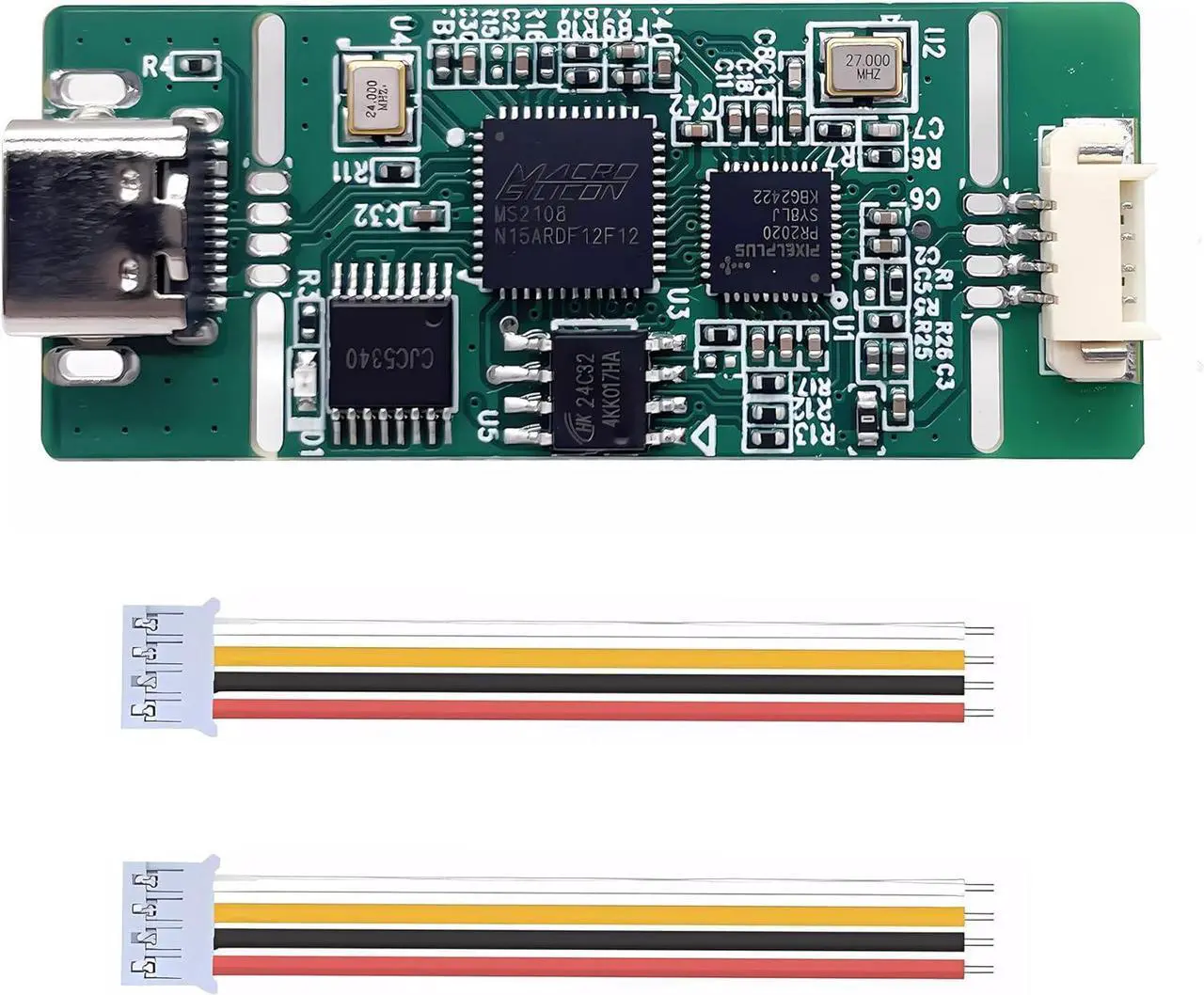

1x AHD Video Capture,
2x 1.25 mm*4pin Cable
1x advanced storage box.
This is a cost - effective audio and video capture module compliant with UVC/UAC. AHD Video Capture supports AHD video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.
Function Introduction
Signal Conversion: It converts AHD video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.
Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.
Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.
Instructions for Use
Connect AHD Signal Source: Connect the AHD signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.
Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.
Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.
Product Parameters
Input Interface: 1.25 mm * 4pin terminal block
Input Signal: AHD 720P and 1080P signals (compatible with PAL and NTSC formats) (Backup Camera, AHD Security Camera)
Output Interface: USB TYPE - C
Output Format: MJPEGYUY2
Video Output Resolution and Frame Rate:
MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240
YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240
Audio Output: 48KHZ stereo
Audio and Video Protocol: Standard UVC/UAC
Driver: No installation required, plug and play
Operating System Support: Microsoft Windows/Linux/Android/MAC OS
Common Collection Software: OBS/Potplayer (Windows)
Product Power Consumption: <3Wat
Product Size: 1.9 * 4.5 cm / 0.75 x 1.77 in
Product Weight: 10g
Package Contents
1x AHD Video Capture,
2x 1.25 mm*4pin Cable
1x advanced storage box.
