GRACETOP VHS to Digital Converter, AV/CVBS Capture Card with OTG, 1080P30 720P60 AV to USB Video Capture Card for VHS, VCR, DVR, DVD, Hi8, Mini DV, Camcorder, Cassette Tape, Gaming Consoles (USB-C)
- VHS to Digital Converter - Efficient Digital Conversion, Revisit Classic Memories:This VHS digital converter, equipped with an AV/CVBS/S - VIDEO capture card with OTG function, can easily transfer the audio and video from VHS, VCR, Hi8, and DV tapes to a PC via a USB interface. With this USB video converter, you can digitize your beloved old - time memories, bid farewell to the storage space troubles of physical tapes, and preserve precious memories in digital form for a long time.
- RCA TO USB Converter - Exceptional Picture Quality Capture, Restore True Colors:Our USB video capture card uses advanced signal processing technology to convert analog RCA composite input into high - definition 1080P/720P USB output and capture audio without the need for a sound card. It can accurately restore colors, resolutions, and details, bringing you a high - quality video capture experience and making old videos shine again.
- Plug & Play - Simple Operation without Worries:Just connect this RCA - to - U
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
GRACETOP AV video capture card
This is a cost - effective audio and video capture module compliant with UVC/UAC. AV Video Capture supports AV/CVBS/S-VIDEO video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.
Function Introduction
Signal Conversion: It converts AV/CVBS/S-VIDEO video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.
Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.
Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.
Instructions for Use
Connect AV/CVBS/S-VIDEO Signal Source: Connect the AV/CVBS/S-VIDEO signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.
Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.
Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.

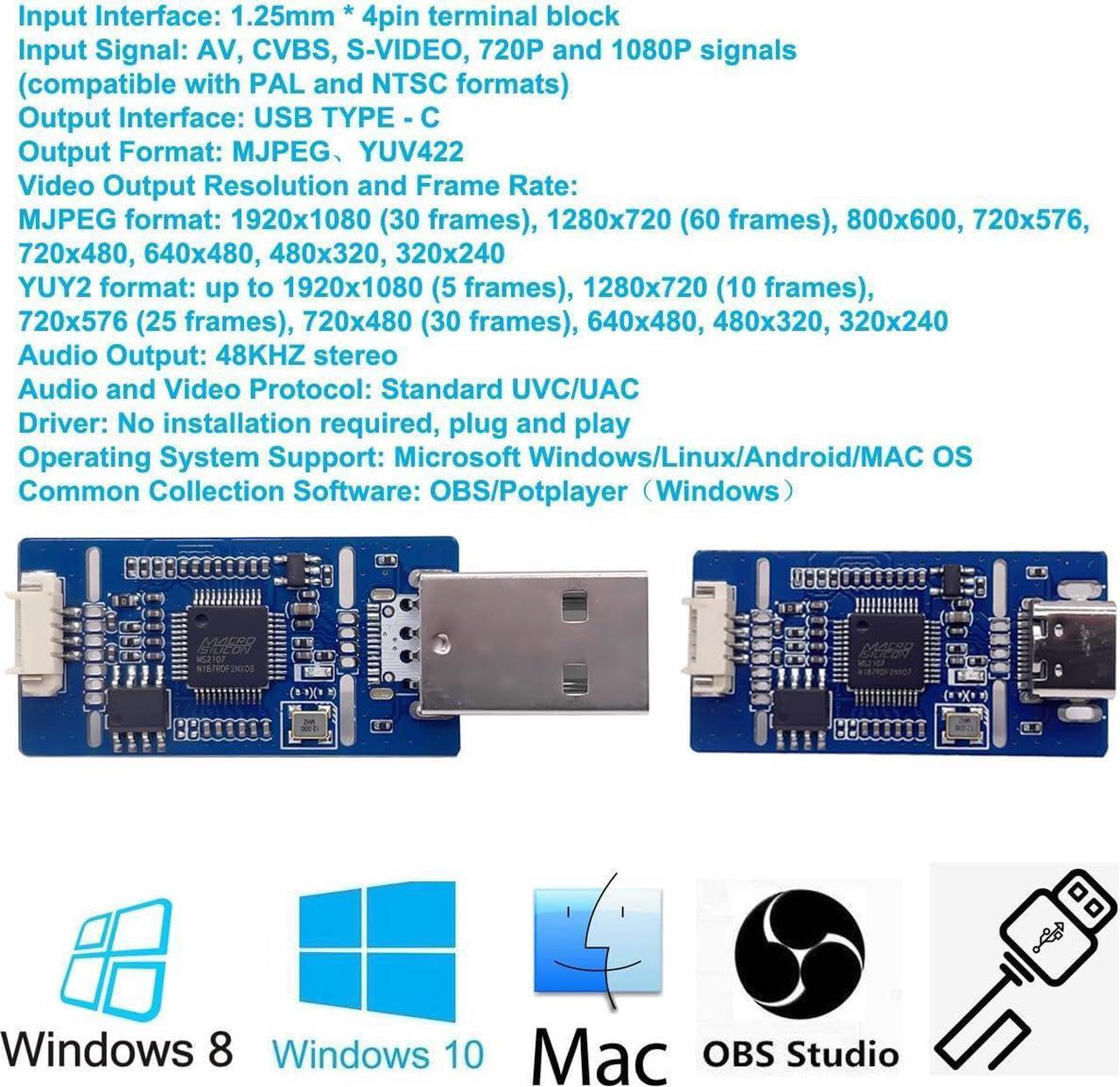

Product Parameters
Input Interface: 1.25 mm * 4pin terminal block
Input Signal: AV, CVBS, S-VIDEO, 720P and 1080P signals (compatible with PAL and NTSC formats)
Output Interface: USB TYPE - C
Output Format: MJPEGYUV422
Video Output Resolution and Frame Rate:
MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240
YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240
Audio Output: 48KHZ stereo
Audio and Video Protocol: Standard UVC/UAC
Driver: No installation required, plug and play
Operating System Support: Microsoft Windows/Linux/Android/MAC OS
Common Collection Software: OBS/Potplayer (Windows)
Product Power Consumption: <3Wat
Product Size: 1.9 * 3.8 cm / 0.75 x 1.52 in
Product Weight: 10g
Package Contents

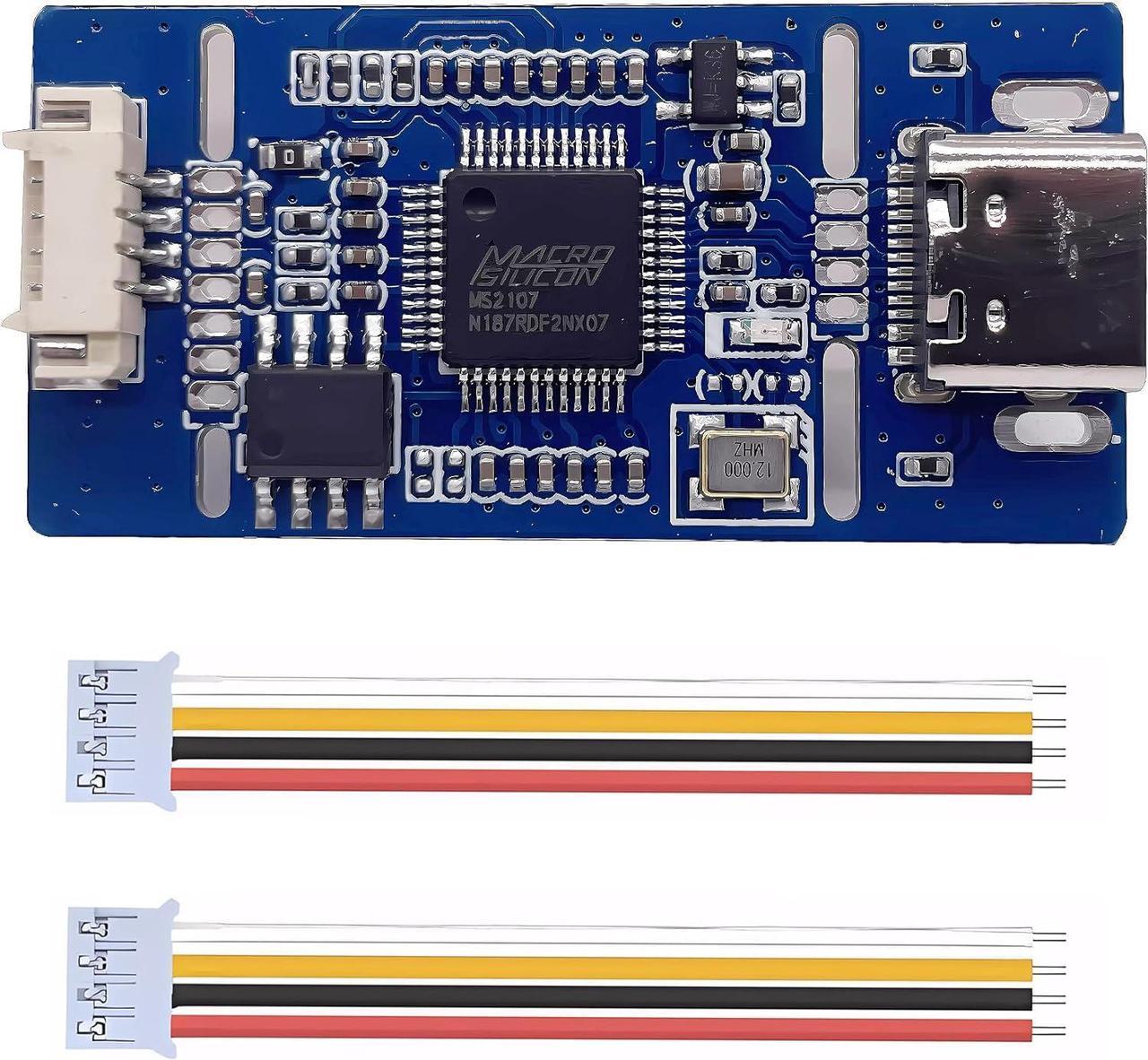

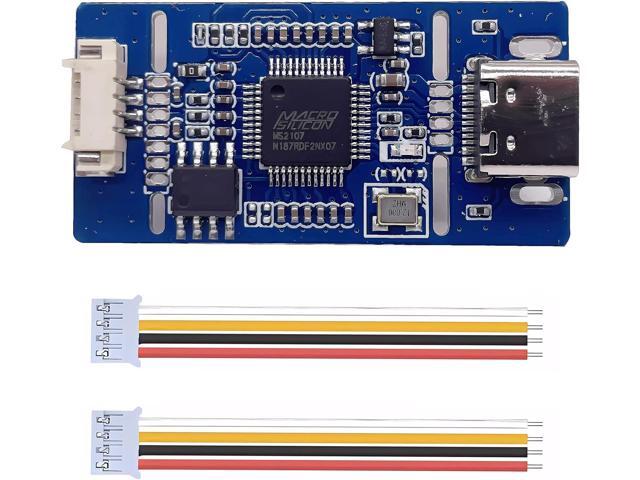

1x CVBS Video Capture,
2x 1.25 mm*4pin Cable
1x advanced storage box.
This is a cost - effective audio and video capture module compliant with UVC/UAC. AV Video Capture supports AV/CVBS/S-VIDEO video signal and audio input, automatically adapting to PAL and NTSC formats, as well as 720P and 1080P resolutions. It can output signals to audio and video capture devices on computers and mobile phones via the USB interface. It has plug - and - play and USB drive - free features and is compatible with Windows, Linux, Android, Mac OS, etc.
Function Introduction
Signal Conversion: It converts AV/CVBS/S-VIDEO video and audio signals into USB signals, facilitating audio and video signal collection and recording on devices like computers, laptops, and mobile phones.
Versatile Applications: It is widely used in security monitoring, medical equipment video capture, enterprise video conferencing, education, phishing detection, and project integration.
Software Compatibility: Compatible with computer acquisition software such as OBS, POTPLAYER, AMCAP, VLC, and USB camera mobile acquisition software.
Instructions for Use
Connect AV/CVBS/S-VIDEO Signal Source: Connect the AV/CVBS/S-VIDEO signal source to the 1.25 * 4 pin port of the module. The left - to - right interfaces are 5V output GND, video input, and audio input.
Connect Output Devices: Connect computers, phones, tablets, etc., through the USB or TYPE - C ports of the module.
Open Collection Software: Open the corresponding collection software on the computer or mobile phone to display the screen.
Product Parameters
Input Interface: 1.25 mm * 4pin terminal block
Input Signal: AV, CVBS, S-VIDEO, 720P and 1080P signals (compatible with PAL and NTSC formats)
Output Interface: USB TYPE - C
Output Format: MJPEGYUV422
Video Output Resolution and Frame Rate:
MJPEG format: 1920x1080 (30 frames), 1280x720 (60 frames), 800x600, 720x576, 720x480, 640x480, 480x320, 320x240
YUY2 format: up to 1920x1080 (5 frames), 1280x720 (10 frames), 720x576 (25 frames), 720x480 (30 frames), 640x480, 480x320, 320x240
Audio Output: 48KHZ stereo
Audio and Video Protocol: Standard UVC/UAC
Driver: No installation required, plug and play
Operating System Support: Microsoft Windows/Linux/Android/MAC OS
Common Collection Software: OBS/Potplayer (Windows)
Product Power Consumption: <3Wat
Product Size: 1.9 * 3.8 cm / 0.75 x 1.52 in
Product Weight: 10g
Package Contents
1x CVBS Video Capture,
2x 1.25 mm*4pin Cable
1x advanced storage box.
