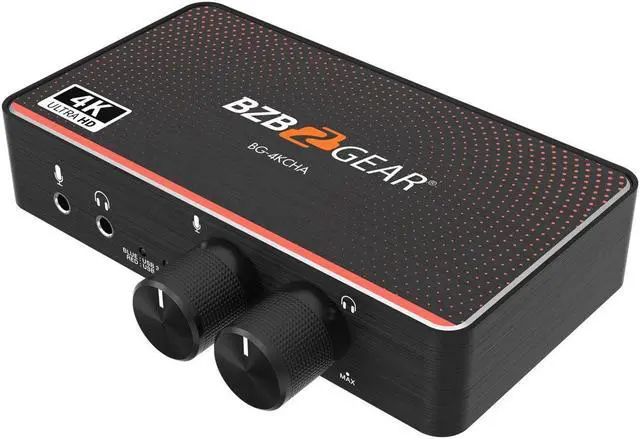

The BG-4KCHA is an advanced USB-C 4K video capture device with a scaler, HDMI 2.0 loopout, audio, and HDR10 to SDR conversion, designed for professional HDMI video signal capturing. It uses a USB 3.1 Type-C Gen 1 (USB 3.0) interface, allowing for high-speed transmission. Additionally, the HDMI input and loopout can support up to 4K2K@60, enabling users to connect the BG-4KCHA to a 4K@60 source and capture Ultra HD (4K2K@30) video. With the capability to capture and display uncompressed HDMI video, the BG-4KCHA provides more realistic color renditions. Moreover, the BG-4KCHA employs large volume image buffer technology to effectively avoid video tearing, while the high sampling rate and accuracy result in captured videos with high sharpness, rich details, and fewer color edges.
Video resolution up to 4K2K@30/1080P@120 (Video stream over USB-C)* HDMI input & loopout up to 4K2K@60

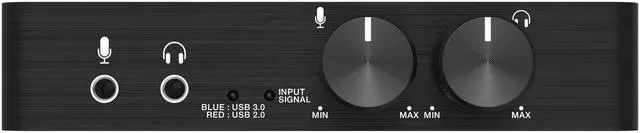

Use the volume control knobs to adjust the MIC/Headphone volume
Auto-detection of video format
Compatible with most 3rd party software such as OBS Studio and AMCap
Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the HDMI connection
3~4ms at 1080P
Play 4K@60 HDR on the HDMI out while streaming/capturing gameplay at 4K2K@30/1080P@120 with SDR colors; HDR10 to SDR Conversion
HDMI video and audio streams over USB 3.1 Type-C Gen 1; supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
Windows 7/8.1/10/11, Mac, & Linux OS
The BG-4KCHA captures video from a PS5 over HDMI, passes it through HDMI to a 4K display, and sends the capture over USB-C to a PC, with a headphone and a microphone connected through 3.5mm stereo audio.

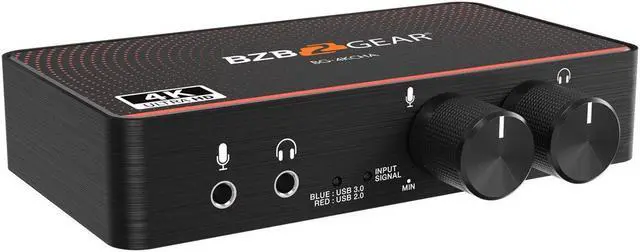

1. STEREO AUDIO IN - Connect to an analog stereo audio source
2. STEREO AUDIO OUT - Extract audio from the HDMI input
3. LED INDICATOR - USB-C signal indicator LED [Red] Connected to a USB 2.0 port on the host [Blue] Connected to a USB 3.0 port on the host
4. LED INDICATOR HDMI - input signal indicator LED
5. STEREO AUDIO IN VOLUME KNOB - To adjust the stereo audio in sound level
6. STEREO AUDIO OUT VOLUME KNOB - To adjust the stereo audio out sound level

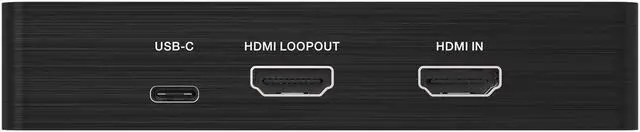

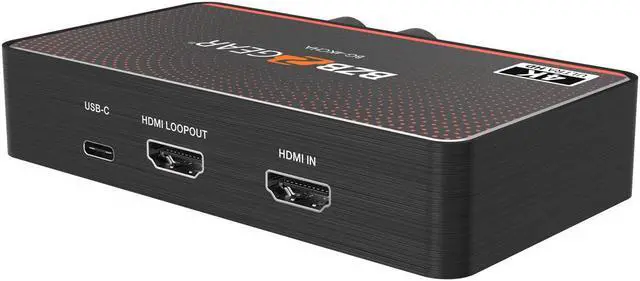

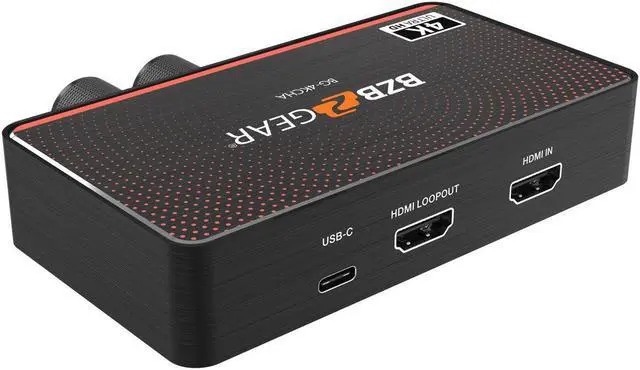

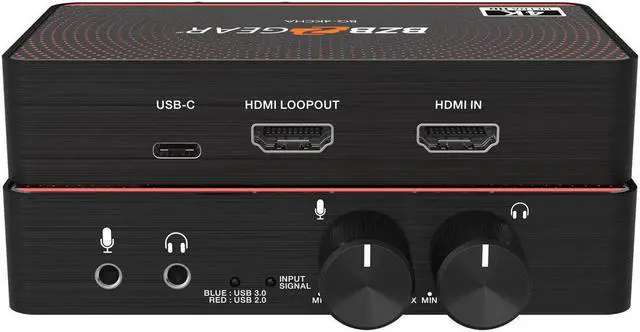

7. USB-C OUT - Connect to a USB host (PC, NB, MAC...)
8. HDMI OUT - Connect to a HDMI display
9. HDMI IN - Connect to a HDMI source
| Model Name | BG-4KCHA |
|---|---|
| Role of usage | Video Capture Device |
| Input Video bandwidth | 600MHz |
| Output bandwidth | Up to 350Mbps (USB-C) |
| Video support (USB-C) | Up to 4K2K@30/1080P@120 |
| Video support (Loopout) | Up to 4K2K@60 |
| Audio Input | HDMI Embedded Audio & Stereo audio Input |
| Audio Format | 2CH 16 bit PCM |
| Recording Video Format | RGB/YUY2/NV12 (USB 3.1 Gen 1), YUY2/NV12 (USB 2.0) |
| ESD protection | Human body model - +/-15kV [air-gap discharge] & +/-8kV [contact discharge] |
| PCB stack-up | 4-layer board [impedance control - differential 100 ohm; single 50 ohm] |
| Firmware update | Feasible via USB-C Port |
| Input | 1x HDMI + 1x 3.5mm |
| Output | 1x USB-C + 1x HDMI + 1x 3.5mm |
| HDMI connector | Type A [19-pin female] |
| USB connector | USB 3.1 Type C (SuperSpeed USB) |
| Software compatibility (not complete list) | OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows) VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows) |
| OS Support | Windows 7 /8.1 /10, Mac and Linux OS |
| Housing | Metal enclosure |
| Dimensions [L x W x H] (Model) | 4.6" x 2.5" x 0.9" [116 x 63 x 23mm] |
| Dimensions [L x W x H] (Package) | 9" x 3.7" x 1.6" [230 x 95 x 41mm] |
| Weight | 10 oz [286g] |
| Power supply | Via USB-C |
| Power consumption | Watts [max] |
| Operation temperature | 32~104 F / 0~40 C |
| Storage temperature | -4~140 F / -20~60 C |
| Relative humidity | 20~90% RH [no condensation] |
| Package Contents | 1x BG-4KCHA; 1x USB 3.0 A to C Cable (host to device); 1x User Manual |
