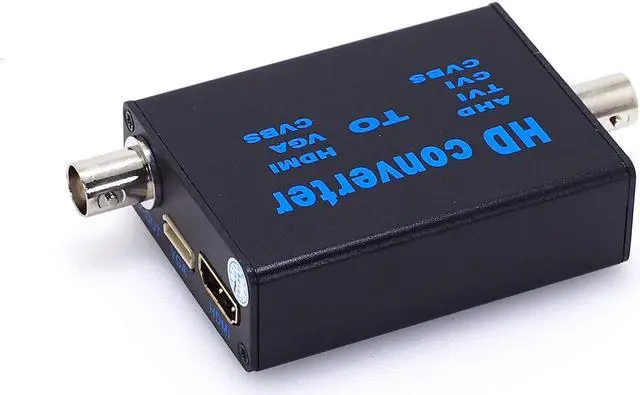

BNC to HDMI Converter,4-in-1 Composite CVBS AHD TVI CVI to HDMI Video Signal Converter,AHD to HDMI Adapter Supporting BNC Cable to HDMI VGA BNC(CVBS) for Camera/DVR/CCTV Security System

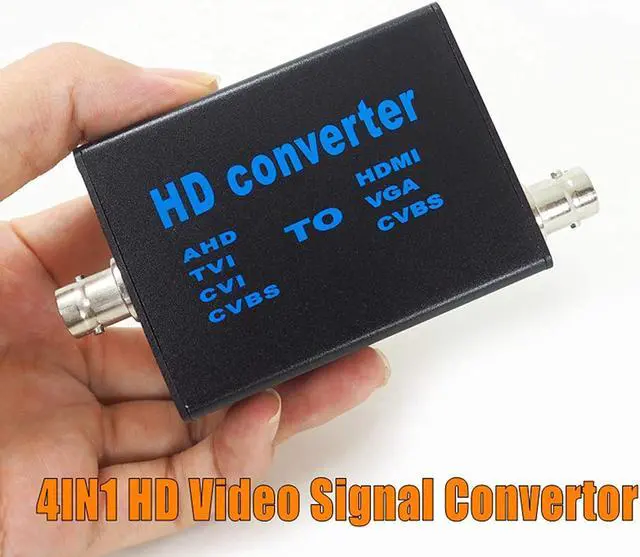

BNC? to? HDMI? converter Factory Direct 4-in-1 high definition video signal convertor AHD41, AHD/TVI/CVI/CVBS signal to
HDMI/VGA/CVBS signal converterHow to use:
1. This BNC? to? HDMI? converter Connect with original 12V power adapter to DC port, after power on, the RED light on; 2. BNC? to?
HDMI?

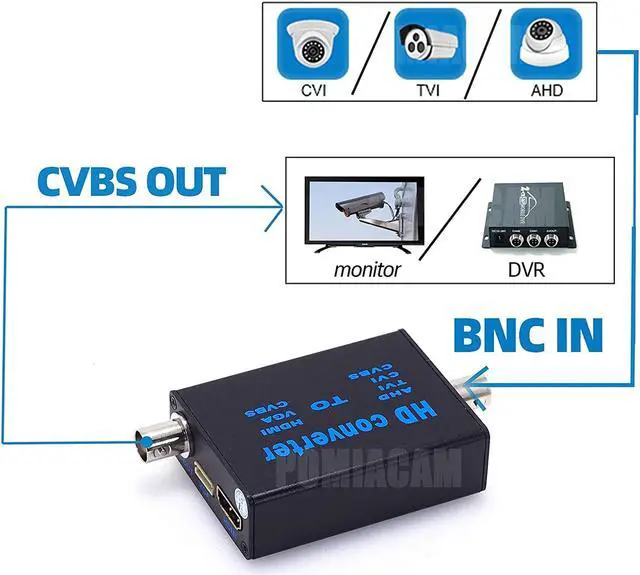

converter: V-IN connect with video signal input, the other side connect with the device which to receive converted video signal; 3. If you connect V-OUT/VGA/HDMI at the same time, press button A to shift different signal to display. The default output signal type is HDMI.

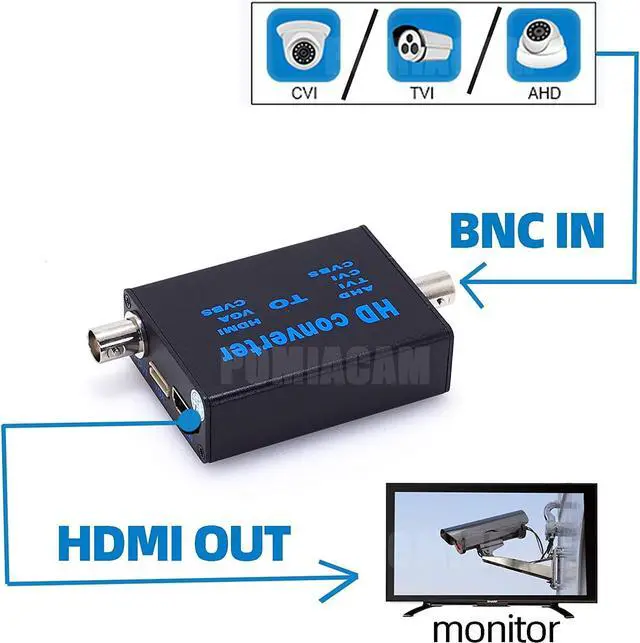

4. When using HDMI output, press button B to shift Video resolution between 1080P or 720P.
5. When using CVBS output, press Button B to shift PAL/NTSC mode.

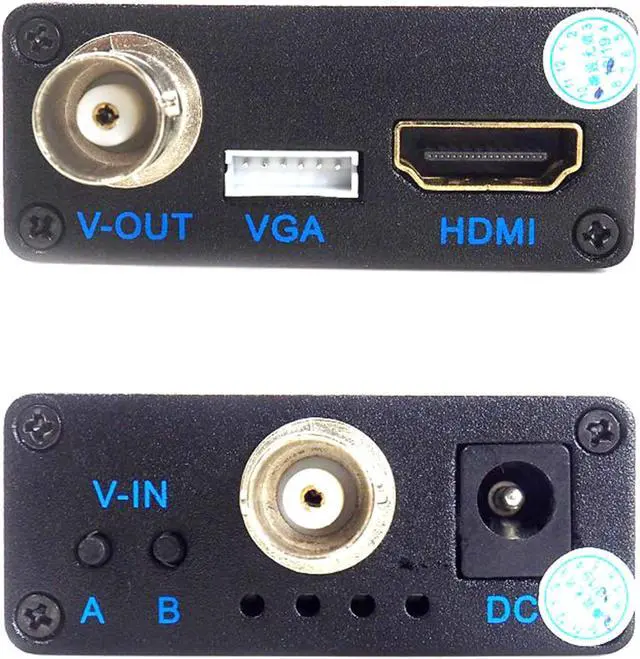

Front panel instruction:
Port/Function:
A: Output signal shift
B: Signal output resolution or TV mode shift
V-IN: Signal input (AHD/TVI/CVI/CVBS)
DC: Power input(5V-20V)
Indicator (From left to right): VGA signal, CVBS signal, HDMI signal, Power (Red)

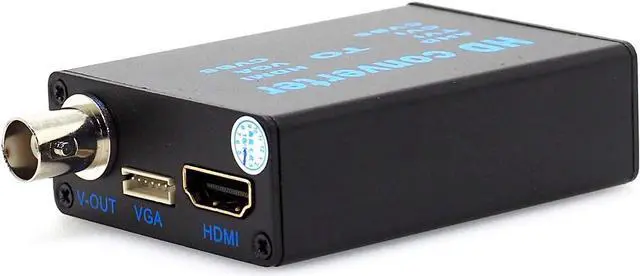

Rear panel instruction: Port/Function
V-OUT: CVBS signal output (NCTS/PAL optional)
VGA: VGA signal output
HDMI: HDMI signal output(720P/1080P optional)Specifications:
Power: DC 5V-20V
Working Current: 150mAh
Consumption: =2Wat
Signal input: AHD/TVI/CVI/CVBS(1080P/960P/720P)
Signal output: HDMI / VGA /
CVBS(1080P/720P) Dimension: 66*53*21mm
Net Weight: 73g

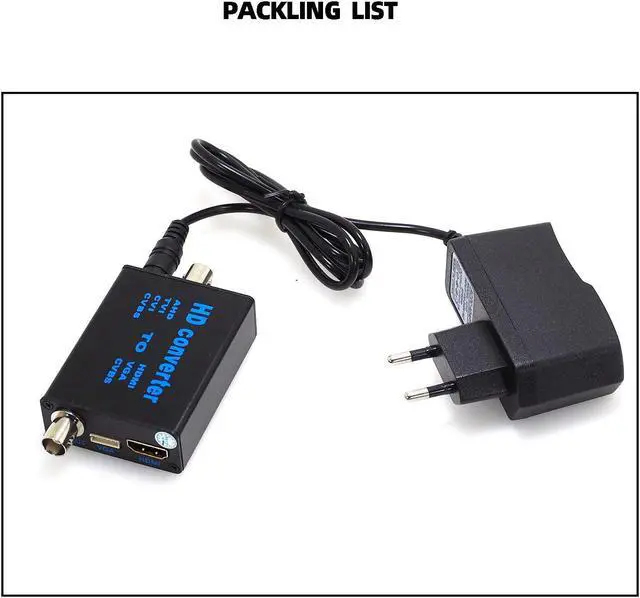

Accessories: BNC? to? HDMI? converter *1 12V Power adapter*1 Manual*1 VGA module*1FAQ:
1. Why there has no video after I connect V-IN and V-OUT? A. Please confirm if the monitor signal type is same as convertor output type. And please confirm if convertor signal shift to the correct mode.
2. Can I use my own power adapter with convertor? A. Convertor support 5V-20V power input, please use the adapter within this range and good quality. Product informationPackage Dimensions 5.91 x 4.72 x 1.5 inchesItem Weight 10.6 ouncesASINB07TC7M6NFItem model numberAHD41Customer Reviews 4.0 out of 5 stars4 ratings 4.0 out of 5 starsBest Sellers Rank#1, 096 in Video ConvertersDate First AvailableJune 19, 2019ManufacturerVideo Signal convertorWarranty
