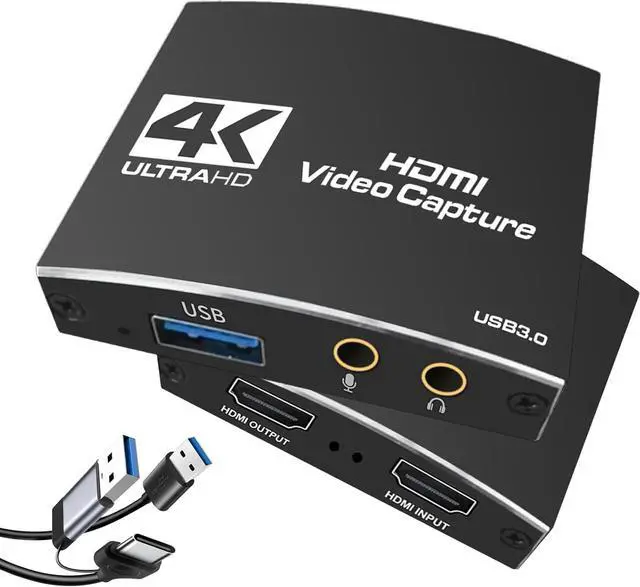

4K USB Game Capture Card
About this item
- 4K HDMI capture card: capture HDMI input source, use HDMI capture card to capture high quality gaming video, HDMI2.0 port supports 4K@60Hz pass-through, this video capture card is made of durable aluminum alloy material, especially suitable for PS5, Nintendo Switch, XBOX, cameras, computers, DVDs, HD players and so on.(hmdi cable not included)
- HIGH QUALITY, HIGH FRAME RATE, LOW LATENCE: Video capture device supports up to 4K 60fps capture resolution, USB 3.0 streaming 4K@60FPS video signal source, outputs crisp low latency, high frame rate recordings, presenting stunning picture quality for gaming, recording, live streaming, rebroadcasting, and video conferencing.

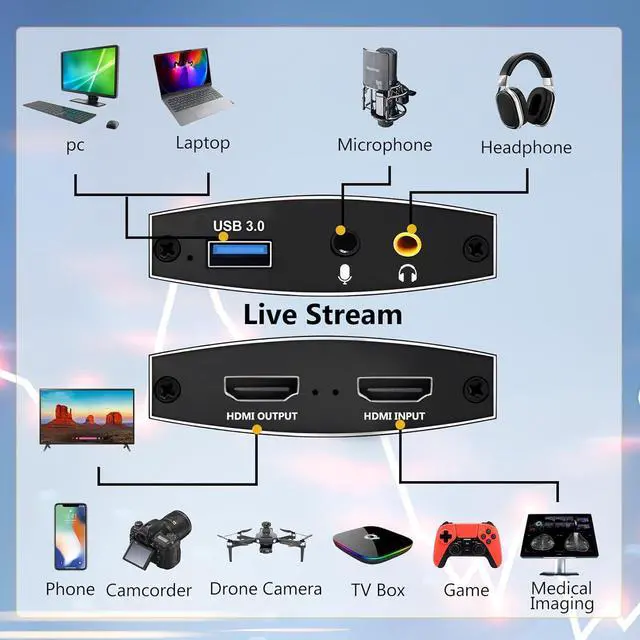

- Audio Input/Output Ports: The video capture card has a built-in 3.5mm microphone audio input and output ports for plugging in a 3.5mm headset or microphone, and you can connect a streaming microphone to record game audio and streaming voice at the same time, as well as use the headset for enjoying game titles on Nintendo Switch and PS5.
- Widely Compatible: The capture card supports software including VLC, OBS, Amcap, etc. It also supports Windows 7/8/10/11, Mac OS and Linux, Android. It also supports Windows 7/8/10/11, Mac OS and Linux, Android.The capture card is compatible with popular platforms and software such as Twitch, YouTube, OBS, Potplayer, and VLC for a wide range of gaming devices including Nintendo Switch, 3DS, PS5, PS4, Xbox X series and Camcorders. High-speed transmission with no latency, record your moments and enjoy your good time.

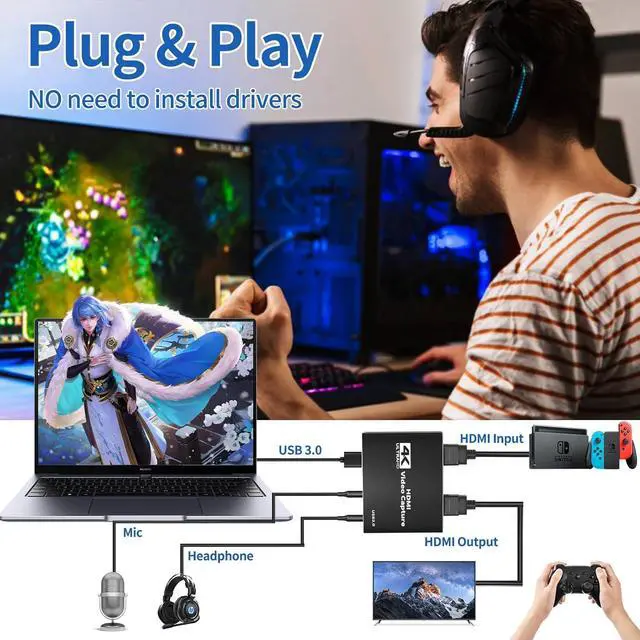

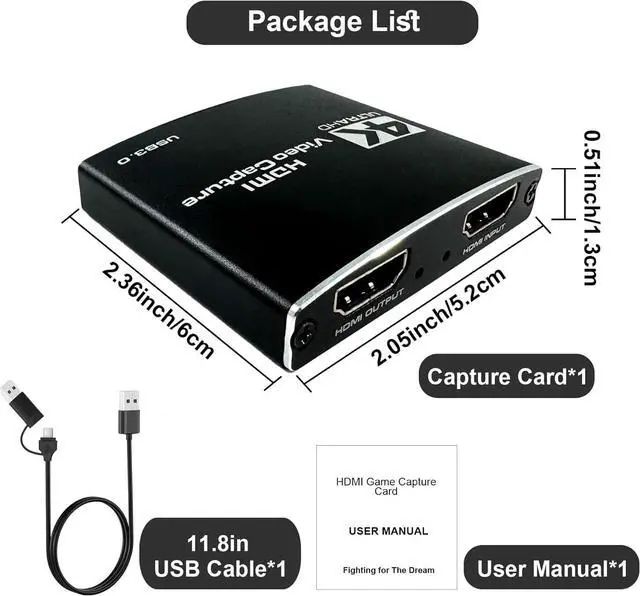

- Plug and Play: The video capture card adopts plug and play design, no need to install any driver, no need to provide external power supply, the external capture card is specially customized for streaming media accessory games. HDMI cable and USB to USB/Type-C cable are included.
Technical Parameter
| HDMI Input Resolutions: | 720x480(60p), 720x576(50p), 1280x720p(50p), 1280x720p(60p), 1920x1080(50i), 1920x1080(60i), 1920x1080(24p), 1920x1080(25p), 1920x1080(30p), 1920x1080(50p), 1920x1080(60p), 3840x2160(30p) |
|---|---|
| HDMI Output Resolutions: | 720x480(60p), 720x576(50p), 1280x720p(50p), 1280x720p(60p), 1920x1080(50i), 1920x1080(60i), 1920x1080(24p), 1920x1080(25p), 1920x1080(30p), 1920x1080(50p), 1920x1080(60p), 3840x2160(30p) |
| USB 3.0 Output Resolutions: | 720x480(60p), 720x576(50p), 1280x720p(50p), 1280x720p(60p), 1920x1080(50i), 1920x1080(60i), 1920x1080(24p), 1920x1080(25p), 1920x1080(30p), 1920x1080(50p), 1920x1080(60p) |
| Support Console Device: | Play-Station 3/4, X-box One, S-witch, W-ii U or pretty-much any other console. Supports HDCP1.4 devices. |
| Computer Software Supply: | OBSStudio (windows,OSX); Windows Media Encoder(Windows); Adobe FlashMedia Live-Encoder(Windows, OSX); RealProducer Plus(Windows); VLC(Windows, OsX,Linux); QuickTime Broadcaster (OsX); QuickTime Player(OSX); Wirecast (Windows,OsX); vMix(Windows);Potplayer(Windows)and etc. |
| Video Support Protocol: | Support UAC&UVC protocol, UvC video capture and YUV422. |
| Audio Sampling Rate: | Support 48 KHz PCM. |
| Compatible Systems: | Compatible with Windows 7, 8, 8.1, 10 and later versions, Linux operating systems, Mac OS and other operating systems. |
| Support Broadband: | USB 3.0,500mb/s. |
| Other Inputs: | MlC audio input and headset input. |
| RGB Color Range: | 0 to 255. |
| Compatible Player: | All third-party player software compatible with UVC and uac protocols is supported. |
| Driver Installation: | No need to install the driver, plug and play. |
Operation on OBS Studio
STEP 1
Click the right mouse button to select "Video Capture Device"
STEP 2
Select Device: C8 USB3.0 Video
Set the Resolution/FPS Type to "Custom"
Set Resolution: 1920x1080
FPS: 60 FPS
STEP 3
Video Format: "Any"
Audio Output Mode: Output desktop audio (WaveOut)
Mark the "v" in the "Use custom audio device"
Audio Device: "C8 USB3.0 Video"
STEP 4
Click "Start Recording" to record the video and audio of your source.
And your recording file will be saved in File in the upper left corner.
