$299.99
Meet Your Seller

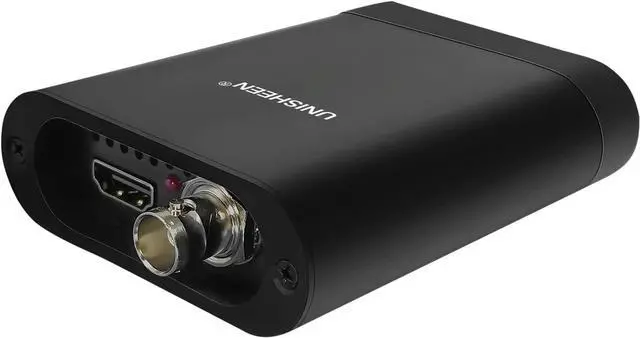

USB 3.0 HDMI SDI Video Capture Card, Broadcast Game Live Stream, HDMI to USB 3.0 Dongle HD 1080P Live Streaming Video Game Grabber Converter Free Driver
- 1080P60 FHD SDI or HDMI Input
- YUV 4:2:2 BT.709 Color Space
- High Speed USB3.0 Interface( USB2.0 compatiable)
- Support Win7/8/10,Mac,Linux,Andriod
- Free Driver and Compatible OBS/Vmix/Wirecast/Xsplit/VLC/Potplayer etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
It is a PRO USB external HDMI video capture grabber card device for graphics capture, live streaming, recording on your laptop, PC. Free Driver, A driver included with system (Windows, Linux, OS X) ensures plug and play compatibility, Capture one single channel HDMI or SDI video signals.

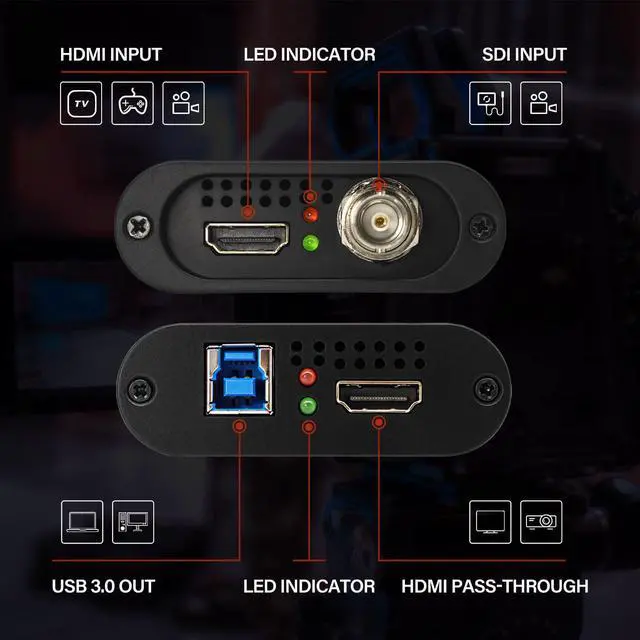

Interface
USB interface: USB 3.0, 360MB/s Bandwidth(Compatiable USB 2.0 )
Input interface: 1xSDI, 1xHDMI
Output interface: Only 1xHDMI Loop(this loop output don't support SDI in)
Video input: 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Audio input: HDMI/SDI embedded
System: Windows (7, 8, 8.1, 10), Linux (kernel version 2.6. 38 and above), OS X ( 10.8 and above)
Standard
HDMI input format: HDMI 1.4 a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance
Transmission speed:
HDMI: 165MHZ, SDI: 1.485G b/s, 2.97G b/
Video capture: UVC (USB video class) compliance
Audio capture: UAC (USB audio class) compliance
Output color space: YUV2
Multiple dongles can be used on one PC. You can use 2 dongles set up dual hdmi / SDI capture or more dongles set up multi capture. For the copyright protection, The user shall not use the device to capture the HD output of blue ray player.
1080p/60fps full HD & UAC and UVC, The UAC is compatible with HDMI audio capture and audio output, The converter Support HDMI input HDMI output (Loop Thru).
It compatible with Windows 7, 8, 10, Linux, OS X (Mac) operating systems.
USB 3.0, 360MB/s transmit bandwidth compatible with USB 2.0, 3.0, Low latency game capture adapter for TV, Camera, dslr, Xbox One, Xbox 360, PS4 and Wii U (unencrypted HDMI), Support Live streaming to youtube, facebook, twitch, twitter and etc.
General
Operation system: Support version x86 & x64 from Windows 78.110, Windows Server 2008 R2
Compatible software: Windows Media Encoder,, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.
Compatible development interface: DirectShow (Windows), DirectSound (Windows)
Update: Firmware can be updated by USB port
Dimension: 70x100x24mm
Box Dimension: 100x146x53mm
Net/Gross Weight: 0.2 / 0.3 kg
Interface
USB interface: USB 3.0, 360MB/s Bandwidth(Compatiable USB 2.0 )
Input interface: 1xSDI, 1xHDMI
Output interface: Only 1xHDMI Loop(this loop output don't support SDI in)
Video input: 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Audio input: HDMI/SDI embedded
System: Windows (7, 8, 8.1, 10), Linux (kernel version 2.6. 38 and above), OS X ( 10.8 and above)
Standard
HDMI input format: HDMI 1.4 a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance
Transmission speed:
HDMI: 165MHZ, SDI: 1.485G b/s, 2.97G b/
Video capture: UVC (USB video class) compliance
Audio capture: UAC (USB audio class) compliance
Output color space: YUV2
Multiple dongles can be used on one PC. You can use 2 dongles set up dual hdmi / SDI capture or more dongles set up multi capture. For the copyright protection, The user shall not use the device to capture the HD output of blue ray player.
1080p/60fps full HD & UAC and UVC, The UAC is compatible with HDMI audio capture and audio output, The converter Support HDMI input HDMI output (Loop Thru).
It compatible with Windows 7, 8, 10, Linux, OS X (Mac) operating systems.
USB 3.0, 360MB/s transmit bandwidth compatible with USB 2.0, 3.0, Low latency game capture adapter for TV, Camera, dslr, Xbox One, Xbox 360, PS4 and Wii U (unencrypted HDMI), Support Live streaming to youtube, facebook, twitch, twitter and etc.
General
Operation system: Support version x86 & x64 from Windows 78.110, Windows Server 2008 R2
Compatible software: Windows Media Encoder,, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.
Compatible development interface: DirectShow (Windows), DirectSound (Windows)
Update: Firmware can be updated by USB port
Dimension: 70x100x24mm
Box Dimension: 100x146x53mm
Net/Gross Weight: 0.2 / 0.3 kg
