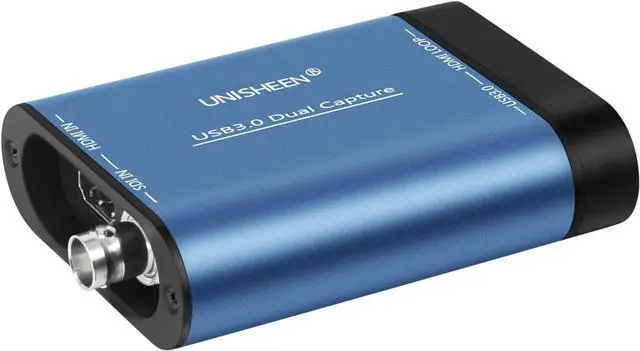

USB 3.0 HDMI SDI Dual Input Capture Card, Video Broadcast Game Live Stream, HDMI to USB 3.0 HD 1080P Live Streaming Video Grabber Converter
- Input interface: SDI HDMI Dual Channel Input
- Output interface:Only HDMI Loop(this loop output don't support SDI in)
- Operation system:Support version x86 & x64 from Windows 78.11011,Windows Server 2008 R2 Linux
- Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30.
- Free Driver and Compatible Zoom/OBS/Vmix/Wirecast/Xsplit/VLC/Potplayer etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
General:
Operation system: Support version x86 & x64 from Windows 78.110, Windows Server 2008 R2 Linux
Compatible software: Windows Media Encoder,, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.
Compatible development interface: DirectShow (Windows), DirectSound (Windows)
Update: Firmware can be updated by USB port
Dimension: 69x90x24mm
Box Dimension: 100x146x53mm
Net/Gross Weight: 0.2 / 0.3 kg
Working Temperature: 0-50 degree
Storage temperature: -20-70 degree
Included in package: *USB Grabber 1pcs *USB 3.0 Cable 1pcs *User Manual 1pcs
Interface USB interface USB 3.0, 360MB/s Bandwidth(Compatiable USB 2.0 )

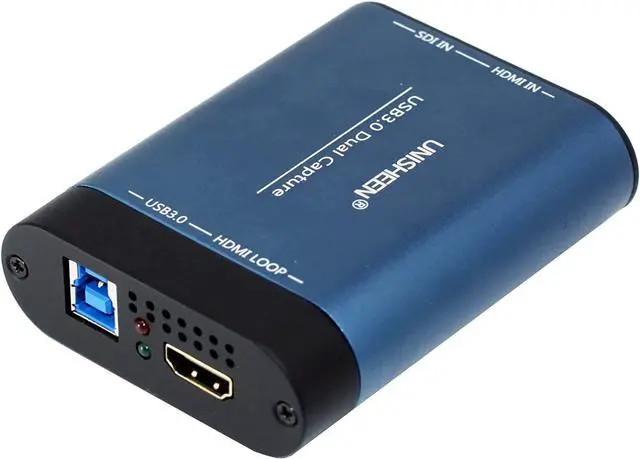

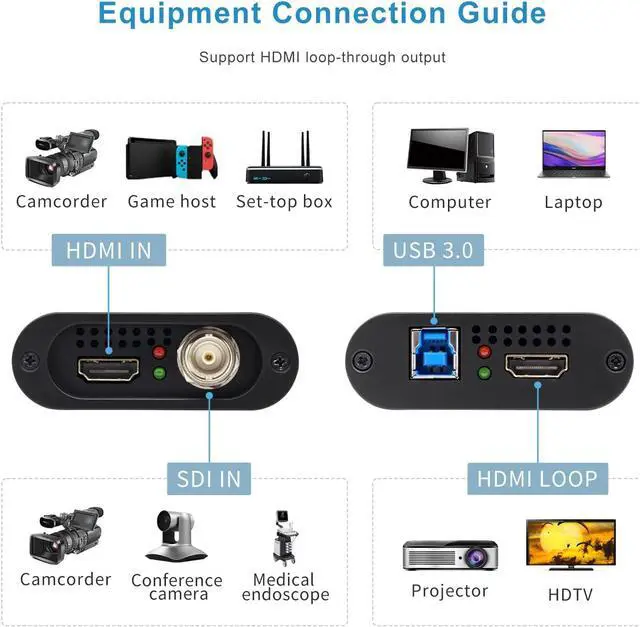

Input interface 1xSDI, 1xHDMI (Dual Channel Input)
Output interface Only 1xHDMI Loop(this loop output don't support SDI in)
Video input 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Audio input HDMI/SDI embedded
HDMI input format HDMI 1.4 a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/ HD/3G- SDI, SMPTE-259/274/296/372/424/425/292 compliance
Transmission speed HDMI: 165MHZ, SDI: 1.485G b/s, 2.97G b/s
Video capture UVC (USB video class) compliance
Audio capture UAC (USB audio class) compliance
Output color space YUV2 NV12
Recording Mode Software Compression, Real-Time Mode
Operation system: Support version x86 & x64 from Windows 78.110, Windows Server 2008 R2 Linux
Compatible software: Windows Media Encoder,, Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.
Compatible development interface: DirectShow (Windows), DirectSound (Windows)
Update: Firmware can be updated by USB port
Dimension: 69x90x24mm
Box Dimension: 100x146x53mm
Net/Gross Weight: 0.2 / 0.3 kg
Working Temperature: 0-50 degree
Storage temperature: -20-70 degree
Included in package: *USB Grabber 1pcs *USB 3.0 Cable 1pcs *User Manual 1pcs
Interface USB interface USB 3.0, 360MB/s Bandwidth(Compatiable USB 2.0 )
Input interface 1xSDI, 1xHDMI (Dual Channel Input)
Output interface Only 1xHDMI Loop(this loop output don't support SDI in)
Video input 1080P50/60, 1080I50/60, 720P50/60, 576P, 576I, 480P, 480I
Audio input HDMI/SDI embedded
HDMI input format HDMI 1.4 a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/ HD/3G- SDI, SMPTE-259/274/296/372/424/425/292 compliance
Transmission speed HDMI: 165MHZ, SDI: 1.485G b/s, 2.97G b/s
Video capture UVC (USB video class) compliance
Audio capture UAC (USB audio class) compliance
Output color space YUV2 NV12
Recording Mode Software Compression, Real-Time Mode
