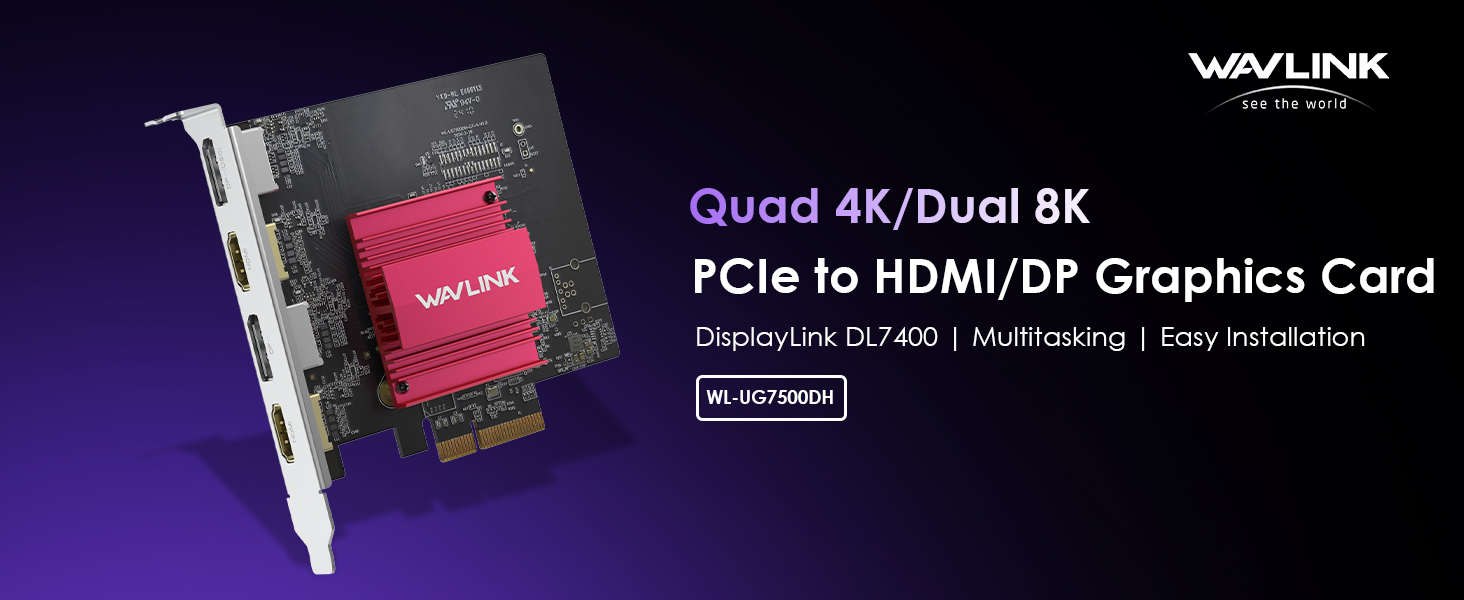

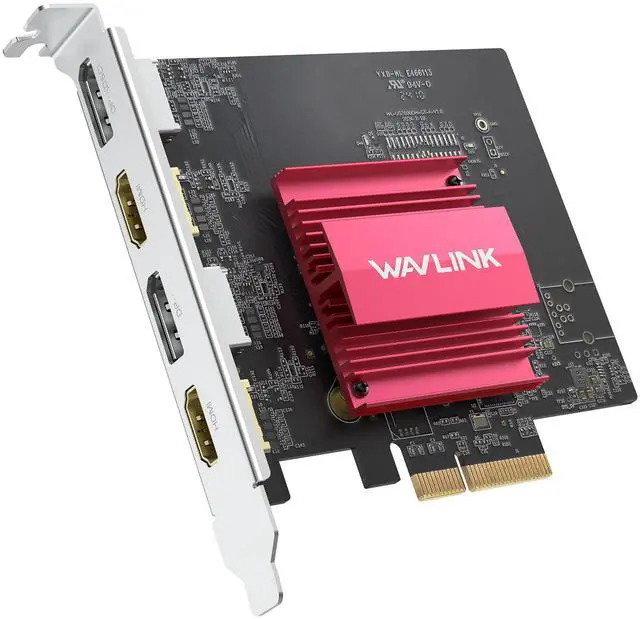

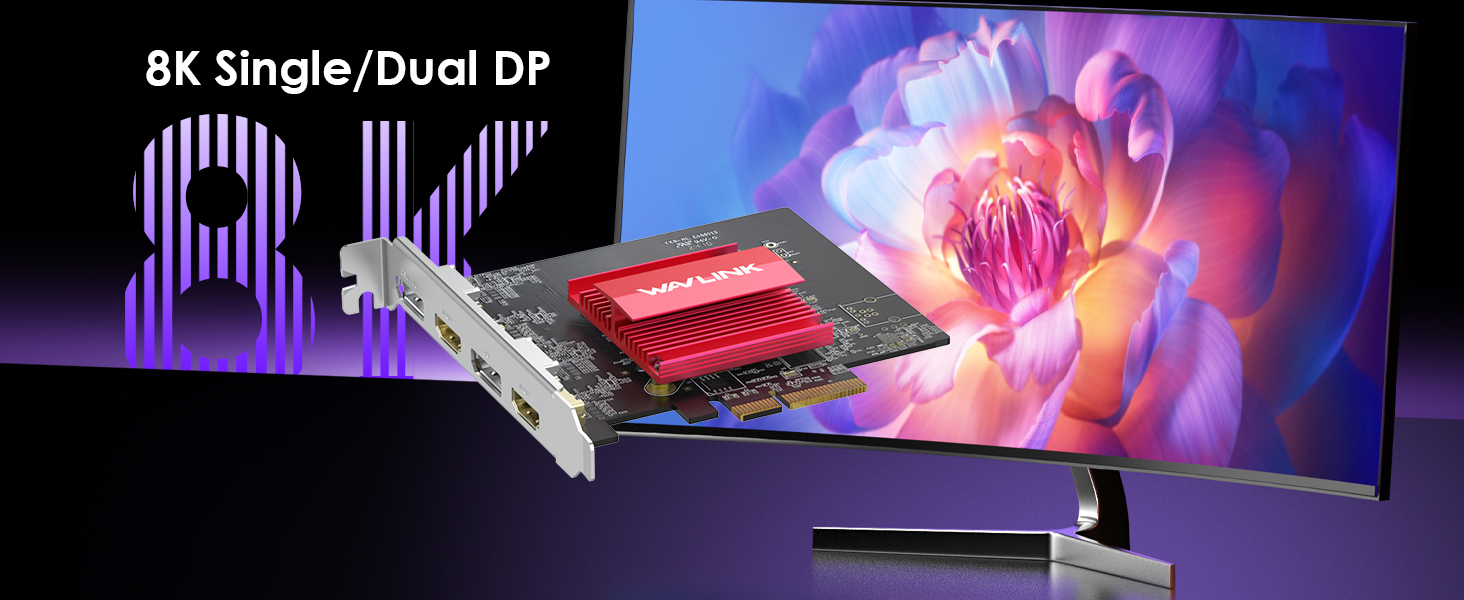

WAVLINK WL-UG7500DH PCIe 3.0 Quad 4K/Dual DP 8K Graphics Card
Empower your workspace with a dynamic PCIe 3.0 x4 graphics card. Featuring DP/HDMI ports for stunning 8K/4K visuals, fueled by the cutting-edge DisplayLink DL7400-N chipset. Seamless performance for work and entertainment tasks like document editing and video conferencing. Customize your display effortlessly with mirror and extend modes. Setup is a breezedownload the driver from the DisplayLink website. Compatible with Windows 11/10, Ubuntu and most desktops with a standard PCIe x4/x8/x16 slot. Choose the WAVLINK WL-UG7500DH to elevate your productivity and visual experience!

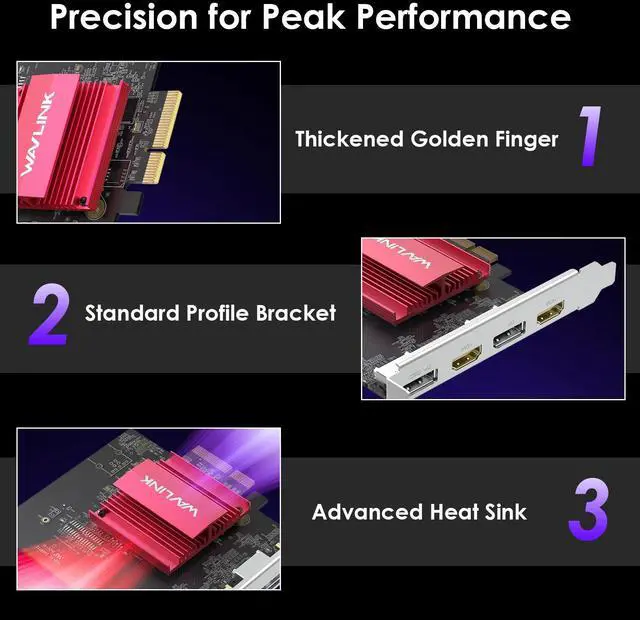

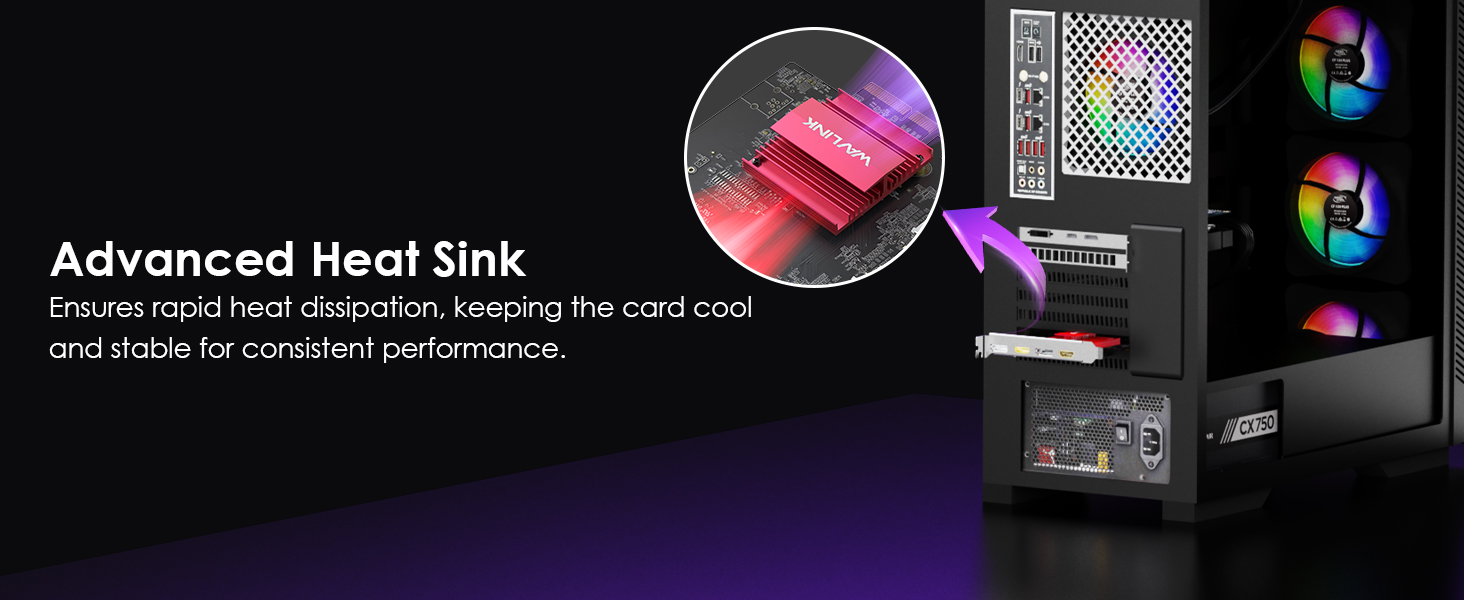

Advanced Heat Sink
The innovative heat sink design ensures rapid heat dissipation, keeping the card cool and stable for consistent performance.

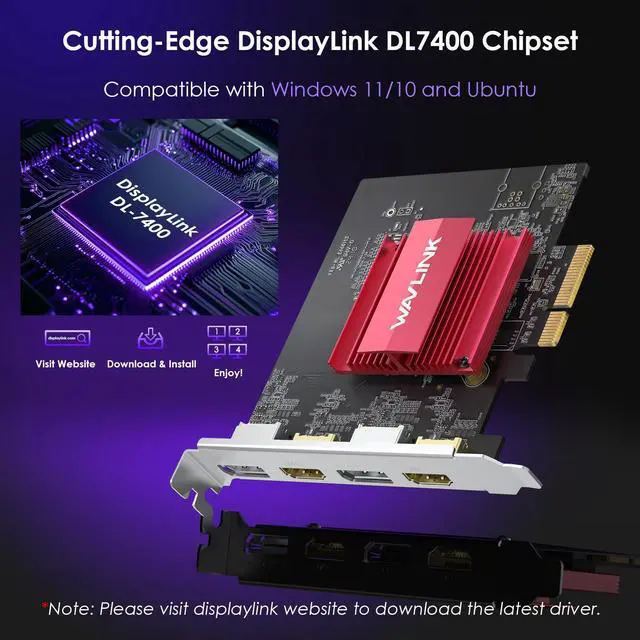

High-Performance Chipset
The DisplayLink DL7400-N chipset delivers fast data transfer speeds and reliable visual transmissions, ideal for both work tasks and everyday use.

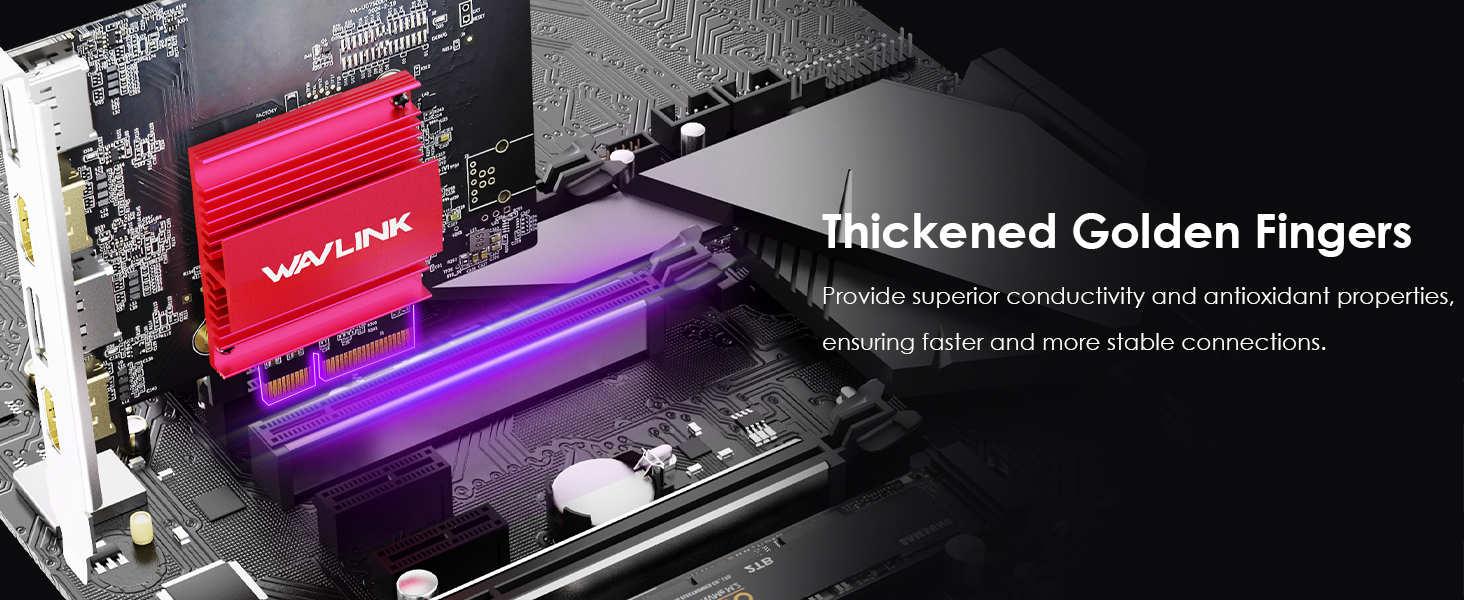

Reinforced Interface
The thickened golden finger connection provides superior conductivity and antioxidant properties, ensuring faster and more stable connections.

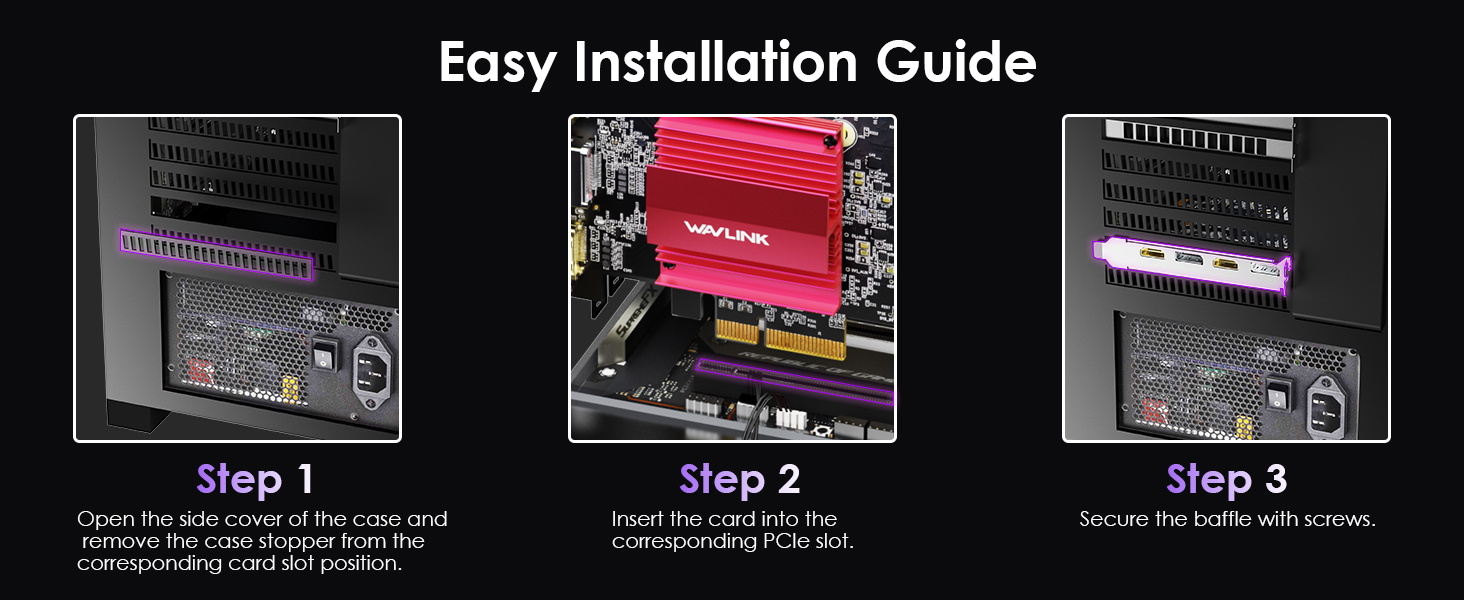

Installation Guide
1.
Prepare Your System:
- Ensure your desktop features an available standard PCIe x4/x8/x16 slot.
- Power off your computer and disconnect it from the power source.
2. Install the
Graphics Card:
- Open your computer case, and gently insert the card into the slot, ensuring a secure fit.
- Close the case and reconnect the power.
3. Download and Install the
Driver:
- Connect your computer to the internet.
- Visit DisplayLink's official website (displaylink. com).
- Download and install the latest driver for your system.
- Start use after easy setting.

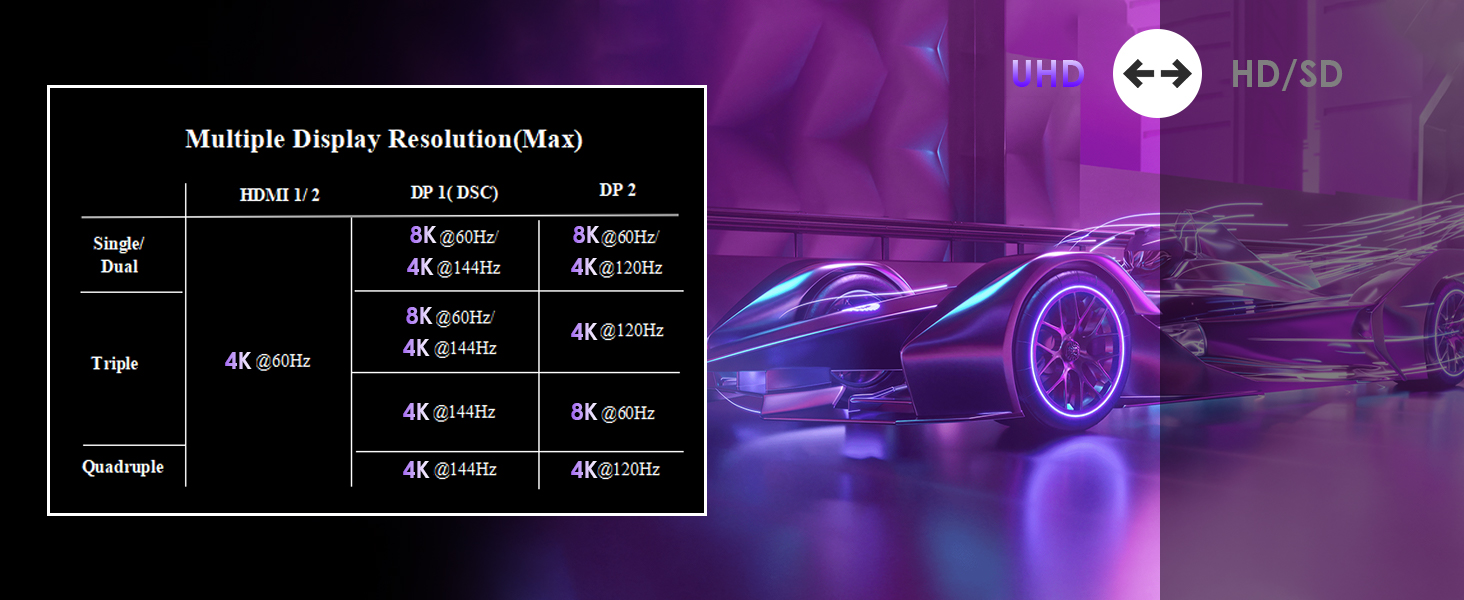

Multiple Display Resolution(Max. Resolution)
1) Single Display:
DP 1 (DSC): 8K@60Hz/4K@144Hz
DP 2: 8 K@60Hz/4K@120Hz
HDMI 1/ 2: 4 K@60Hz
2) Dual Display:
DP 1 (DSC) +DP 2: 8 K@60Hz/4K@144Hz+8K@60Hz/4K@120Hz
DP 1 (DSC) +HDMI 1/ 2: 8 K@60Hz/4K@144Hz+4K@60Hz
DP 2+HDMI 1/ 2: 8 K@60Hz/4K@120Hz+4K@60Hz
HDMI 1+HDMI 2: 2 *4K@60Hz
3) Triple Display:
DP 1 (DSC) +DP 2+HDMI 1/ 2: 8 K@60Hz/4K@144Hz+4K@120Hz+4K@60Hz; or 4K@144Hz+8K@60Hz+4K@60Hz
DP 1 (DSC) +HDMI 1+HDMI 2: 8 K@60Hz/4K@144Hz+2*4K@60Hz
DP 2 +HDMI 1+HDMI 2: 8 K@60Hz/4K@120Hz+2*4K@60Hz
4) Quadruple Display:
DP 1 (DSC) +DP2+HDMI 1+HDMI 2: 4 K@144Hz+4K@120Hz+2*4K@60Hz
Specification
1.
Model: WL-UG7500DH
2.
Chip: DisplayLink DL7400-N
3. Connection to
Host: PCIE 3.0 x4
4.
Video Ports: 2 x HDMI, 2 x DisplayPort
5.
Operating Systems: Windows 10/11 or later, Ubuntu
6.
Host Requirement: Desktop with at least one available standard PCIe x4/x8/x16 slot
7.

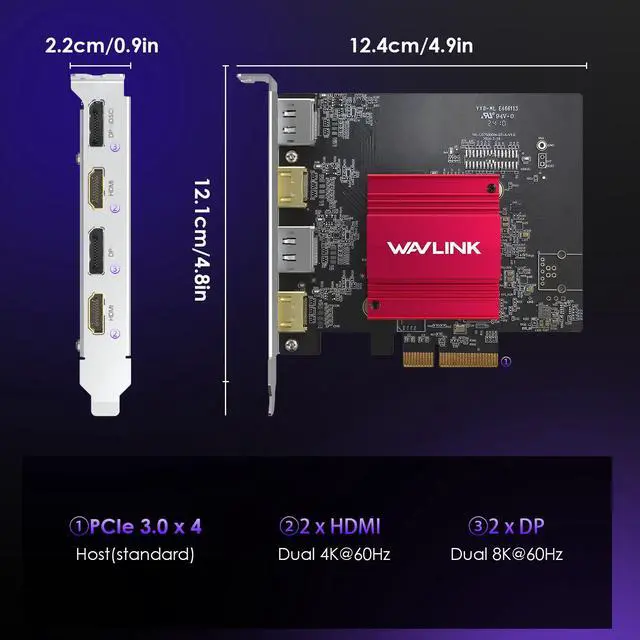

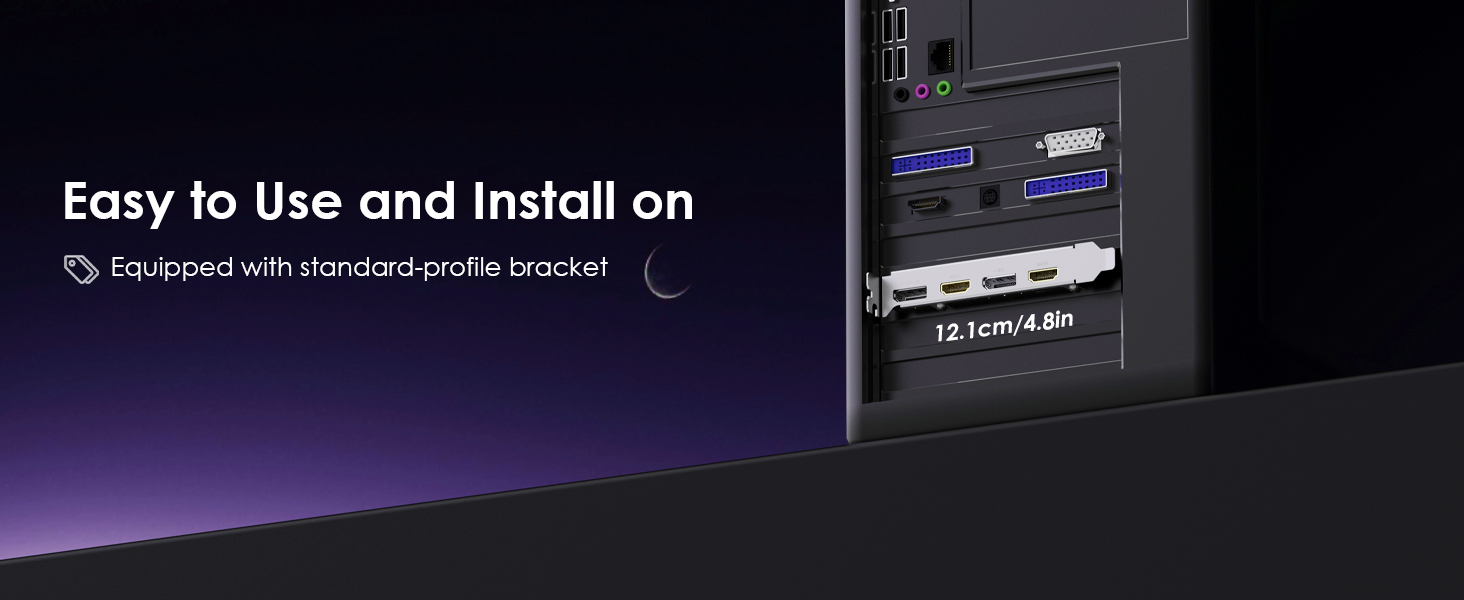

Product Size: 12.4 x 12.1 x 2.2 cm/ 4.9 x 4.8 x 0.9 in (L x W x H)
8.
Product Weight: 103g/ 3.6 oz
Features
- Two DP support dual 8K, and two HDMI support dual 4K. Quad 4K display.
- Supports HDR 10 standard for more vivid and realistic video display.

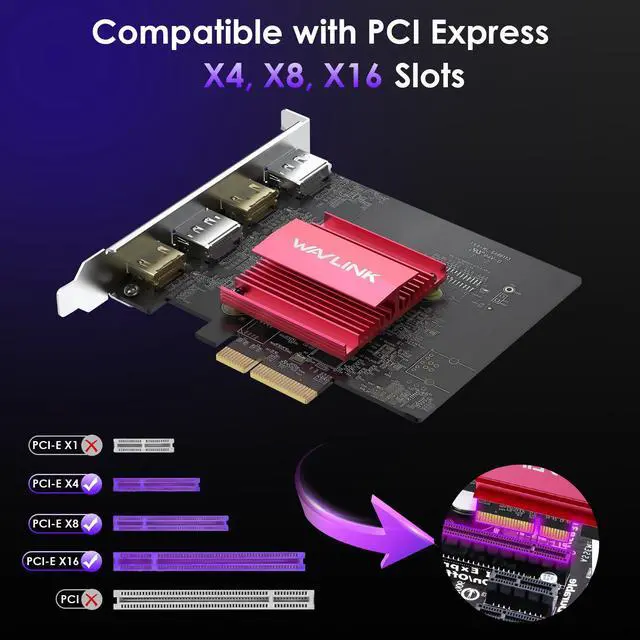

- Standard PCIe 3.0 x4 compatibility with most PCIe slots.
- Simple installation process; no complex configuration required.
Warm Tips
1. Not plug-and-play supported; please download and install drivers from the official website.
2. Ideal for light office use; not recommended for graphic-intensive tasks like gaming or video editing.
3. Does not support playing HDCP-protected content from Netflix/Amazon Prime/iTunes/Hulu, etc.
In the Box
- 1x PCIe 3.0 to Quad 4K/Dual DisplayPort 8K Graphics Card
- 1x Quick Start Guide
