The EZCAP288 1080P HDMI capture card for AV recording and medical capture does not require a computer
- Supports HDMI and AV video input

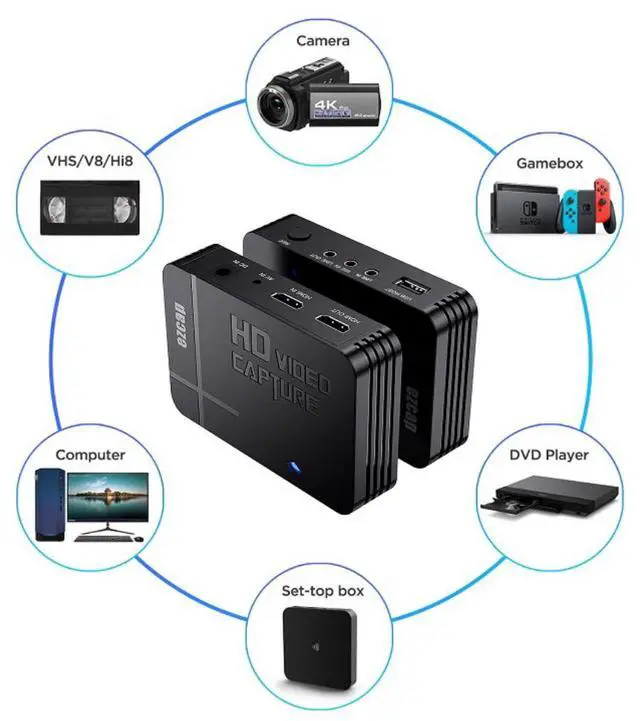

- The ezcap288 HDMI AV high-definition recording box supports both HDMI and AV video input. You can either connect it to a game console or set-top box to record high-definition videos, or connect it to an old-fashioned video player or camera to convert tape videos into digital video formats and save them on a USB flash drive or a portable hard drive. The ezcap288 HDMI AV high-definition recording box supports HDMI output, with a maximum full high-definition resolution of 1080p60. You can also connect to a microphone to mix and record your voice commentary with the video. It also comes with a built-in line output interface, which can be connected to headphones or speakers
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification parameters
- Host interface: USB 2.0
Video input: HDMI, AV (CVBS)
- Audio input: HDMI, 3.5 mm three-channel microphone input, 3.5 mm three-channel cable input.
- Video output: HDMI
- Audio output: HDMI, 3.5 mm three-section cable output
- User interface: Recording button, working status indicator light
Storage media: USB flash drive, portable hard drive, FAT32 and NTFS formats
- Power adapter: DC 5V2A
- Encoders: Video -H. 264, Audio -AAC
Resolution:
Input/Output: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Recording: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) * Resolution enhancement is not supported.
- Record information:. mp4, up to 16Mbps@1080p30fps, approximately 2GB per file, approximately 140MB per minute
- Packaging contents: ezcap288 HDMI AV High-definition recording Box, AV adapter cable, 2RCA adapter, DC power adapter, Instruction manual
- Product dimensions/Net weight: 110 (length) × 75 (width) × 27 (height) mm, 135 grams
- Host interface: USB 2.0
Video input: HDMI, AV (CVBS)
- Audio input: HDMI, 3.5 mm three-channel microphone input, 3.5 mm three-channel cable input.
- Video output: HDMI
- Audio output: HDMI, 3.5 mm three-section cable output
- User interface: Recording button, working status indicator light
Storage media: USB flash drive, portable hard drive, FAT32 and NTFS formats
- Power adapter: DC 5V2A
- Encoders: Video -H. 264, Audio -AAC
Resolution:
Input/Output: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Recording: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p) * Resolution enhancement is not supported.
- Record information:. mp4, up to 16Mbps@1080p30fps, approximately 2GB per file, approximately 140MB per minute
- Packaging contents: ezcap288 HDMI AV High-definition recording Box, AV adapter cable, 2RCA adapter, DC power adapter, Instruction manual
- Product dimensions/Net weight: 110 (length) × 75 (width) × 27 (height) mm, 135 grams
