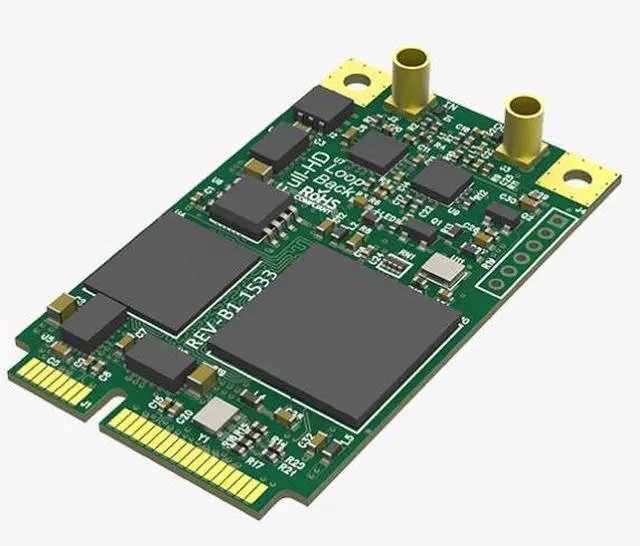

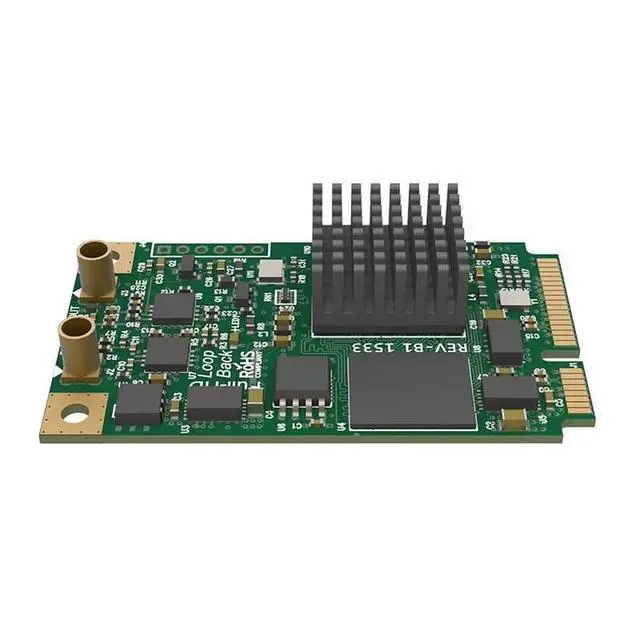

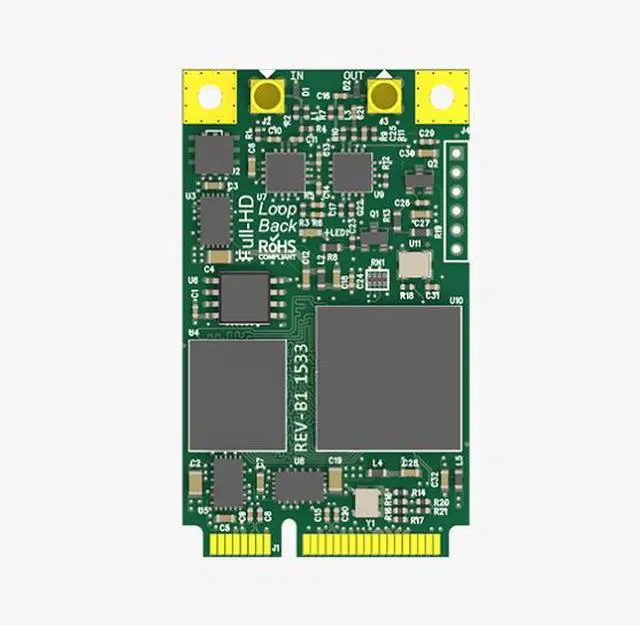

Magewell Pro Capture Mini SDI Capture Card, SD/HD/3G/2K SDI Input with Embedded Audio, SDI Loop-Through, PCIe Gen2 x1, Up to 2048×1080, Windows Linux Mac Compatible

The Magewell Pro Capture Mini SDI is a professional SDI capture card designed for compact and reliable video capture systems. It supports SD/HD/3G/2K SDI input with embedded audio, making it suitable for broadcast production, live streaming, video monitoring, medical imaging, industrial vision, education recording, and professional AV workflows.

The card features one SD/HD/3G/2K SDI input and one SD/HD/3G/2K SDI loop-through interface, both supporting resolutions up to 2048×1080 pixels. The loop-through function allows the SDI signal to be passed to another device, such as a monitor, recorder, switcher, or display system, while the signal is captured by the host computer.

With a PCIe Gen2 x1 host interface, the card provides stable data transmission for compatible desktop PCs, workstations, and industrial computers. Its built-in video engine supports 10-bit video processing, deinterlacing, cropping, color adjustment, hardware timestamp, color space conversion, up/down conversion, aspect ratio conversion, OSD, and SG-DMA transmission mode.

The card also supports automatic input signal format detection, time code, and closed caption functions. It is compatible with Windows, Linux, and Mac, and supports Magewell universal drivers, updatable firmware, Capture Express software, and compatible third-party software.
